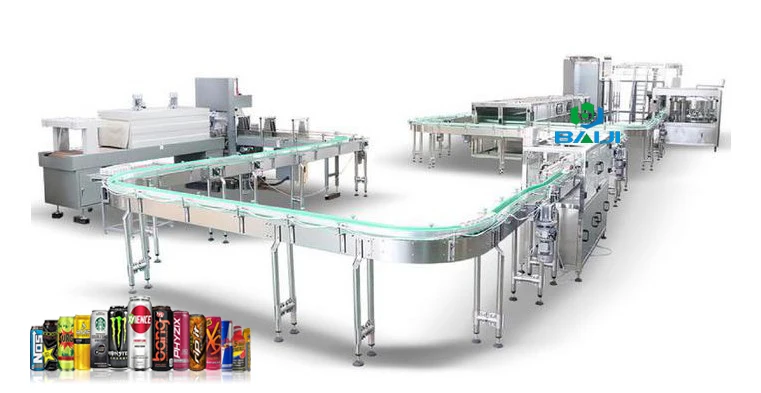

Complete aluminum can carbonated soft drink beer beverage filling sealing canning machine production line




Features:
This equipment can be used for different material of cans, such as metal tin can, aluminum can and PET can. Stable performance, not easy to wear out. The inlet valve closes once the specified quantity has been reached. While the can is being fed into the filler, the centering unit is raised. Once the magnetic float in the dosing tank has dropped to the preset switching point, the filling process is ended.




\t\t\t\t\t\t\t\t\tDetail Images \t\t\t\t\t\t\t

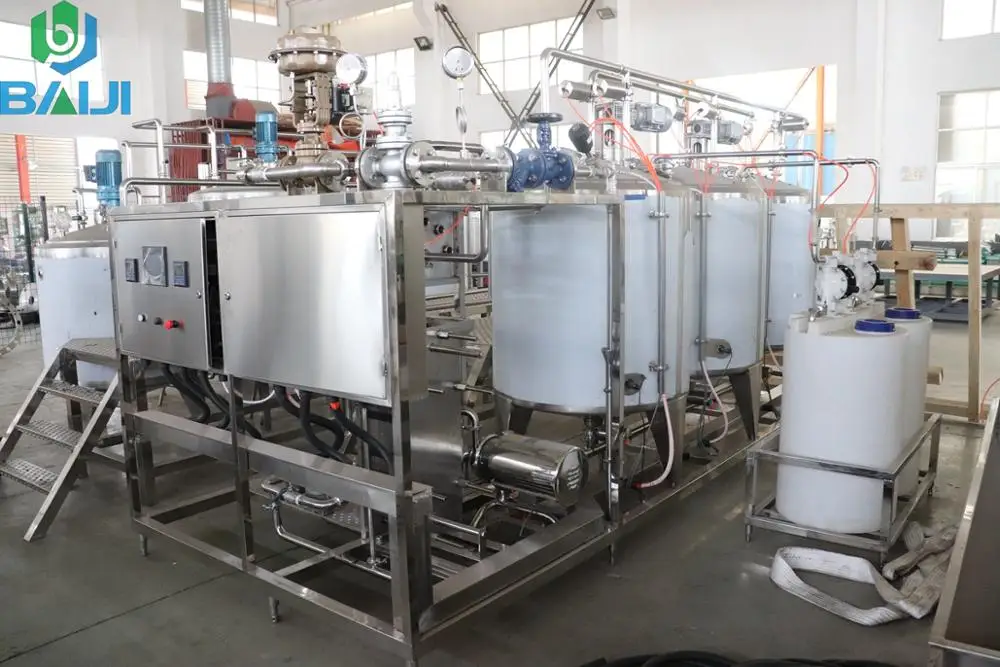

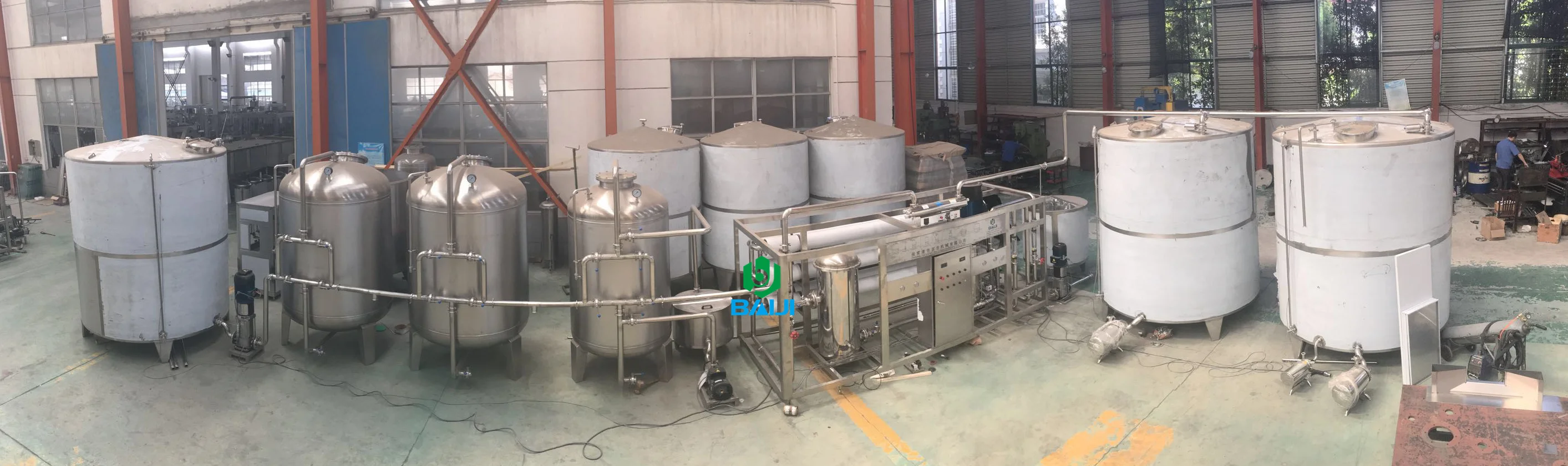

Water treatment system

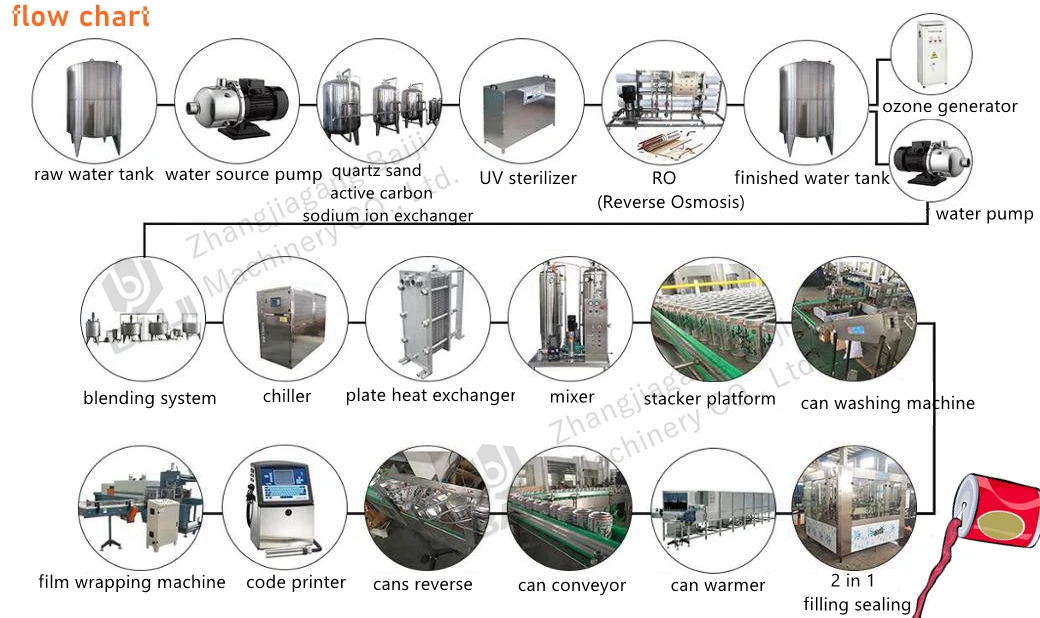

Processing included: quartz sand filter, active carbon filter, sodium ion exchanger, precision filter, RO (Reverse Osmosis), ozone generator, finished water tank

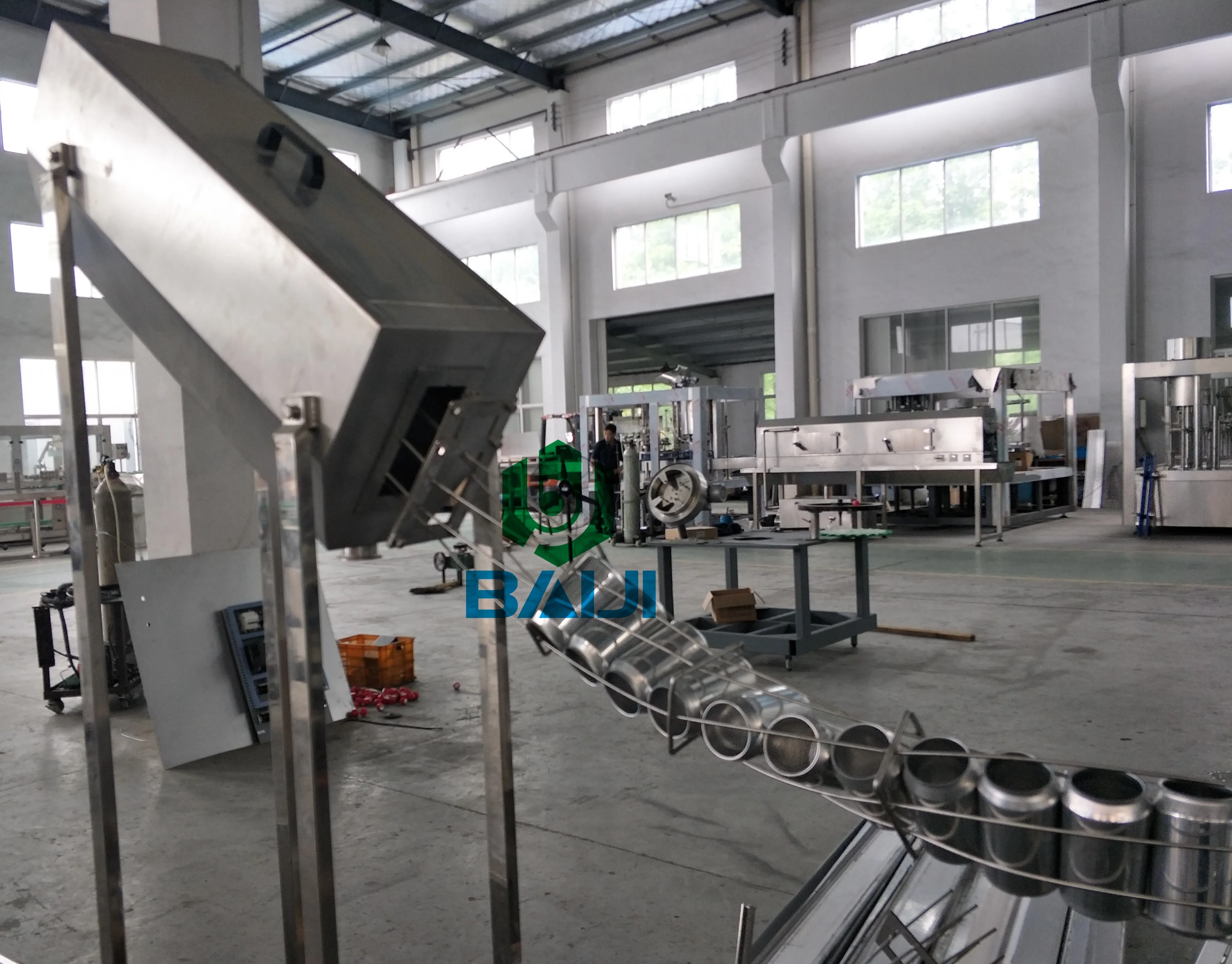

Can depalletizer
Washing machine


Technical Parameter
Model
GF12-1
GF12-4
GF18-4
GF18-6
Capacity (can/Hour)
1500-2000
3000-4000
4000-5000
5000-6000
Suitable can size ( ml )
150ml-500ml
φ53-φ72.9mm
height 65-190mm
φ52.5-φ83.3mm
height 70-133mm
Can size
200/202/206/209
Heads of filling
12
12
18
18
Heads of sealing
1
4
4
6
Filling temperature
(℃ )
0℃ -5℃
Power source specification
AC380V/50HZ
Power (kw)
2.2
3
4
5.5
Overall dimension(mm)
2200x1600x2200
2500x2000x2350
2850x1800x2200
3200x2100x2350
Weight(kg)
2500
3800
3850
4200
You also can customize the size according to your requirement,here is only part of sample.

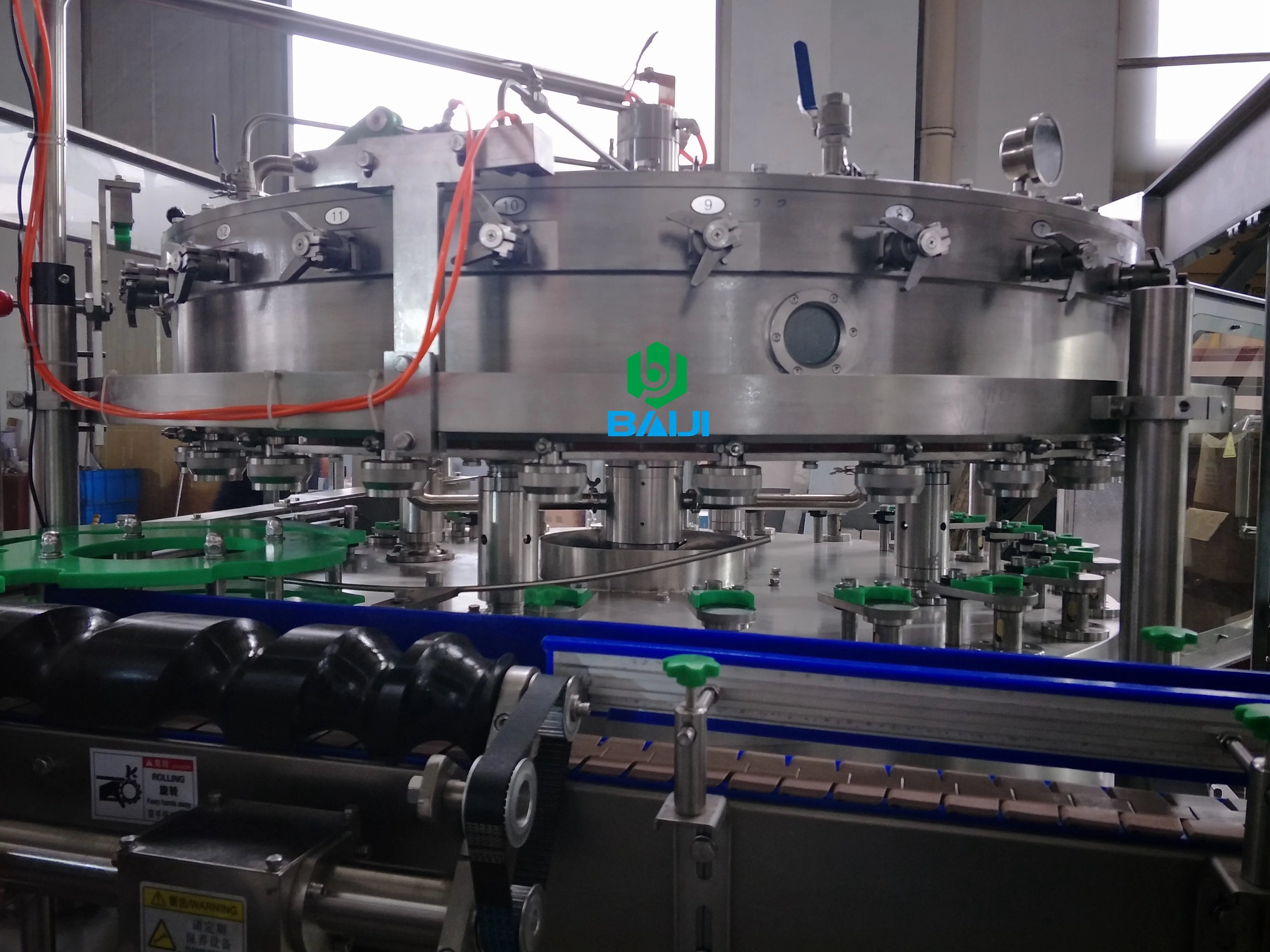

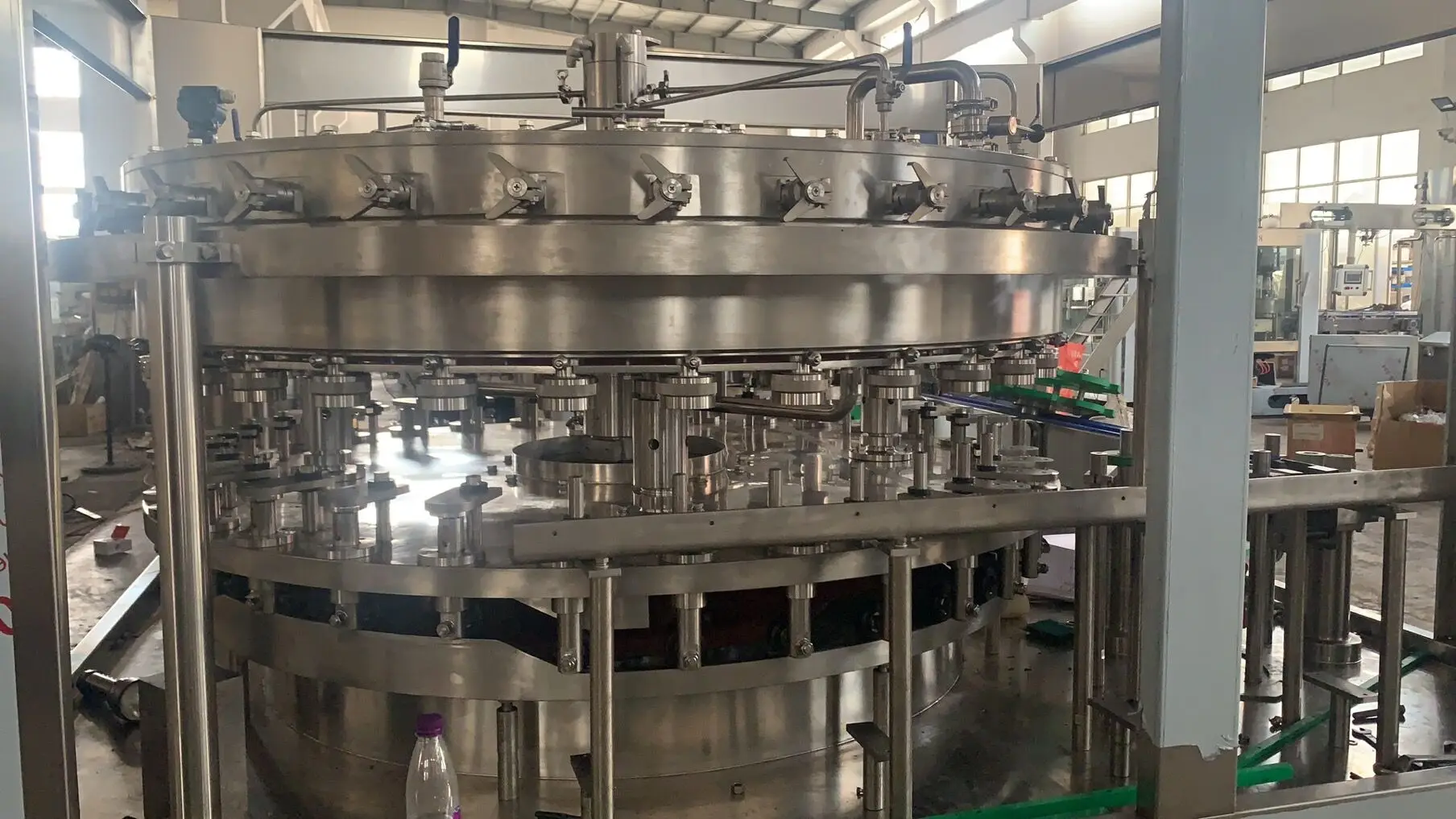

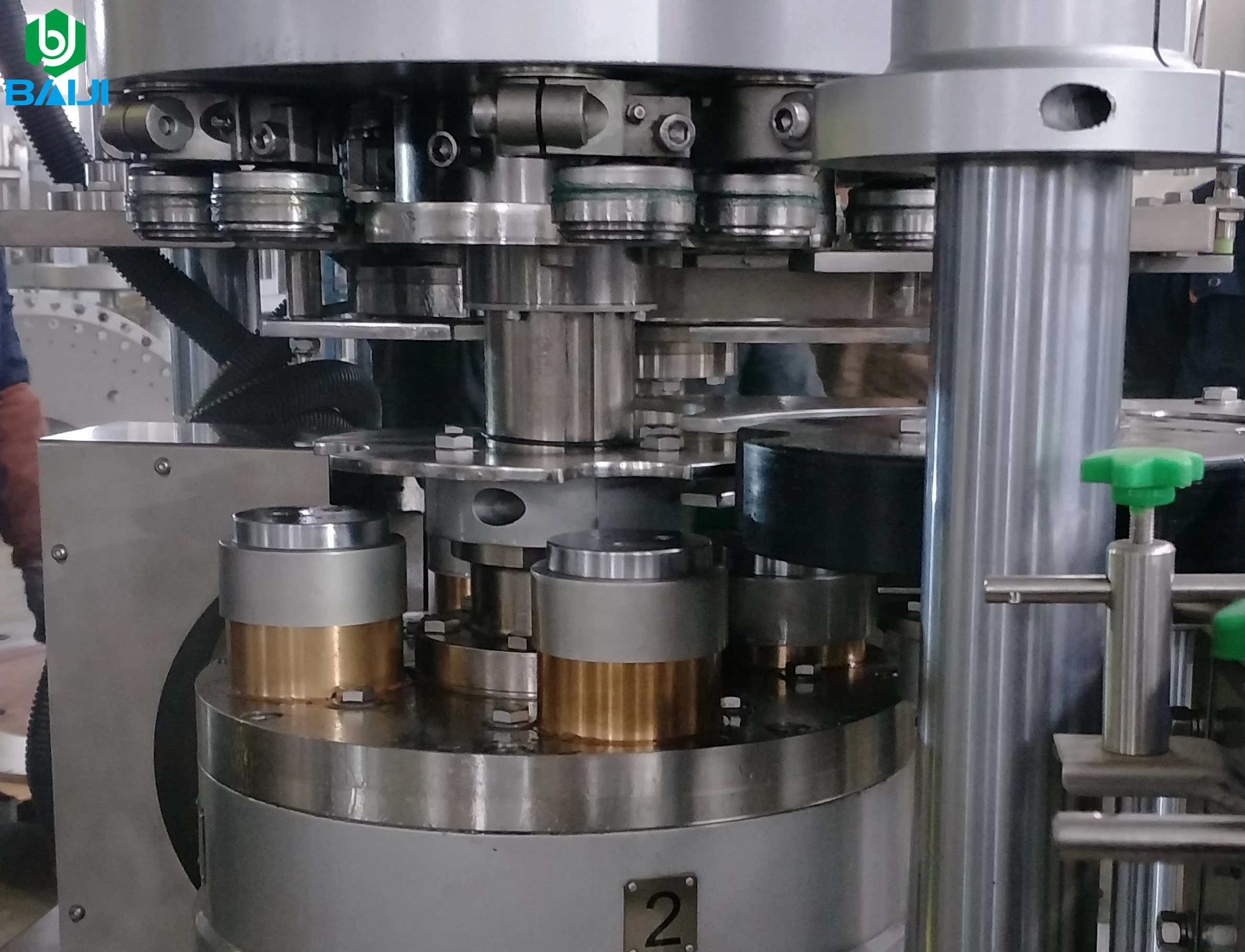

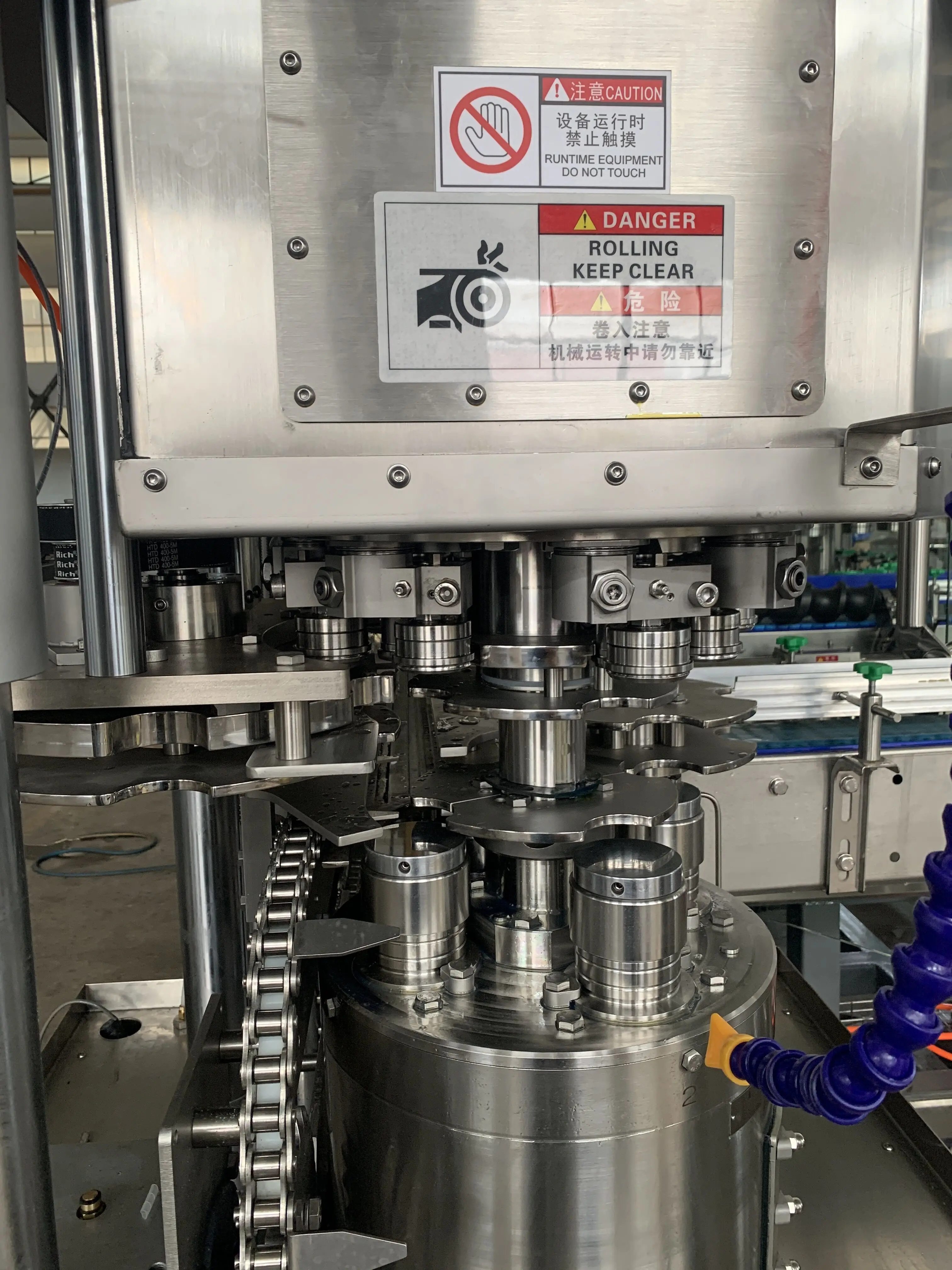

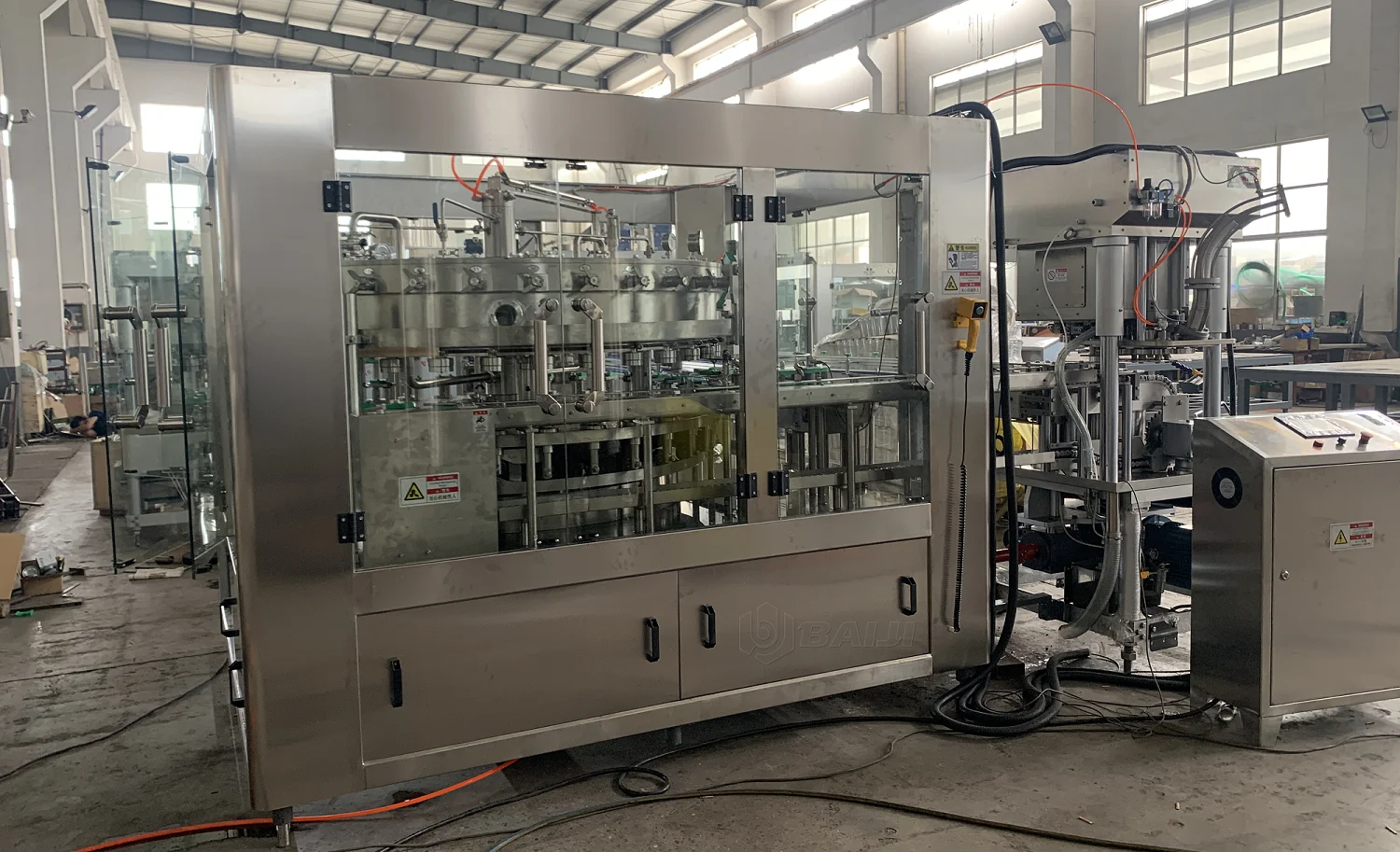

2 in 1 machine
filling and sealing

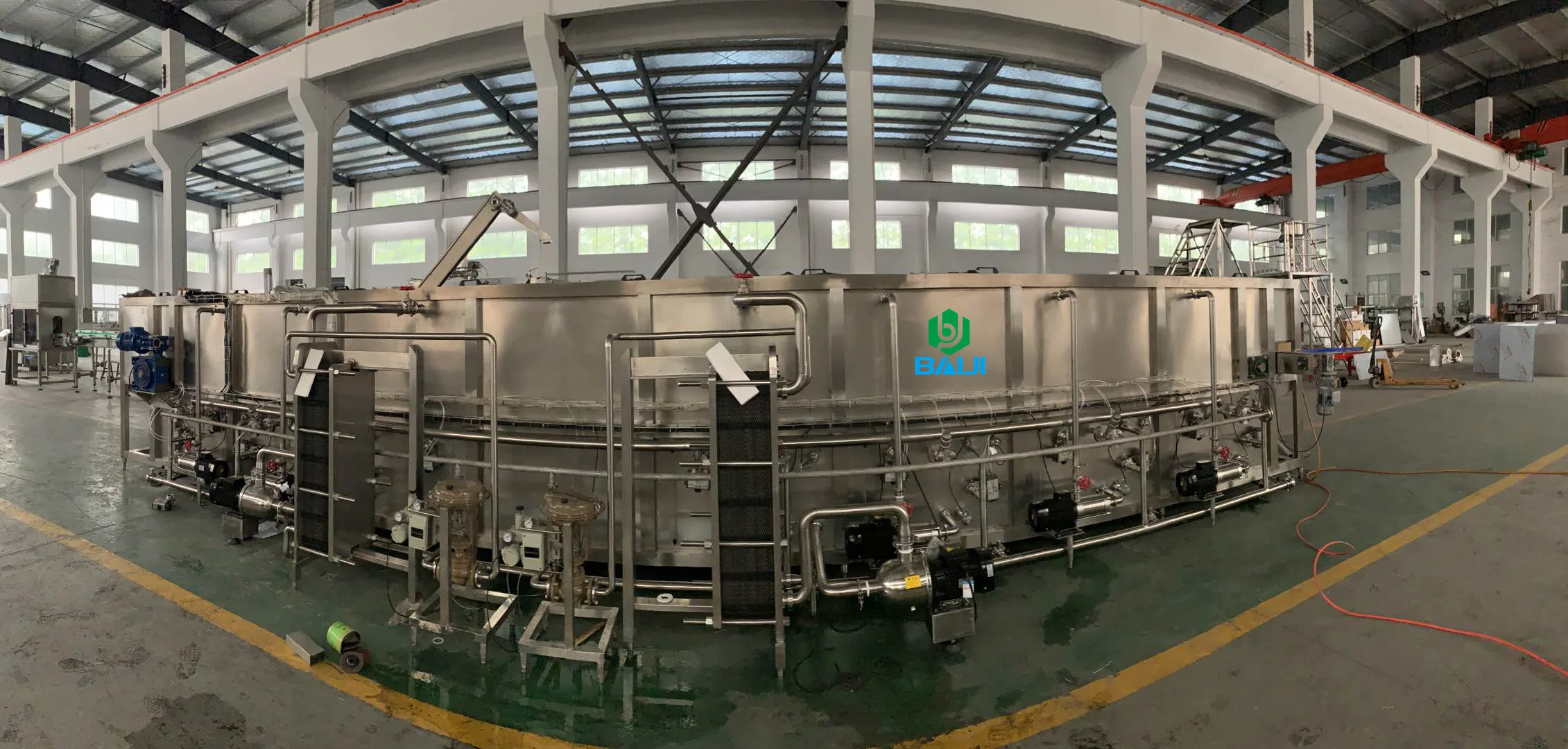

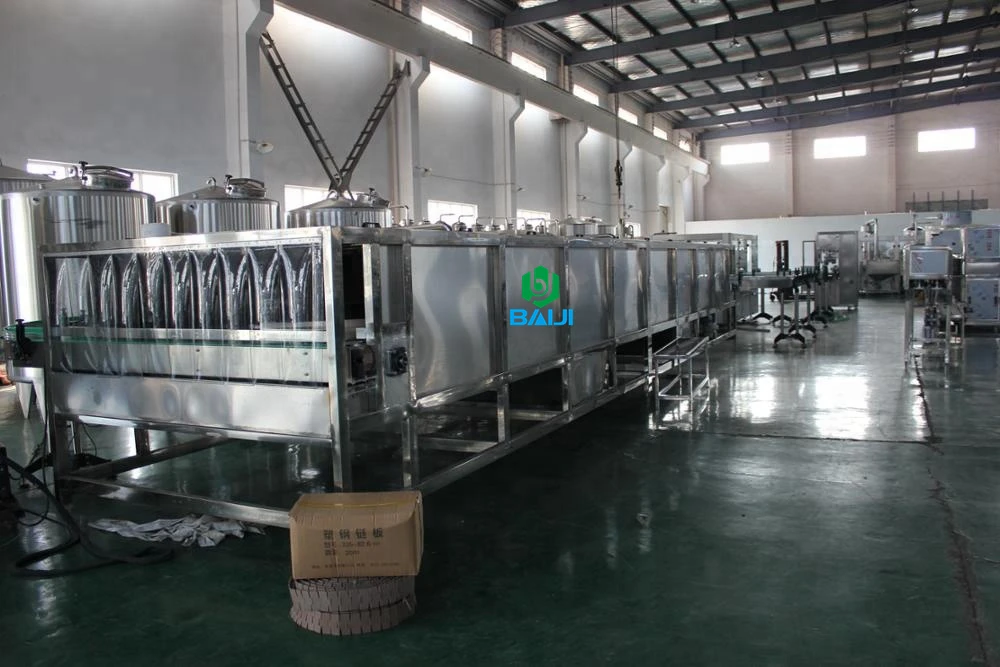

Can warmer

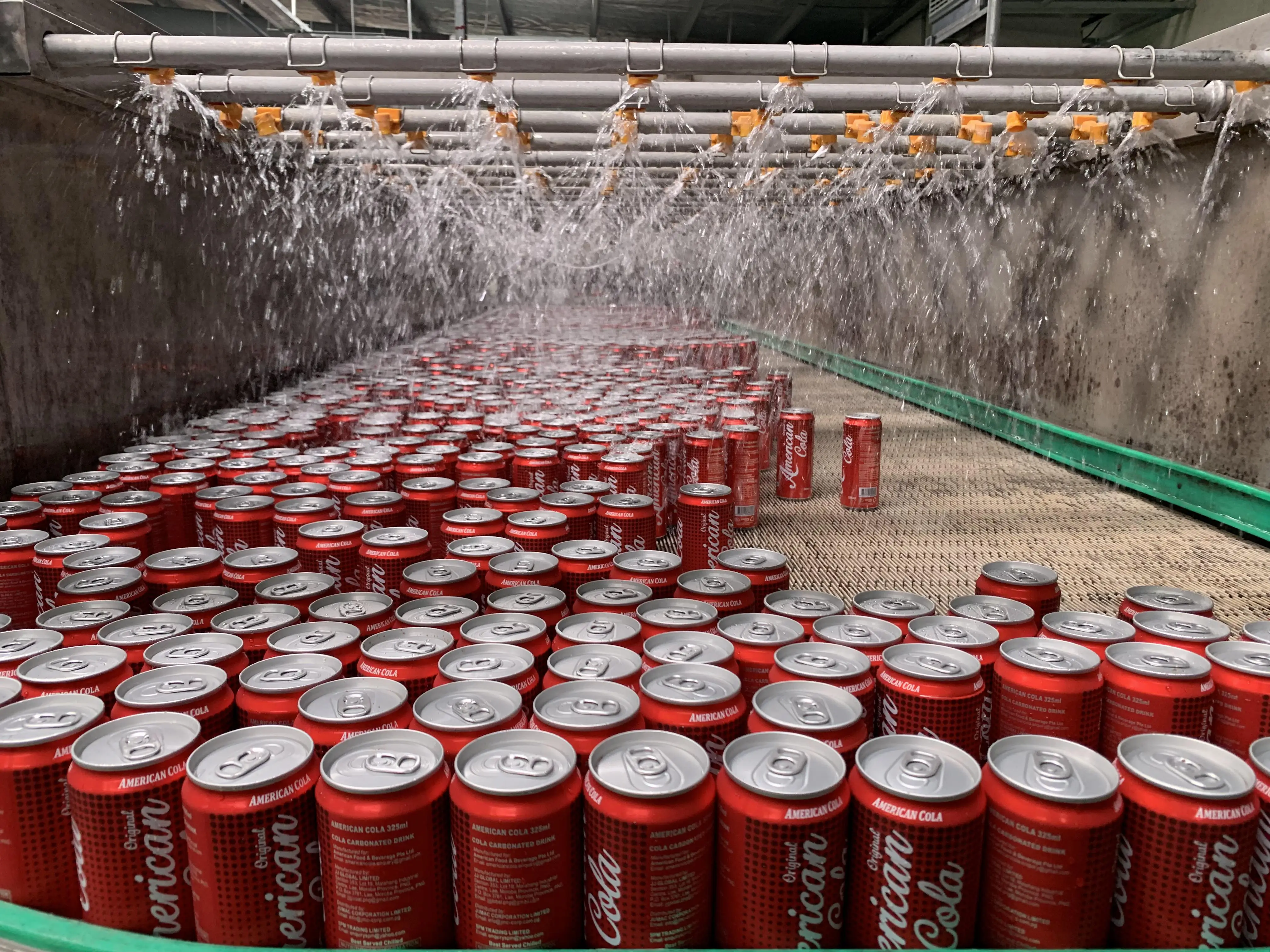

This machine is used to warm the can after low temperature filling, as the carbonated drink after filling, the can touch the outside air, it will has a lot small water drops outside, use this machine will warmer it to normal temperature, and after dryer machine, it will be good for packing.




Automatic packaging machine

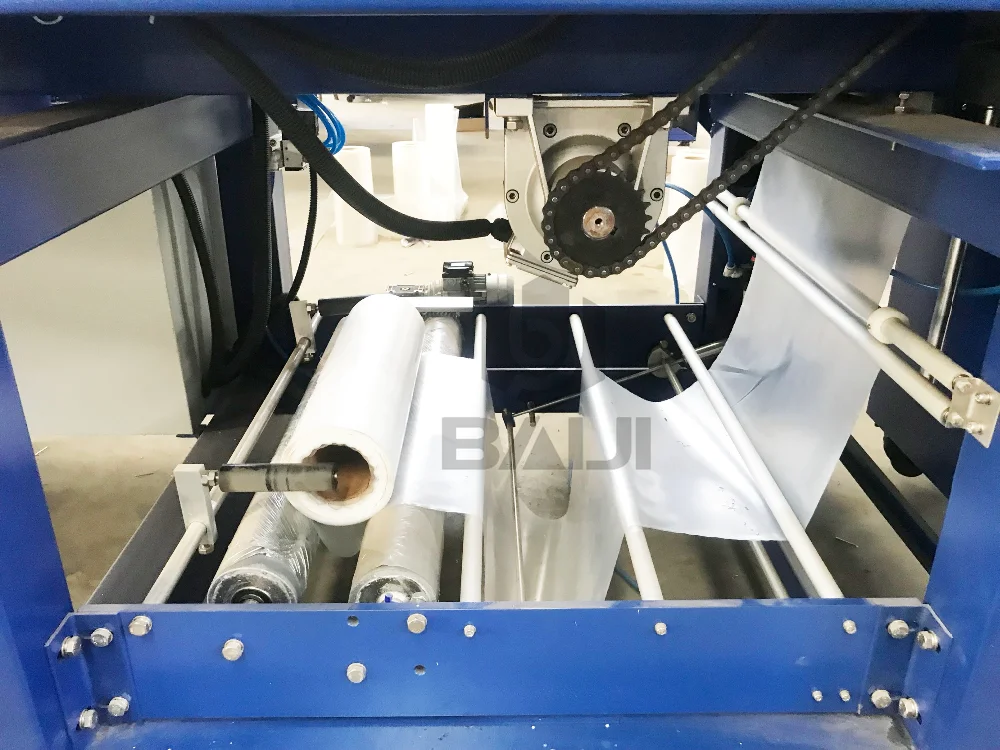

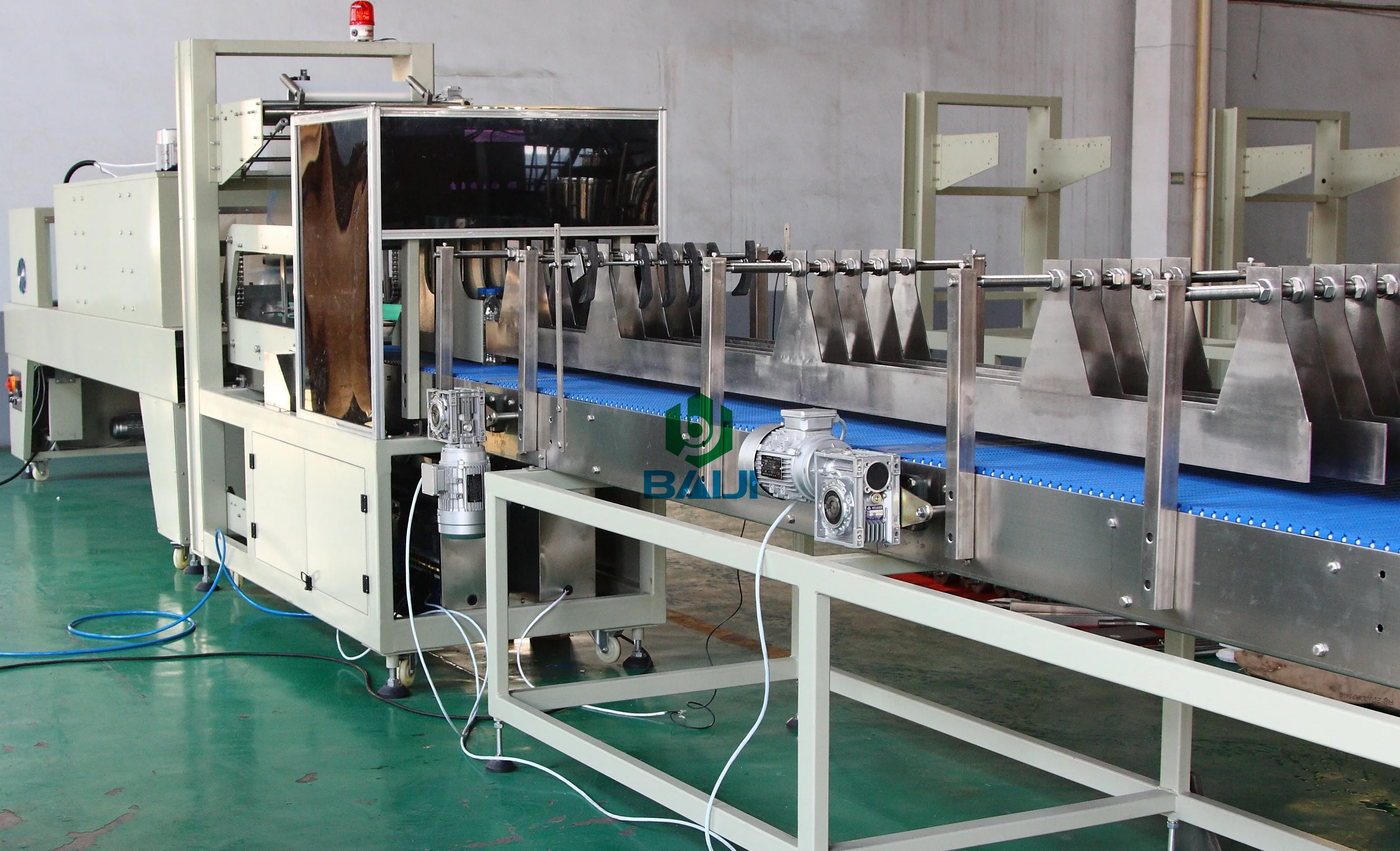

PE film shrink wrapping machine
It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished product.


Packing&Delivery




Certifications




\t\t\t\t\t\t\t\t\tOur Company \t\t\t\t\t\t\t




Zhangjiagang Baiji Machinery CO., Ltd is a company which has specifically manufactured beverage machine for more than 10 years. Our company holds the right of independent import & export, and enjoys a good reputation in national and aboard markets.
Our company is specialized in manufacturing carbonated drink production line, mineral water filling labeling and packing machine, pure water filling production line, juice or tea drink hot filling production line, milk filling and packing production line, edible oil filling and capping machine, wine production line. The drink can be PET bottled, 5 gallon barreled, easy open canned, glass bottled and so on.
