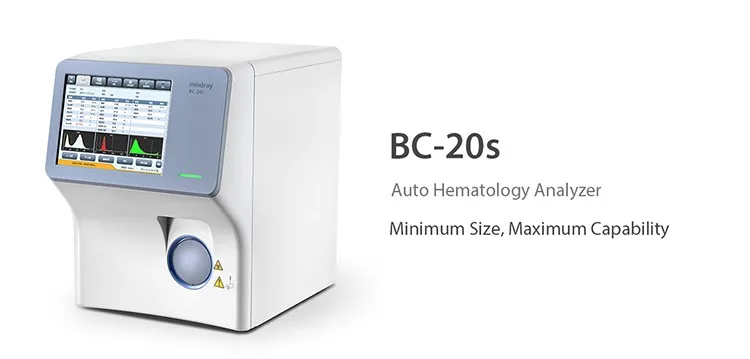

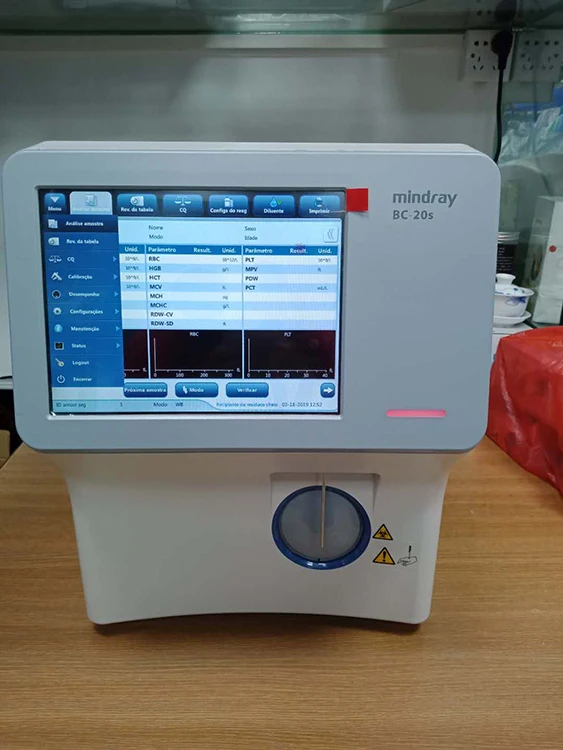

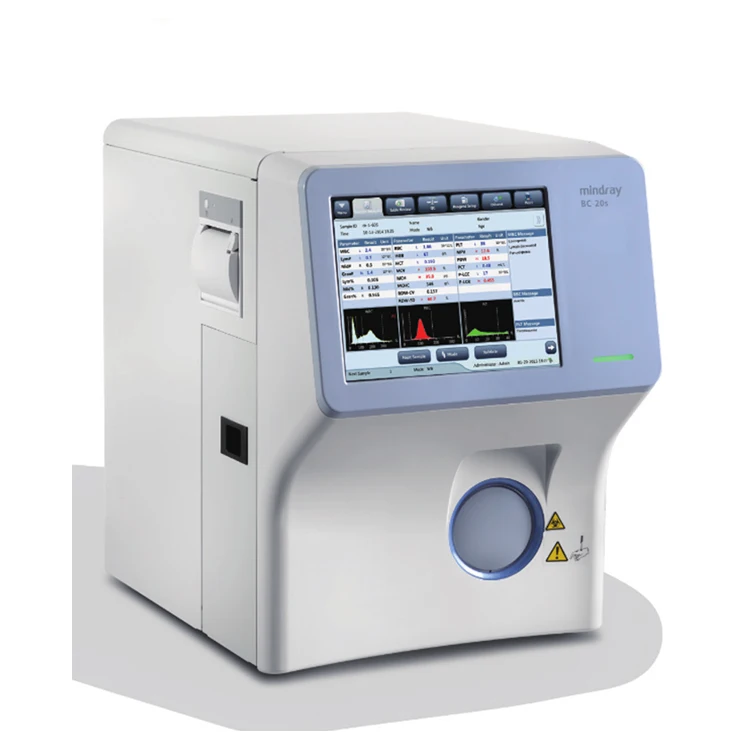

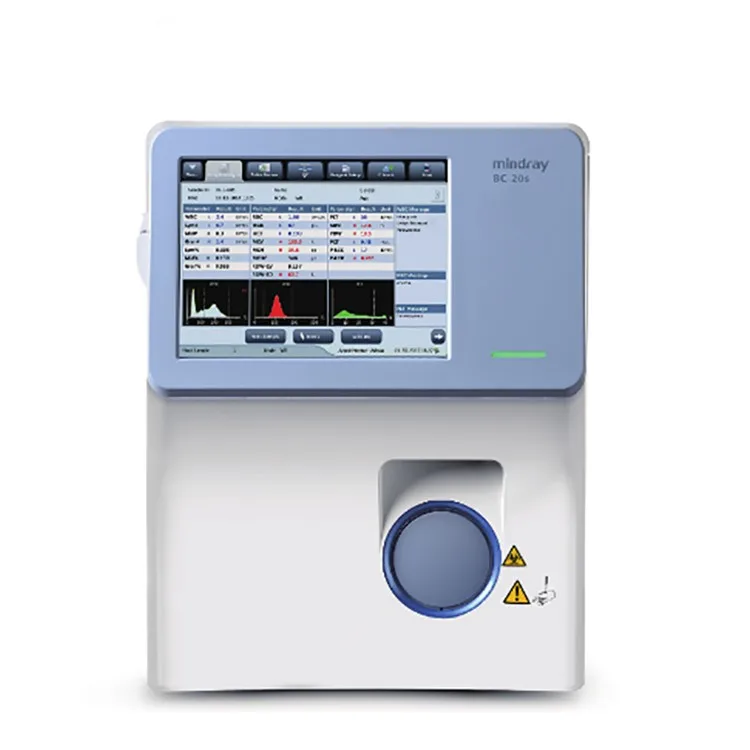

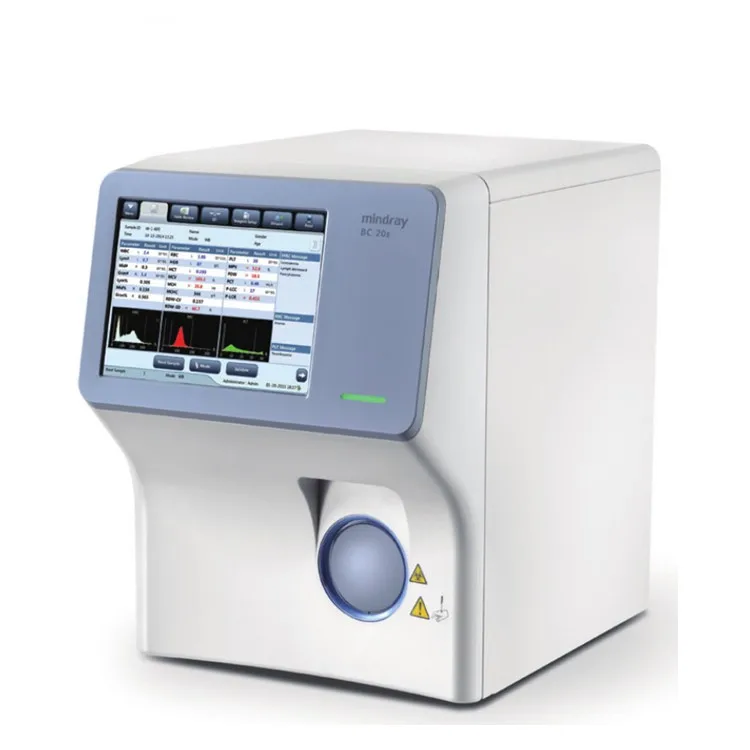

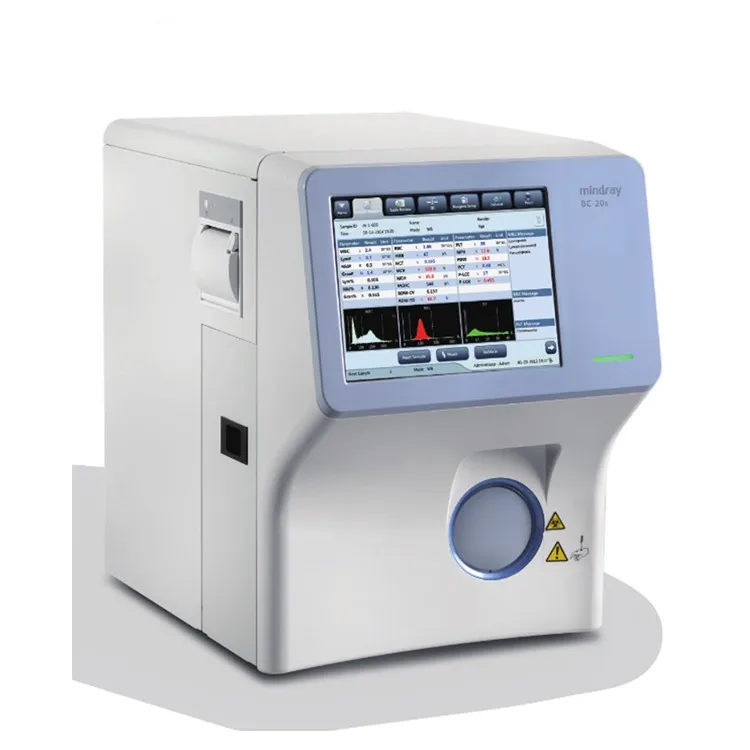

Хит продаж, анализатор гематологии Mindray BC 20S

Principles

Impedance method for WBC, RBC and PLT counting

Cyanide free reagent for hemoglobin test

Performance

Parameter Linearity Range Precision (CV %) Carryover

WBC(109/L) 0-100 ≤3.5% (4.0-6.9) ≤0.5%≤2.0% (7.0-15.0)

RBC(1012/L) 0-8.00 ≤1.5% (3.5-6.5) ≤0.5%

HGB(g/L) 0-280 ≤1.5% (100-180) ≤0.5%

MCV(fL) ≤1.0% (70-110)

PLT(109/L) 0-1000 ≤5.0% (100-149) ≤1.0%≤4.0% (150-500)

Parameters

19 parameters: WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC,

HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT

3 histograms for WBC, RBC and PLT


Reagent

M-30D DILUENT
M-30CFL LYSE
PROBE CLEANSER


Sample Volume
Prediluted mode 20μL

Whole blood mode 9 μL

Multi-language

Chinese, English, Spanish, Portuguese, Russian, French, Bahasa Indonesia

Data Storage Capacity

Up to 200,000 results including numeric and graphical information

Communication

LAN Port supports HL7 protocol

Support bi-directional LIS

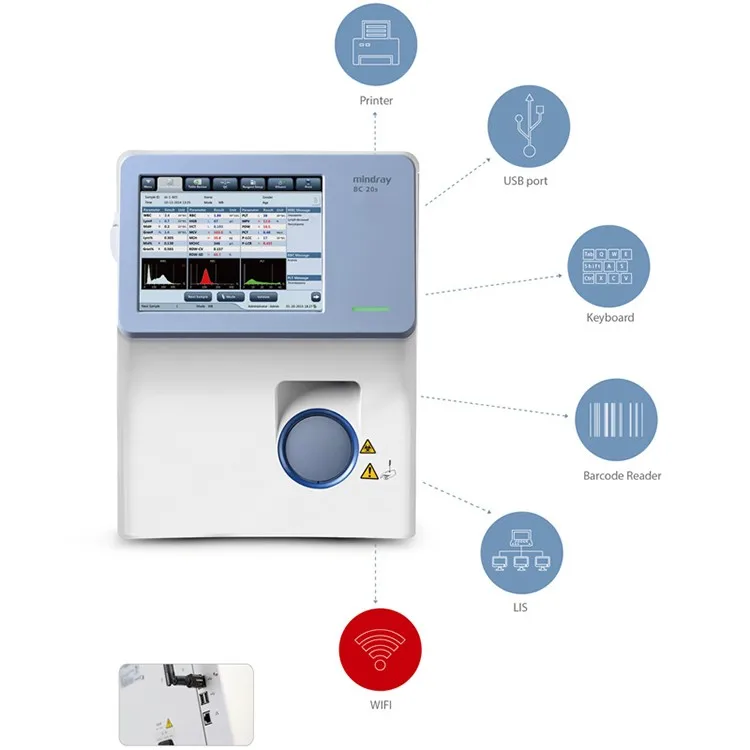

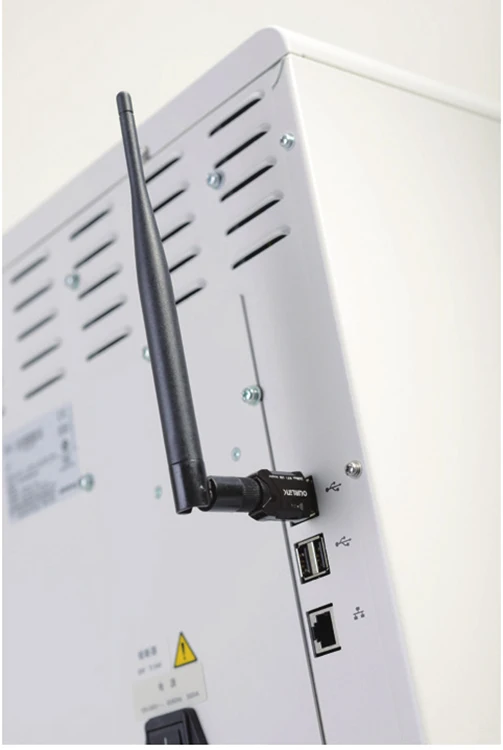

Interface

4 USB port (for external printer, software upgrade, barcode reader,

WIFI adapter,keyboard and mouse), LAN port (1)

Printout

Thermal recorder, 50 mm wide paper, various printouts formats

External printer optional


Operating Environment

Temperature: 10°C~40°C

Humidity: 10%~90%

Air pressure: 70kPa~106kPa

Power Requirement

100V-240V ≤300VA 50Hz/60Hz
