Электрическая Стеклянная присоска присоски вакуумные лифт Подъемник

Product Overview

Description

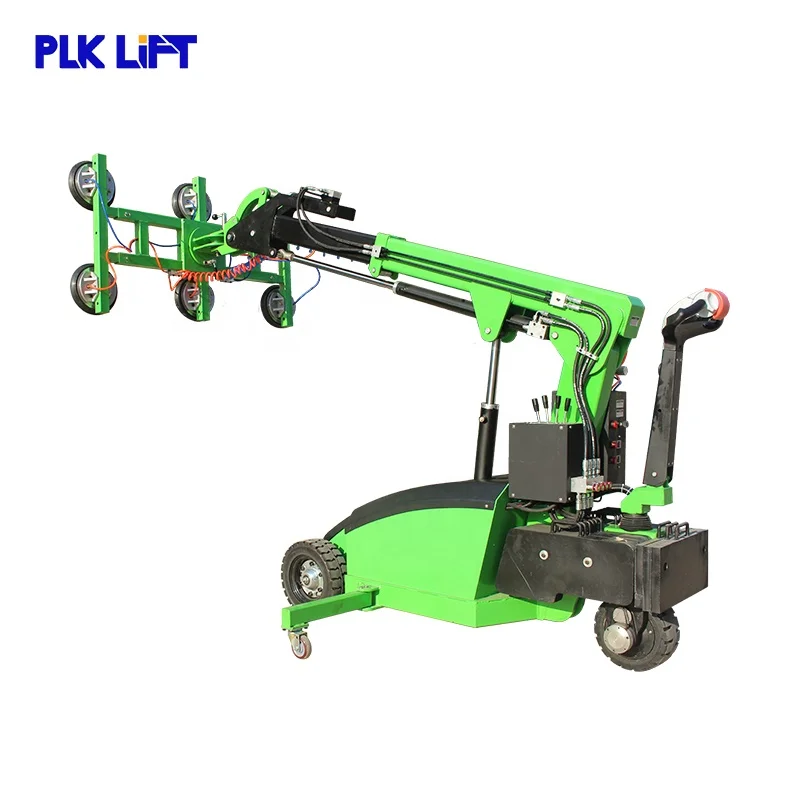

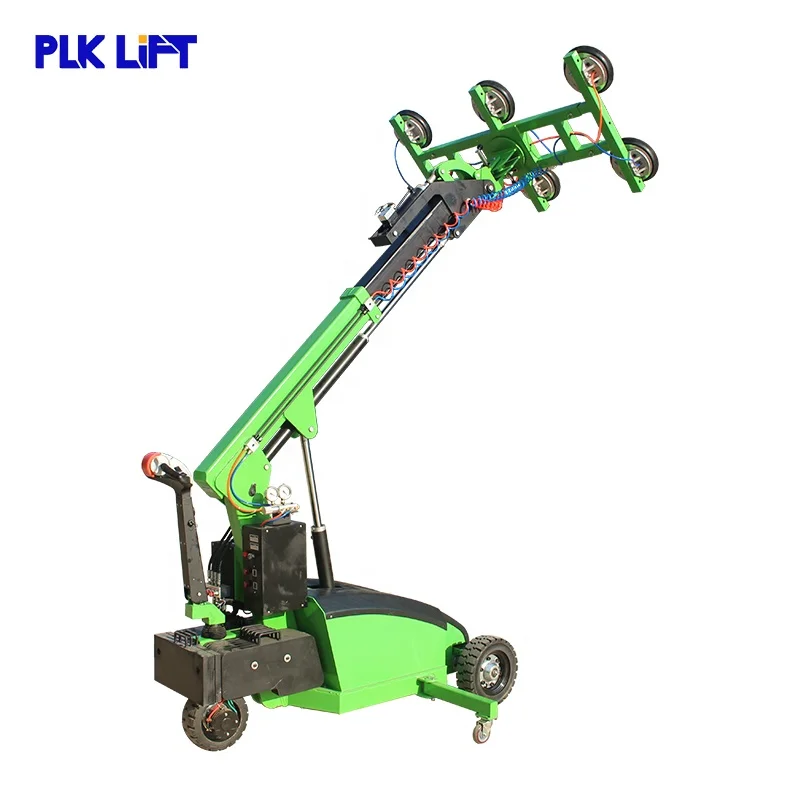

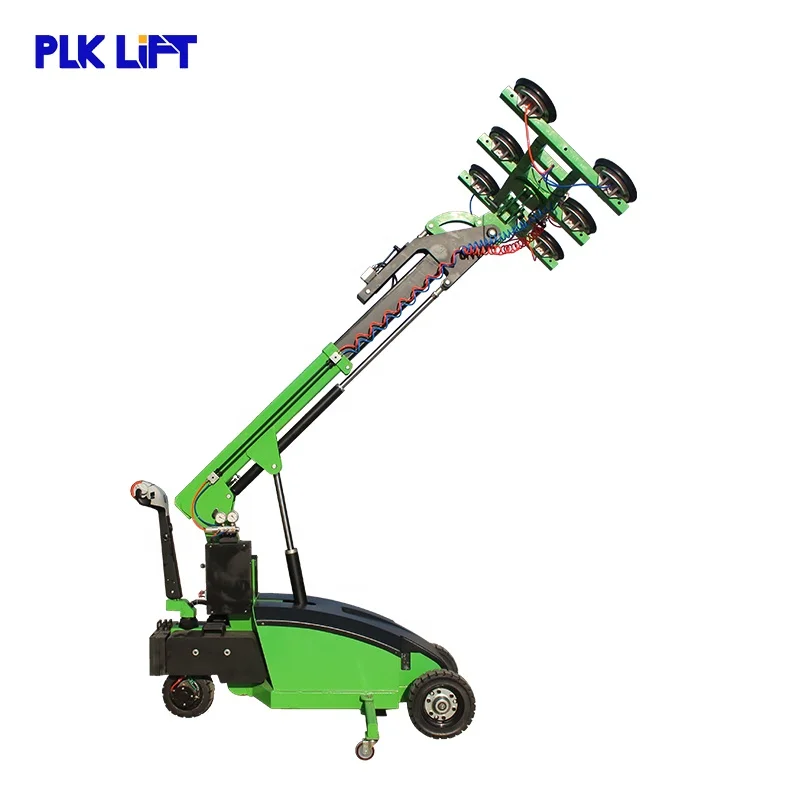

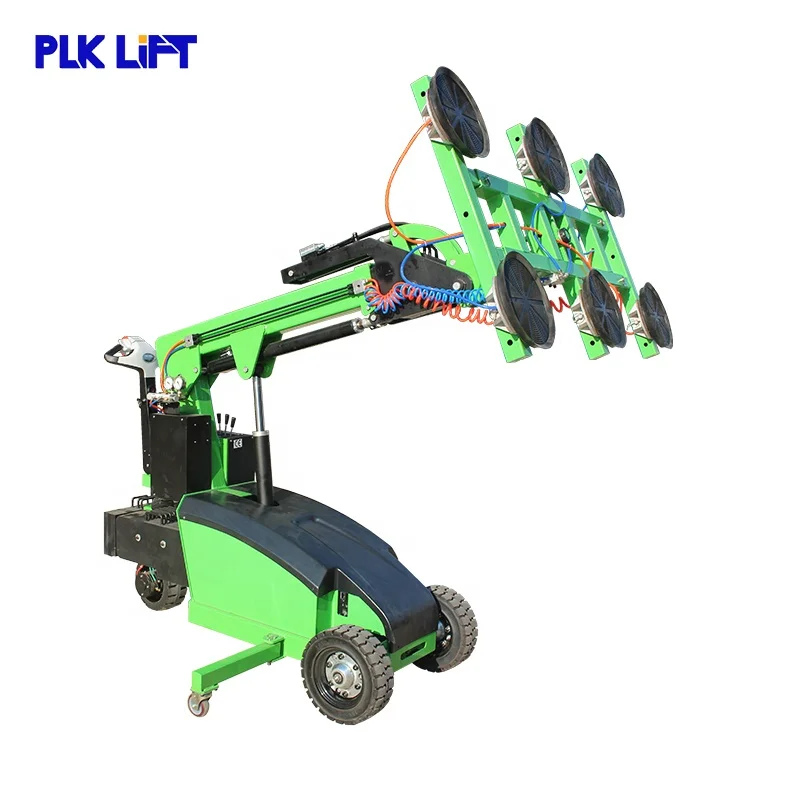

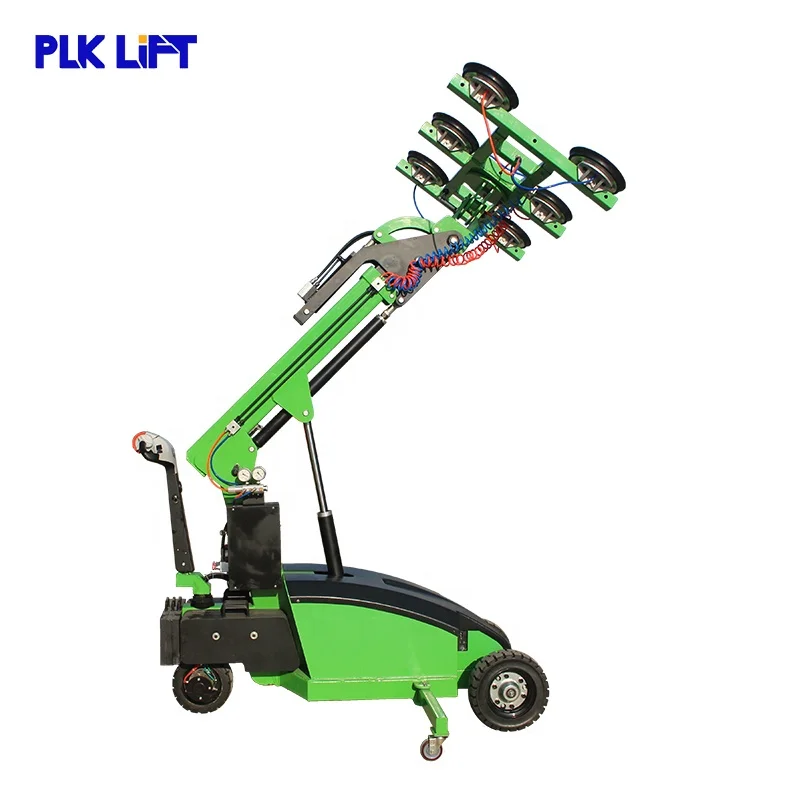

Heavy Capacity Electric Power Glass Robot Vacuum Lifter



GL-LD series Vacuum Lifter: small size, easy to transport.

Special design for handling difference kind of heavy plate, such as steel, glass, granite, marble and so forth, with vacuum suction caps.



1. Lifting capacity 350kg/600kg (175kg/300kg when lifting arm is fully extended)

2. Manual 360degree rotation

3. Electric lift up to 3.5M

4. Weight of machine 660kg/1000kg

Model Type		GL-LD-300	GL-LD-400	GL-LD-500	GL-LD-600	GL-LD-800
Load Capacity		300kg (arm retract)	400kg (retract)	500kg (retract)	600kg (retract)	800kg (retract)
		150kg (extend)	200kg (extend)	250kg (extend)	300kg (extend)	400kg (extend)
Lifting Height		3500mm	3500mm	3700mm	3700mm	4500mm
QTY of Suction Cap		4pcs	4pcs	6pcs	6pcs	8pcs
Rubber Suction Cap		Ø300mm	Ø300mm	Ø300mm	Ø300mm	Ø300mm
Maintenance-free Battery		2x12V/80AH	2x12V/100AH	2x12V/120AH	2x12V/120AH	2x12V/120AH
Battery Charger		Smart Charger	Smart Charger	Smart Charger	Smart Charger	Smart Charger
Drive motor		24V/1200W	24V/600W	24V/900W	24V/900W	24V/1200W
Lifting Motor		24V/2000W/5L	24V/2000W/5L	24V/2000W/5L	24V/2000W/5L	24V/2000W/12L
Chassis L*W		2660*810mm	2660*810mm	2800*810mm	2800*810mm	2800*810mm
Driving Wheel		Ø250x80mm	Ø250x80mm	Ø300x100mm	Ø300x100mm	Ø300x125mm
N.W/G.W		1100/1150kg	1280/1330kg	1300/1350kg	1400/1450kg	1600/1650kg
Packing Size		Wooden carton: 3150x1100x1860mm. (1x20GP Loading Qty: 5~6 sets)
Movement	Automatic (4kinds)	1.         Pad frame vertical up/down 180°automatic
		2.         Boom in/out 610/760mm automatic
		3.         Powered arm up/down automatic
		4.         Lateral side shift 100mm automatic
	Manual (2kinds)	5.         Pad frame tilt left/right 90° manual (Pls look at Optional 1. automatic turn lift/right)
		6.         Pad frame rotation 360°manual (Pls look at Optional 2. automatic rotation 360°)
Usages		Special design for handling difference kind of heavy plate, such as steel, glass, granite, marble and so forth, with different materials of vacuum suction caps.

Advantages

1. Integrated control system secures quick and automatic positioning vertically and horizontally by a single push on a button.

2. DC24V reliable actuators for lifting, extension and tipping. efficient and precise. Self propelling, various circuit vacuum suction.

3. Attractive price, staff saving, strong improvement of working environment.

4. Sagafirst vacuum lifter are dealt with shot blasting and stoving varnish, high anti-corrosion function.
5. High quality pump station make the vacuum lifter lifts and falls very stably.
6. Heavy duty cylinders with drainage system and check valve to stop the scissor lift table lowering in the case of hose burst.
7. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
8. Brief structure make it much easier to operate and maintain.
9. Up to American standard ANSI/ASME and Europe standard EN1570.
