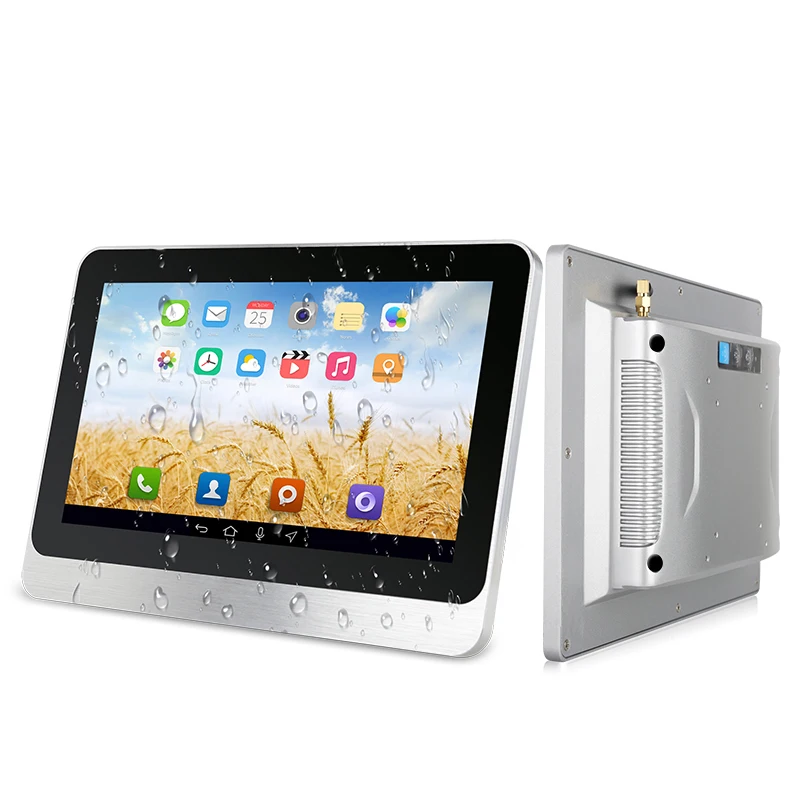

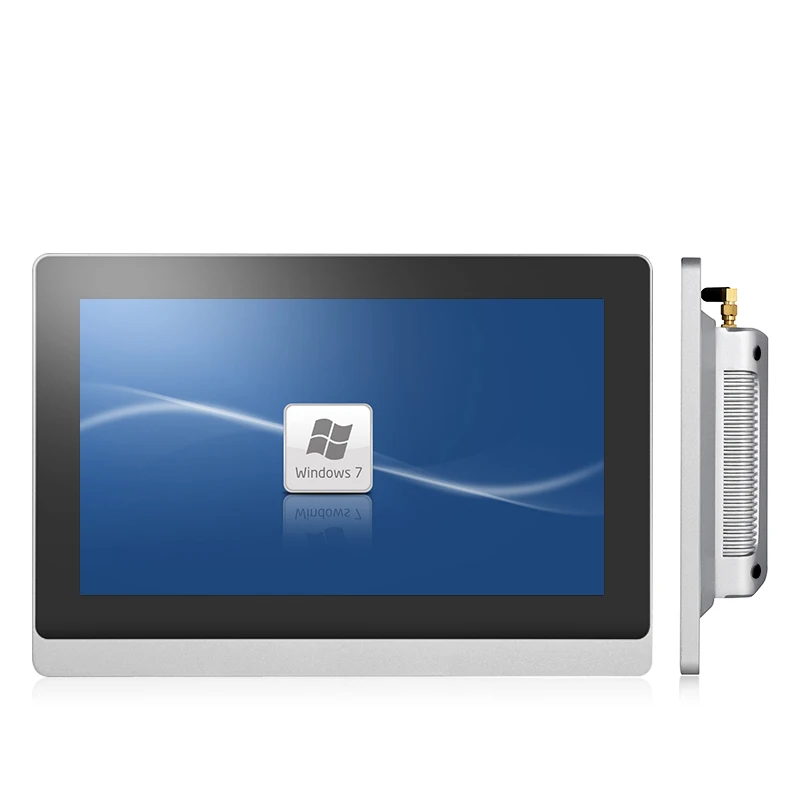

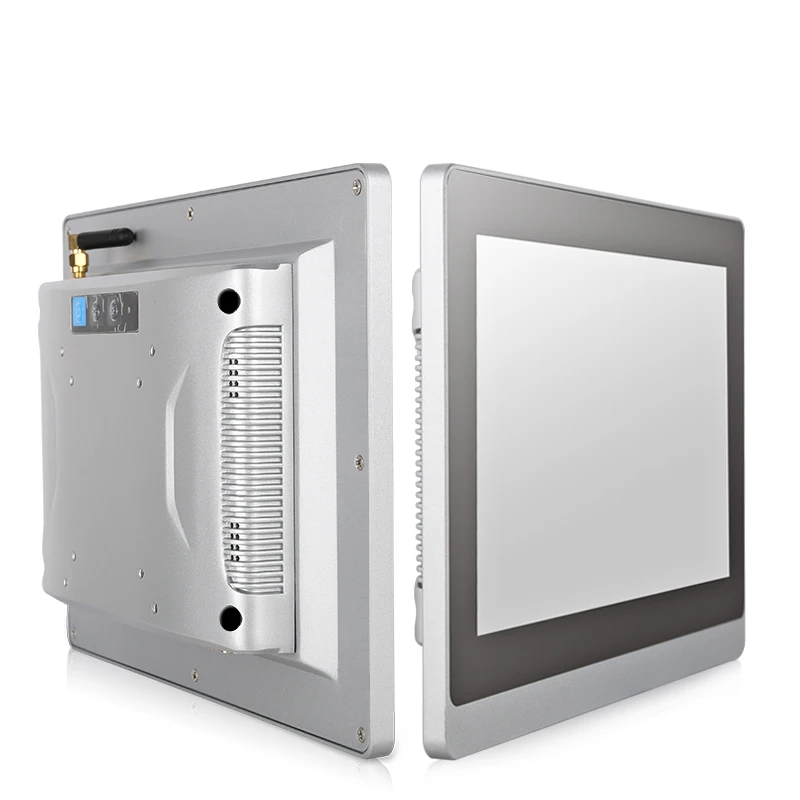

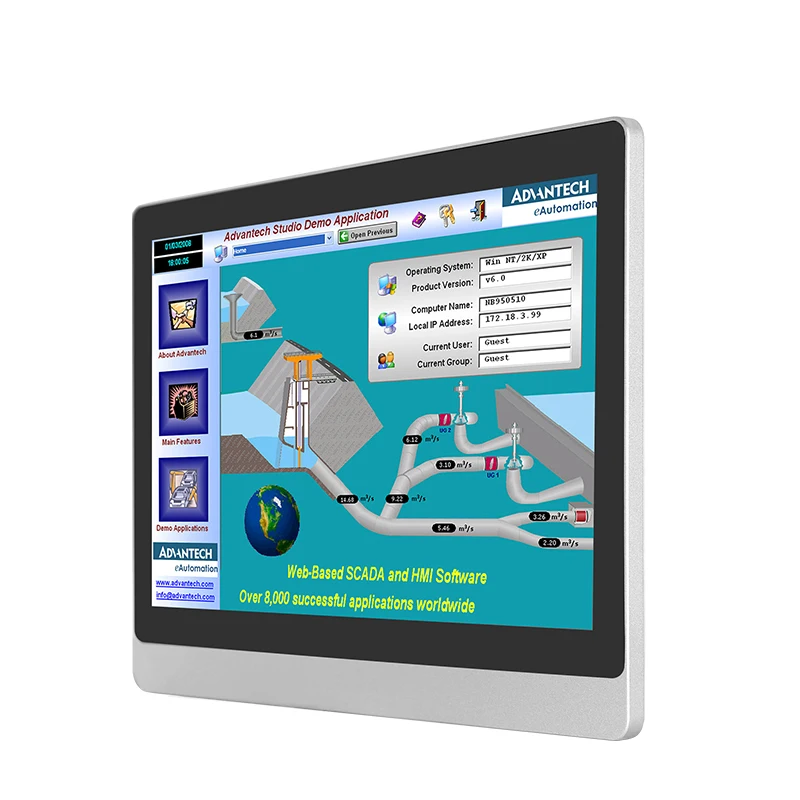

Fanless 7/10/10.1/10.4/12/12.1/15"/15.6/17/19 inch customized desktop embedded front industrial touch screen panel pc
- Category: >>>
- Supplier: Shenzhen Touch Think Intelligence Co. Ltd.
Share on (62179519939):
Product Overview
Description
Product Description

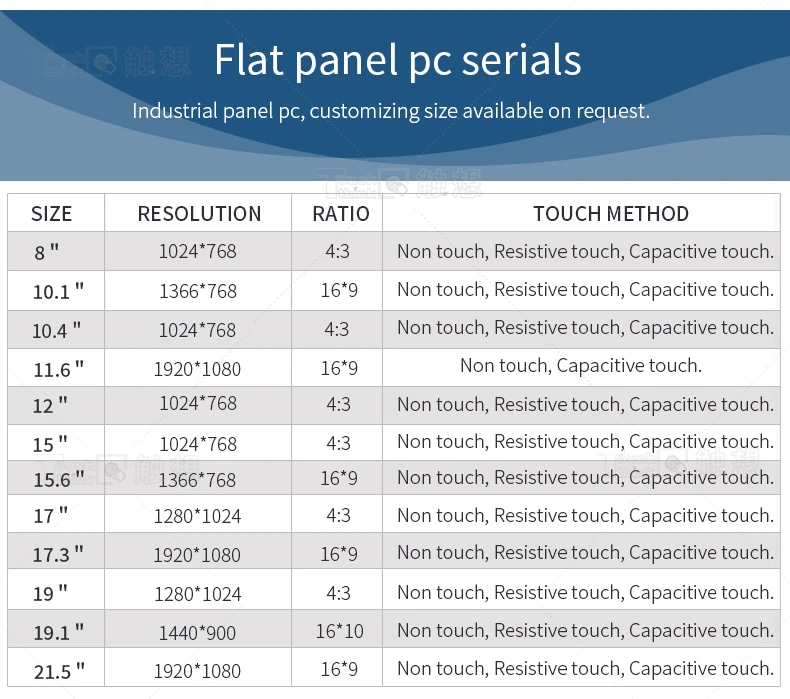

Fanless 7/10/10.1/10.4/12/12.1/15"/15.6/17/19 inch customized desktop embedded front industrial touch screen panel pc

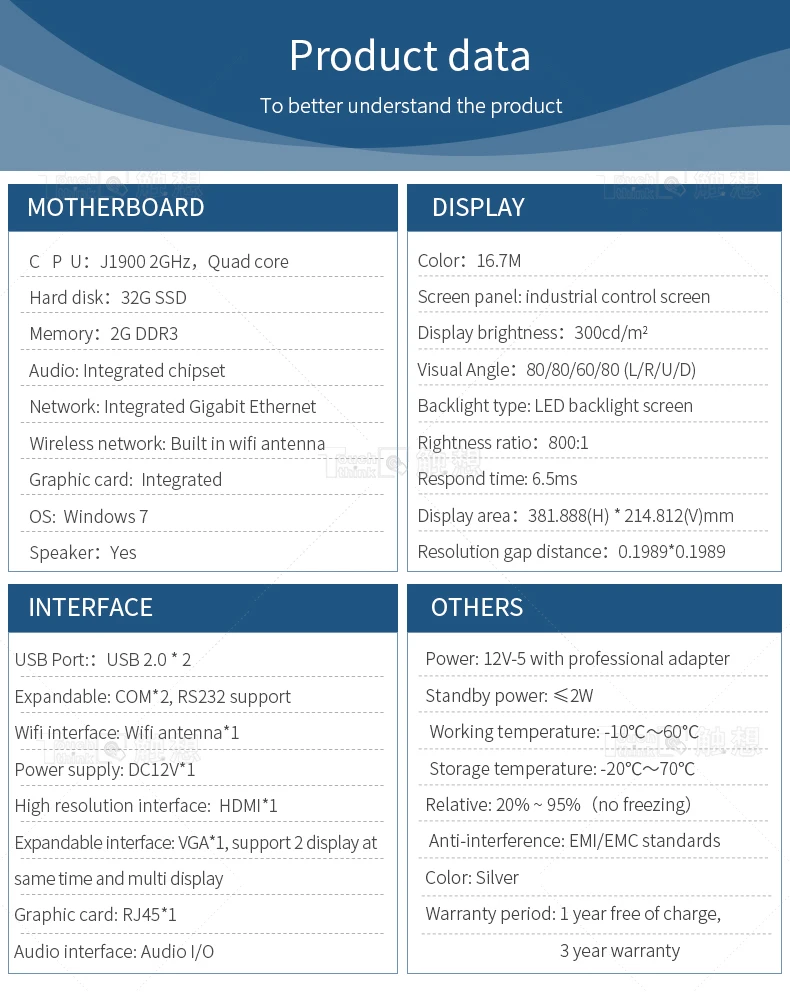

| Model: TPC-1717A | |
| PC | |
| CPU | Intel® Celeron J1900, quad core, 2.0GHz, fanless |
| Memory | 2G DDR3 (4G, 8G optional) |
| Hard Drive Capacity | 32G SSD |
| Hard Drive Optional | SSD: 64G,128GB,256GB |
| HDD: 500GB,1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |

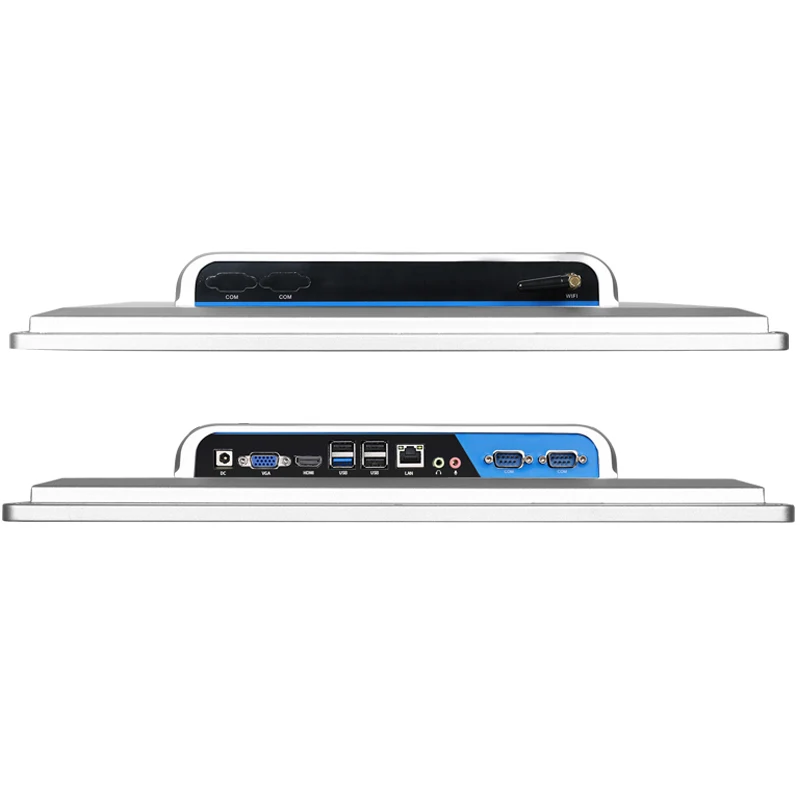

| I/O Interface | 3xUSB 2.0, 1xUSB 3.0, 2xCOM RS232 |
| 1xVGA/HD-MI/RJ45/Audio OUT/MIC IN/POWER DC | |
| Operation System | Support Win7/8/10,Linux,Ubuntu,Debian,etc. |
| LCD panel | |
| Panel size | 17.3" |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400+ |
| Response time | 5ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points)/(5 wire resistive touch optional) |
| Working life | >50 million times |
| Power Supply | |
| External Power Supply | AC100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Silver, Black, white, color can be customized |

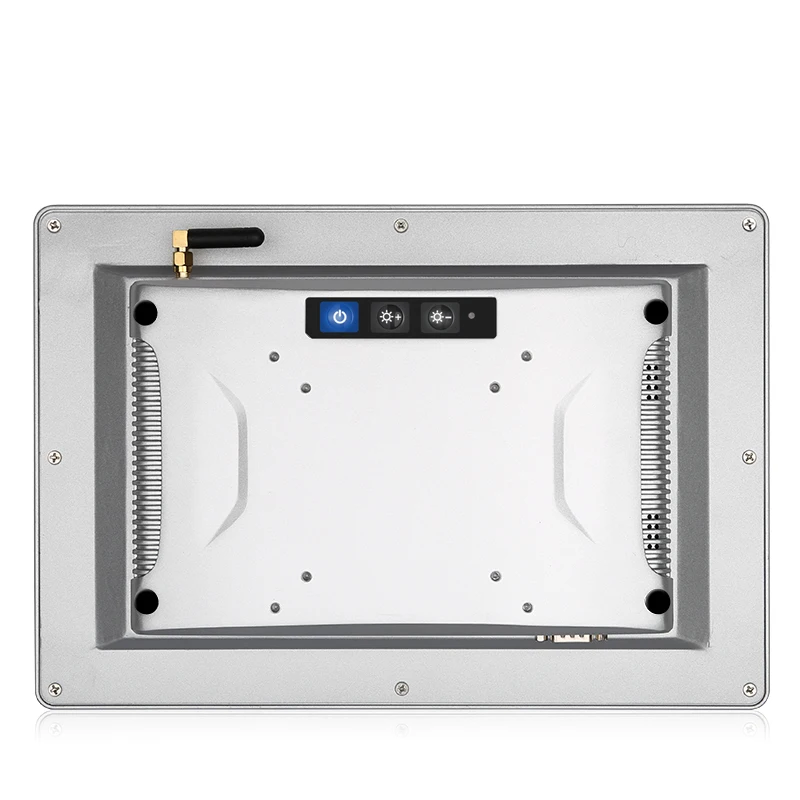

| VESA mounting | 75x75mm/100x100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage: -20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 5.8kg |
| Product Dimension | 45.8x29.1x6.2cm |
| Accessories | Power adapter,embedded screws,user manual,warranty card |
| Other | |
| Mounting (options) | Embedded mounting |
| Wall mounting brackets/Desk stand holder (optional) | |
| Warranty | 3 years |
| Certificate | CE, FCC, RoHS |
