280mm 450mm Polyethylene HDPE PE Pipe Hydraulic Butt Fusion Welding Machine
- Category: >>>
- Supplier: Zhuji Huihuang Hardware Co. Ltd.
Share on (62179524249):
Product Overview
Description
280mm-450mm Polyethylene HDPE PE Pipe Hydraulic Butt Fusion Welding Machine
Product Description:
Brief: Suitable for welding of plastic pipes and fittings made from PE, PP & PVDF.
Be made of Aluminum material.

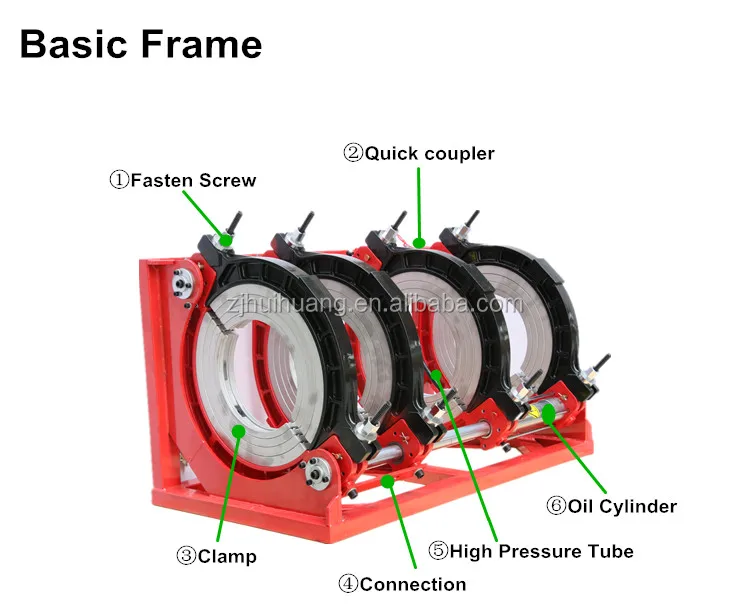

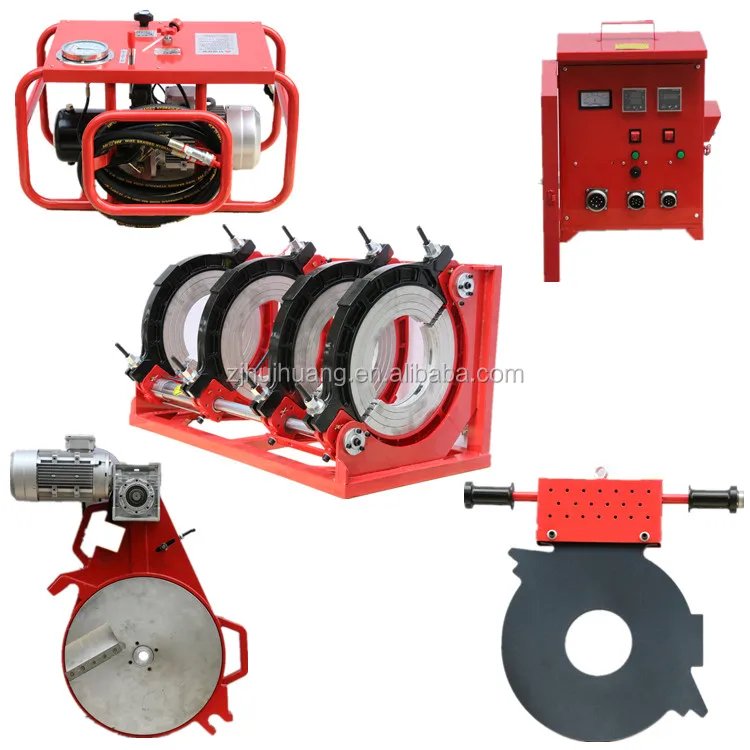

Consists of Planning Tool, Heating Plate, Basic Frame, Hydraulic Unit and Support.

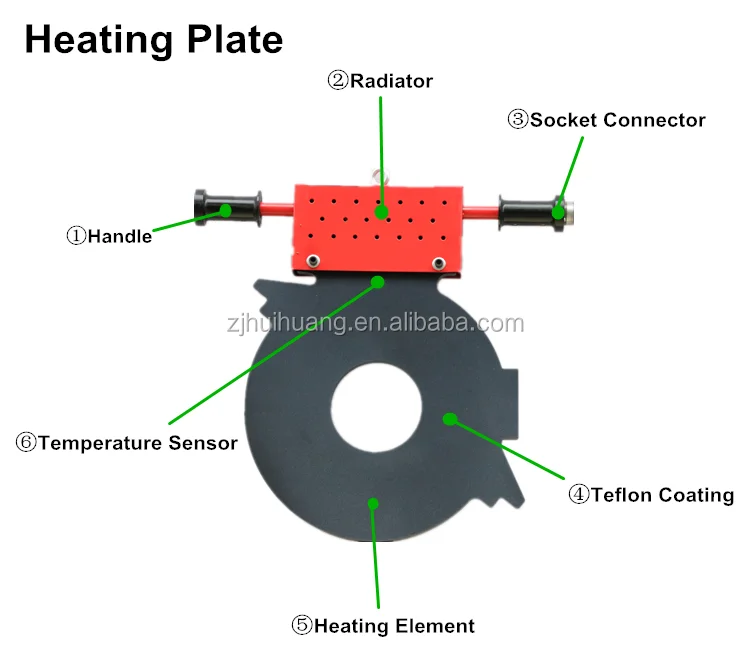

Feature:1. Removable PTFE coated heating plate with separate temperature control system.

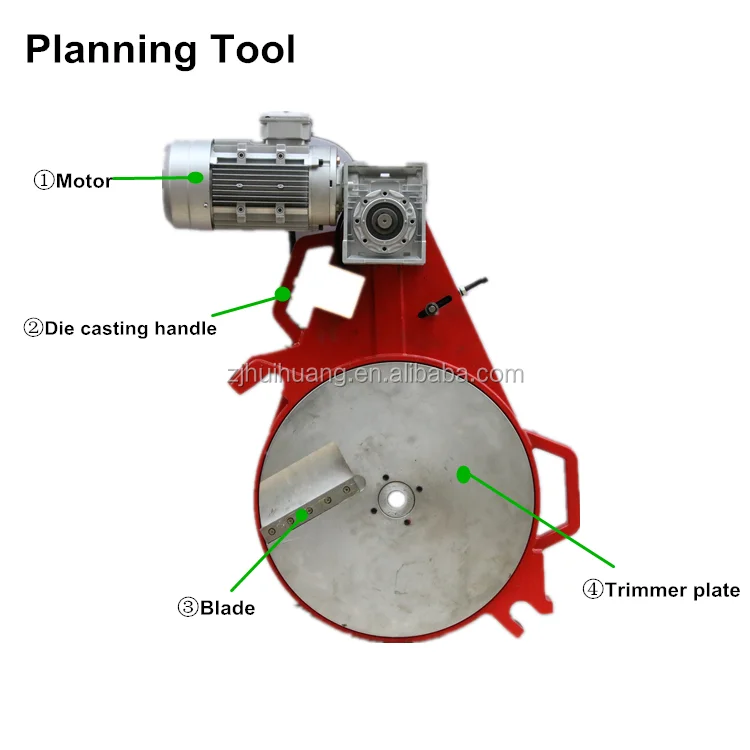

2. Electric Planning Tool with reversible double cutting edge blades.

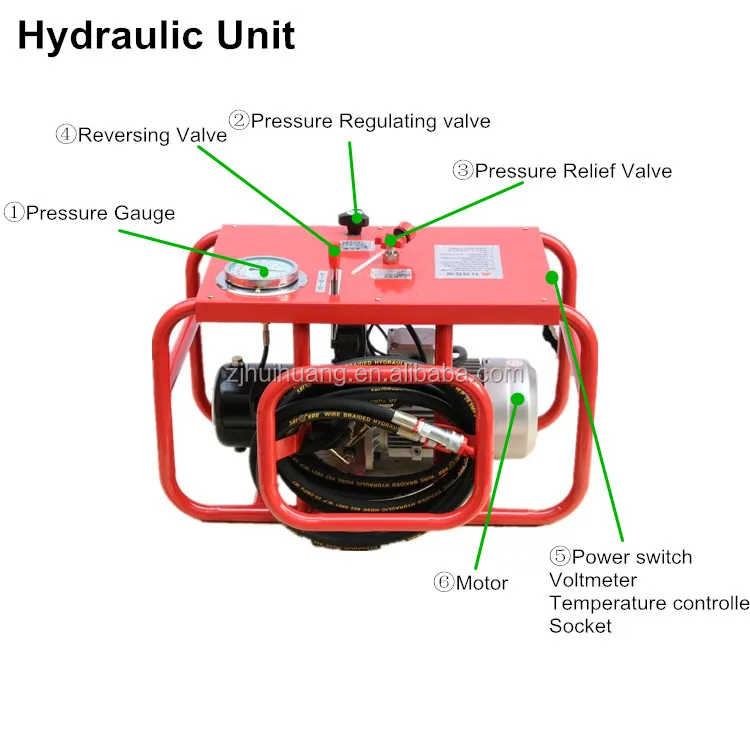

3. Hydraulic Unit provides welding machine with compressing power.
4. Be made of Aluminum material.
5. Low starting pressure ensures reliable welding quality of small pipes.

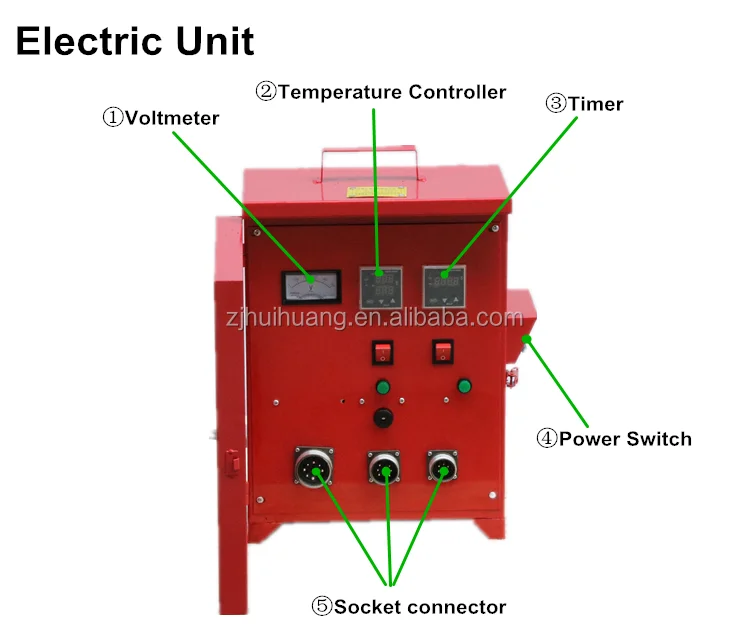

6. Temperature Controller and Timer, easy to know the exact time and temperature.
Specification
| Type | HH-H450 |
| Welding Materials | PE,PP,PVDF |
| Welding range of diameter | 280,315,355,400,450mm |
| Environment temp. | -5~45℃ |
| Voltage/Frequency | ~220v±10%,50hz |
| Total power | 8.38KW |
| Heating plate power | 5.38KW |
| Planning tool power | 1.5KW |
| Hydraulic unit power | 1.5kw |
| Max. Pressure | 0~8.0MPA |
| Max. Temperature of heating plate | 270℃ |
| Difference in surface temperature of heating plate | ±5℃ |
| Package Volume | 2.2CMB(3 wooden box) |
| Gross Weight | 450KG |
Product Description

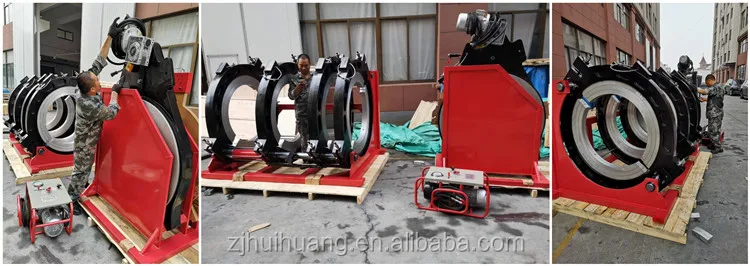

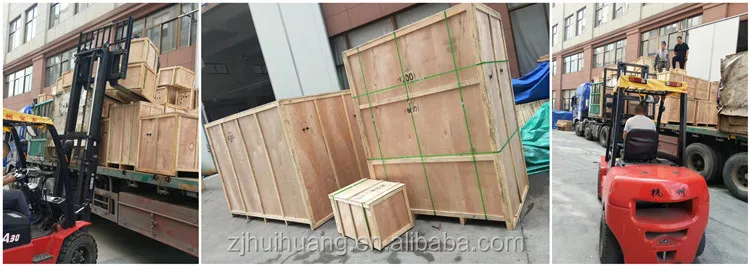

Package And Delivery

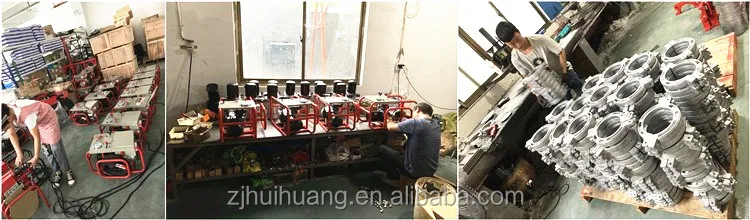

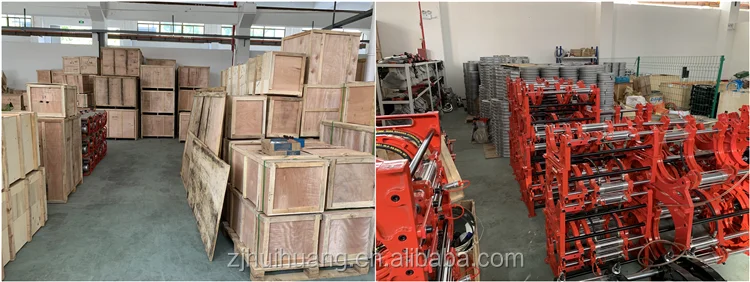

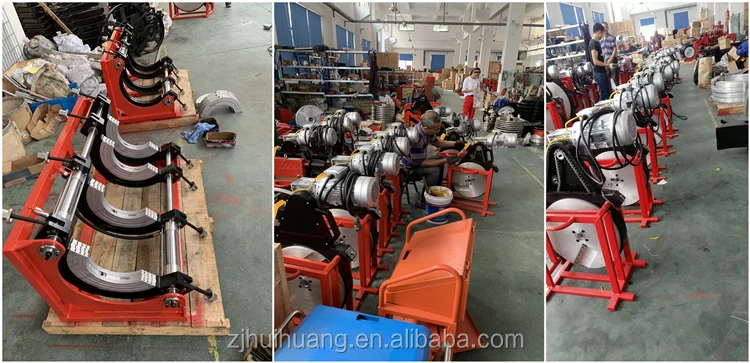

Production And Warehouse

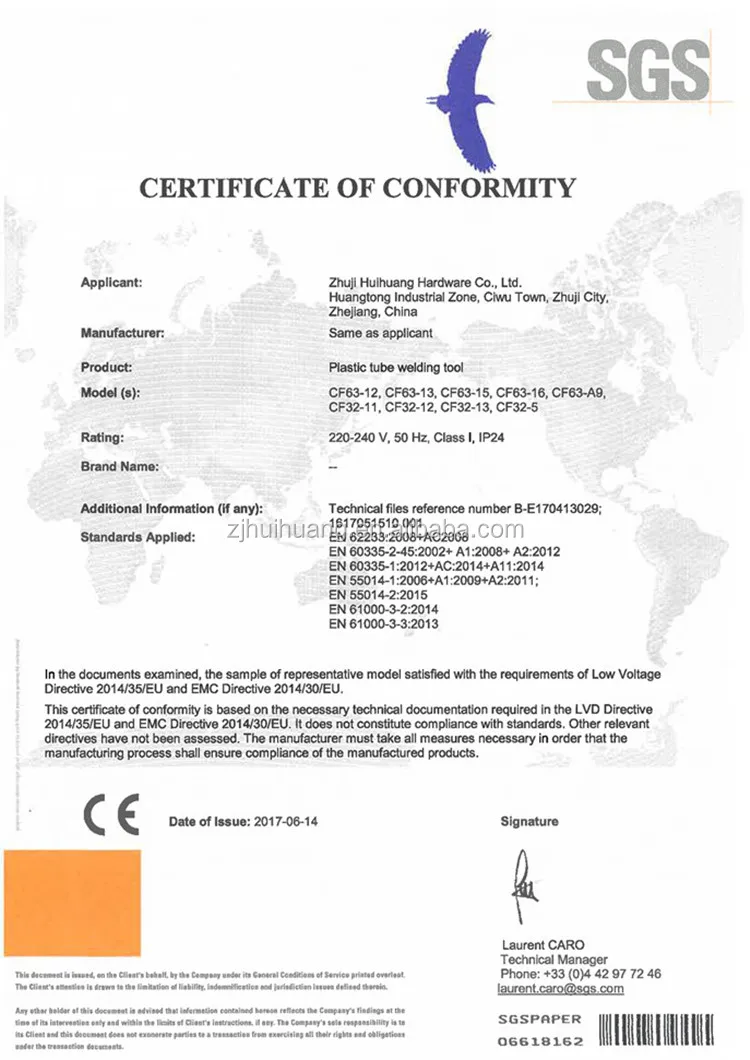

Certifications

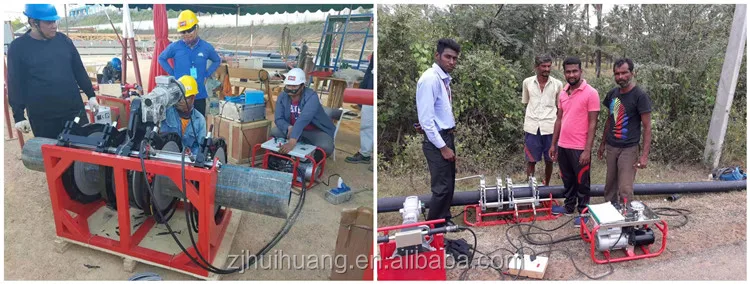

Construction Site
Exhibition And Contact
Company Profile
Zhuji Huihuang Hardware Co.,LTD located in Zhuji city,Zhejiang Province,China.One of the earlist manufacturers in China.With many years of development,we have had a good reputation and established relationshipswith customers. Through their construction experience and good advice, we improve our technology and outlook, in order to make them easy operationand precise working.
Our machines control methods include hydraulic control and automatic control. With the great efforts of all staff members, we can offer all types of welding machines from 63-1200mm.
We also have ISO9001 quality management system certification and CE certificate.
We have the concept of Customer First, Quality Foremost",Sincerely weclome all friends visit and cooperation.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the machines are in stock. If big worshop fitting machine or special machine, it will take about 15 to 40 days
Q: Can you design and produce special machines according to customer requirement ?
A: Yes, we have strong technical capacity, can develop any new products by ourselves totally.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
