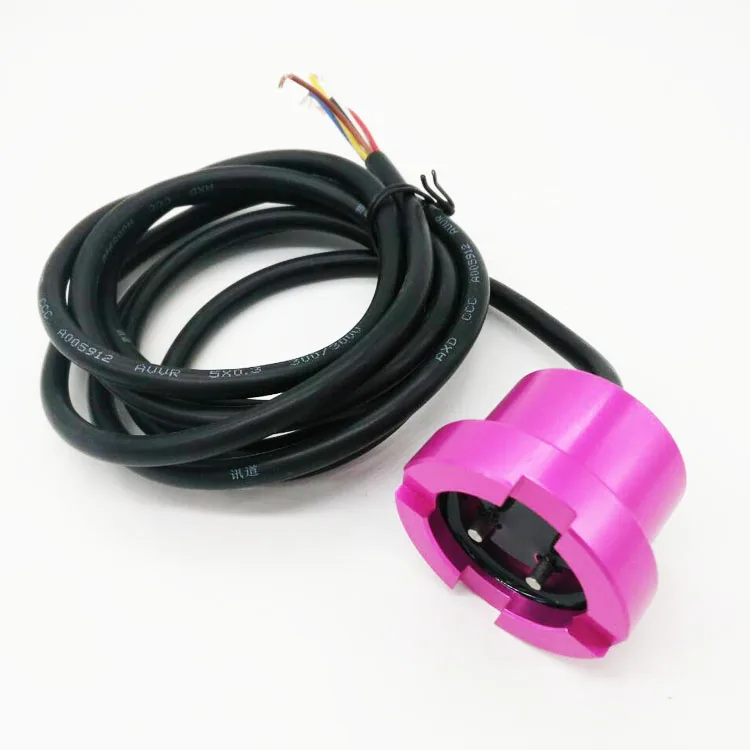

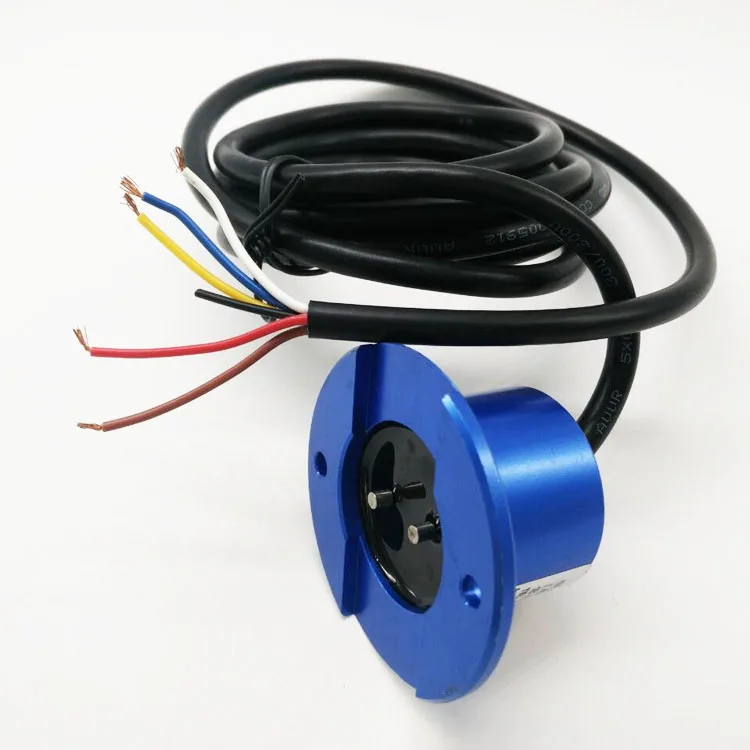

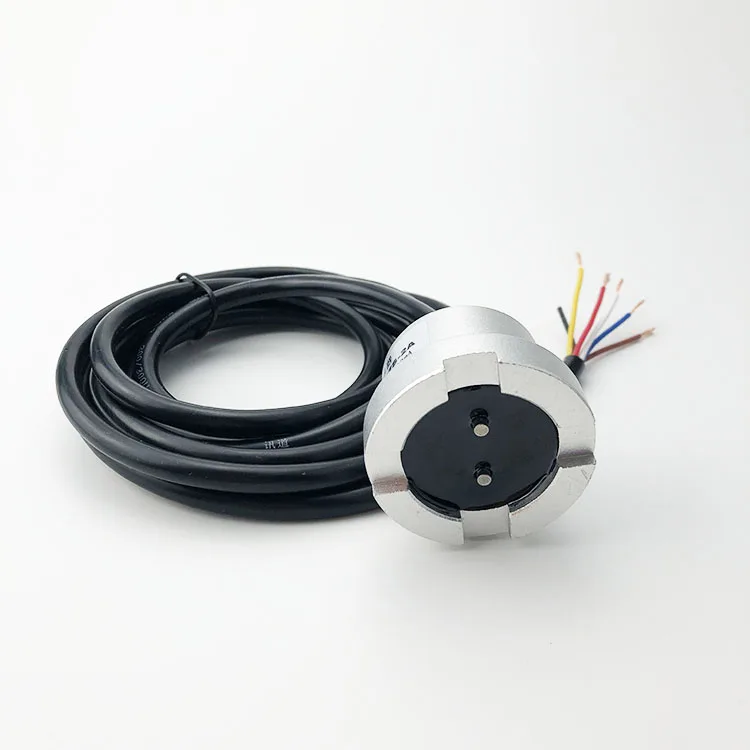

Wholesale optical water leak sensor water leakage detector/leak detection equipment/ leak sensor for security alarm system

Application

underground,plant room,etc,used for detecting water leakage.

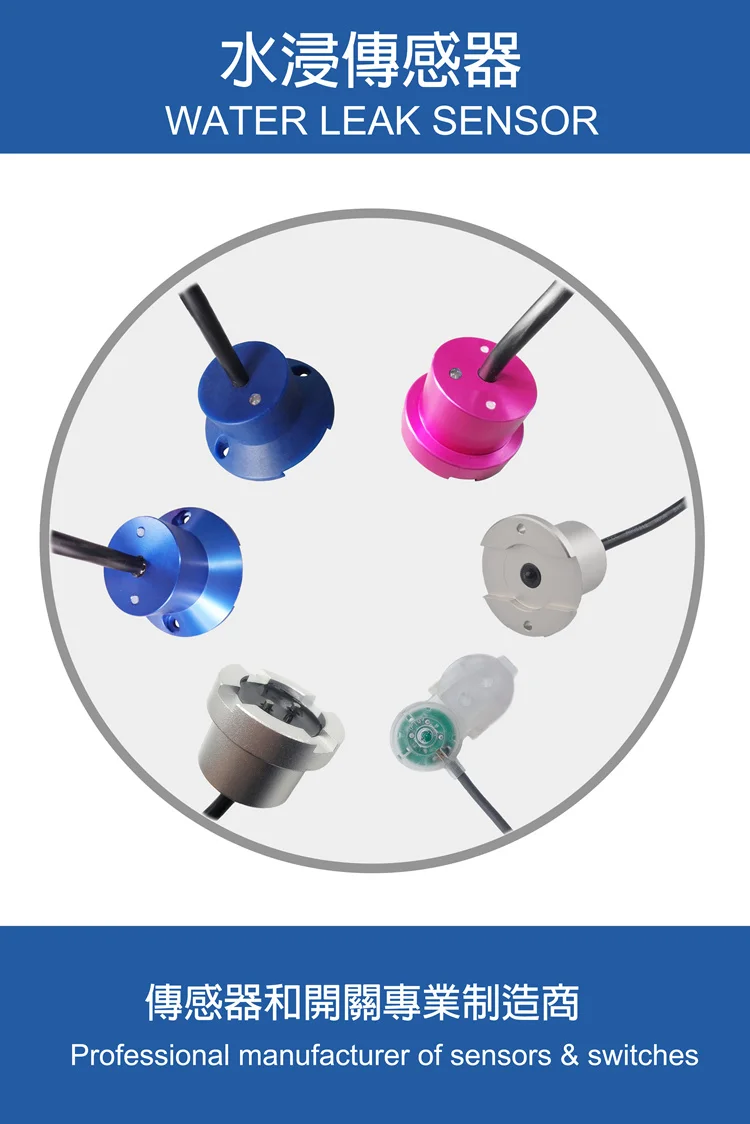

 Underground Water Detector/ Water Leak Detector

Origin

FAST SENSOR

Product Name

Water Leakage Sensor=FLWS

Sizes

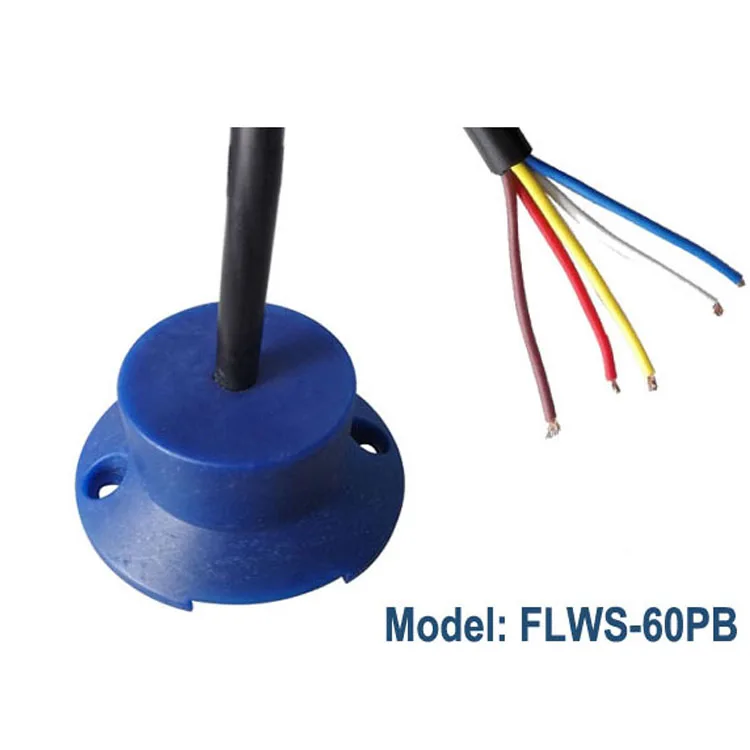

60=Dia. 60 mm

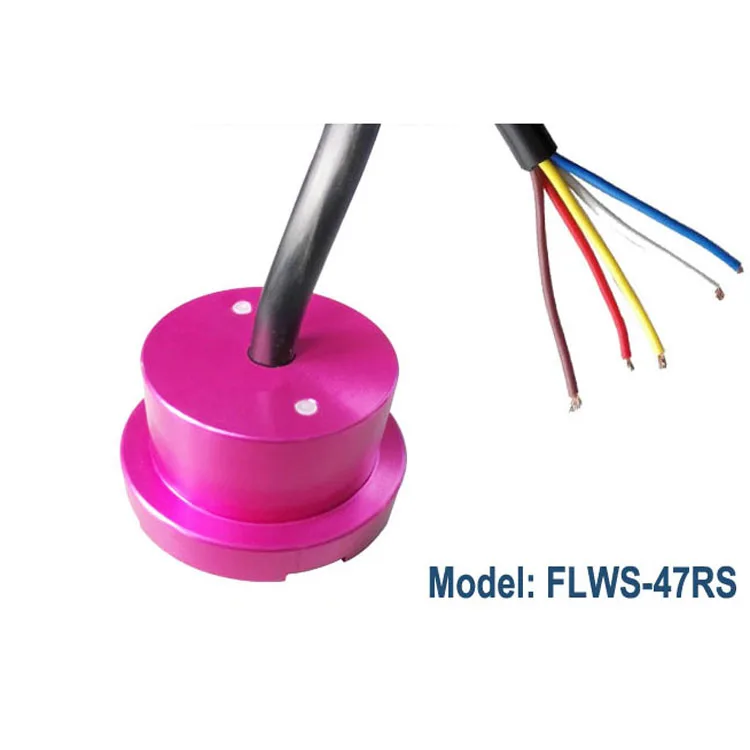

47=Dia. 47mm

Colors

B=Blue

R=Red

Materials

P=Nylon Fibre    S=Alluminium Alloy

S=Alluminium Alloy

Installation

Mounting holes

No mounting holes

Detector

L=With LED

In condition of power supply,

No alarm, the lamp is green;

Give alarm, the lamp is red.

No L=Without LED

L=With LED

In condition of power supply,

No alarm, the lamp is green;

Make alarm, the lamp is red.

No L=Without LED

Electrical Data

8=Supply 8~24VDC/AC    5=Only 5VDC

Switch current: <50mA

Quiescent current: <15mA

Relay contact: 3A,250Vac/30Vdc

Response speed: <50Millisecond

Work temp.: -5~+60℃

No water, relay contact open

For water, relay contact closed

5=Supply Only 5VDC   8=8~24VDC/AC

Switch current: <40mA

Quiescent current: <10mA

Relay contact: 3A,250Vac/30Vdc

Response speed: <50Millisecond

Work temp.: -5~+60℃

No water, relay contact open

For water, relay contact closed

Cable spec.

2=2000mm cable (standard)     3=3000mm cable     5=5000mm cable    Others

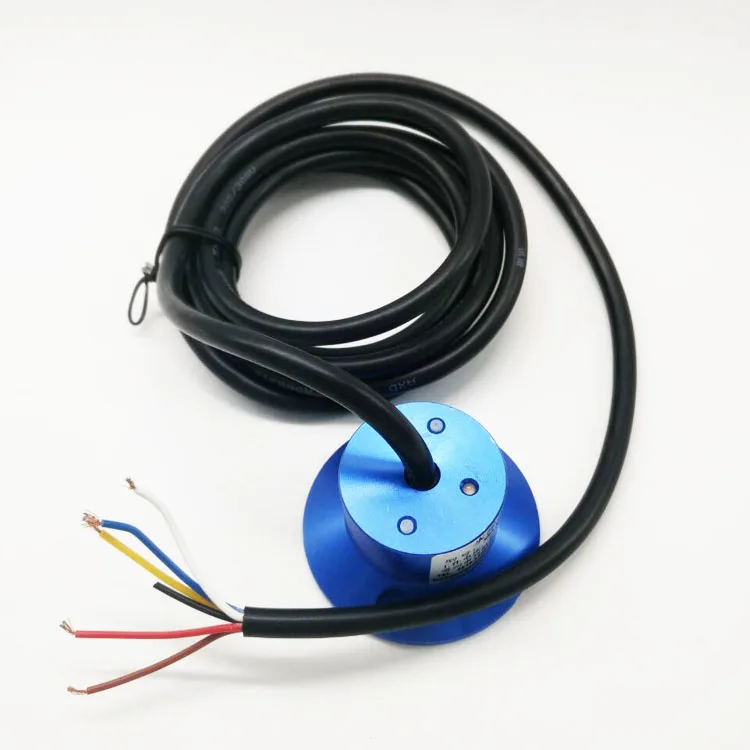

Wiring Diagram

----------------  Red Wire +

---------------   Blue Wire N/C

   ---------------- Yellow Wire Common

---------------   White Wire N/O

---------------- Brown Wire —

Work Temp.

-40~+85

Order Information

For Example, FLWS-60BSL-8-2

Fast Leakage Water Sensor-Diameter 60mm Blue Alluminium Alloy with LED-8~24VDC/VAC-2 meters cable
