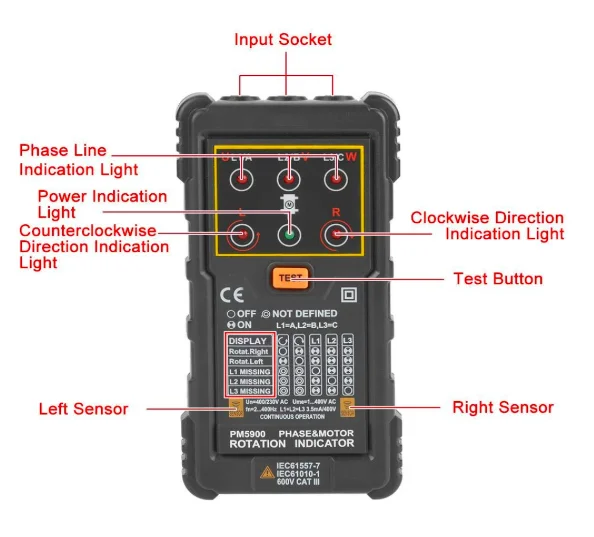

PM5900 Three Phase Motor Rotation Indicator

 Features:

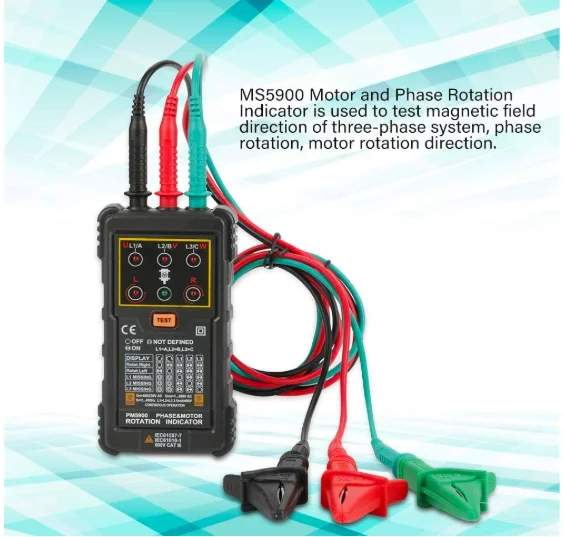

• PM5900 Motor and Phase Rotation Indicator is used to test magnetic field direction of three-phase system, phase rotation, motor rotation direction.
• Without a need to link testing line, the motor rotation direction can be decided by placing this indicator above the motor and aligning it with motor drive shaft.

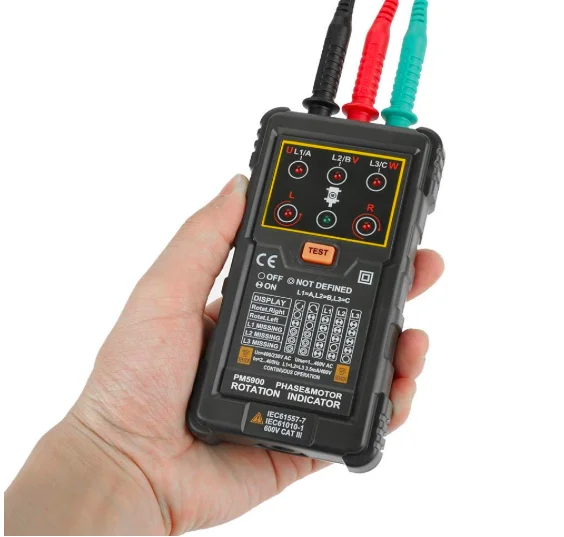

• It is durable, reliable and light-weight handheld device, which is necessary tool for those who often install, repair or maintain three-phase system or motor.
• Used to test phase sequence input of three-phase voltage, to indicate phase line L1, L2 and L3.
• It also supports non-contact type magnetic field rotation direction test (motor rotation direction test).

Specifications:

Maximal working voltage: 400V AC voltage

Nominal voltage (tested at rotation direction): 2~400V AC voltage,2~400Hz

Nominal voltage (tested at phase sequence): 120~400V AC voltage,2~400Hz

Test current (per phase): <3.5mA

Battery: 3 x 1.5V AA batteries(NOT included)

Temperature:

Operating: 0~40℃, maximal 80 % relative humidity (non-condensing)

Storage: -10~50℃, maximal 80 % relative humidity (non-condensing, battery not included)

Altitude: <2000m(meter)

Anti-explosion type: IP 40

Weight: 442g(approx.)
