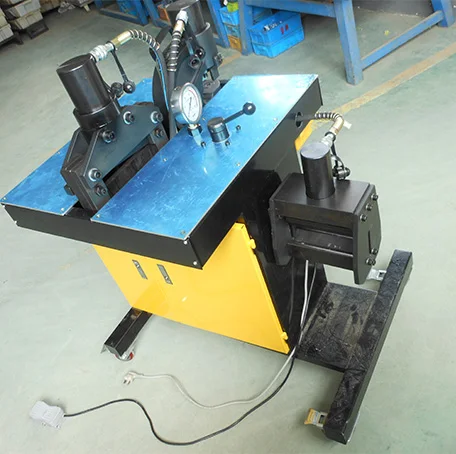

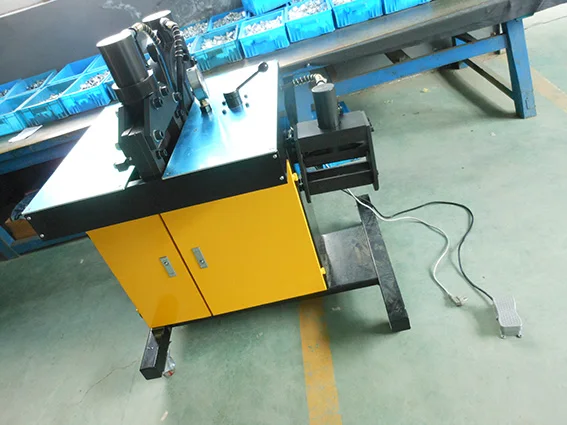

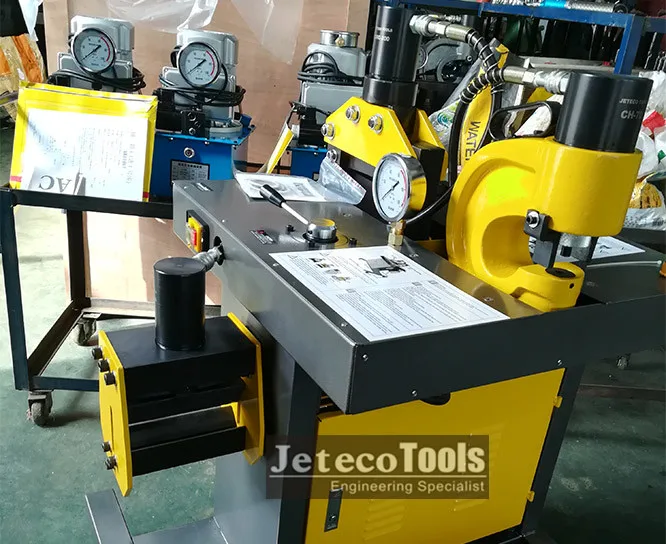

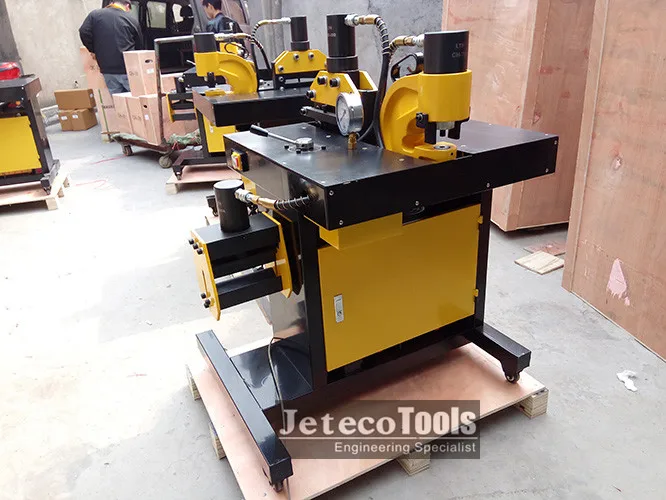

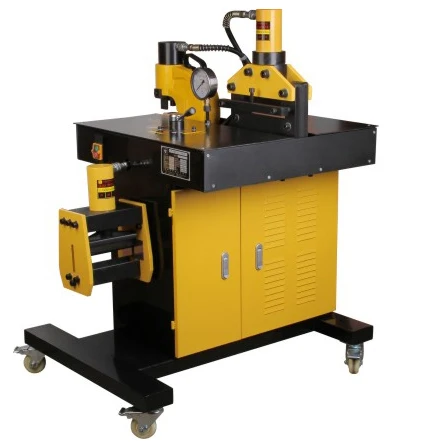

DHY 200 hydraulic busbar bending cutting and hole punching machine, three in one hydraulic busbar processing processor DHY 150

Product Overview

Description

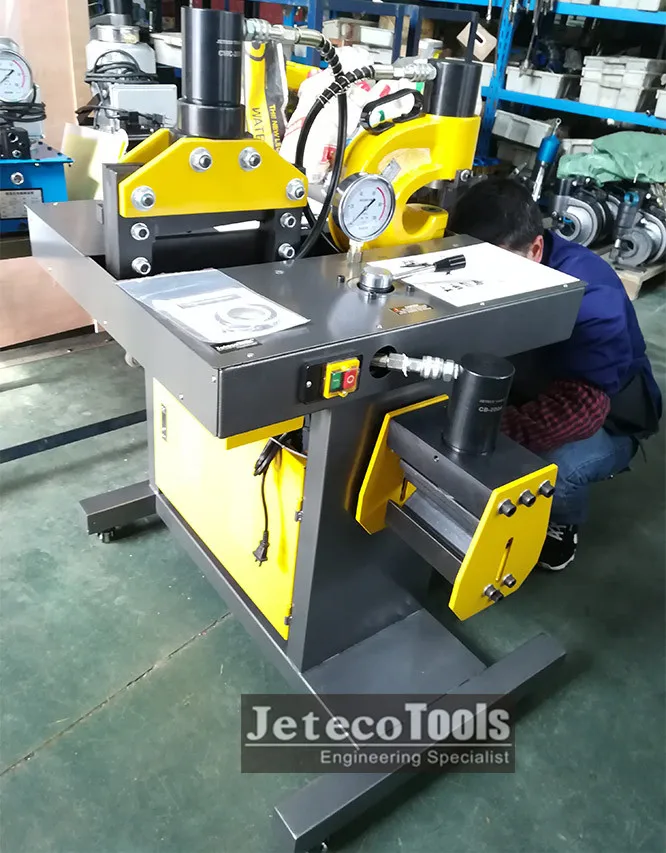

DHY-200 hydraulic busbar processor machine for copper bending cutting and hole punching, three in one hydraulic busbar processing machine DHY-150.

JETECO Tools brand.

Jeteco Tools's production:











We often make two models of hydraulic busbar processing machines:

Model	DHY-200, JETECO Tools brand
Cut off range	Copper-aluminium row width<200 mm, thickness 3-12 mm
Bending range	Copper-aluminium row width<200 mm, thickness 3-2 mm
Punching range	Copper-aluminium row width<200 mm, thickness 3-12 mm

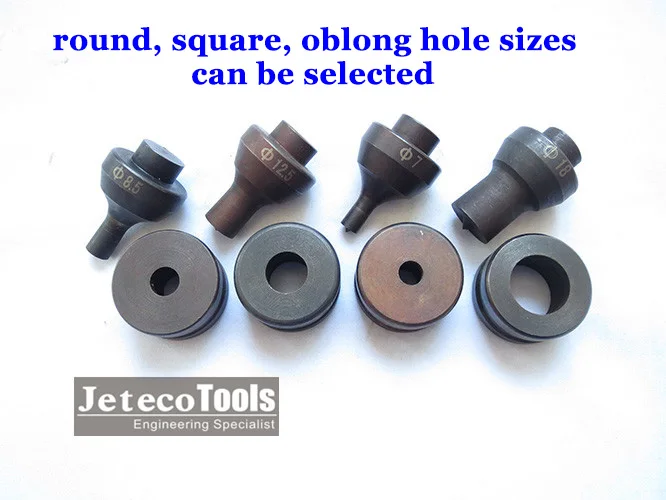

Standard punching die	∅10.5mm, ∅13.8mm, ∅17mm, ∅20.5mm. Other hole sizes ∅5mm to ∅23mm are for selected.
Distance from hole center to edge, punching throad	110mm
Input voltage	110V / 120V / 220V / 240V / 380V for selected
Rated working oil pressure	700Kgf/cmsq, 10000Psi
Weight	Around at 200Kg



Model	DHY-150, JETECO Tools brand
Cut off range	Copper-aluminium row width<150 mm, thickness 3-10 mm
Bending range	Copper-aluminium row width<150 mm, thickness 3-10 mm
Punching range	Copper-aluminium row width<150 mm, thickness 3-10 mm
Standard punching die	∅10.5mm, ∅13.8mm, ∅17mm, ∅20.5mm. Other hole sizes ∅5mm to ∅23mm are for selected.
Distance from hole center to edge,  punching throad	95mm
Input voltage	110V / 120V / 220V / 240V / 380V for selected
Rated working oil pressure	700Kgf/cmsq, 10000Psi
Weight	Around at 180Kg



The following products are selected with the following parameters, mostly for customized requirements.
Processing range of flat bending	Copper-aluminium row width 40,50,60,80,100,125; Copper-aluminium row thickness 4,6,8,10
Processing range of embossing machine	Copper-aluminium row width is less than 150mm and thickness is less
Up to 300mmsq hydraulic crimping range	Copper terminal 16-300m, Aluminum terminal 25-240m
Up to 500mmsq hydraulic crimping range	Copper terminal 16-500m, Aluminum terminal 16-400m

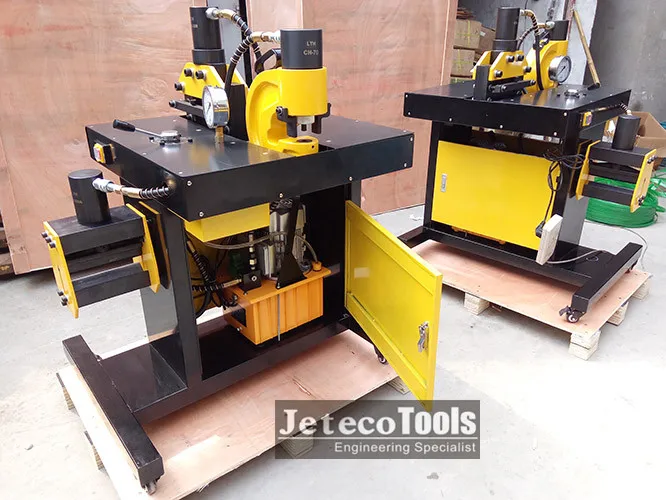

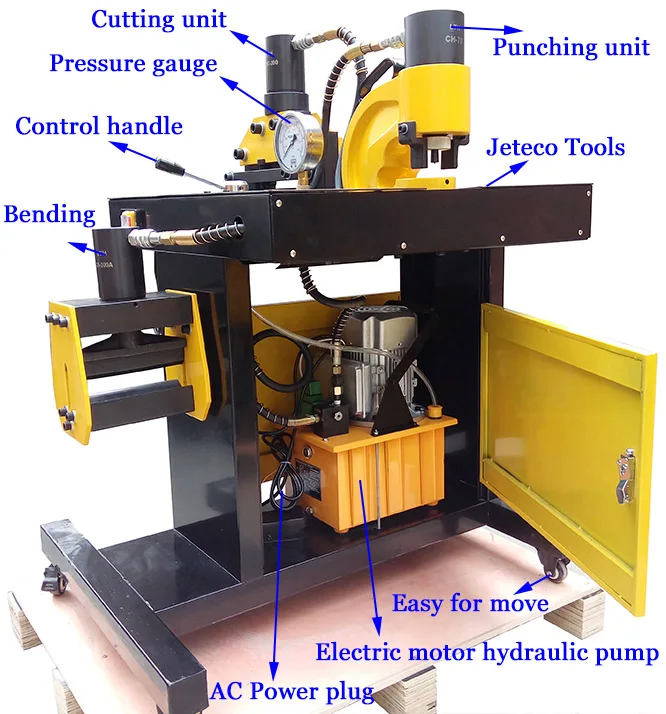

This hydraulic busbar processing machine operated by electric motor hydraulic pump.
