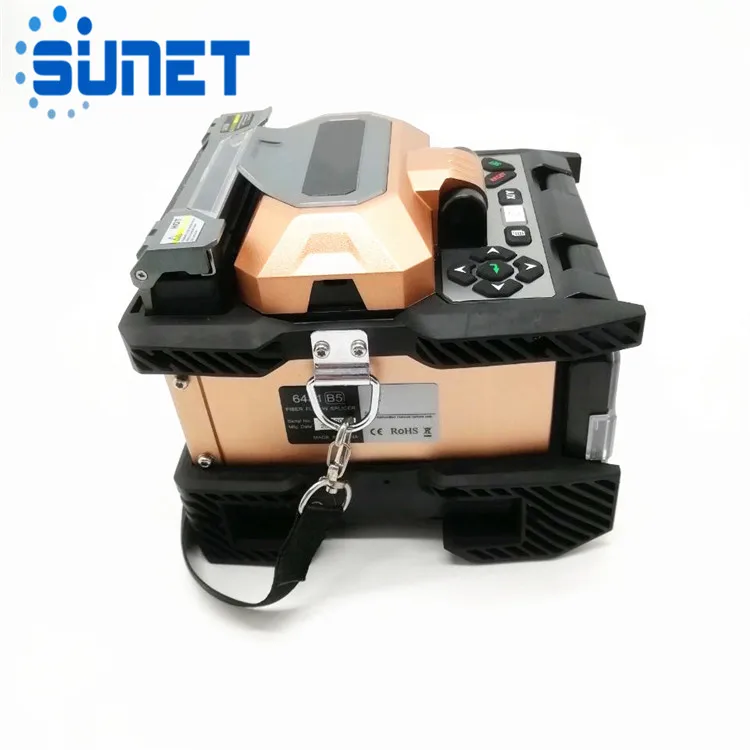

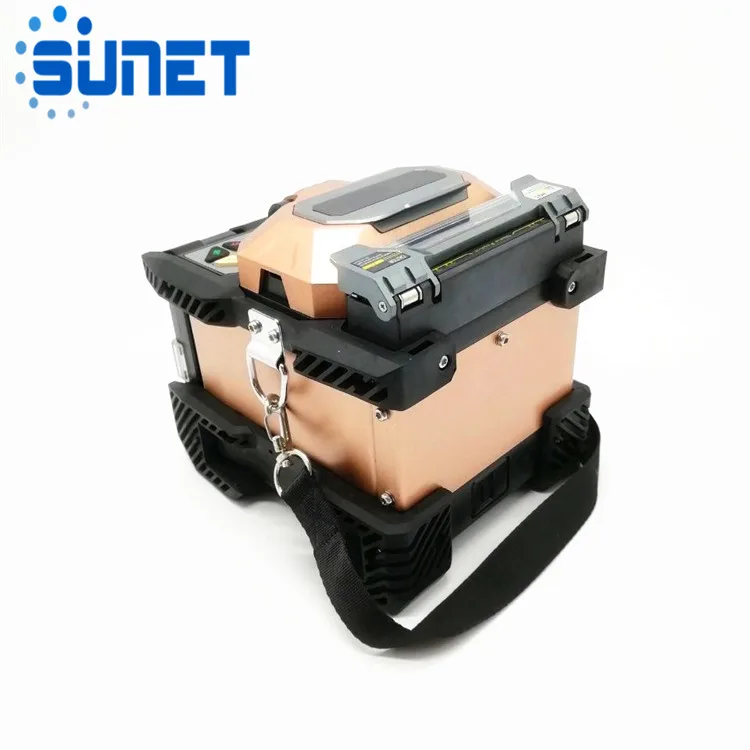

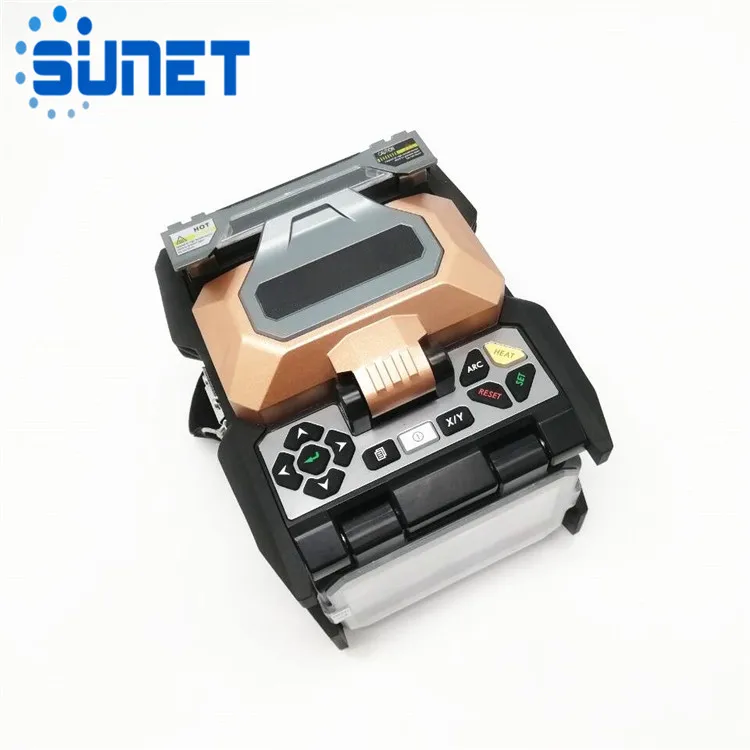

Supply High Precision Portable Fiber Optic Splicing Kit Splicing Machine Fiber Optic Fusion Splicer
- Category: >>>
- Supplier: Qingdao Sunet Technologies Co. Ltd.
Share on (62180215675):
Product Overview
Description
Supply High Precision Portable Fiber Optic Splicing Kit Splicing Machine Fiber Optic Fusion Splicer
Description:
SNT-AV6481 fiber optic fusion splicer machine implements industrial-grade CPU+FPGA structure of high-performance, completely fresh HD optical fiber microscope, imported high-speed motor and aluminum-magnesium alloy materials extensively.
This is a perfect splicer tool kit in the fiber optic fusion and maintenance.
Feature
Main Feature :
Precise fiber core alignment, ultra-low fiber fusion splicing consumption
7s fast fusion splicing, 18s highly effient heating.
320 times image magnification, 5mm fusion splicing for fibers of ultra-short cutting length
300 groups of fusion splicing modes, 100 groups of heating modes
10000 groups of fusion records, 64 images storage
Ceramic presser foot, ceramic V-block, all-in-one fixture
Dual-direction splicing, automatic splicing, intelligent pyrocondensation
USB and SD card interfaces, U-disk automatic sofware upgrade
Built-in modular lithium battery, supports 220 times of splicing and heating cycles.

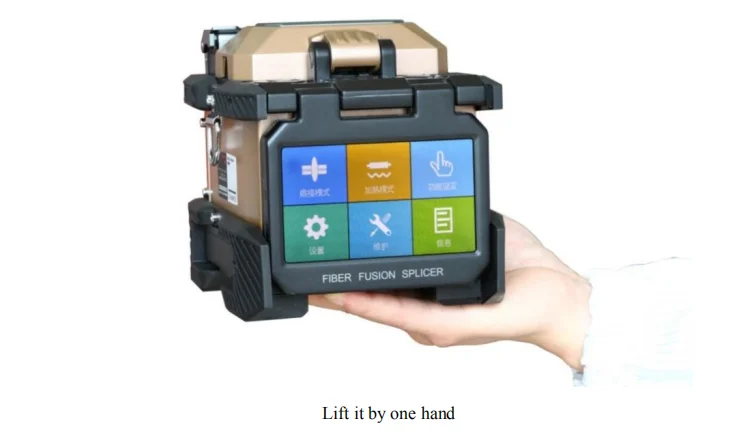

Small and tight

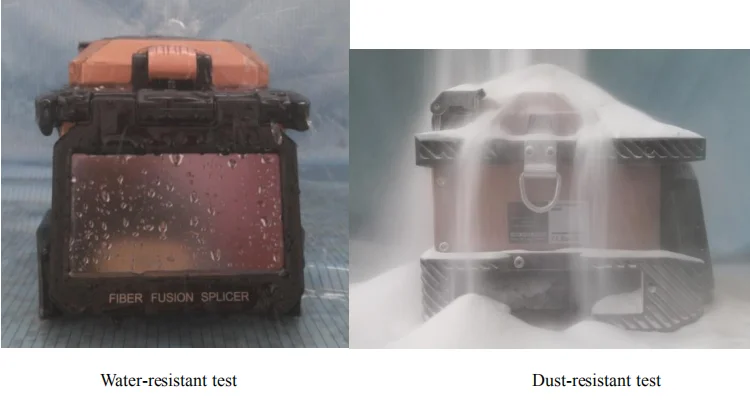

Water-resistant ,dust-resistant and shock-resistant in design.
Water-resistant and dust-resistant can meet IP52 requirements.

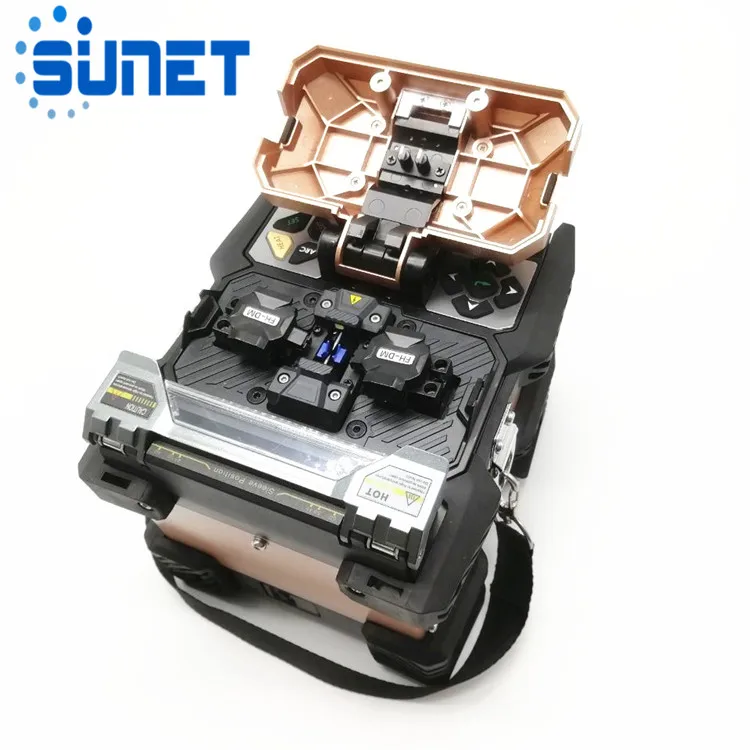

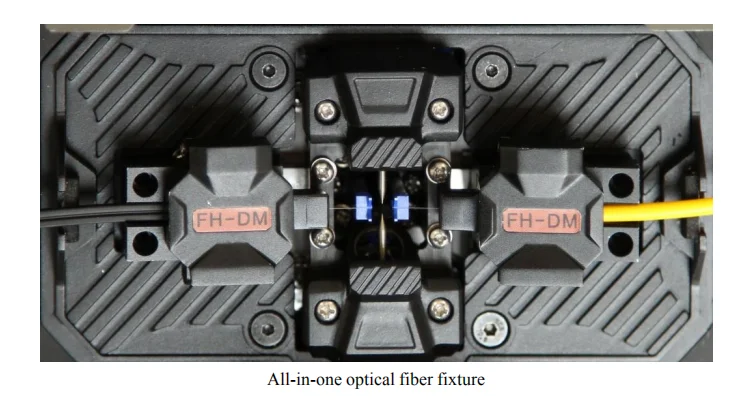

All-in-one fixer
The all-in-one fixture meet fusion splicing demands of multiple fibers,jumpers and rubber-insulted wires with a cladding diameter of 80~150μm.

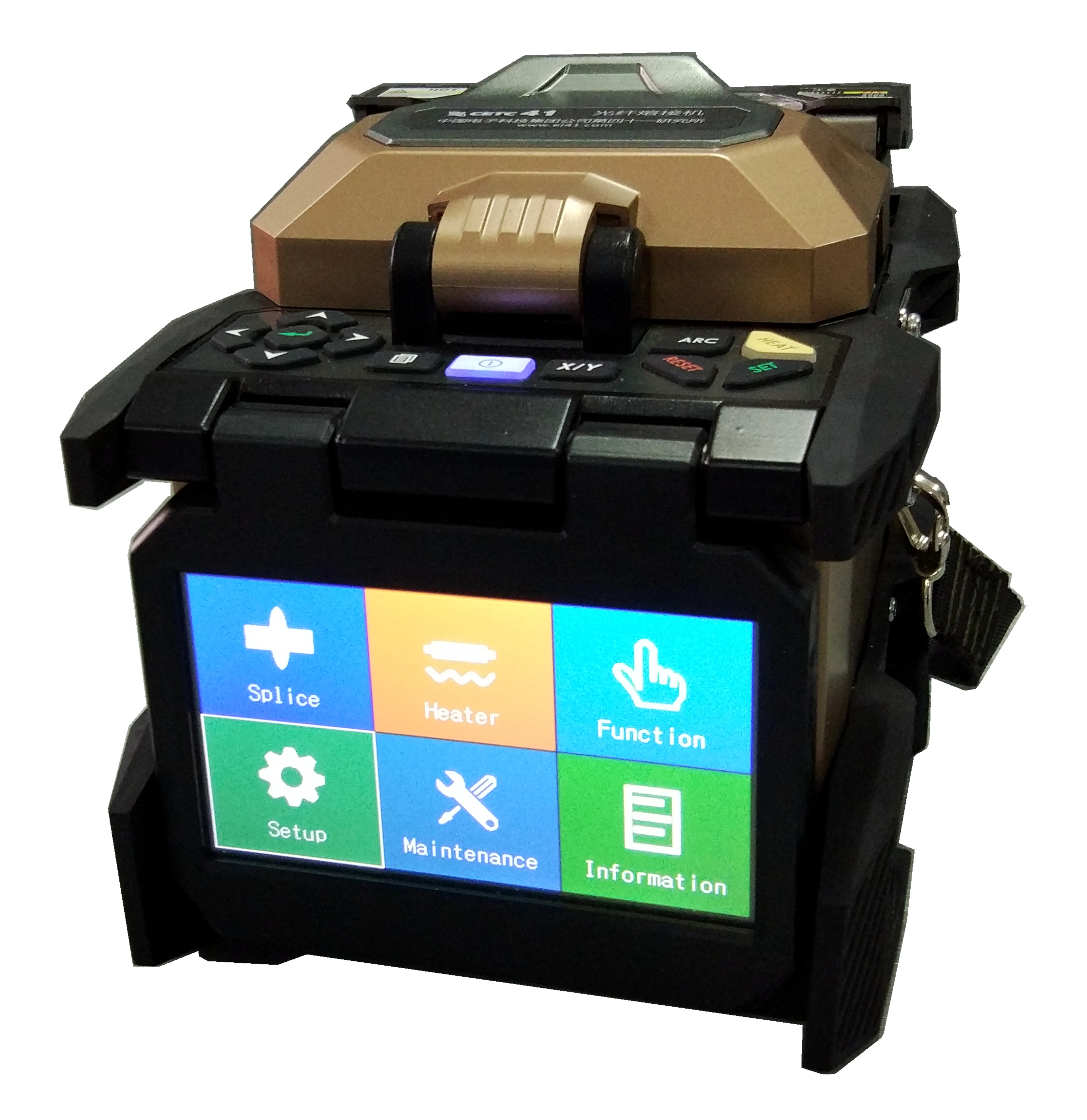

Graphical interfaces andf touch screen and Multi-Language
Entirely new GUI graphical interfaces and touch screen in design .

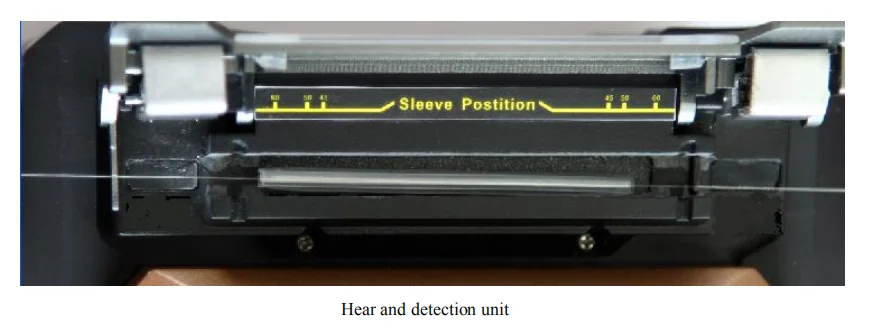

Intelligent heat shrinkage
Avoid misoperation.

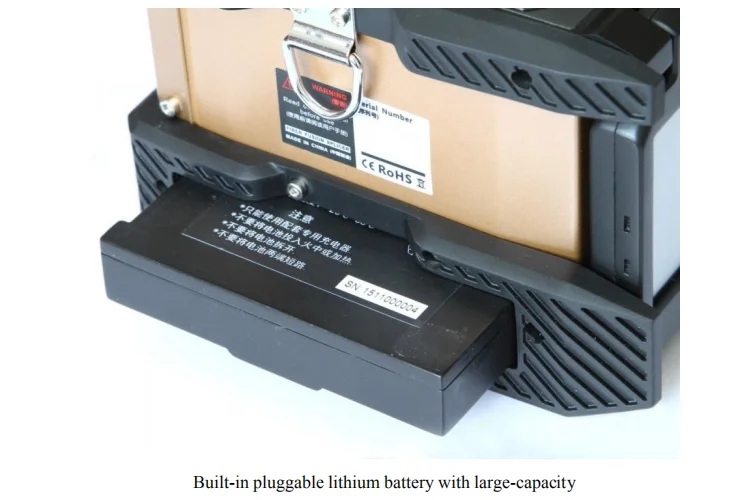

Large-capacity pluggable lithium battery
Large capacity, lasting all day long.

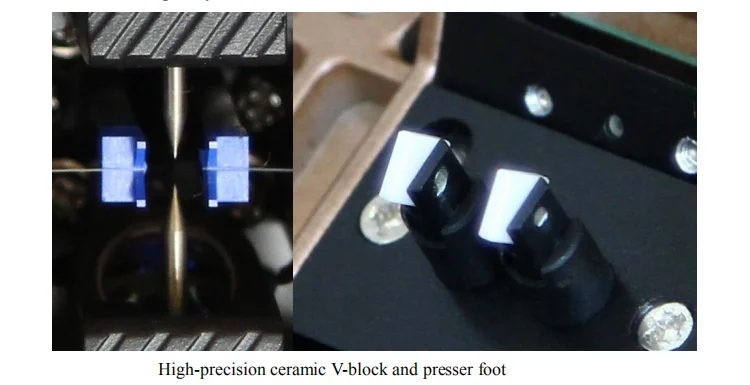

Ceramic V-block and ceramic foot
Accurate placement of optical fibers and makes cleanup easy.

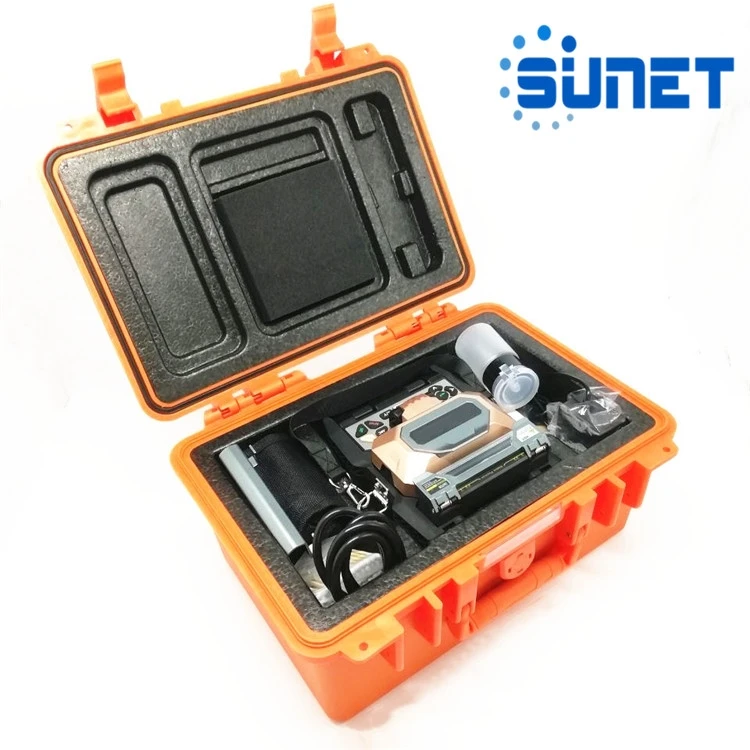

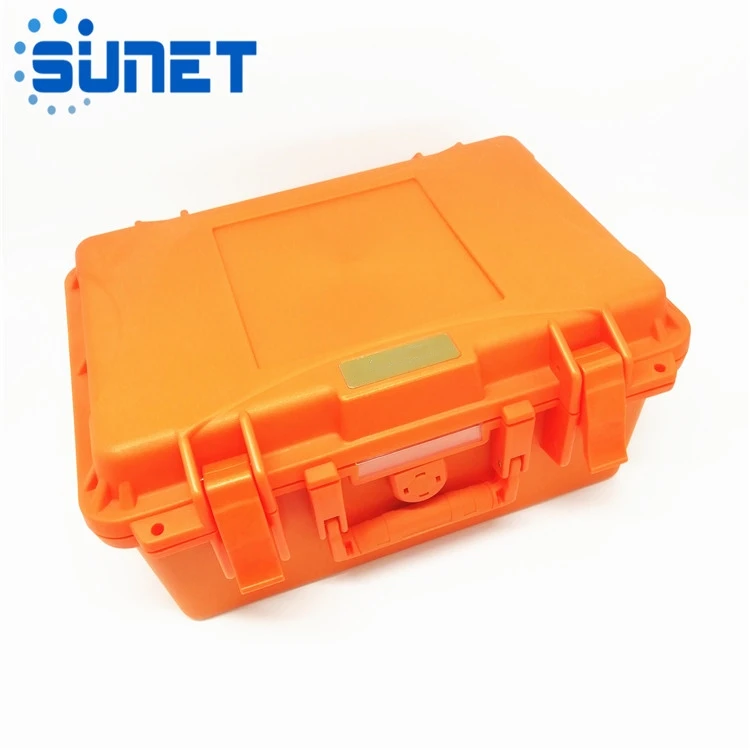

Multi-functional carrying case

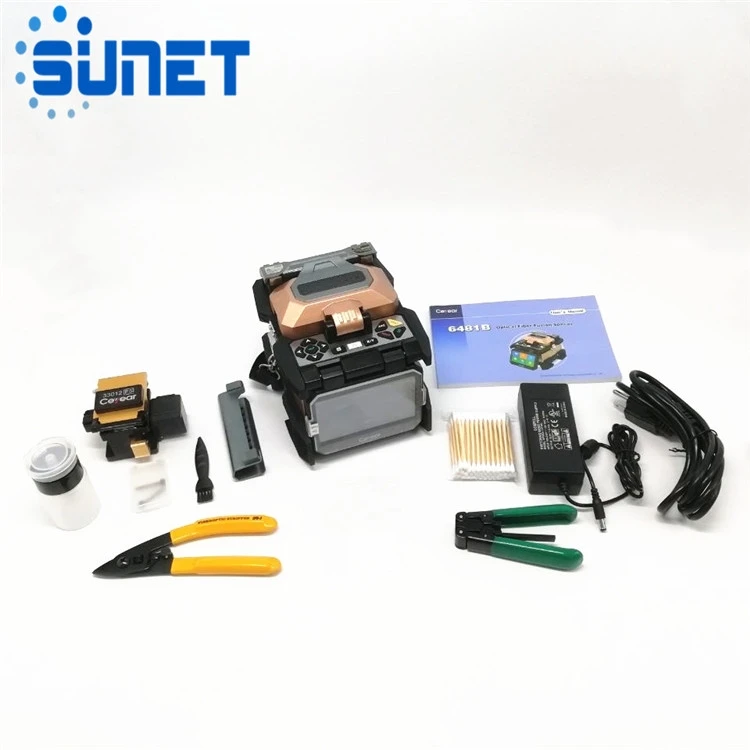

Product display
Technical specificat
Model | SNT-AV6481 |
Alignment method | Precise core alignment and cladding alignment |
Applicable fibers | Any common optical fibers, rubber-insulated fibers and jumpers that meet requirements of ITU-TG.651~653, ITU-TG.655 and ITU-TG.657. |
Optical fiber diameter | Cladding:80~150μm, coating layer: 0.1~3mm |
Cutting length | 5~16mm(coated optical fiber diameter≤250μm);10mm(coated optical fiber diameter:0.25~3mm) |
Fusion splicing consum ption(typical value) |
0.02dB(SMF);0.01dB(MMF);0.04dB(DSF);0.04dB(NZDSF) |
Return loss | Better than 60dB |
Fusion splicing time (typical value) |
7s |
Heating time (typical value) | 18s |
Pulling force test | 1.96~2.25N |
Thermal shrinkage tube | 60mm, 40mm and a series of thermal shrinkage tubes |
Graphical display | High-performance 4.3 inch LCD |
Magnification time | 320 times/88 times |
Fusion splicing record | 10000 groups |
Battery capacity | 11.1V,6400mAh,typical value of fusion splicing and thermal cycle is 220 times |
Battery service life | Cycle charging times reach 300~500, can be replaced by customers |
Electrode service life | Typical value is 4000 times, can be replaced by customers |
Construction lighting | Built-in lights with high-brightness and wide lighting area |
Working environment | Temp:-10~50℃;hum: 0~95%RH,height above sea level:0~6000m |
Operation interfaces | GUI graphical operation interfaces |
External power | AC: AC100~240V,60Hz,0~1.5A;DC: DC10~15V |
External port | USB / SD |
Dimensions | 120mm(W)×130mm(H)×154mm(D)(without rubber anti-vibration pad) |
Weight | 1.59kg(host engine),0.37kg(battery) |
