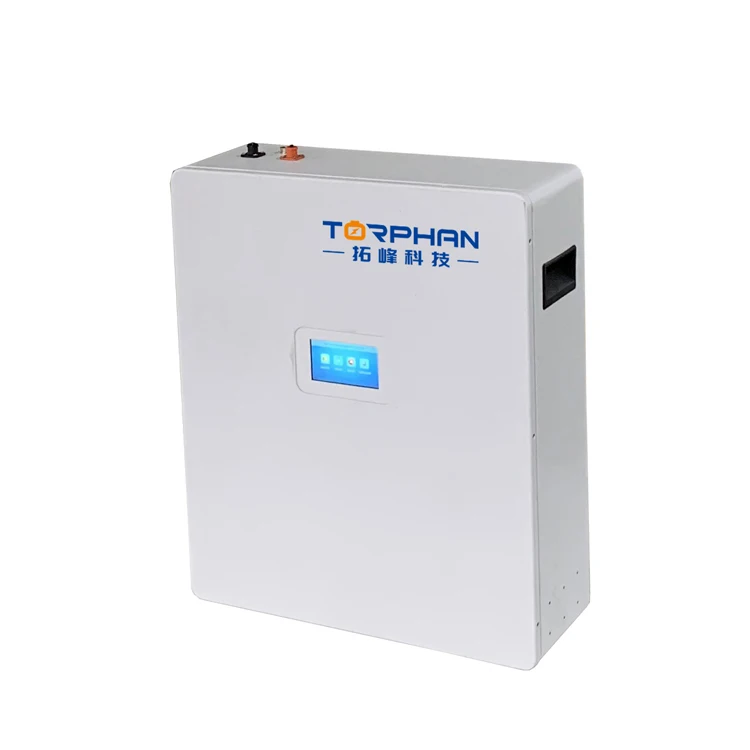

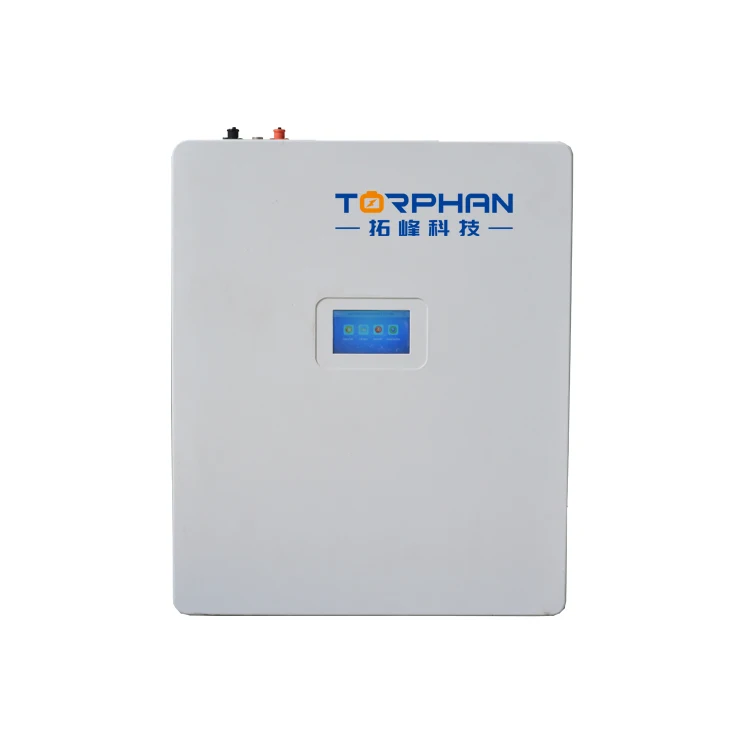

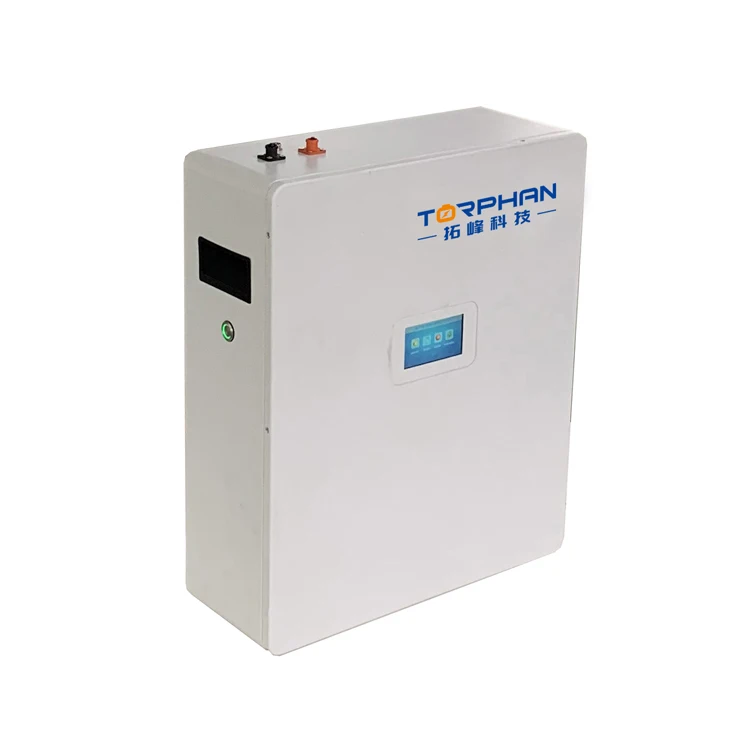

Smart Lithium ion battery will use lower self discharge and deviation cell and built in BMS to monitor each cells’ voltage , current and temperature. User could set parameter throw display, such as overcharge&over discharge voltage, overcharge&over discharge current, high&low protection temperature, in order to meet various working condition requirement. The built in Display could show each cell’s voltage, total voltage, charge and discharge current, temperature ,SOC and the battery real time working condition. The user also could read the history record, such as number of over charge and discharge voltage,number of over charge and discharge current, cycles, Min cell voltage and Max cell voltage Exc.
Specification
Model
Tor-48v200Ah
Tor48V 400Ah
Tor-48V600Ah
Tor-48V 800Ah
Tor-48V 1000Ah
Part Number
1548200x
1548400x
1548600x
1548800x
15481000
Rated voltage
51.2Vdc
51.2Vdc
51.2Vdc
51.2Vdc
51.2Vdc
Rated Capacity
200Ah
400Ah
600Ah
800Ah
1000Ah
Rated Charge voltage
55.2Vdc
55.2Vdc
55.2Vdc
55.2Vdc
55.2Vdc
Rated Charge current
60A
120A
180A
240A
300A
Max Charging current
100A
200A
300A
400A
500A
Rated Discharge current
60A
120A
180A
240A
300A
Max Discharge current
100A
200A
300A
400A
500A
Battery Chemistry
Lithium Iron Phosphate (liFePO4)
Battery Type
Deep-cycle Rechargeable, Sealed, Maintenance-Free
Safety Feature
Fully integrated battery management system (BMS), Automatic DC disconnect, settable triggered relays, inline fuse
enclosure
Indoor-rated steel box
efficiency
95%
Cycle life
>5000@70%DOD
State of Charge Usage Window
20%~95%
Self Discharge Current
<3%
Operating Temperature
0 degrees C to 45 degrees C ( 32 deg.F to 113 deg.F)
Warranty
10 years, full replacement for first 24 moths, pro-rated for months 25-120
