Rotary punching machine
US $55900
Coin Cell Press Machine/Punching Machine/Stamping Machine/Precision Disc Cutter With Standard 16,19,20mm Diameter Cutter Die
- Category: Punching Machines >>>
- Supplier: Xiamen Tmax Battery Equipments Limited
Share on (62180508784):
Product Overview
Description
Product Description
Coin Cell Press Machine/Punching Machine/Stamping Machine/Precision Disc Cutter With Standard 16,19,20mm Diameter Cutter Die
Features

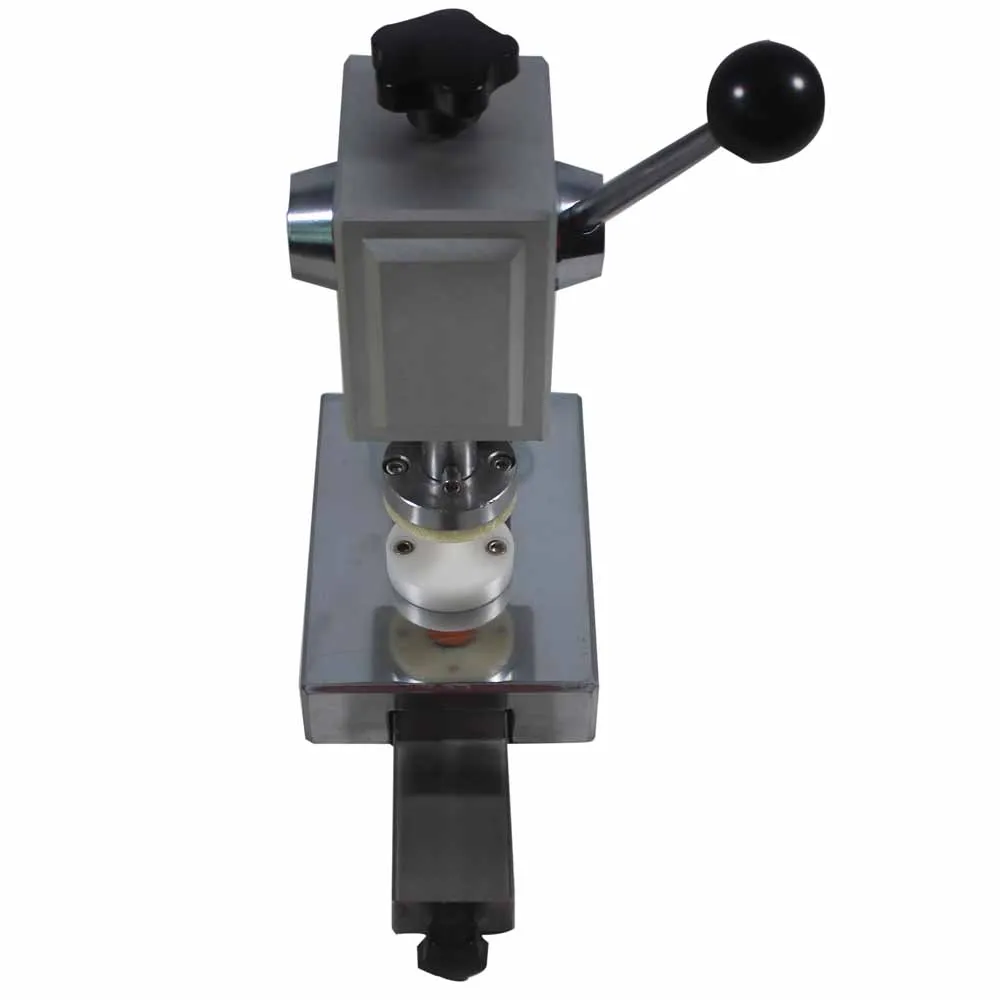

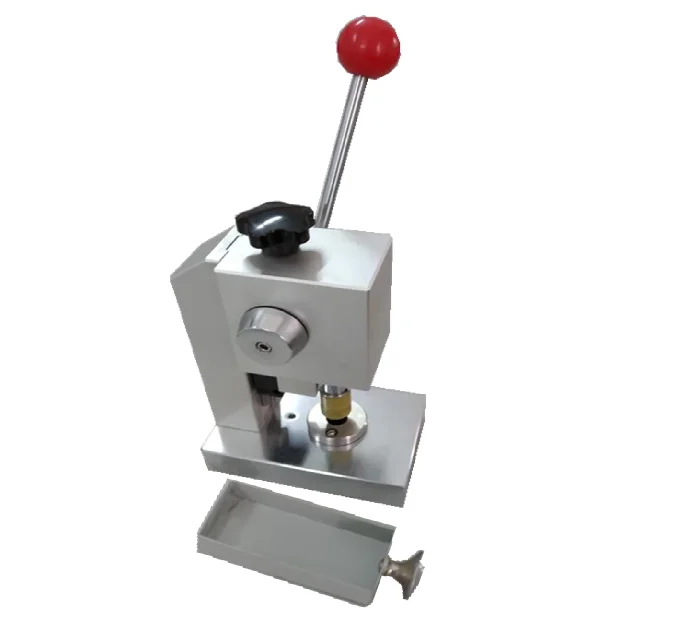

TMAX-CP60 is a compact disc cutter with quality sliding rail with ball bearing for precision cutting. It can be easily placed into a glove box with a transition chamber diameter larger than 230mm. This tool is manually operated and is designed for cutting round discs from a thin metal sheet/foil (< 0.5 mm) or separator film (<30um). The resulting discs can be used as electrode/separator discs of split test cell and coin cell for battery researchers as well as TEM sample preparation.
Specifications
Structure | Major structural material: Cr Plated Steel |
Cutting Die | Optional 3 - 24mm customized dies are available upon request |

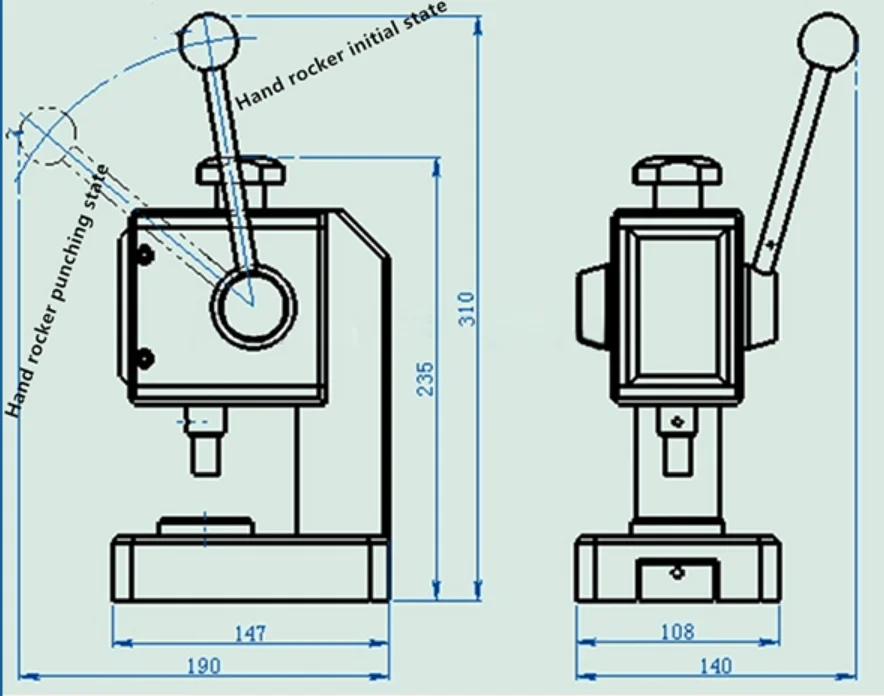

Product Dimensions | L110×W150×H235mm Compact size which can be put into glovebox through air lock chamber |
Warranty | Two years limited manufacturer warranty with lifetime support. |
Application Notes | 1. If you are going to make CR2016, CR2025 or/and CR2032 coin cell batteries, you will need at least three cutting dies: |
Compliance | CE Certified |
Net Weight | 6 kg |
Product Images
Our Company & Team
Certifications
Cooperative Partner
Packaging & Shipping
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
