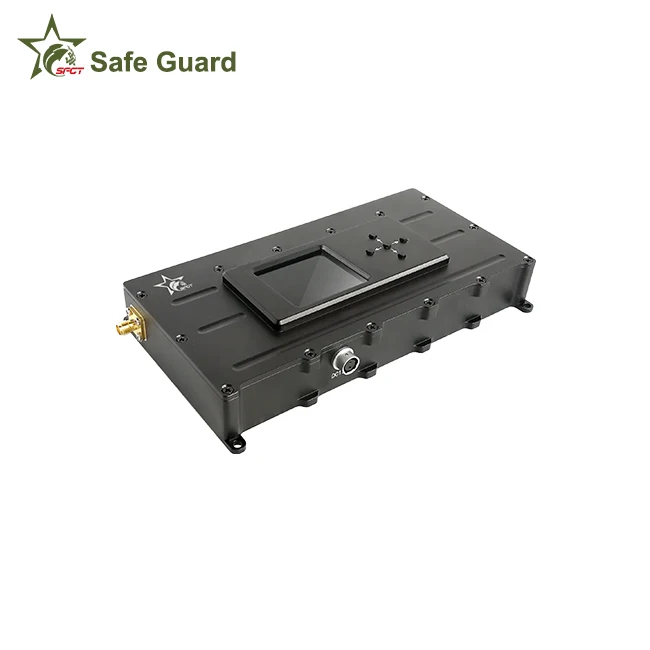

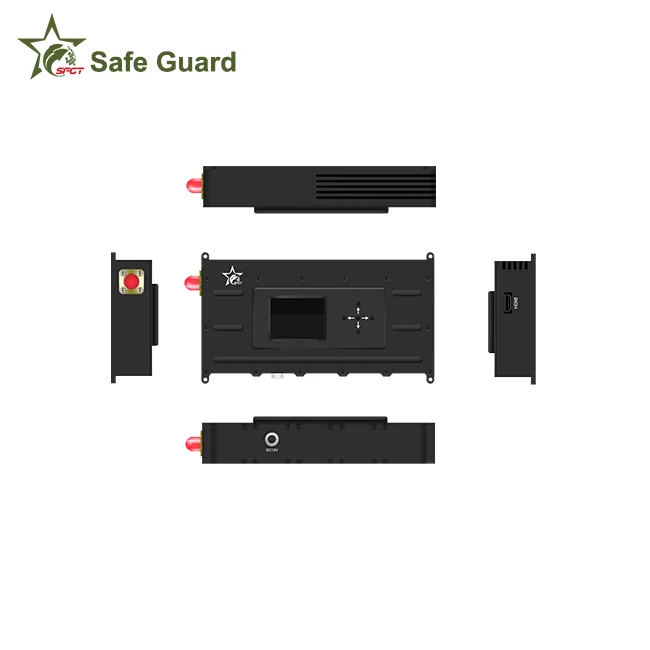

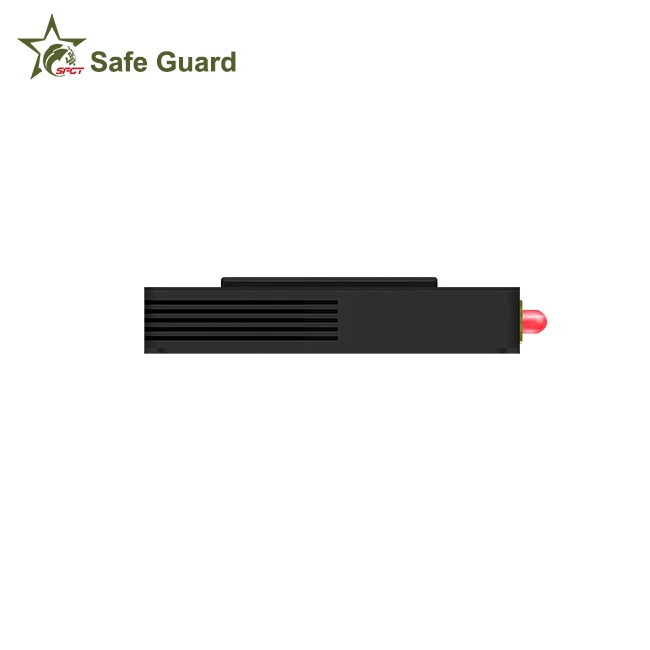

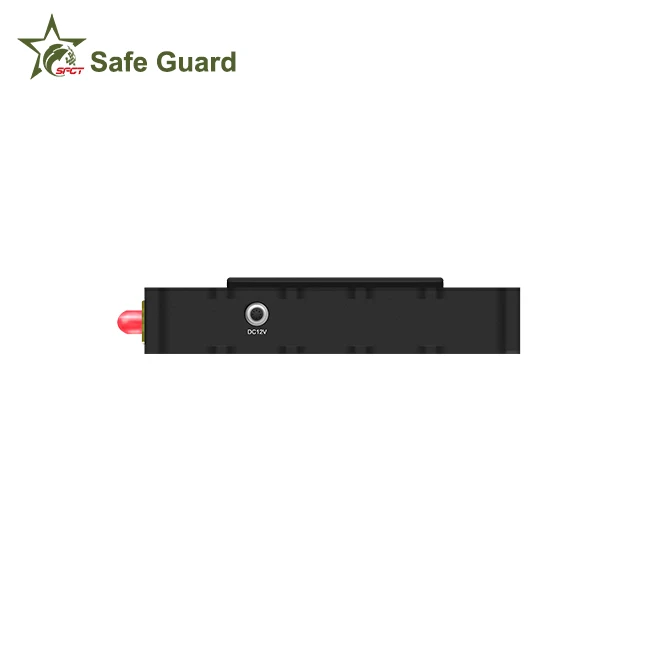

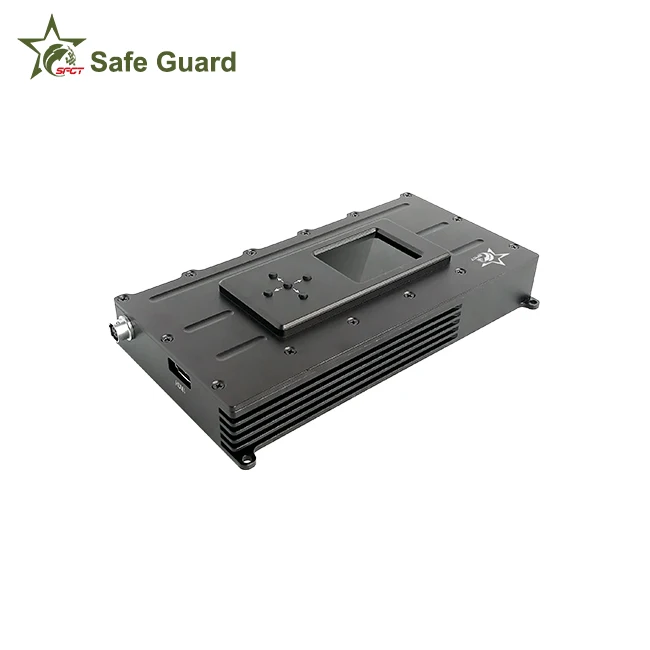

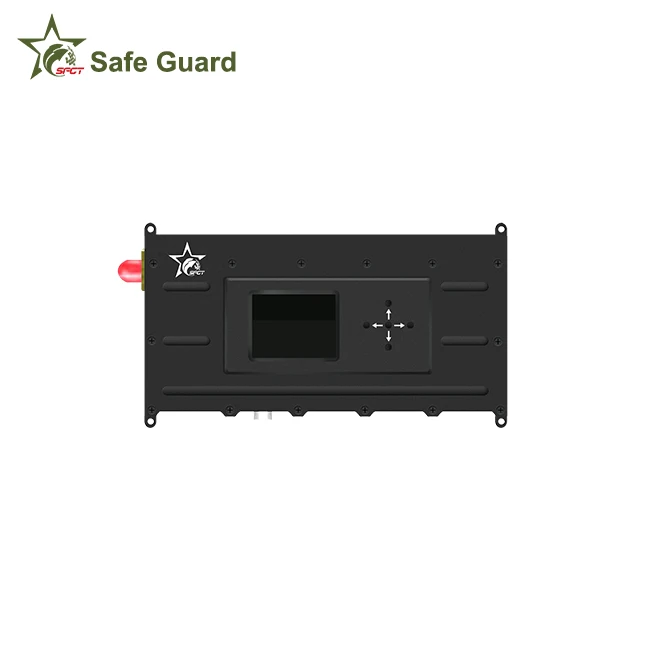

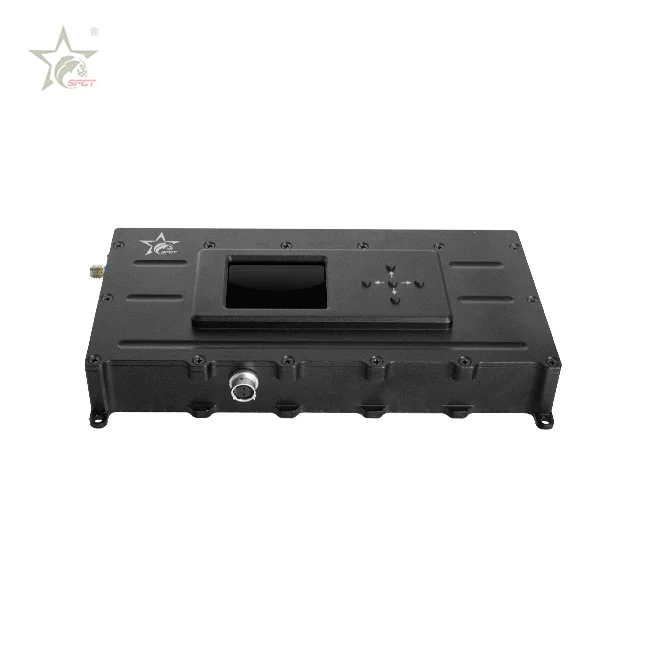

HD AV 60 KM Data Entry Anti Signal New Splitter Tactical Backpack Transmitter BNC Connector Self Defense For UAV /Drone

Product Overview

Description

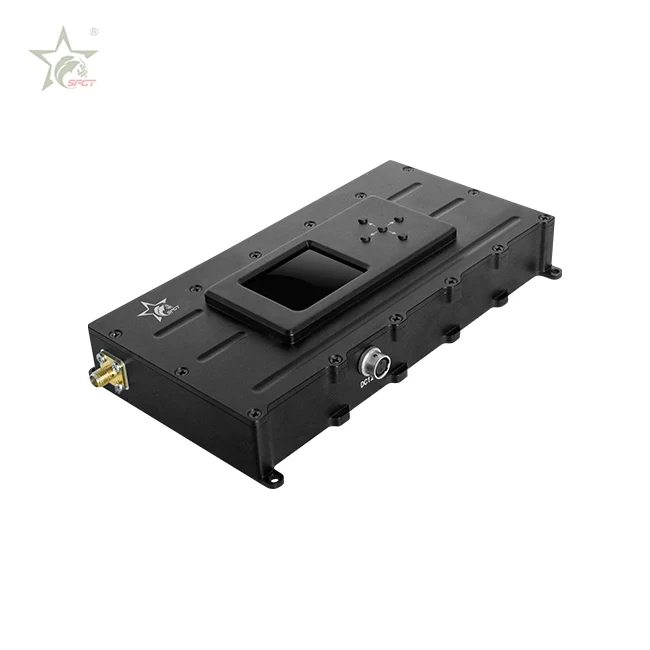

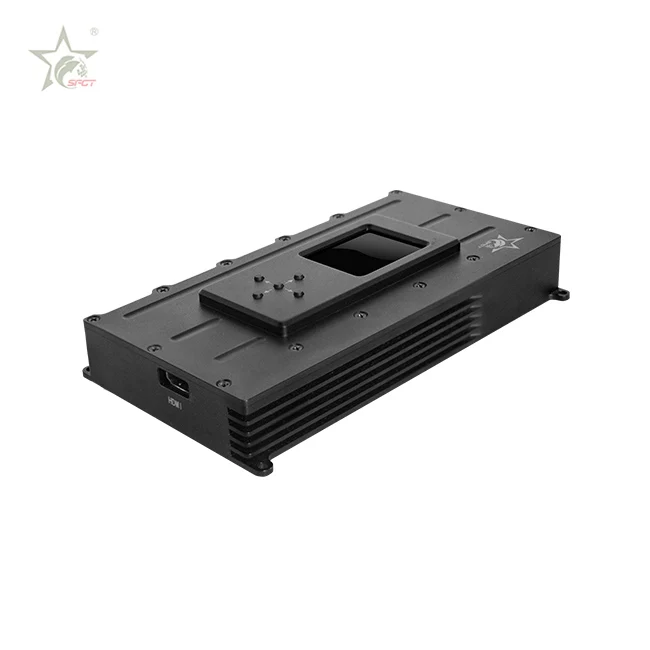

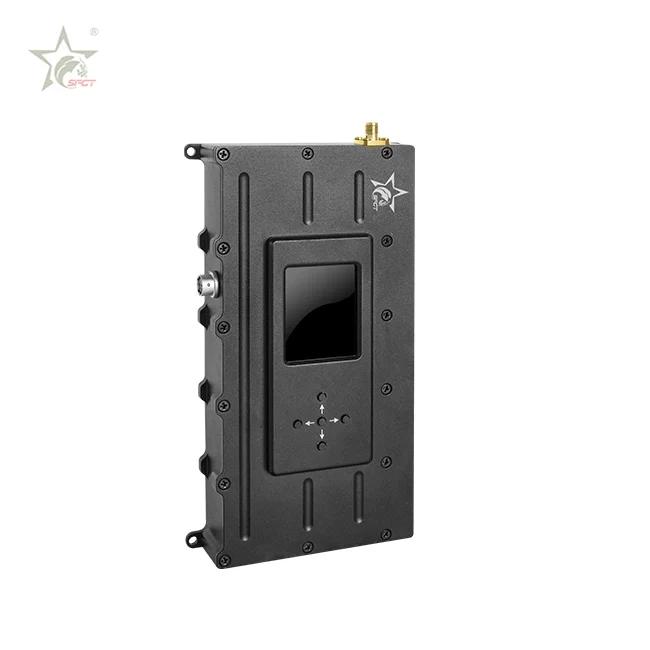

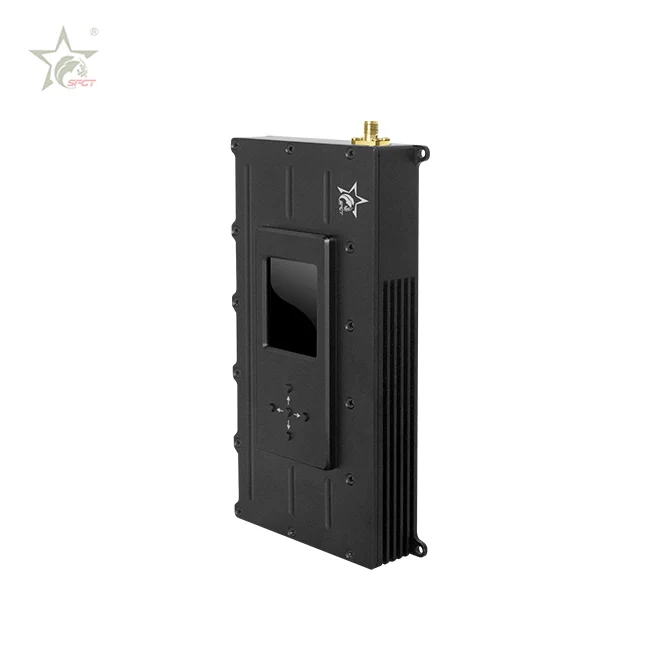

HD AV 60 KM Data Entry Anti Signal New Splitter Tactical Backpack Transmitter BNC Connector Self Defense For UAV /Drone

Such new design 1080P HD transmitter is a powerful HD transmit system,using the core of mobile communication technology COFDM(multi-carrier modulation technique),which can transmit good quality and stable full-hd digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment.Support  full HD 1080P H.264 encoding format and SDI two HD inputs(single selection) as well support stereo balance audio input and narrowband transmission system.





Model	SG-HD103
Working voltage	DC12V
Working current	≤1.1A  DC12.5V
Video input	BNC / Aviation plug (optiona)
Input	External to HD digital video signal, support HD 1080p/720p/576/480
HD-SDI input	External to SDI digital video signal, support HD1080p/720p/576/480
Frequency range	300MHz~4.4GHz (optional), gap 1MHz(Other frequency can be customized)
RF bandwidth	2/2.5/4/8MHz
RF output power	1-3W adjustable
Modulation	COFDM 2K QPSK
Encryption	AES user-defined
FEC	1/2,2/3,3/4,7/8
Guard interval	1/32,1/16,1/8,1/4
Video resolution	720P, 1080i/P   60fps
Video coding	H.264/MPEG-4/MPEG-2
Parameter control mode	Set relevant parameter by LCD FM display panel
RF connector	N-type(50Ω)
Dimension	176*90*30mm
Weight	571g
