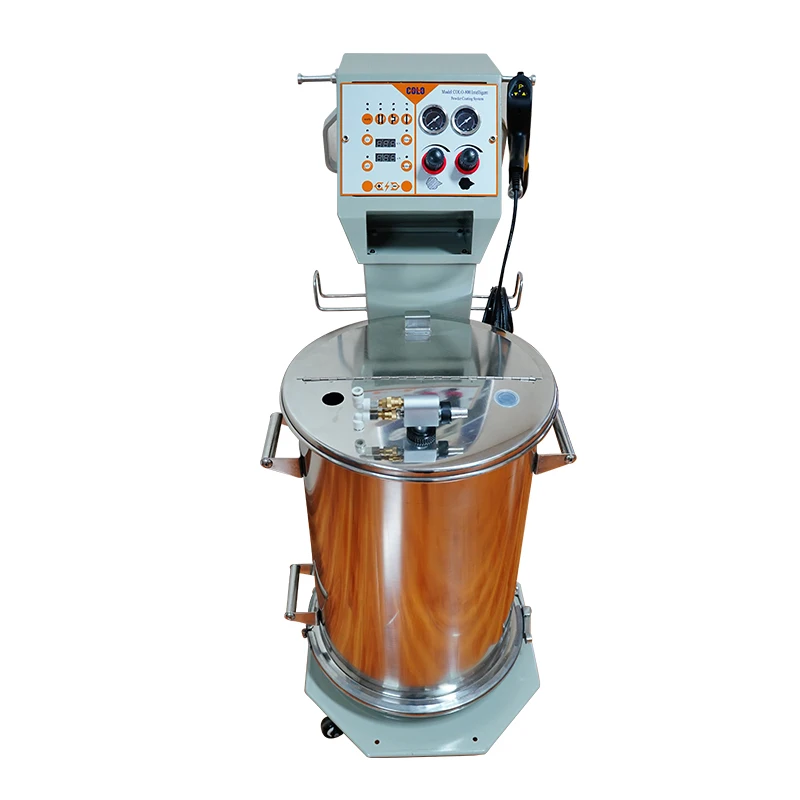

CE Approved Electrostatic Powder Painting Tool Suit For Beginner (COLO 800D)

Product Overview

Description

COLO-800D is our intelligent model, which is used for spraying workpiece flat parts, complicated parts and recoat parts workpiece with deep corners.



  Working Process

The process of the coating is like this: The powder is fluidized in the powder hopper. The injectors transport the powder through the hoses to the guns. The guns spray a powder/air mixture onto the workpieces.

Components:

Length of Gun Cable:6m
 Powder Hopper Volume : 55L

 Manual Powder gun with gun cable x 1
 Powder Gun Spare Parts x 1 kit
 Control Unit x1
 Powder Injector x 1
 Fluidized Powder Hopper x 1

Trolley x 1
 Oil-water separator x 1
 Air pressure regulating valve x 1
 Powder Hose ,Air Tubes ,Grounding line: 1kits

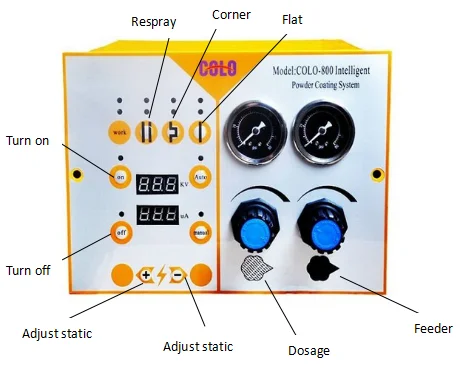

Character: Controller has one-touch intelligent operation button good for flat parts, complicated parts and recoat parts

This machine is suitable for the coating of simple, flat workpieces

This machine is suitable for the coating workpieces with complicated shapes

This application mode is suitable for the over-coating of workpieces

Which are already coated.

Specification





Electrical data
Power range	220V/110V
Frequency	50HZ/60HZ
Temperature range in use	-10 ℃+50 ℃
Powder Gun
Gun weight	500G
Rated output voltage	24VDC
Input voltage	- 200kv
Maximum output current	180Ua(max
Maximum output voltage	0-100KV (adjustable)
Maximum powder injection	600g/min
Polarity	negative (-)
Pneumatic data
Maximum input-air pressure	10kg/cm
Optimum input-air pressure	6kg/cm
Minimum input-air pressure	4kg/cm
Maximum oil vapor content of compressed air	1.4g/N m3
Maximum compressed-air consumption	13.2 m3/h
Dimensions
Width	690mm
Depth	800mm
Height	1135mm
Weight	45kgs

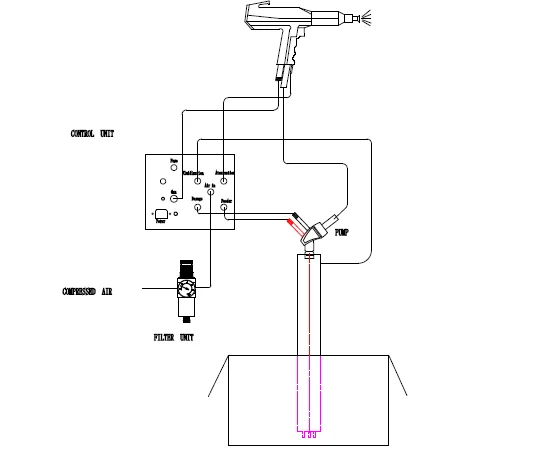

Connection Guide







 COLO Powder Coating Systems is a top supplier of powder coating machine and powder coating equipment including automated equipment, spray booths and spare parts for itw gema , wagner , nodrson , kci famous brand in china.



Related Product

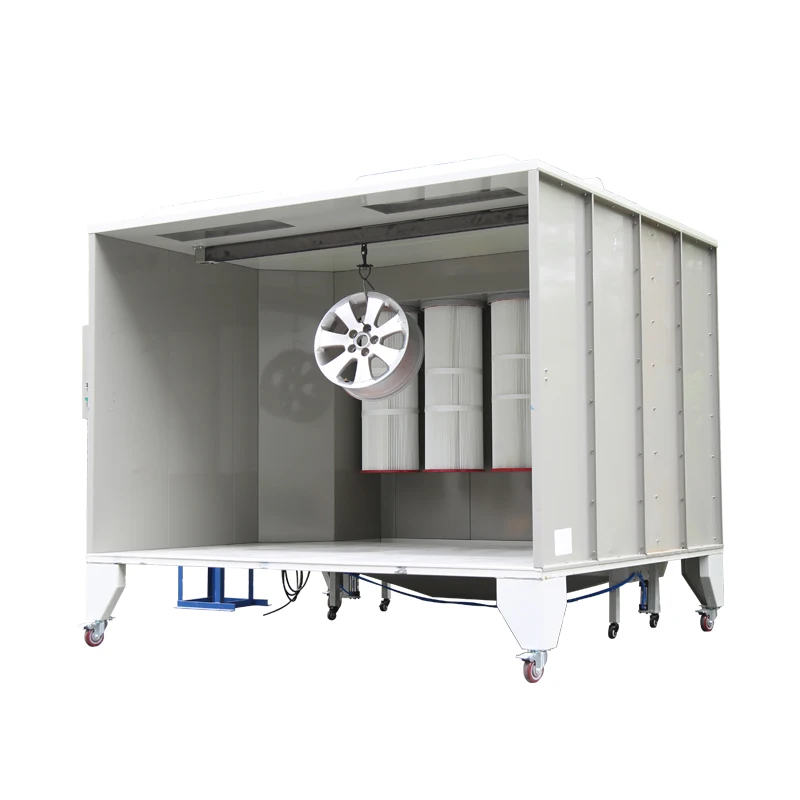

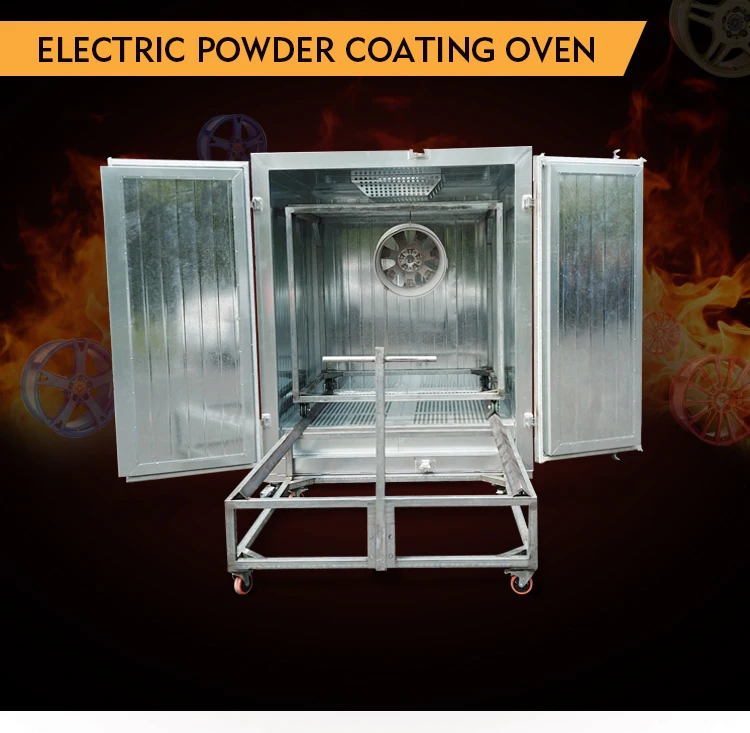

Spray Booth&Curning Oven
