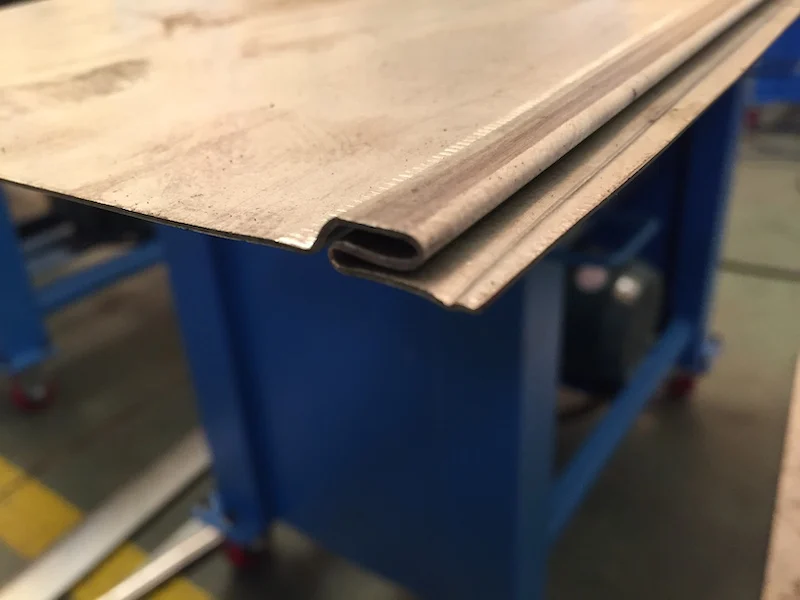

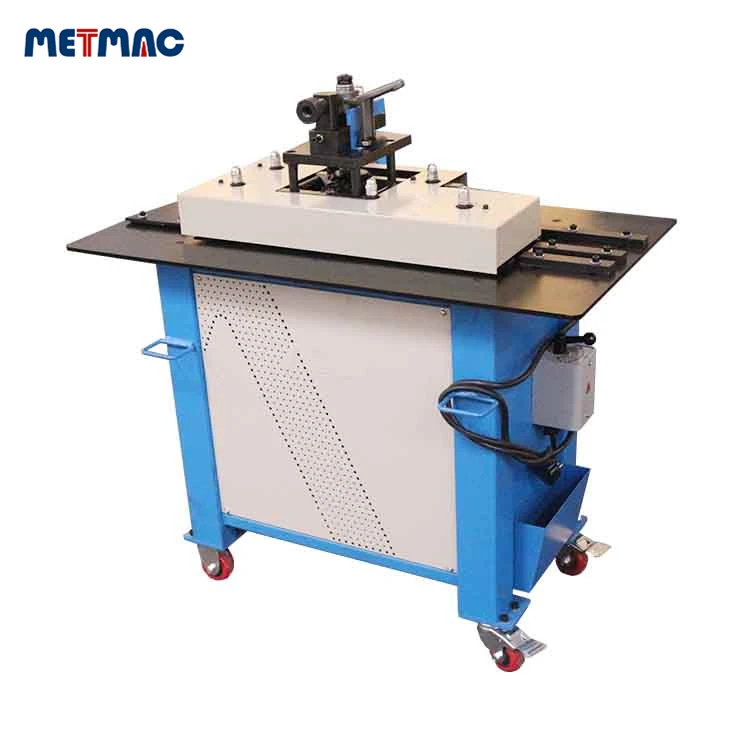

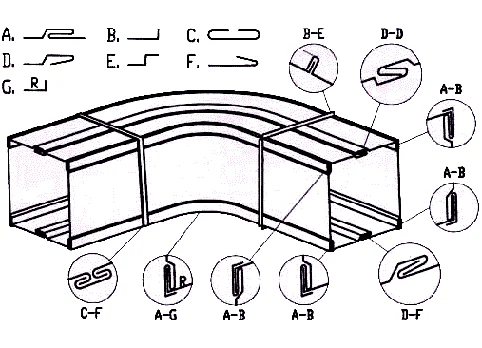

Pittsburgh Lock Former with stations is a multi-functional machine for varying uses in the HVAC ducting industry. It is designed for the formation of different types of seams, which are used in the manufacture of rectangular and round ducts, chimneys, gutters. The rolls are made from the highest quality case-hardened special steel and can be easily changed.

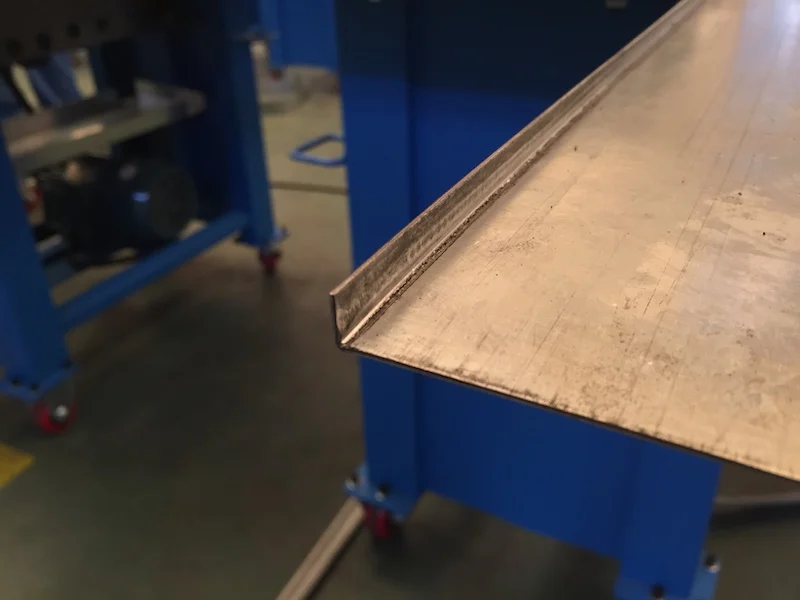

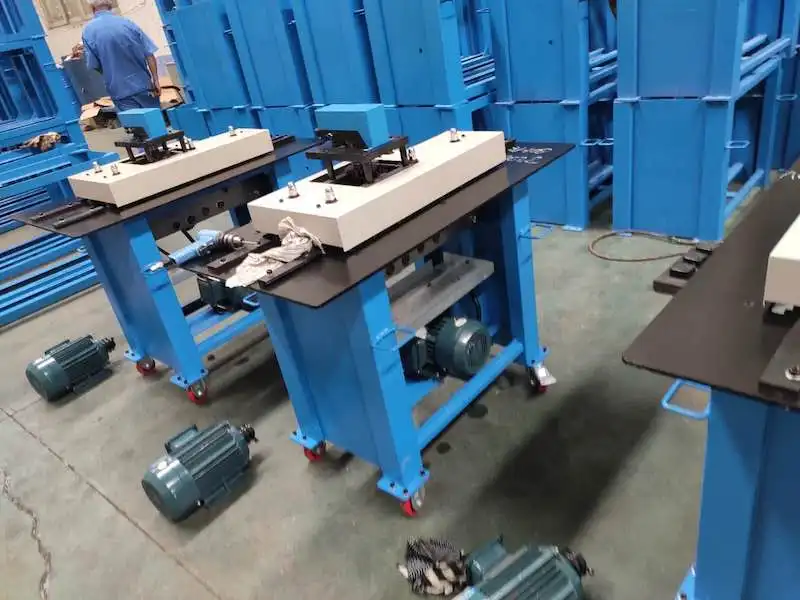

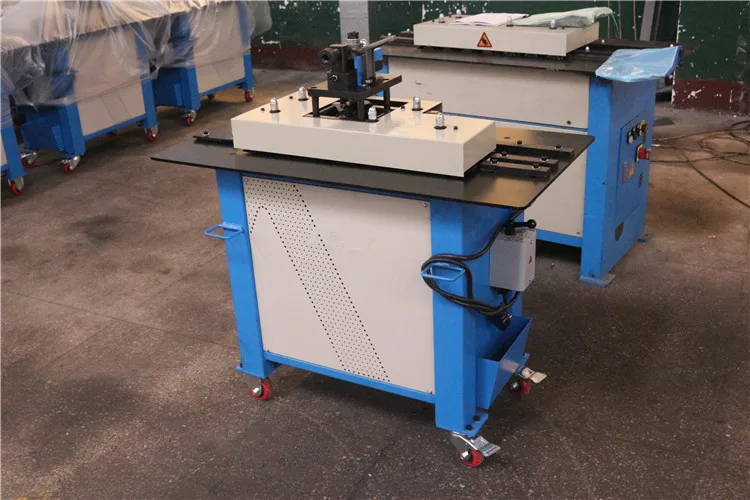

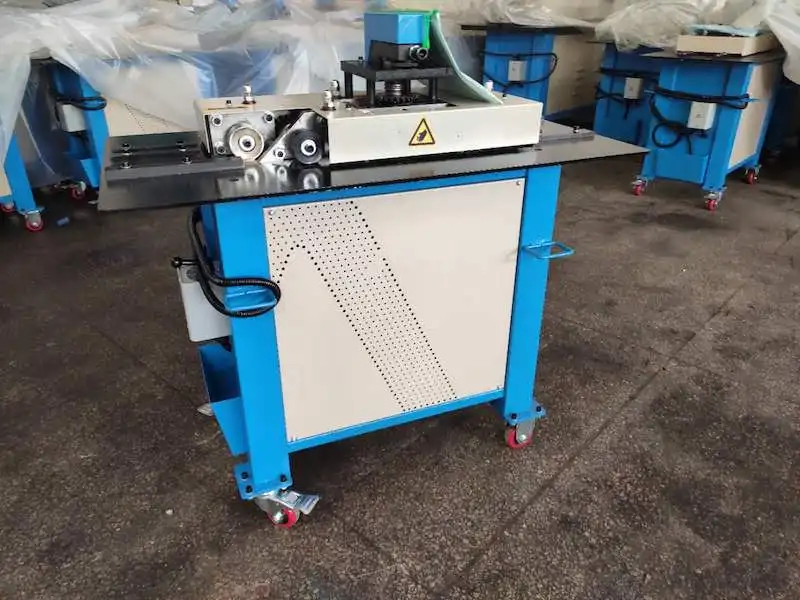

LC-12DR , this 7 forming station Pittsburgh Lock Former with 6 forming positions, Pittsburgh Lock, Double Seam (ACME), Right Angle Flange, Drive Cleat with slitter, standing seam and Power Flanger.
LC-12M, this 8 forming station Pittsburgh Lock Former with 4 forming positions, Pittsburgh Lock, Double Seam (ACME), “S” Cleat and Drive Cleat.
Standing Seam and T connection are optional.
LC-12E, this 7 forming station Pittsburgh Lock Former with 2 forming positions, Female Button Lock and Male Button Lock.
The frame adopts full steel welding structure with enough hardness and rigidity. It also has been heated processed and highly frequently vibrated.
Adopting floor boring-milling machine for guaranteeing the precision.
Specifictions
Type
Descriptions
Unit
LC-12DR
LC-12M
LC-12C
LC-12E
LC-15DR
LC-15M
LC-15C
LC-20
1
No adjustment for material
mm
0.5~1.2
0.7~1.5
0.7~2.0
2
Roller material
GCr15
3
Roller shaft material
Thermal refined 45#
4
Transmission
V-belt
5
Control
Normal electric control
6
Working speed
m/min
9
7
Dimension
(LxWxH)
mm
1050X580X1050
1520X650X1010
1050X580X880
1050x580x880
1650x660x1080
1420x680x1160
1150x660x1080
1650x650x1050
8
Weight
kg
230
360
210
210
310
360
290
435
Connections
Company Information
METMAC has successfully worked in the market of machine tools for cutting and metal working machine, air duct machine, roll forming machine, steel structure machine. The company's mission: to make modern technologies of metal available in worldwide.Our main goal is to take over all the difficulties that arise when the client manufacturing new equipment.
We not only apply ourselves to develop the new products and improve our products’ quality, but also build a quite perfect after sales service network all over the world and supply more convenience and better service for our customers.
We supply the foundation fig of the machine’s installation but not constructing. We take charge of the machine’s installation and adjustment if you supply the lifting equipment and necessary conditions.
When the machine is finished, we will inform you to inspect the machine in our factory. After your inspection and acceptance, the machine will be shipped.
During installing the machine, we supply training and technical consultation service, buyer be in charge of accommodation, flight and daily salary of technician.
The final acceptance of the machine is done in you place according to the signed agreement and relative technical files.
We guarantee for product’s maintenance, change and return after sales for one year. In this period, we can change the damaged parts for free if not your responsibility (not including easily worm parts). After this period, we can repair the machine for you only taking the basic charge.
Visit offical web WWW.METMAC.COM for more information.
Customer's factories
Packaging & Shipping
Certifications
FAQ
1. How to get a accurate quotation from us?
Provide us the detail of the material such as metal thickness and width.
2. What’s the shipping cost from China to your country? We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe, convenient and timely delivery.
3. Payment terms, MOQ, warranty, FOB. Payment terms: 30% TT paid in advance, the balance of 70% before the shipment. Minimum order quantity: 1 set, FOB HUANGPU, CHINA. Delivery time :7 days after receipt of formal order and 30% deposit. Warranty:12 months.
4. What’s the package? Fumigation-free plywood case or without package.
5. What about commissioning service? We can offer commissioning service, the buyer need to afford air tickets.
6. What’s policy for guarantee and broken parts? Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.
