Price:$2,700.00 - $3,000.00

Quantity:


Product Overview

Description

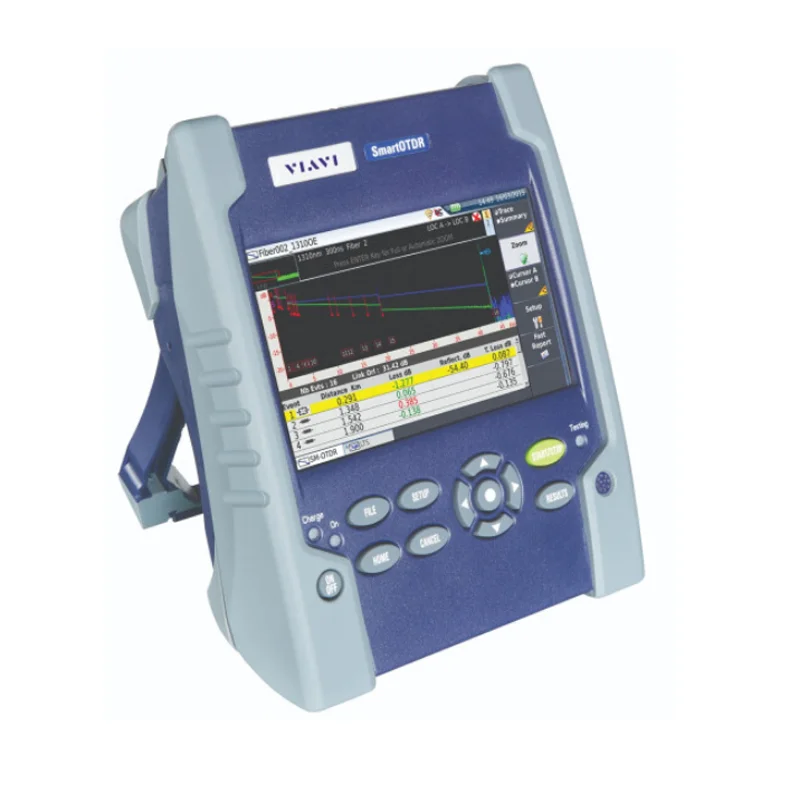

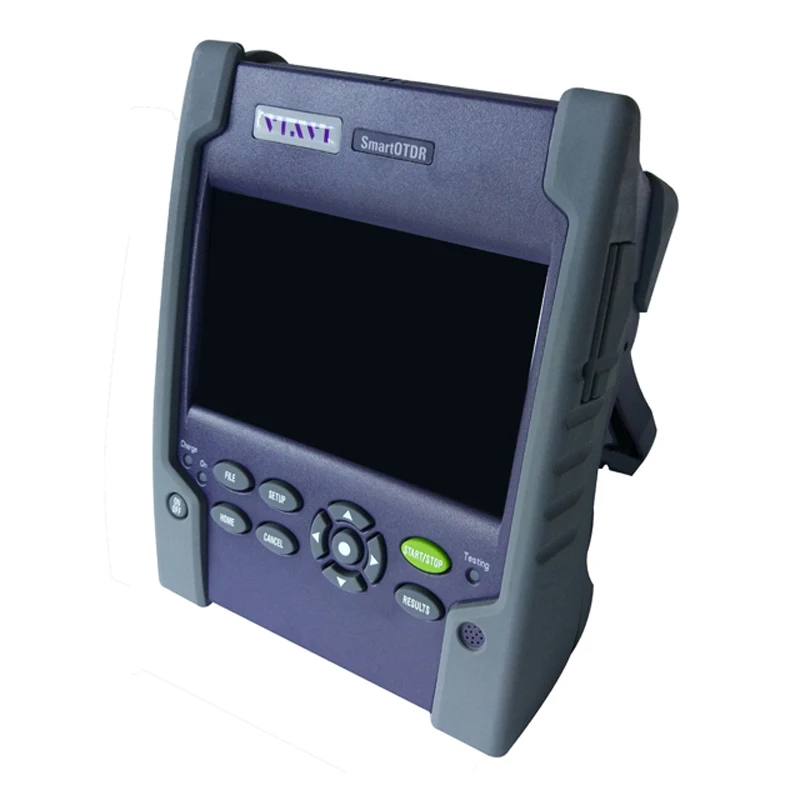

JDSU viavi smart otdr price 1310/1550 E126A 37/35db with laser source optical power meter VFL Iolm otdr machine

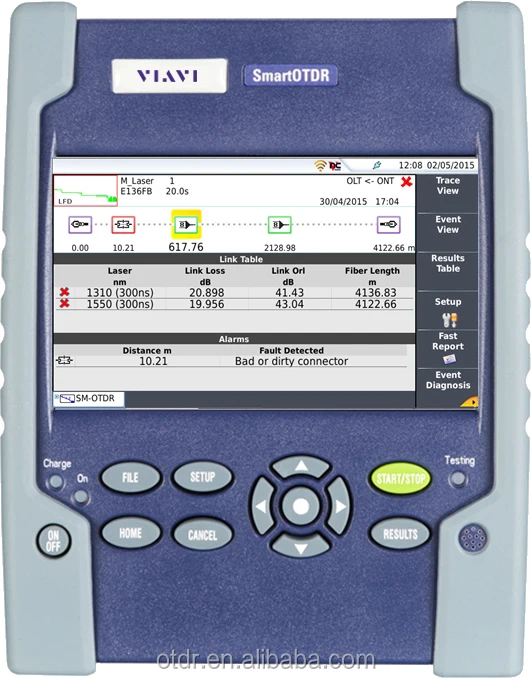

smartotdr





The SmartOTDR E126A essential handheld fiber tester is an affordable, easy-to-use device for techs at any level. It integrates all the essential fiber test requirements into a single device with OTDR measurement, Laser source , power meter and with Iolm software.








Benefits:



  • Ensures fast and easy measurements

  • One touch operation, automatic analysis, and tailored OTDR user interface for different skill level

  • Reduces cost of ownership

  • Three year warranty as standard coverage

  • Optimizes  field operations

  • Light, ultra compact, hands-free design and an extended autonomy up to 20 hours

  • Remotely coach and support field techs with Smart Access Anywhere (SAA)





Applications:



  • Characterize point-to-point access & metro fiber networks

  • Qualify and troubleshoot FTTH networks

  • Qualify and troubleshoot singlemode FTTA/DAS front haul





Key Features:



  • dual-wavelength versions with 1310, 1550nm wavelengths

  • Automated fiber inspection pass/fail analysis software

  • Integrated CW light source on OTDR port

  • Built-in optical power meter

  • Large 5-inch touch screen display

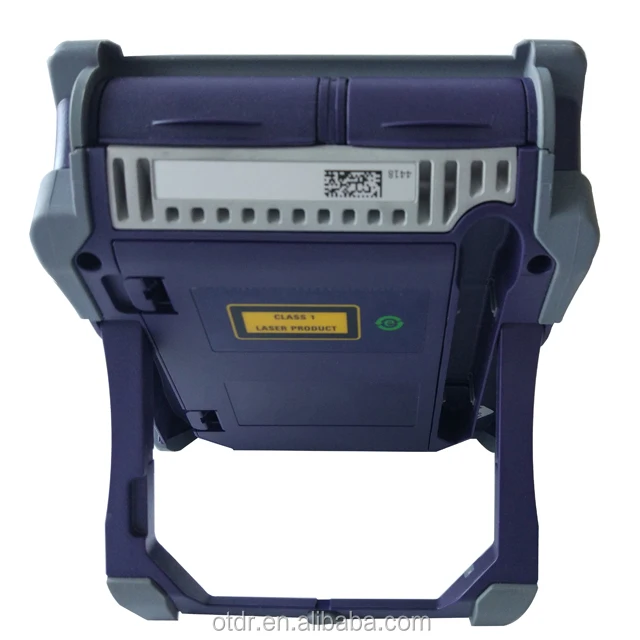

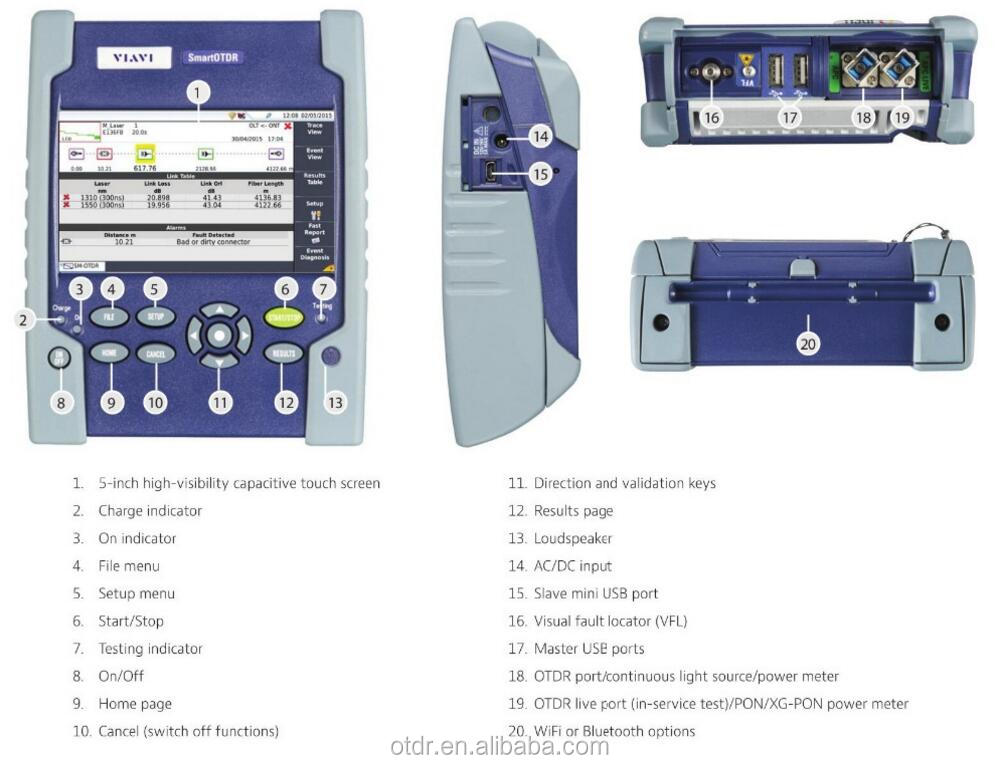

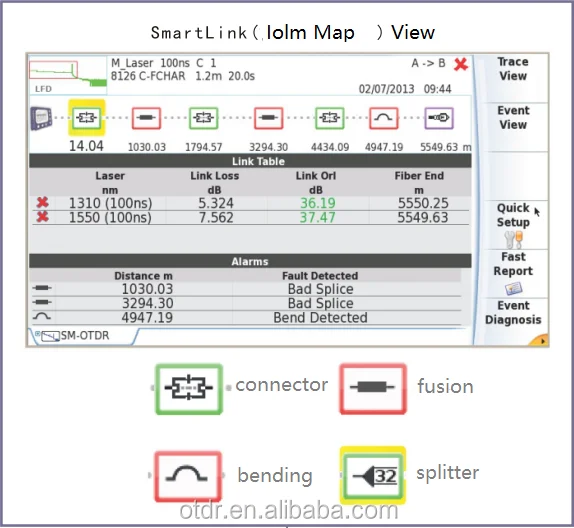

features.JPGGQUO8}{X56Y~ZZ9}}[HQ2I.pngOTDR-200AS-JDSU-MTS-2000.jpgSmart OTDR 6.jpgspecification:


































































































































































Display



5-inch capacitive color touch screen (12.5 cm)



Display resolution



800 x 480 W VGA



Interfaces



2x USB 2.0 ports, 1x mini-USB 2.0 port, built-in  WiFi (optional, dongles also available)



Storage



10,000 OTDR traces typical



Battery



Rechargeable Lithium-polymer battery, up to 20 hours of operation1



Power supply



AC/DC adapter, input 100-250 V AC, 50-60 Hz; 2.5 A max, output 12 V DC, 25 W



Electrical safety



EN60950 compliant



Size (HxWxD)



175 x 138 x 57 mm (6.9 x 5.4 x 2.24 in)



Weight (battery included)



Approx. 0.9 kg (1.98 lb)



Temperature










Operating



–20 to +50°C






Storage



–20 to +60°C






Humidity (noncondensing)



95%






OTDR






Laser safety class (21 CFR)



Class 1






Number of data points



Up to 256,000 data points






Display range



0.1 km to 260 km






Sampling resolution



4 cm






Distance accuracy



(±1 m) ± (sampling resolution) ±(1.10–5 x distance), excluding group index uncertainties



Attenuation resolution



0.001 dB






Attenuation linearity



±0.04 dB/dB






Central wavelength2



1310/1550 nm ±20 nm



RMS dynamic range3



37/35dB



Pulse widths



5 ns to 20 µs



Event dead zone4



1.3 m



Attenuation dead zone5



4 m



Splitter attenuation dead zone



N/A



CW Light Source










Output power level6



–3.5 dBm






Stability long term (8 hr)7



±0.05 dB






Built-in Power Meter






Operating mode



270, 330, 1 kHz, 2 kHz, and TWINTest






Power level range



0 to –55 dBm






Calibrated wavelengths



1310, 1490, 1550, 1625, and 1650 nm






Measurement accuracy8



±0.5 dB






Built-in Visual Fault Locator



Wavelength



650 nm






Emission mode



CW, 1 Hz






Laser class



Class 2 per EN60825-1 and FDA21 CFR Part 1040.10 standards





--

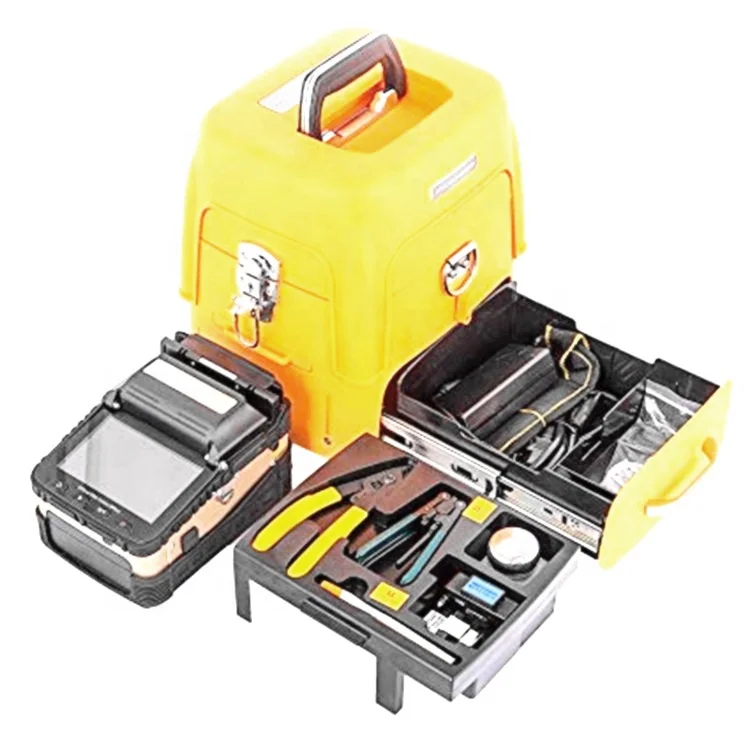

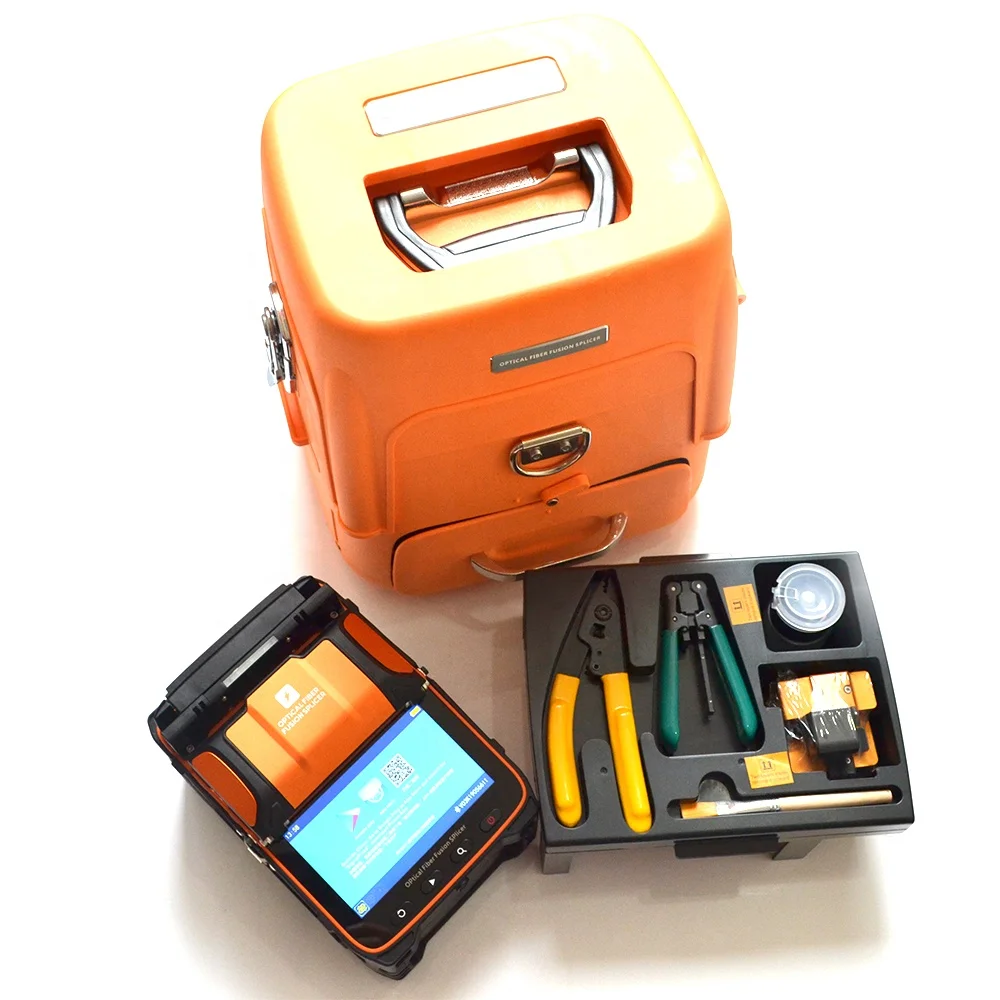

You may like : Please click on the picture(Por favor haga clic en la imagen)     AI-9(900USD  FOB)




















To the customer's words:


We have been doing welding machines for 12 years in the Chinese market. AI-9 ,We have powermeter and VFL in this product. There are welding machines without VFL and powermeter in the Chinese market. quality is different and the price is different. And the shelf life of our factory welding machine is 5 years. We protect the quality of the products within 5 years. The other welding machines in  Chinese market generally have a shelf life of 1 year. We have won many customers with good quality and five-year warranty service. trust. Therefore, our price should make the later service keep up, so that you can use our products within 5 years. You will like this product and feel that it is worth the money. In other welding machines in China, the lower quality is not guaranteed, and it is impossible to guarantee the 5-year warranty. Please consider it yourself.
