China Factory CE FCC Rohs surveillance video 6 ports RJ45 2 SC 10/100Mbps ethernet fiber optic umanaged network switches
- Category: >>>
- Supplier: Shenzhen Yuhang Communication Technology Co. Ltd.
Share on (62180954818):
Product Overview
Description
China Factory CE FCC Rohs surveillance video 6 ports RJ45 2 SC 10/100Mbps ethernet fiber optic umanaged network switches
Features
♦6 Port Gigabit Industrial Ethernet Switch/Industrial Media Converter/
Industrial Switch POE/Industrial Fiber Switch/Industrial Switch/Inustrial POE Switch
♦6-Port 10/100Base POE ports + 2 (100/1000M) SCSlots
♦Supports both IEEE 802.3af and 802.3at, and every port PoE configuration function
♦G.8032, support <50ms industrial quick ring protection
♦48VDC , dual redundancy power input, 6-pin 5.08mm-gap plug-in terminal, ensure power working without stop. When one power shut down, the other keeps working.
♦DIN-Rail mounting or Wall-mounted install
Specification
| Specification | |
| Product Name | 6 Port 10/100/1000M Industrial Poe Switch |
| Product Model | YHR26FP-SC |
| Interface | 6x 10/100Base-T ports POE + 2x Gigabit SC slots |
| Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab ; IEEE802.3z ; IEEE802.3x; IEEE802.3af, IEEE802.3at |
PoE Specification | PoE Standard: IEEE802.3af/ IEEE802.3at |
| PoE ports: 1-6 ports support PoE | |
| Each PoE Port: Max. 30 Watts | |
| Power Pin Assignment:1/2+;3/6- | |
| Output Voltage: DC48V | |
| Fiber Media | Multi-mode: 2km; Single-mode: 20/40/60/80KM |
| Performance Specification | Bandwidth: 10Gbps Packet Buffer Memory:1M Packet Forwarding Rate:1488000pps/port MAC Address Table: 2K |
| Forwarding Mode | Store-and-Forward |
| Protection | Lightening protection, IP40 protection |
| Power Supply | Input Voltage: DC48V /Terminal block |
| Other Specifications | |
| Working Environment | Working temperature: -40~80℃ ; Storage temperature: -45~85℃ Relative Humidity: 5%~95 %( no condensation) |
| Shell | IP40 protect grade, metal shell |

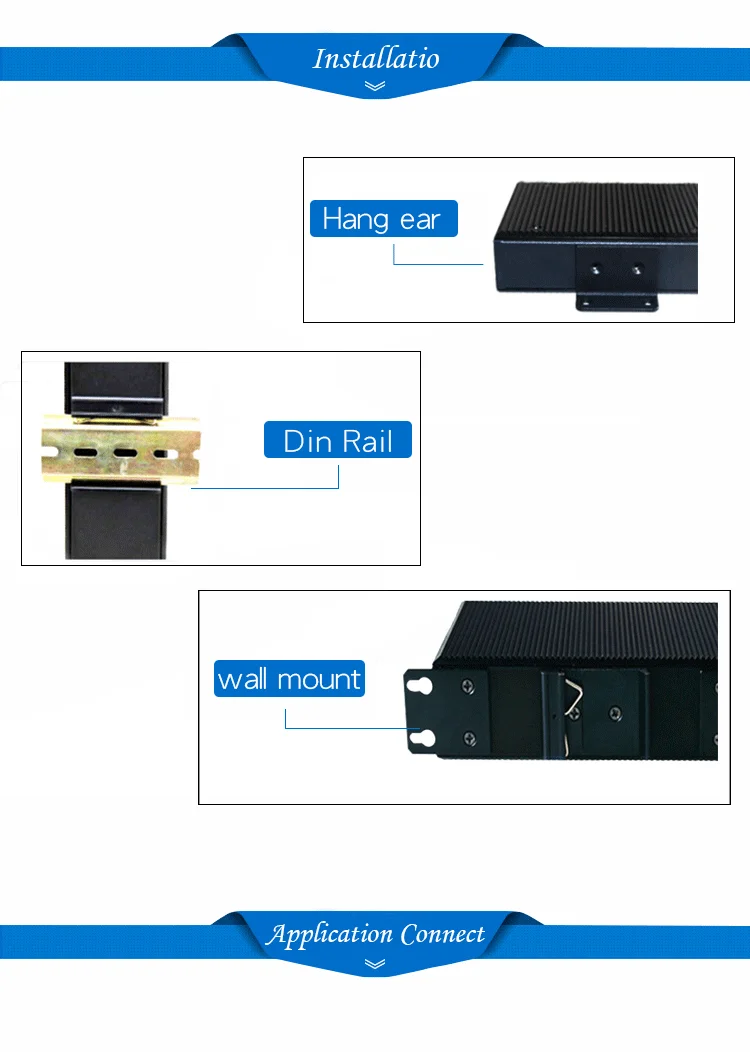

| Installation | DIN-Rail or Wall mounts |
| Weight & Size | Product Weight: 0.5 KG Product size (L×W×H): 127mm× 107m m× 33mm |
| Warranty | 5-years |

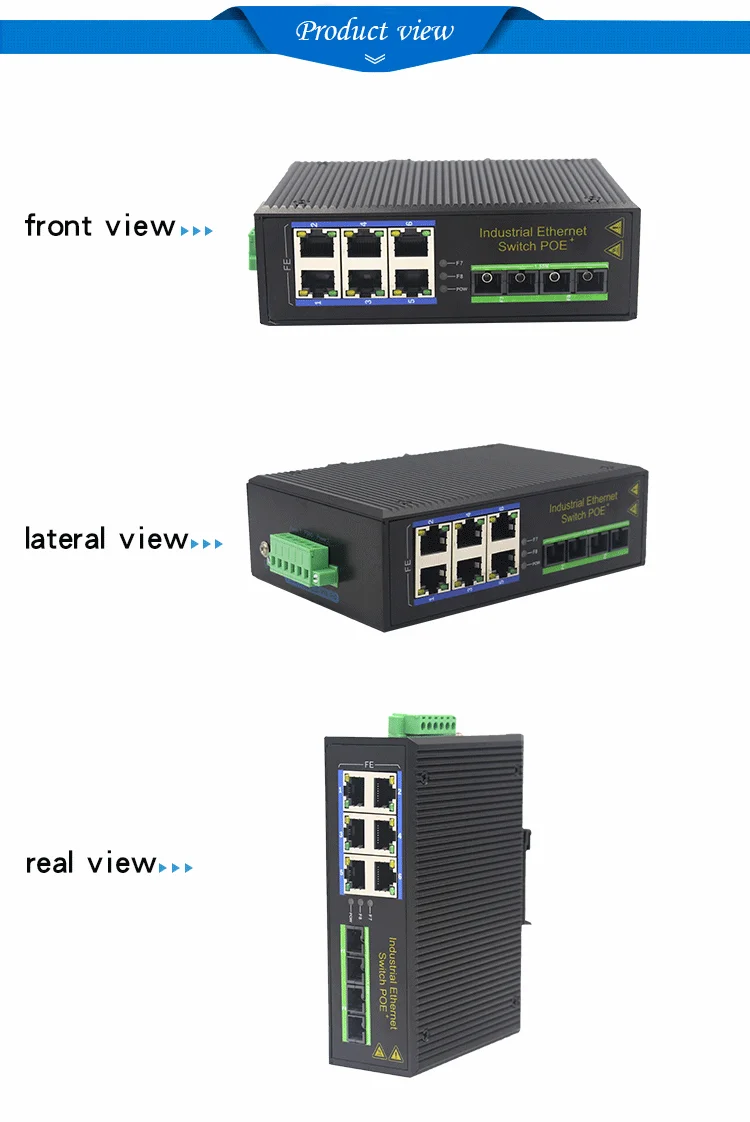

Product Display
