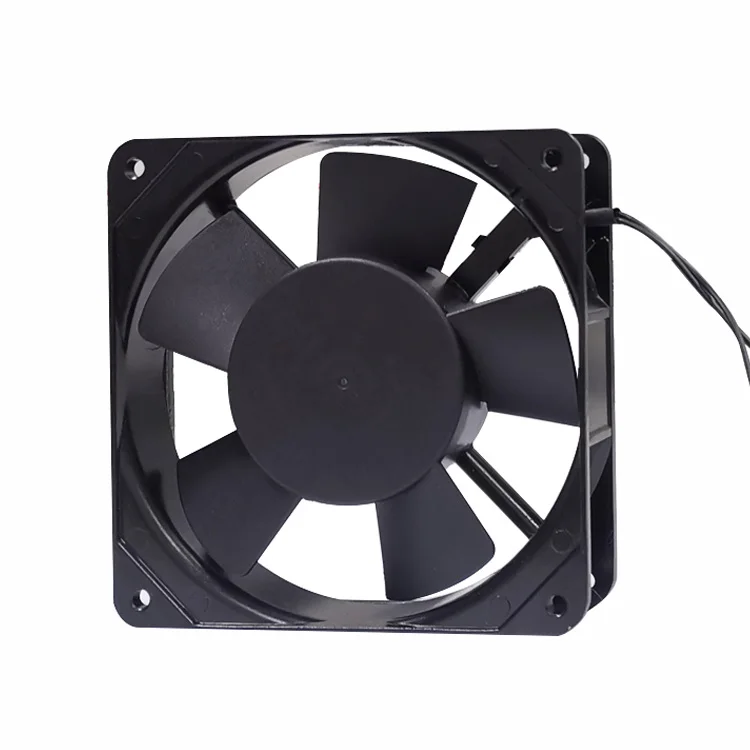

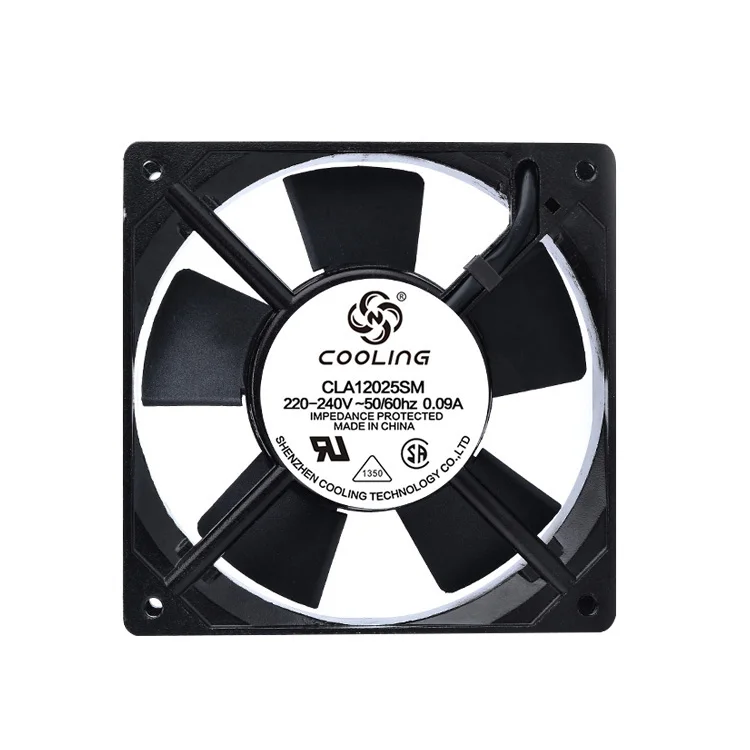

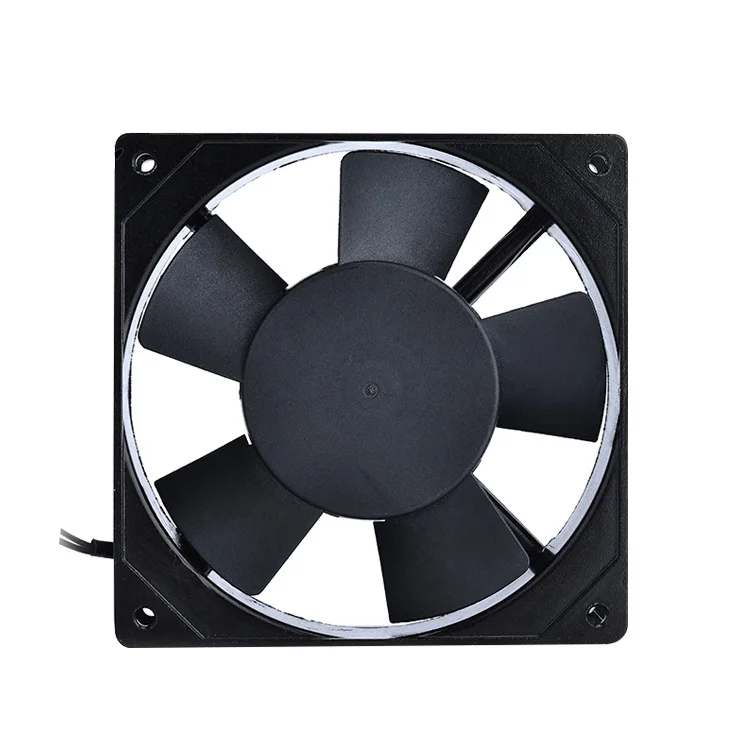

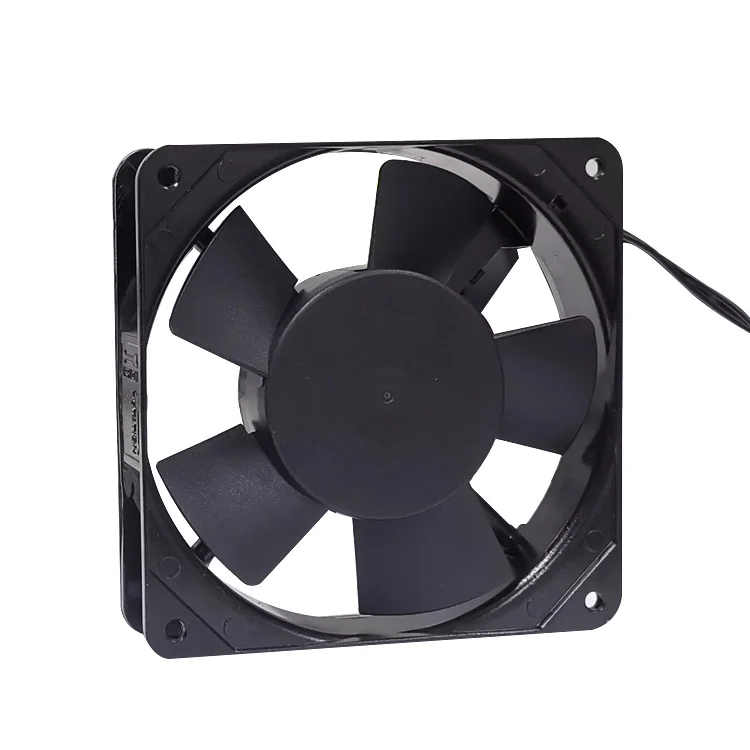

120mm AC Fan 220v 120x120x25mm 12025 Cooling Fan
- Category: Ventilation Fans >>>
- Supplier: Shenzhen Cooling Technology Co. Ltd.
Share on (62181089136):
Product Overview
Description
120mm AC Fan 220v 120x120x25mm 12025 Cooling Fan
Product Description
Product Name: AC Fan
Dimension:120x120x25mm
Voltage:220V
Speed:2000RPM
Frequency:50/60Hz
Current:0.07A
Air Flow:58 CFM
Noise Level:35 dB
Bearing Type:Sleeve/Ball Bearing
Specification
| Model | Voltage | Current | Power | Speed | Air Flow | Air Pressure | Noise |
| Part No. | VDC | Amp | Watt | RPM | CFM | mmH2O | dB-A |
| CLA12025H01 | 110~125V | 0.19/0.1 | 19/18 | 2200/2400 | 66/78 | 3.56/4.06 | 38/40 |
| CLA12025M01 | 110~125V | 0.16/0.1 | 16/15 | 2000/2000 | 58/58 | 3.0/3.2 | 35/35 |
| CLA12025L01 | 110~125V | 0.13/0.1 | 14/13 | 1800/1700 | 50/48 | 2.78/2.68 | 30/29 |
| CLA12025H02 | 220~240V | 0.09/0.1 | 19/18 | 2200/2400 | 66/78 | 3.56/4.06 | 38/40 |
| CLA12025M02 | 220~240V | 0.07/0.1 | 16/15 | 2000/2000 | 58/58 | 3.0/3.2 | 35/35 |
| CLA12025L02 | 220~240V | 0.05/0.1 | 14/13 | 1800/1700 | 50/48 | 2.78/2.68 | 30/29 |

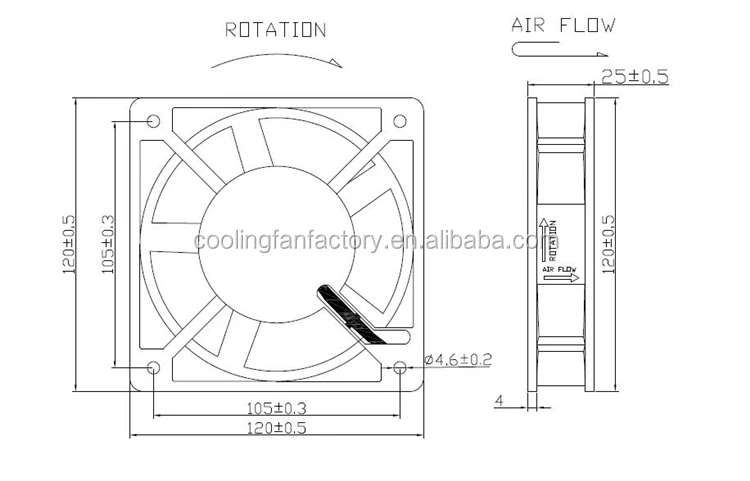

Dimension & Drawing
