  • Waterproof SSG Coreless Servo DS3235 DS3225 Pro 25KG 35KG Digital High Speed Servo For Arduino Robotic 1/8 1/10 1/12 RC Car
Waterproof SSG Coreless Servo DS3235 DS3225 Pro 25KG 35KG Digital High Speed Servo For Arduino Robotic 1/8 1/10 1/12 RC Car
Waterproof SSG Coreless Servo DS3235 DS3225 Pro 25KG 35KG Digital High Speed Servo For Arduino Robotic 1/8 1/10 1/12 RC Car
Waterproof SSG Coreless Servo DS3235 DS3225 Pro 25KG 35KG Digital High Speed Servo For Arduino Robotic 1/8 1/10 1/12 RC Car
Waterproof SSG Coreless Servo DS3235 DS3225 Pro 25KG 35KG Digital High Speed Servo For Arduino Robotic 1/8 1/10 1/12 RC Car
Waterproof SSG Coreless Servo DS3235 DS3225 Pro 25KG 35KG Digital High Speed Servo For Arduino Robotic 1/8 1/10 1/12 RC Car
Waterproof SSG Coreless Servo DS3235 DS3225 Pro 25KG 35KG Digital High Speed Servo For Arduino Robotic 1/8 1/10 1/12 RC Car
Waterproof SSG Coreless Servo DS3235 DS3225 Pro 25KG 35KG Digital High Speed Servo For Arduino Robotic 1/8 1/10 1/12 RC Car
Waterproof SSG Coreless Servo DS3235 DS3225 Pro 25KG 35KG Digital High Speed Servo For Arduino Robotic 1/8 1/10 1/12 RC Car
Waterproof SSG Coreless Servo DS3235 DS3225 Pro 25KG 35KG Digital High Speed Servo For Arduino Robotic 1/8 1/10 1/12 RC Car

Waterproof SSG Coreless Servo DS3235 DS3225 Pro 25KG 35KG Digital High Speed Servo For Arduino Robotic 1/8 1/10 1/12 RC Car

Share on:


Price:$27.80 - $29.50
Price in USD:Details

Quantity:


Product Overview

Description



Product Description


Brand:Dsservo
Packing List: 5pcs/lot

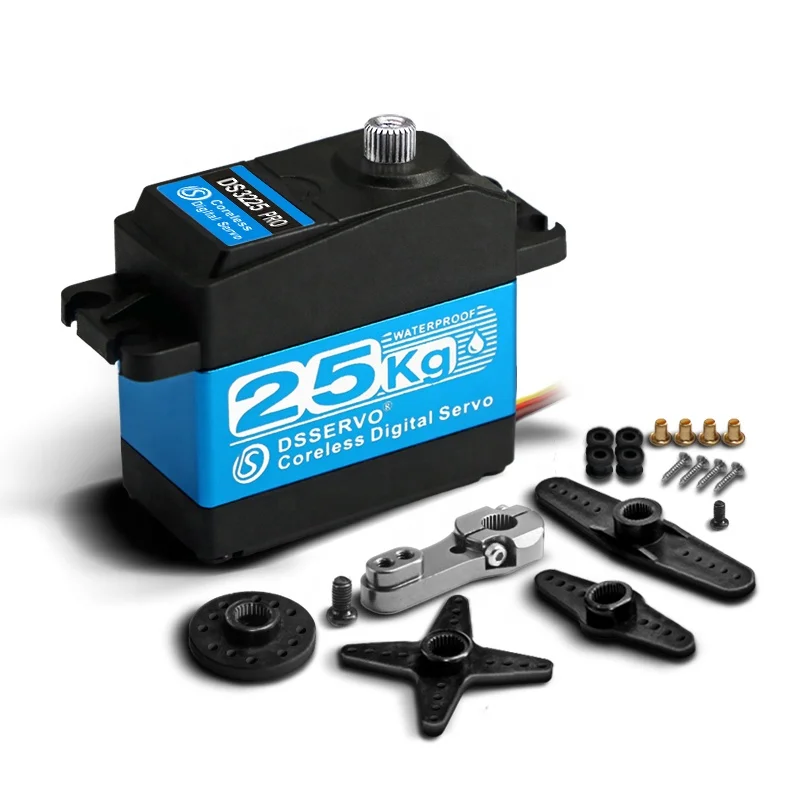

1x DS3225pro digital servo
1x 25T metal servo arm
1x accessory bag

Apply Environmental Conditon:
1.Storage Temperature Range:-30°C~80°C
2.Operating Temperature Range:-25°C~70°C

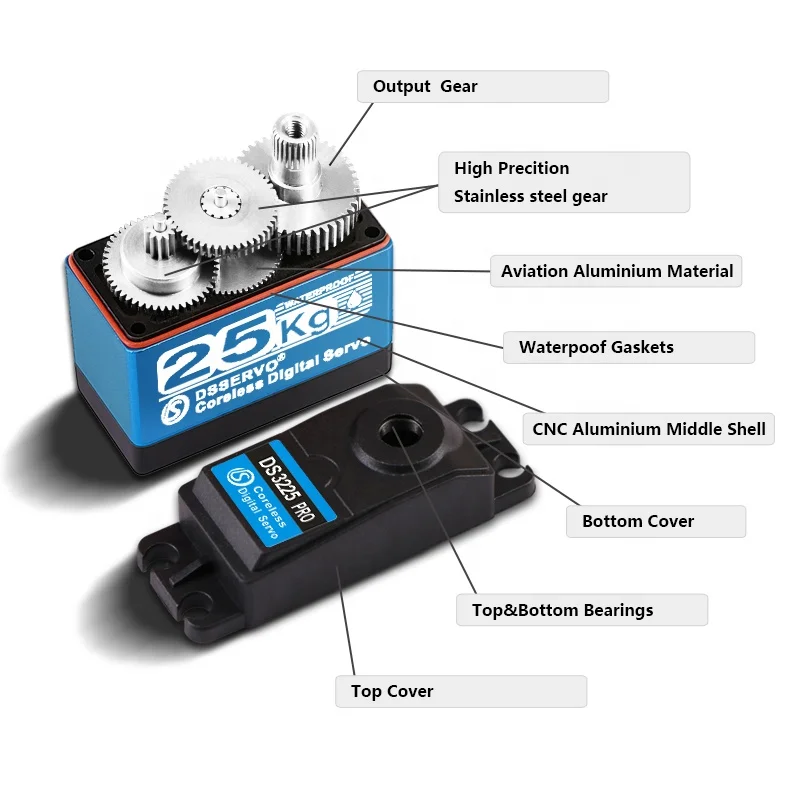

Mechanical Specification:
1. Size: 40.0*20.5*40.5mm
2. Weight: 58g±2g
3. Limit angle: 360°
4.Bearing: 2BB
5.Horn gear spline: 25T Diameter:5.9mm
6.Case : Engineering plastics+Aluminum alloy
7.Connector wire: 320mm±5mm
8.Motor: Coreless brush motor

Electrical Specification:
1.Working voltage range: 5 - 8.4V
2.Command signal: Pulse width modification
3.Amplifier type: Digital controller
4.Pulse width range: 500～2500usec
5.Neutral position: 1500usec
6.Running degree: 180±3°(PWM 500～2500usec) or 270±3°(PWM500～2500usec)
7.Dead band width: 3 usec
8.Rotating direction Counterclockwise: (when 1000～2000usec)


Material
Metal gear
Scale
1:8 / 1:10 / 1:12 RC Car
Brand Name
DSservo
Name
DS3225 Pro Servo
Color
Bule
Product size
40.0*20.5*40.5mm
Weight
78g
Bearing
2BB
Connector wire
320mm±5mm
Motor
Coreless brush motor
Working voltage range
5V~8.4V
Feature
Hight Speed


Specification
