Sandwich Panel Light Steel Structure Construction Framework Prefabricated Building Warehouse

Product Overview

Description

Sandwich Panel Light Steel Structure Construction Framework Prefabricated Building Warehouse



Item name	Light steel structure prefabricated warehouse
Main structure	Material	Q345B, Q235B
	Column and beam	Welded H section steel, Hot roll H section steel, Box column is also available, Circle column
	Surface processing	Paint or hot dip galvanized
	Connection	High strength bolt Grade 10.9s
Substructure	Purlin	C channel or Z channel, steel Q235B, galvanized
	Angle brace	L50x4, Steel Q235B, Paint or hot dip galvanized
	Cross bracing	Dia.20 round bar or L75x6 angle brace, Steel Q235B, Paint or hot dip galvanized
	Tie bar	Dia.76*2.5 - 121*3 round pipe, Steel Q235B, Paint or hot dip galvanized
	Purlin brace	Dia.12 round bar, Steel Q235B, Paint or hot dip galvanized
	Connection	Ordinary bolt
Roof and Wall	Panel	(50mm, 75mm, 100mm, 150mm) Sandwich panel or (0.3mm – 1.2mm) corrugated GI color steel sheet
	Transparent skylight	1.2mm FRP
	Accessories	Sealant, self-tapping screw, rivet etc.
	Edge cover	Made of color steel sheet
	Gutter	Made of steel sheet thickness 0.5mm
	Rainspout	PVC pipe
Others	Ventilator	Unpowered axial-flow ventilator, electrical fan or clerestory
	Door	Pedestrian door, Electric rolling door/sliding door/ lifting door
	Window	plastic steel window, Alu. alloy window

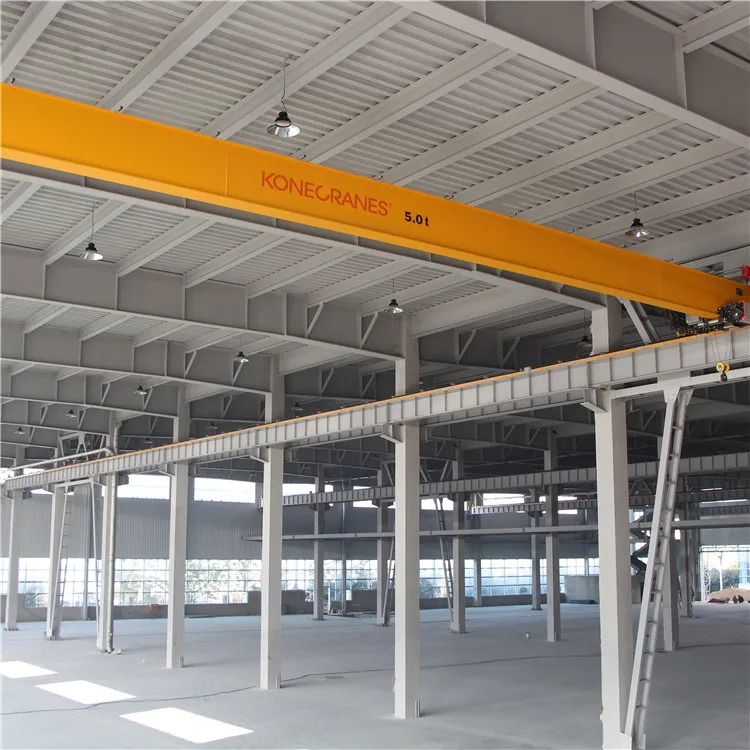

	Crane	With or without crane, ranging from 2 tons to 20 tons



♦ Q: What kind of company you are, factory or trade company?
A:We are professional steel structure building manufacturer, and our factory located in Qingdao, Shandong.
♦ Q: What could we provide for your steel structure building?
A: According to customers requirements, we could provide the main steel frame, roof floor decks, wall panels, doors and windows, sanitary appliance, tiles, ceiling and so on.
♦ Q: How can I get the quotation of the project?
A: If you have drawing, we can offer you our quotation according to your drawing.
If you have no design, please provide the details, such as location, wind speed, dimension, material or other requirements, we could make the design and quotation according to your specification.
♦ Q: How about your quality control?
A: We have got related quality control certificates. All the products processing including cutting, welding, bending, shot blasting, packing, storing, loading have strict quality control to ensure qualified products.
♦ Q: Is third party inspection available?
A: BV, ITS, etc. are available, it is according to client requirement.
♦ Q: What about the installation?
A: We would provide installation instruction for you, and technicians also could be sent to help you if it is necessary. However, the visa fee, air tickets, accommodation, and wages will be charged by the buyers.
♦ Q: What is your payment?
A: T/T, L/C, and Trade Assurance on Alibaba are available.
