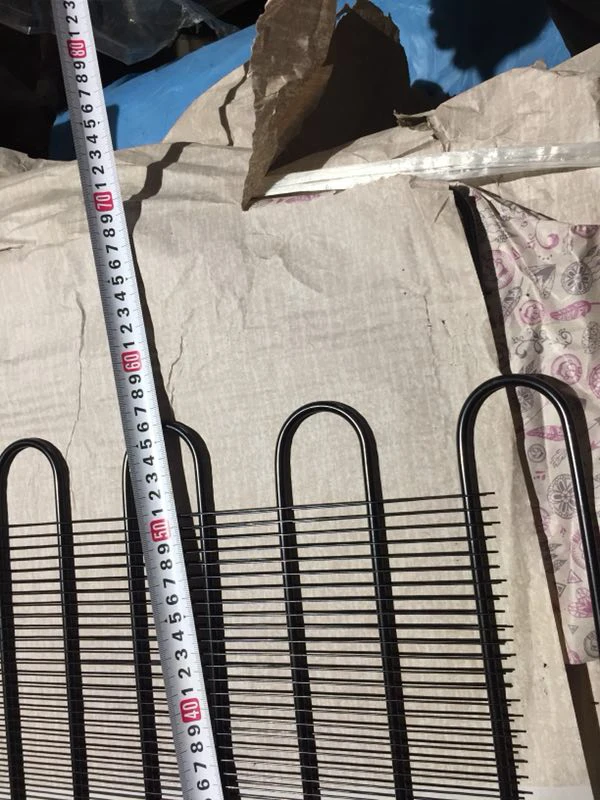

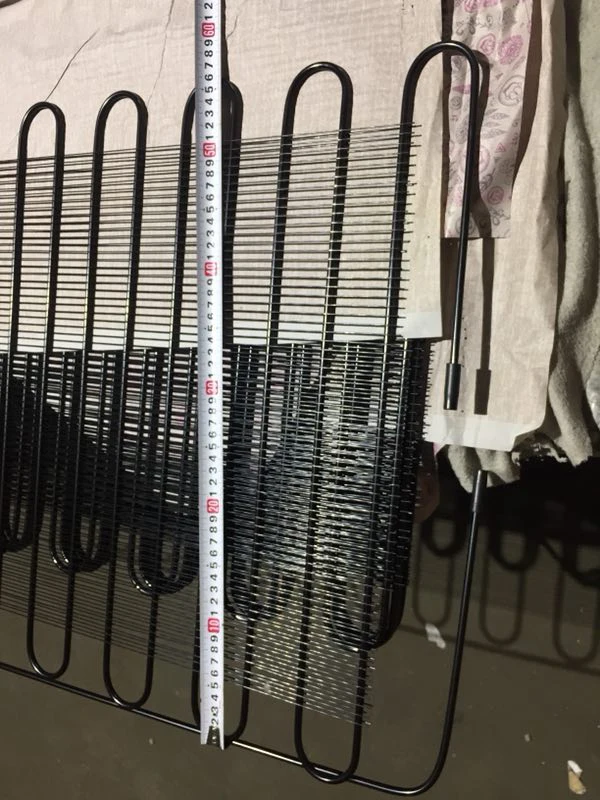

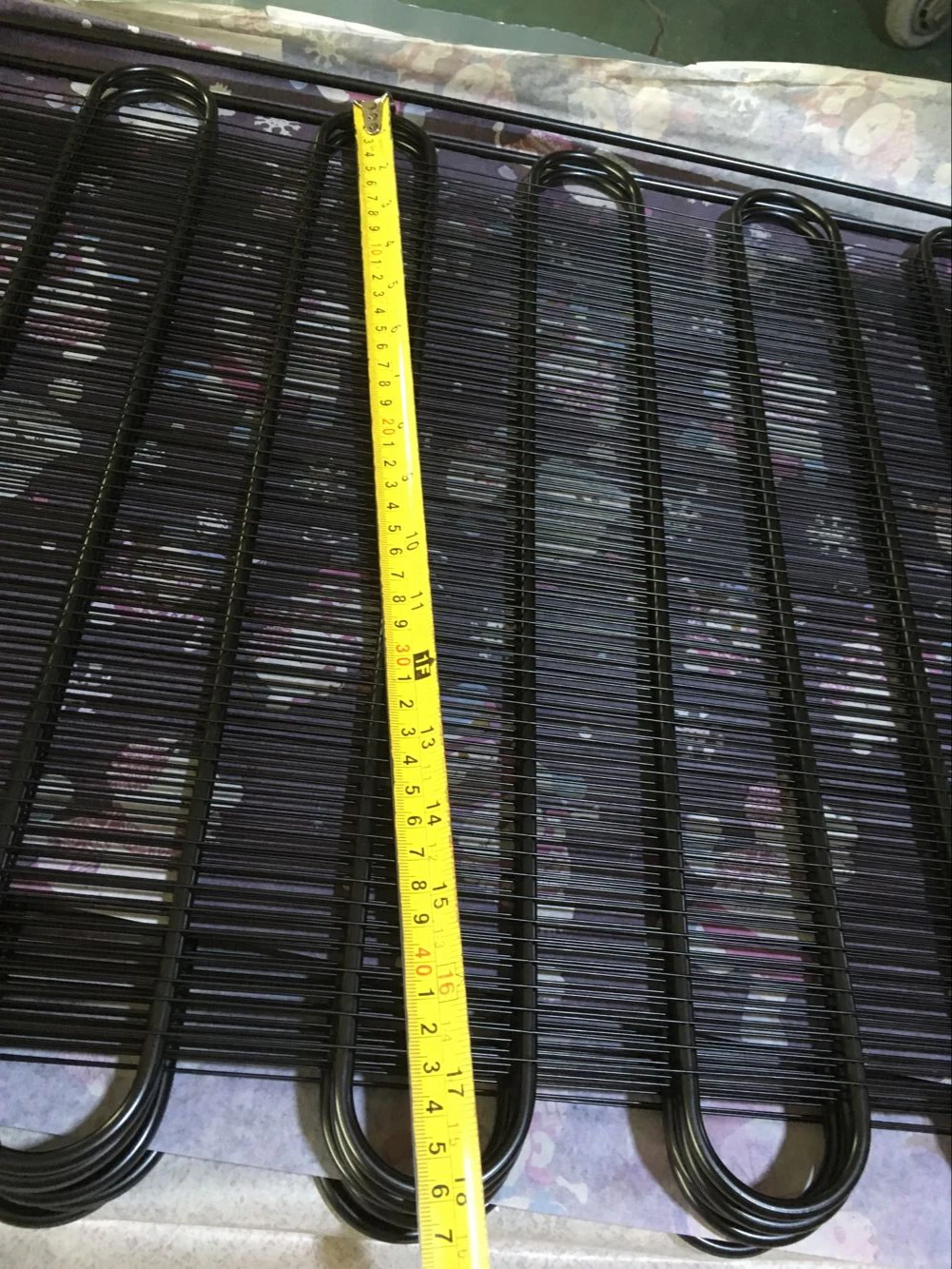

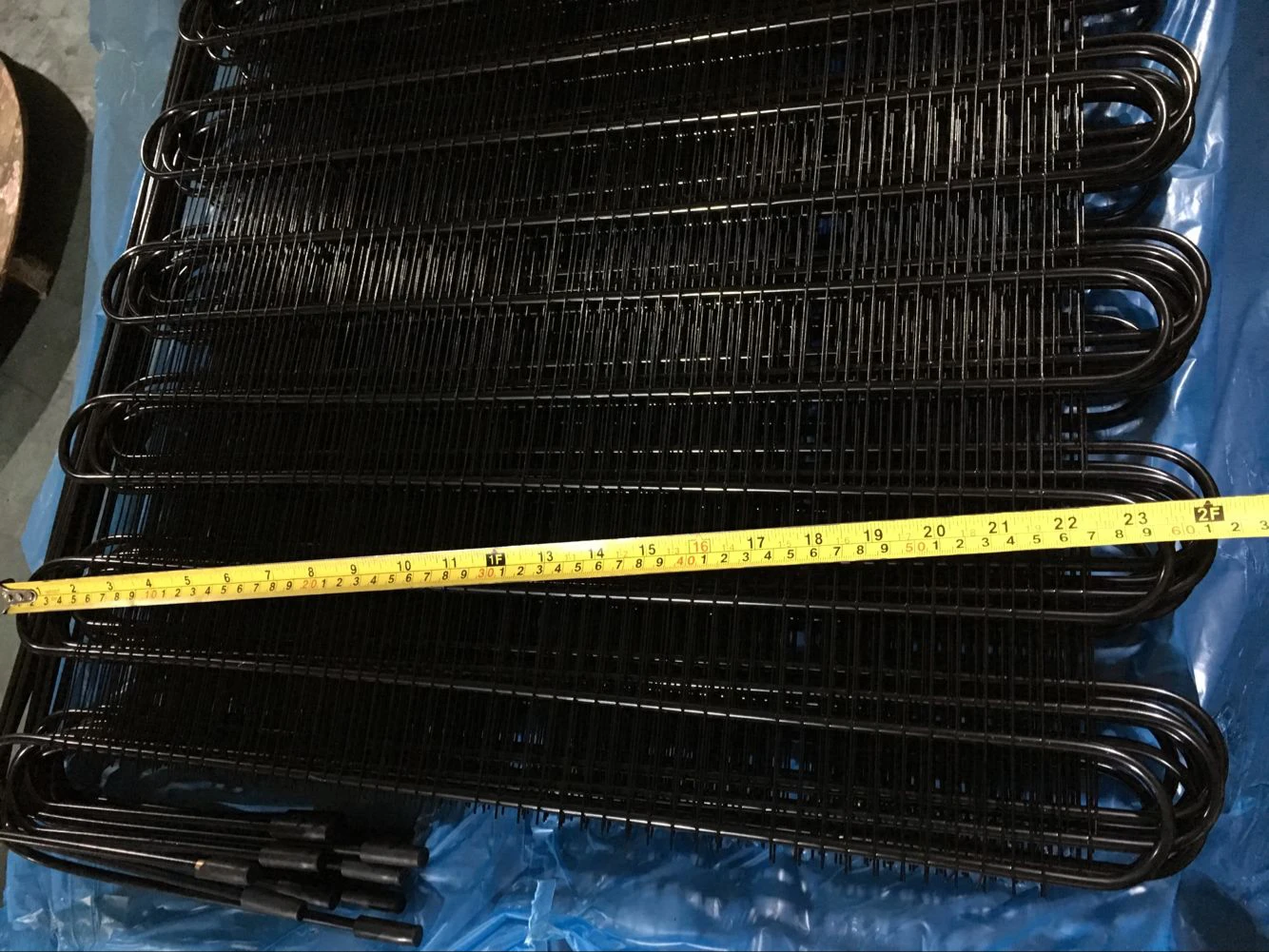

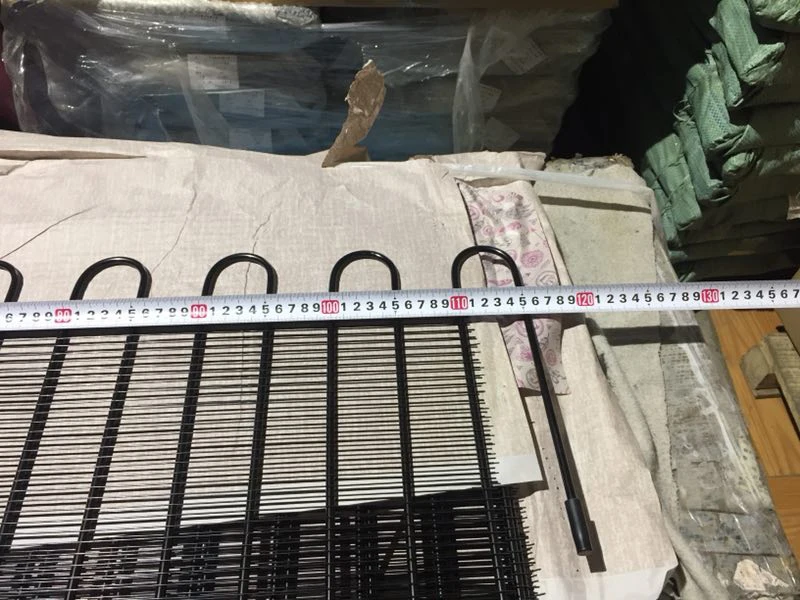

3/16 430mm width 8U Air Conditioner And Refrigeration Parts

Product Overview

Description



3/16 430mm width  8U Air Conditioner And Refrigeration Parts







Model	Length (A)	Width	U	Rows	Wire QTY		Wire length
					485	425
1/3HP	1150	485&425	12	24	126	108	1160
1/4HP	1050	485&425	11	22	126	108	1060
1/5HP	950	485&425	10	20	126	108	960
1/6HP	850	485&425	9	18	126	108	860
1/7HP	750	485&425	8	16	126	108	760
1/8HP	650	485&425	7	14	126	108	660
1/9HP	550	485&425	6	12	126	108	560
1/10HP	450	485&425	5	10	126	108	460
1/12HP	350	485&425	4	8	126	108	360



NO.	Pipe diameter	Size		NO.	Pipe diameter	Size
1	3/16 430mm width	6U		1	1/4 515mm width	4U
2	3/16 430mm width	7U		2	1/4 515mm width	5U
3	3/16 430mm width	8U		3	1/4 515mm width	6U
4	3/16 430mm width	9U		4	1/4 515mm width	7U
5	3/16 430mm width	10U		5	1/4 515mm width	8U
6	3/16 430mm width	11U		6	1/4 515mm width	9U
7	3/16 430mm width	12U		7	1/4 515mm width	10U
8	3/16 430mm width	13U		8	1/4 515mm width	11U
9	3/16 430mm width	14U		9	1/4 515mm width	12U
10	3/16 430mm width	15U		10	1/4 515mm width	13U
				11	1/4 515mm width	14U
				12	1/4 515mm width	15U
