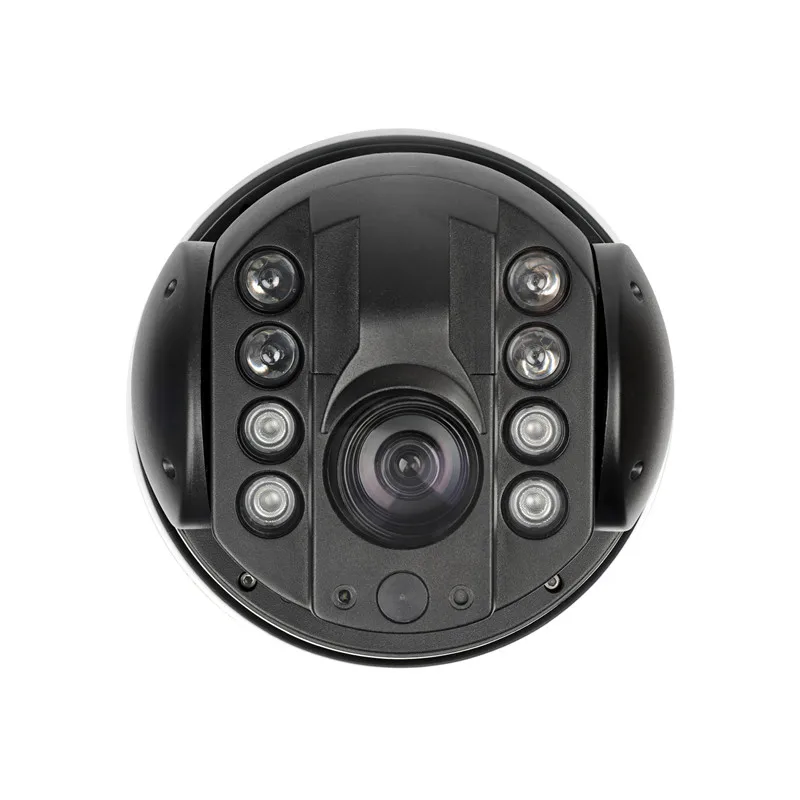

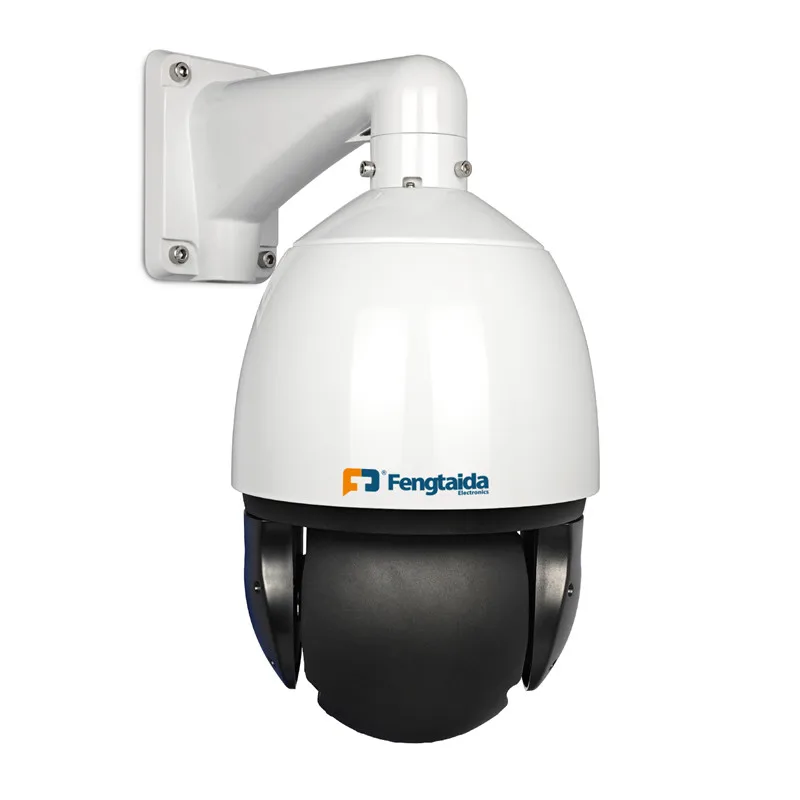

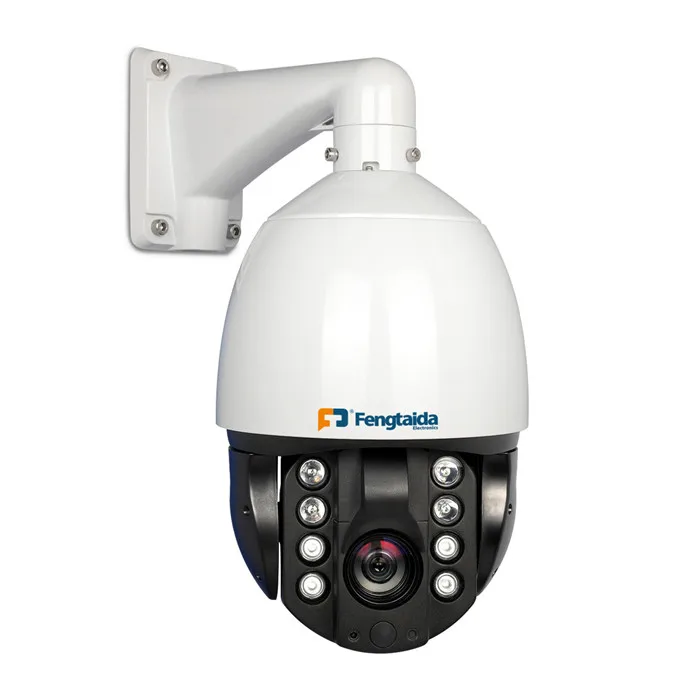

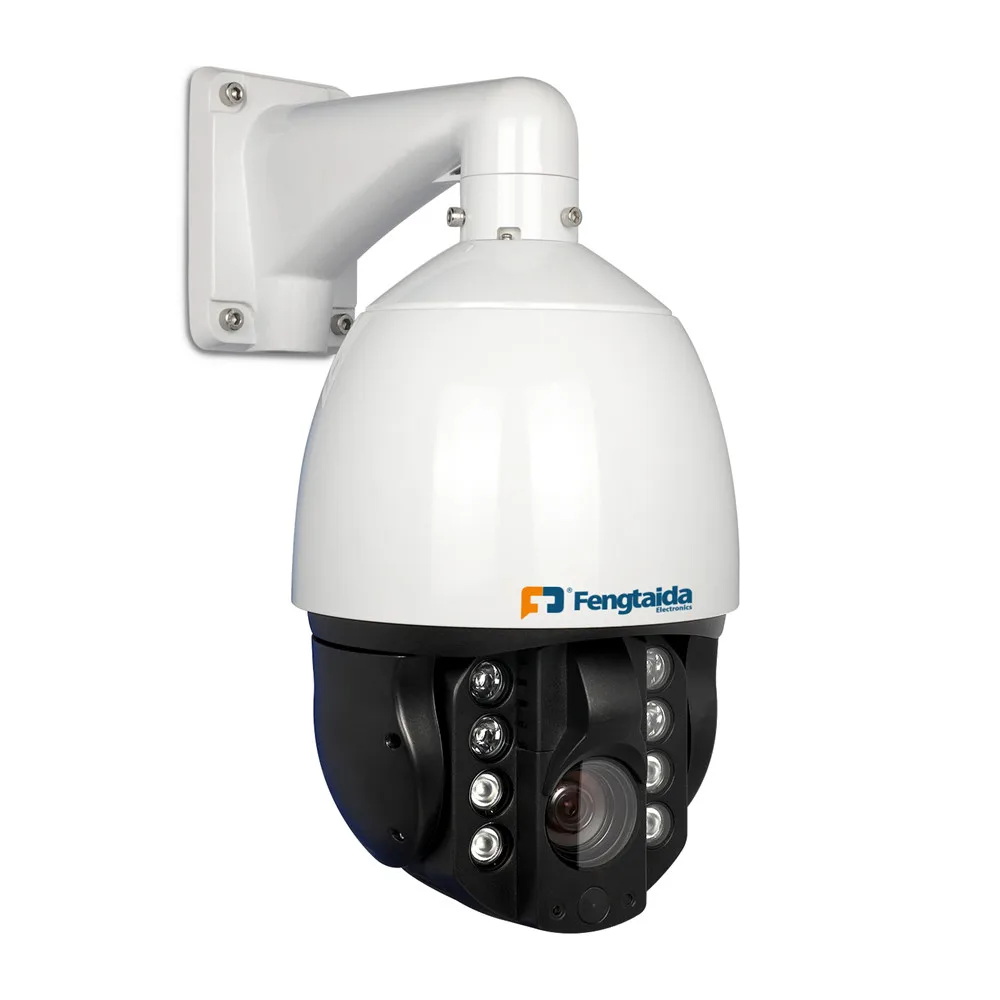

Outdoor Indoor Waterproof IP66 360 Degree Auto Tracking HD 1080P Onvif IR camara de seguridad IP ptz
- Category: >>>
- Supplier: Shenzhen Fengtaida Electrionics Co. Ltd.
Share on (62181576738):
Product Overview
Description
Product Description
1.View Degree. Horizontal:Continuously 360°. Vertical: -10°~90° auto flip.
2.IP66 Rated for Weatherproof Outdoor Installations High strenght aluminun alloy housing with automotive grade painting,the durable PTZ network cameras perform good corrosion resistance and heat dissipation, and withstand extreme climate changes. They're compliance IP66,IK10 ,6KV
3.Working envienment:-40°-70° ;flow duct design,automatic defog.(Double layer housing,allows to function at -40 °C;CTC technoloay,allows to function at 70 °C)
4.High Precision Step Motor ,Great image and no vibrating.,Preset accuracy is less than 0.1 degree.
5.High quality PU belt. No cursts and high precisly.
6.All-aluminum substrate Sensibly components layout ,Quicker heat dissipation,Longer service life
7.Easier Installation, Lower Maintenance,Modular design for circuit system,Once molding for core parts
8.Modular Design.I/O cable and waterproof plug to take a mold production,under long time use. High Waterproof Grade.
| Dome type | IRS2-001 Series High Definition IP Speed Dome Specifications | ||||||
| FTD-IRS2-2122 (18X) | |||||||
| Network | Network Interface | Ethernet 10/100Base-T (RJ-45) | |||||
| Network Protocol | TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,P2P | ||||||
| Compatibility | Support most of the platforms on the market | ||||||
| Interface Protocol | ONVIF2.4/GB28181(Option- Customize) | ||||||
| Mobile monitoring | Operating System | Android/IOS | |||||
| Camera | Image Sensor | 1/2.8” 2.0M piexls IMX327 CMOS | |||||
| Optical Zoom | 18X | ||||||
| Minimum Illumination | Color: 0.03Lux at F1.5; B/W: 0.001Lux at F1.5; 0Lux(IR on) | ||||||
| WDR | More than 100dB | ||||||
| S/N Ratio | More than 48dB(AGC off) | ||||||
| Day/Night | Auto(ICR) / Color / B/W | ||||||
| Angle of View | 72° ~ 3.8° | ||||||
| Electronic Shutter Speed | 1/2 - 1/20,000s | ||||||
| Noise Reduction | DNR,3DNR | ||||||
| Defog | Support | ||||||
| Max. Aperture | F1.5~F2.7 | ||||||
| White Balance | Auto, ATW, Indoor, Outdoor, Manual | ||||||
| Gain Control | Auto / Manual | ||||||
| Video | Compression | H.265/H.264/MJPEG | |||||
| Video Interface | 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC (S/N ratio≥ 55dB) | ||||||
| Resolution | Main stream:1920x1080,1280x960,1280×720,720×576,640×480 | ||||||
| Sub stream:640×480,352×288,320×240,176×144 | |||||||
| MJPEG:1920x1080,1280×720 | |||||||
| Max Frame Rate | H.265/H.264: 30fps at 1920x1080 | ||||||
| Bitrate | MainStream:10.0Mbps at VBR/Sub Stream:32Kbps at VBR | ||||||
| Audio | Algorithm | G711,PCM | |||||
| Input | 1 x Line-In (Mini-stereo, Single Mono) | ||||||
| Output | 1 x Line-Out (Mini-stereo, Single Mono) | ||||||
| Pan/Tilt | Range | Pan : 360°(Endless)/ Tilt: -10~90° | |||||
| Pan/Tilt Speed | Preset Max.:131°/sec | ||||||
| Manual : 0.1° ~ 131°/sec (Zoom Proportional) | |||||||
| Patrol : 1.4°~131° /sec | |||||||
| Preset | 246Presets and 9 presets for special function | ||||||
| Patrol Scan | 3 Group Patrol | ||||||

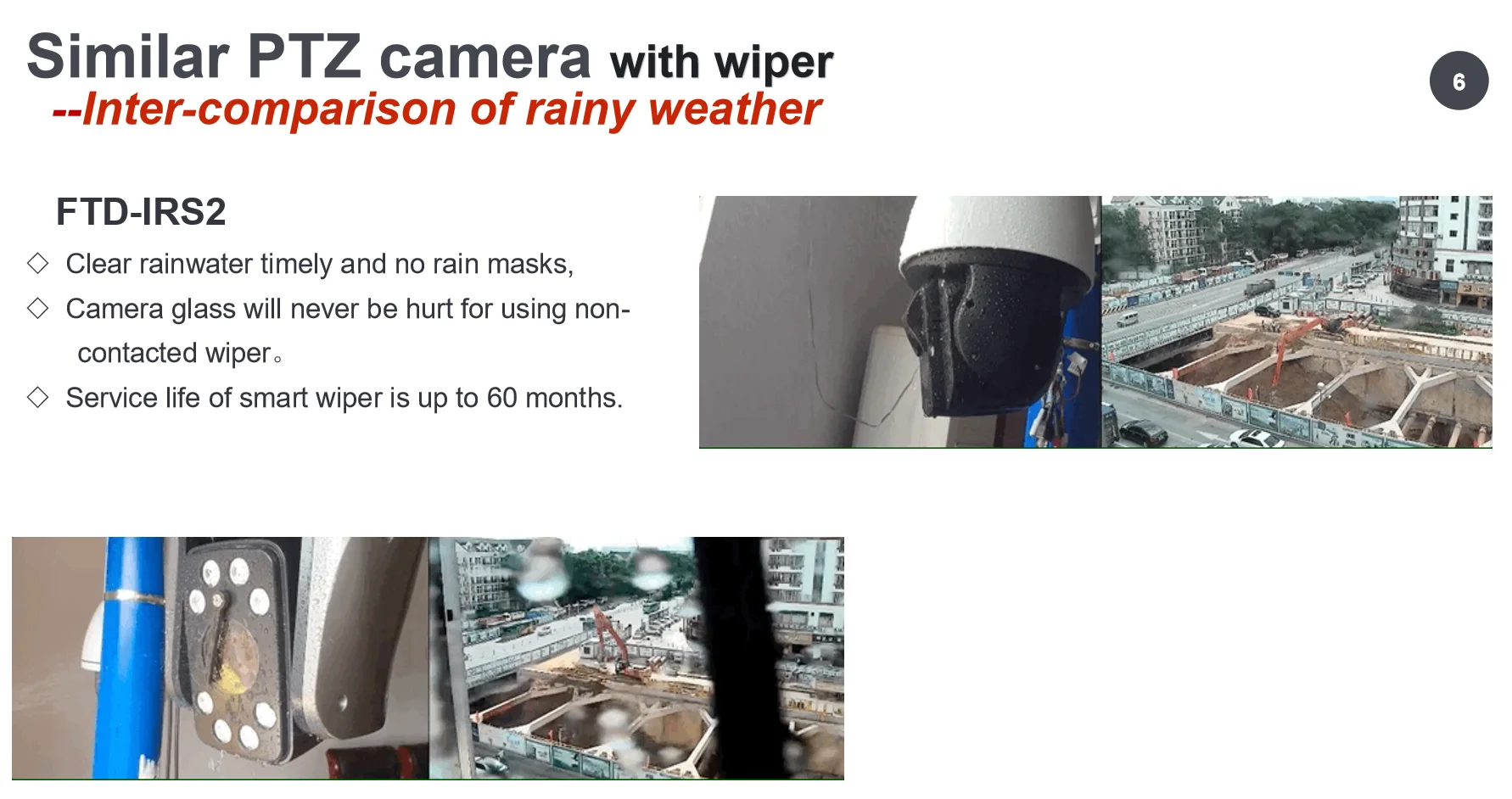

| Air Wiper | Auto / Manual | ||||||
| Other Functions | Auto Flip, Auto Parking, Power-up Action & etc | ||||||
| Alarm | Alarm Input | 1(ON/OFF signal) | |||||
| Alarm Output | 1(ON/OFF signal) | ||||||
| Infrared | IR distance | 150m-200m(Max.) | |||||
| Wave | 850nm | ||||||
| Physical | IP protection | With IP66 | |||||
| Operating Temperature | –35℃~60℃ | ||||||
| Humidity | 0%~98% (Non condensing) | ||||||
| Power Source | AC24V 3A 60Hz/50Hz | ||||||
| Power Consumption | AC24V:8W-47W | ||||||
