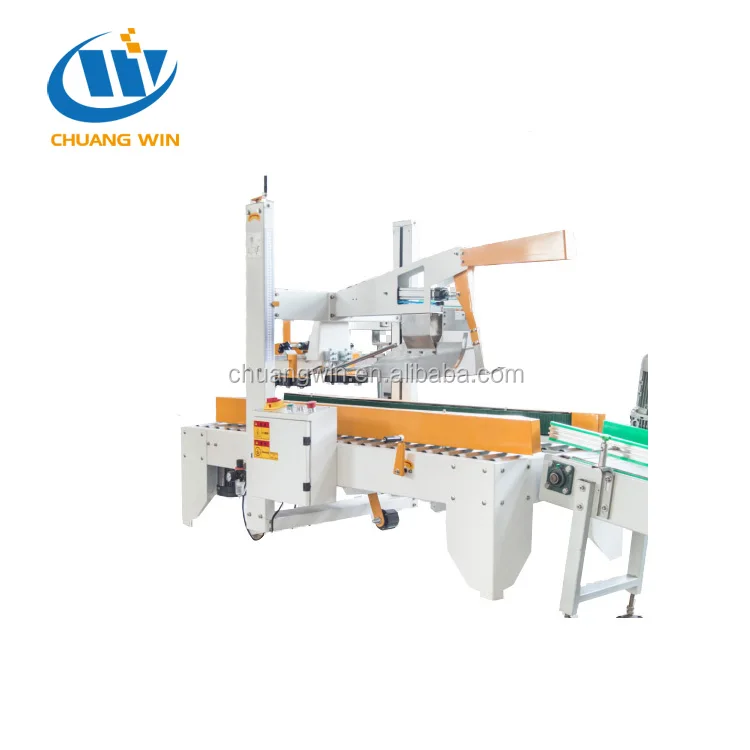

1. Description: Carton Erector (carton erecting machine ) is a piece of packaging machine which can automatically shape a variety of corrugated trays,
cases and boxes by hot melt glue or tape. The machine is widely used in the production line of beverage,
drinks and foodstuff at low, high and medium speed.
Our Carton Erectors are in defferent types which can be customized according to client's requirements. CHUANGWIN persists in serving its customers heart and soul with advanced packing machinery. 2. Equipment datasheet
Machine Model: KXJ10
Speed: 15 boxes / minute
Carton size: L240-510 * W190-400 * H120-400mm
Power supply: 3P 380V 750W
Necessary air pressure: 5kg / cm3
Air consumption: 300NL / min
Tape size: 48,60 mm
Carton storage capacity: 80
Mechanical Dimensions: L2372 * W1210 * H1820mm
Machine weight: 1000KG
3. Main configuration
Motor: Taiwan Yuandong
PLC: Germany's Siemens
Touch screen: Germany's Siemens
Inverter: Japan's Mitsubishi or Germany's Siemens
Photoelectric switch: German Leuze
Voltage Electrical: Germany Schneider
Pneumatic components: SMC
Bearings: NSK
Linear Guide: South Korea Hiwin
4. Advantages
The machine has a fine appearance, small size, human-machine interface control, simple and convenient operation, and the total length of the machine is 2372mm, which is smaller than that of similar products.
Fold back flap mechanism adopts double - link double swing arm structure, easy movement, no vibration, and no noise, fold the flap more smoothly, and can make carton length bigger, maximum length 510mm.
Feeding mechanism, with double keep-off design, bearing more cartons, the most important thing is to drop only 4-5 cartons on demand, absolutely not putting pressure on the cartons and each carton is removed to ensure the success rate of taking out the cartons.
Detailed Images
Company Information
Packaging & Shipping
Our Services
1.Find our products through websit .
2.One year warranty for the whole system.
3.Free equipment installation and debugging.
4.After one Year,we can help you to maintain the machine and the accessories are provided olny one the cost price.
5.Every 3 years,we can help to overhaul the machine freely(Labor).
6.We can provide internship servise and help you train the operator and mechanic.
7.Free production technology and process configuration.

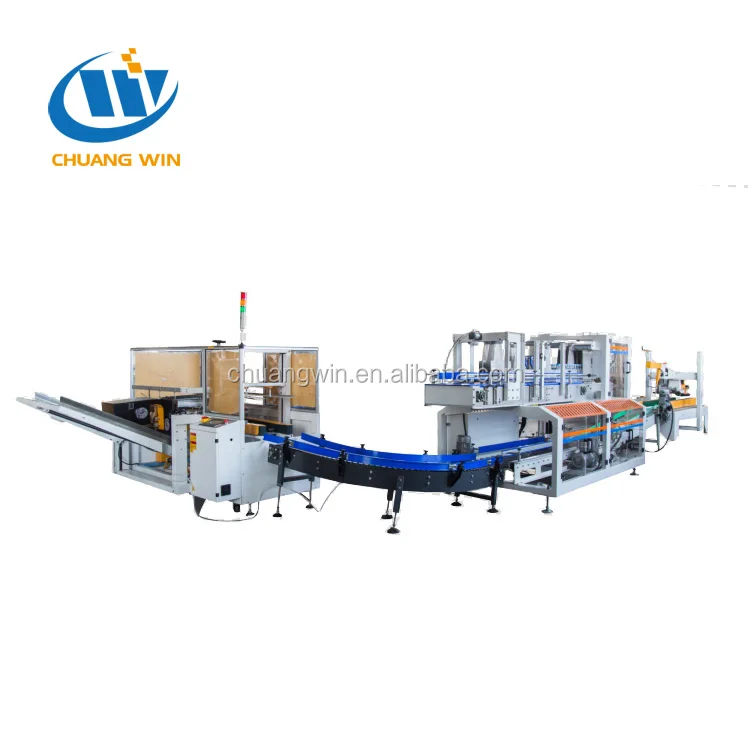

8.We can help you to design the production line,workshop and provide turn-key project.
FAQ
Q: How to get an appropriate offer from your company?
A: Please inform us:
1, production capacity per hour/per day/per month ... ...
3, bottle type: plastic bottle, glass bottle, can or ... ...
4, cap type: screw cap, crown cap, can lid or ... ...
5, for water treatment, it's better offer us the raw water quality report ... ...
Q: This is the first time I cooperate with your factory. How can I trust you about the machien quality?
A: Before ordering the machine, we will make the offer very clear. For example, the material thickness, the brand etc. We can have the video call and I will show what we have in the factory
Q:What’s your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 1 years guarantee . we will give u spare part free in 1 years
Q:When can I get my machine after I paid?
A:We will deliver the machines on time as the date we agreed both side.
Q: Can I run the machines in your factory if I buy the complete line in your factory?
A: Sure, why not. We will have the line connected and tested in our factory before shipping even you didn't mention; We will make it working before arriving at your factory;
Q:How about the spare parts?
A:After we deal down all the things , we will offer you a spare parts list for your reference.
Q: How can I install the machine and commissioning? Do you have the technician to my factory?
A: We have the technician available to your factory for machine installation and commissioning; BUT client should be responsible for the round-way flight tickets, technicians' daily salary, local transportation, local hotel and eating.
