F4 AIO Flight Controller Board OSD Built in Lilter Chip for Mini FPV Racing Drone
- Category: >>>
- Supplier: Shenzhen Jinxinda Technology Co. Ltd.
Share on (62181665577):
Product Overview
Description
F4 AIO Flight Controller Board OSD Built-in Lilter Chip for Mini FPV Racing Drone
Specifications:
Item: SpeedyBee F4 AIO Flight Controller
MCU:STM32F405
IMU: MPU6000
OSD:BetaFlight OSD w/ AT7456E chip

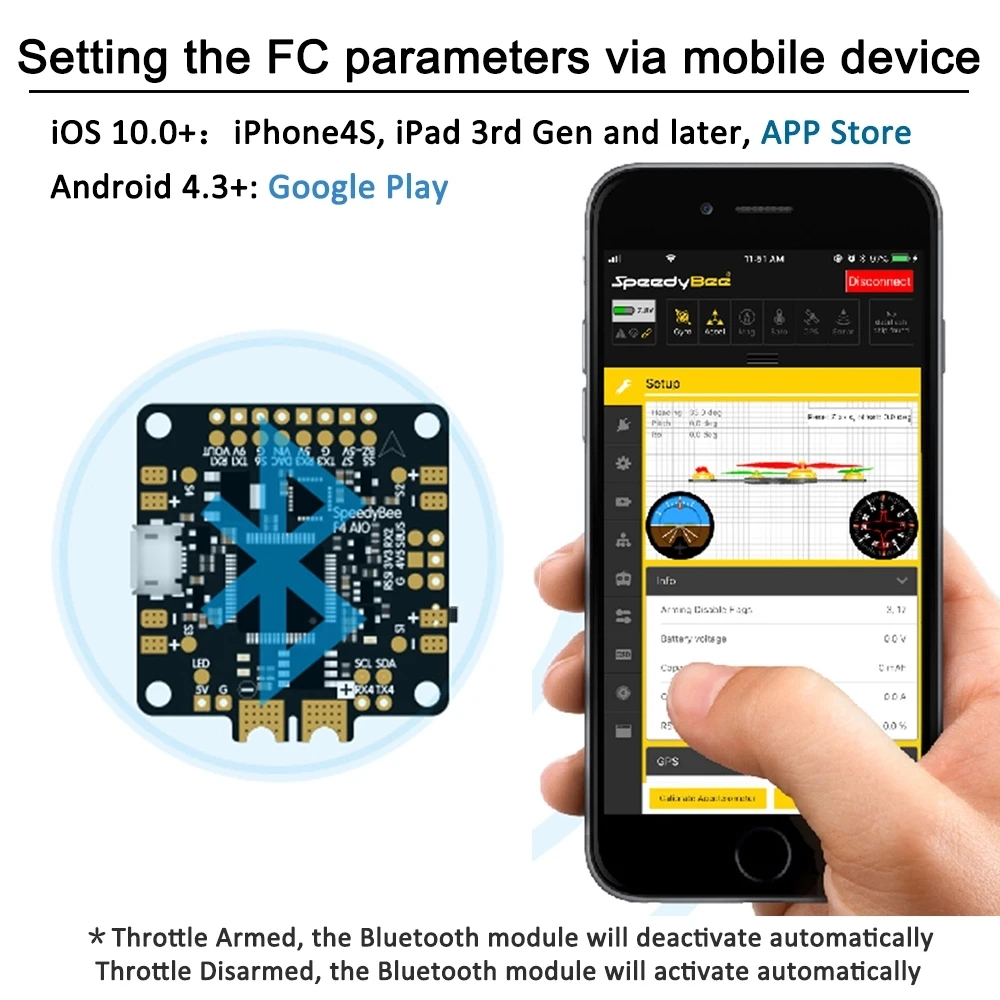

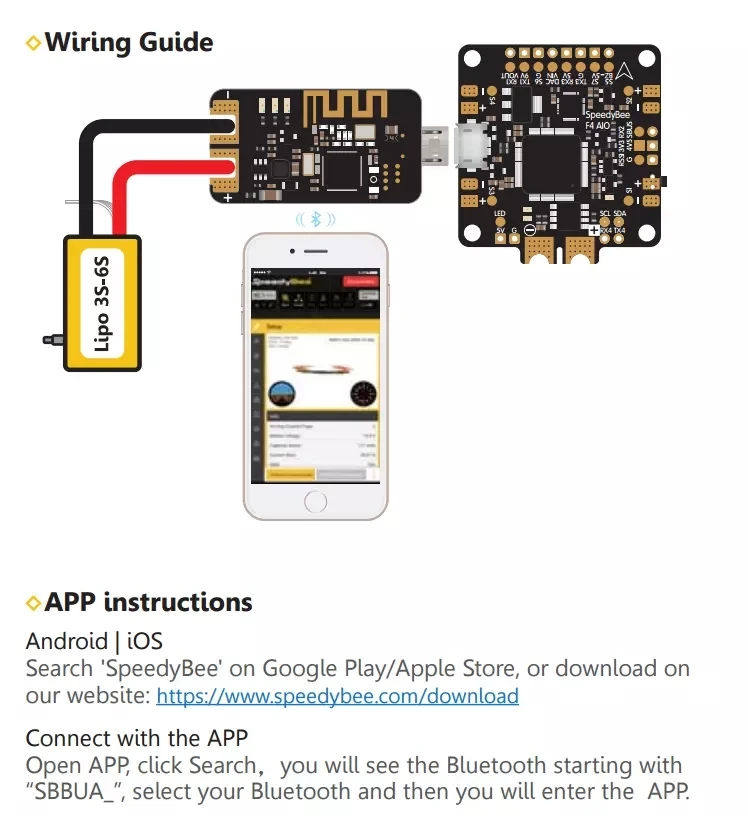

BLE Module: Inner connect to UART5 for remote setting with SpeedyBee App or other similar apps
BlackBox: 2MB onboard dataflash
Current Sensor: 200A(Scale 302)
Power input: 3s - 6s Lipo
Power output: 4.5V * 1 , 3.3V * 1, 5V * 3 , 9V * 1
Cam And VTX power output: Built-in LC-Filter for 5V and 9V
ESC power output: 4 * VCC output
UART: UART Pads * 3(UART1, UART3, UART4)
UART2 for Receiver: Built in inverter of RX2 for SBUS input through SBUS pad, RX2 pad used for PPM, DSM2, DSMX, IBUS
RSSI input: RSSI input solder pad
I2C:Used for external GPS, Barometer module
Buzzer: Buz- and 5V pad used for 5V Buzzer
ESC signal: s1 - s7
LED pin: Used for WS2812 LED
Boot button: Used to easy enter DFU mode
Weight: 8.8g

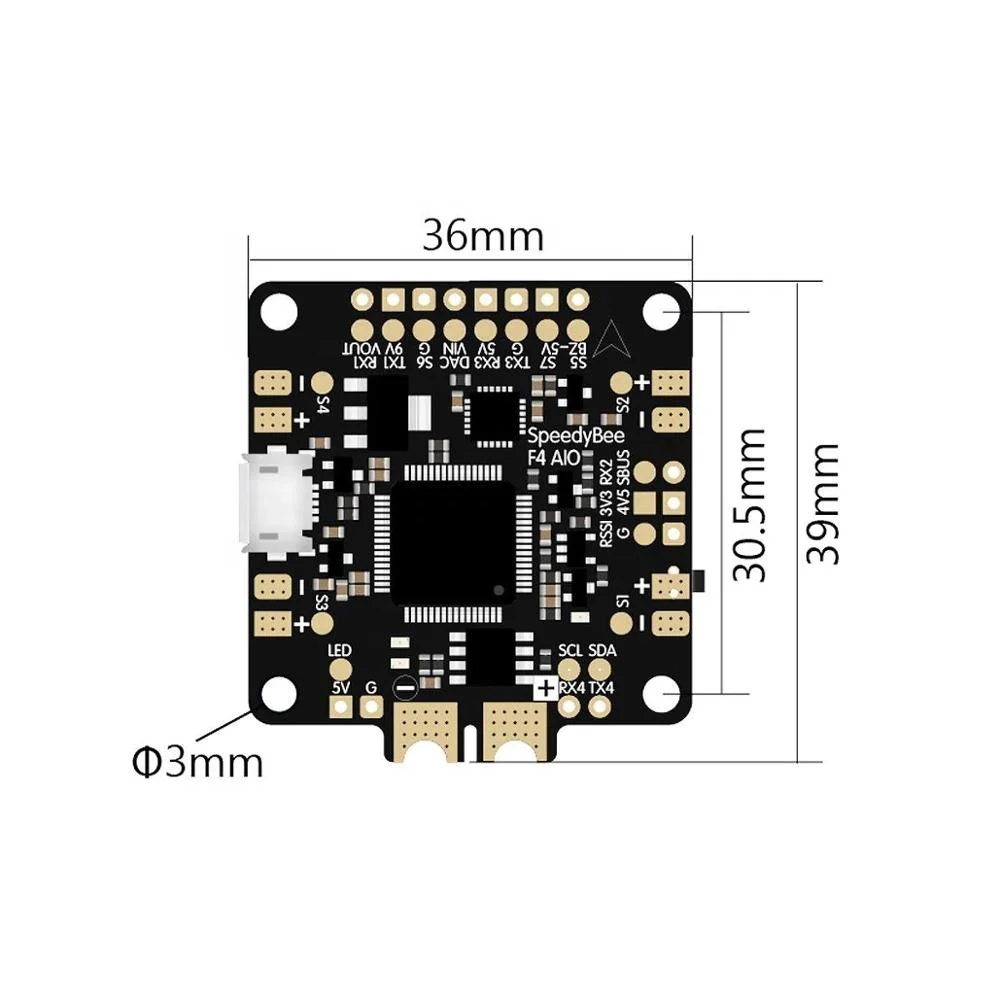

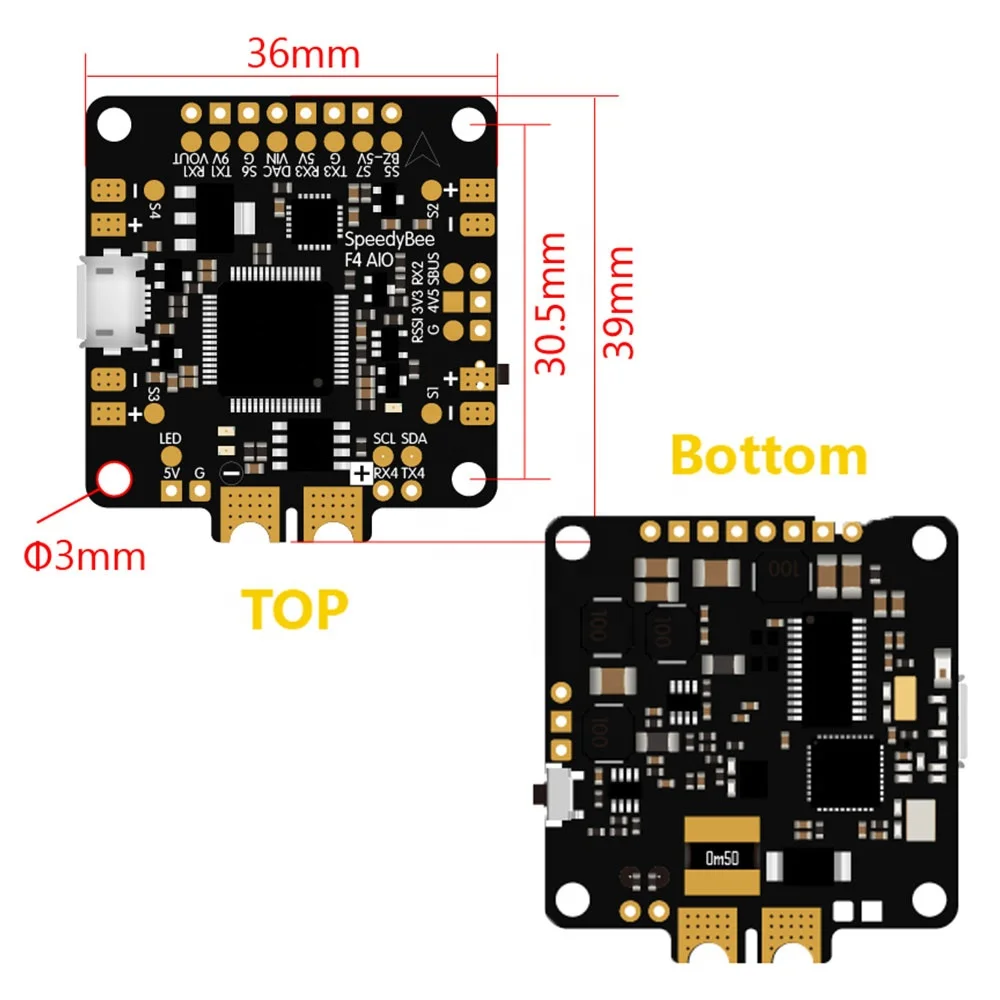

Dimension: 36*39*7mm
Package included:
1 * SpeedyBee F4 AIO Flight controller
6 * M3*3+3 Nylon column
6 * M3 Nylon nut
6 * M3 Anti-vibration Gasket
1 * Rubycon 35V 470uf capacitor
1 * Manual
