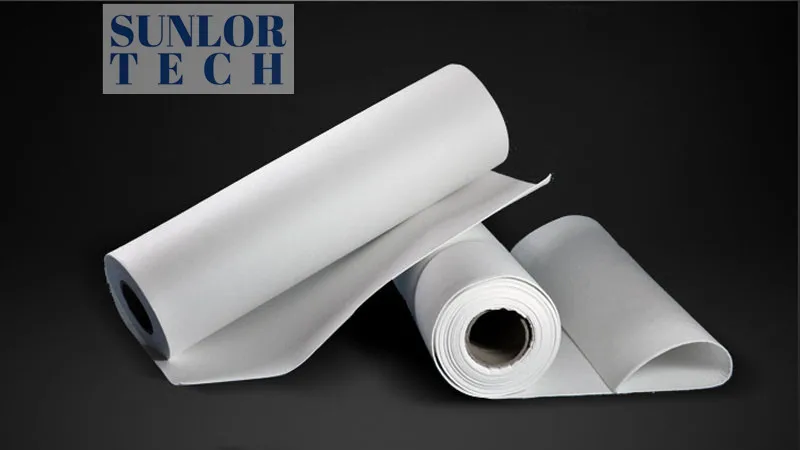

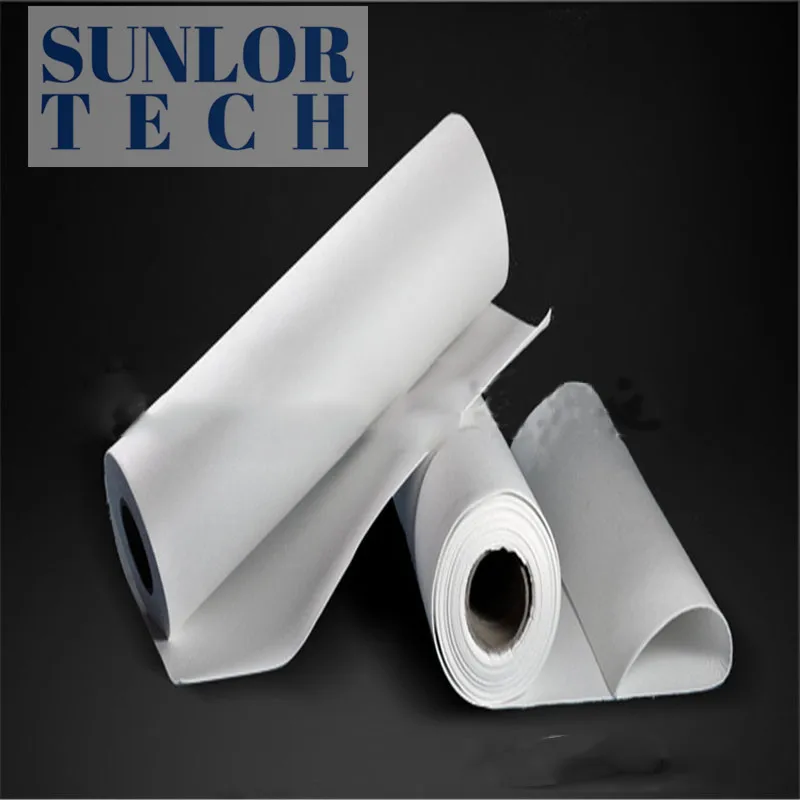

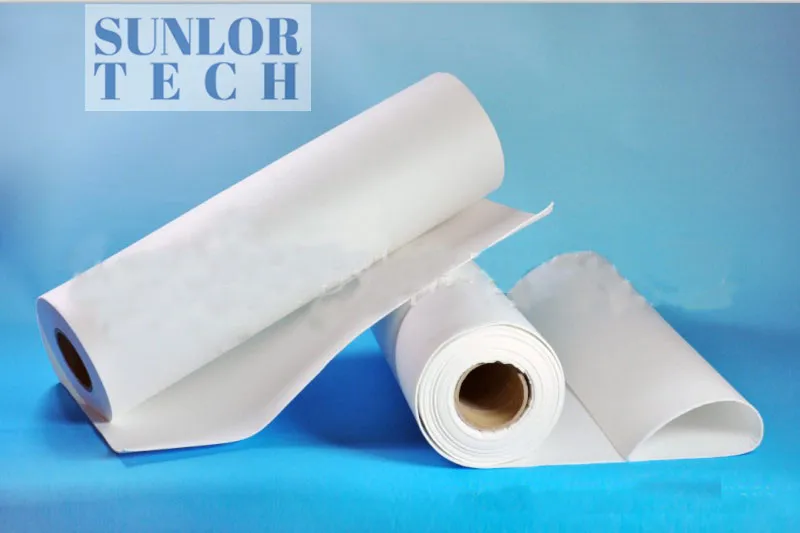

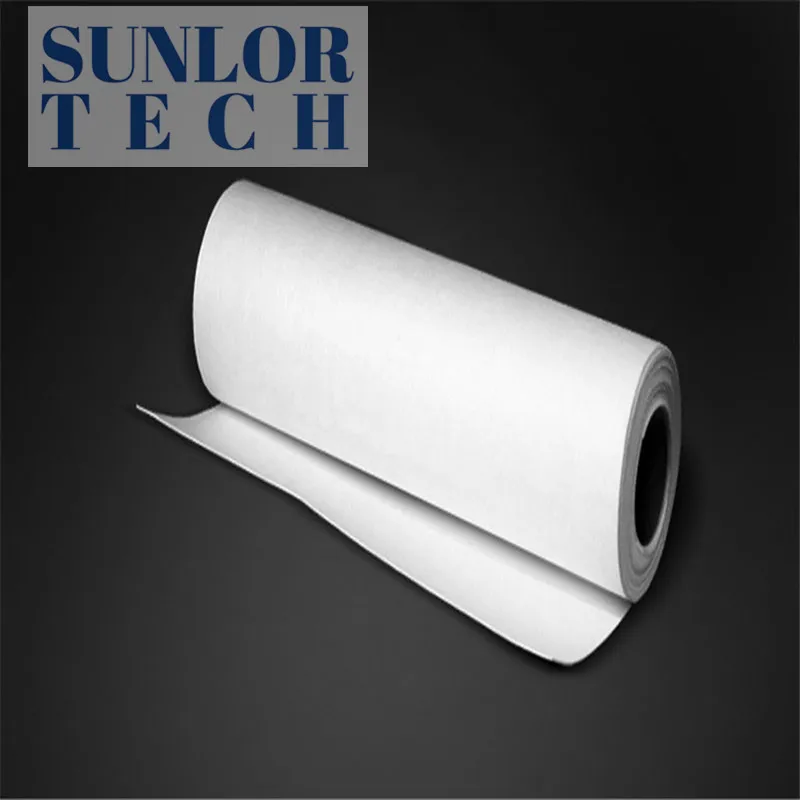

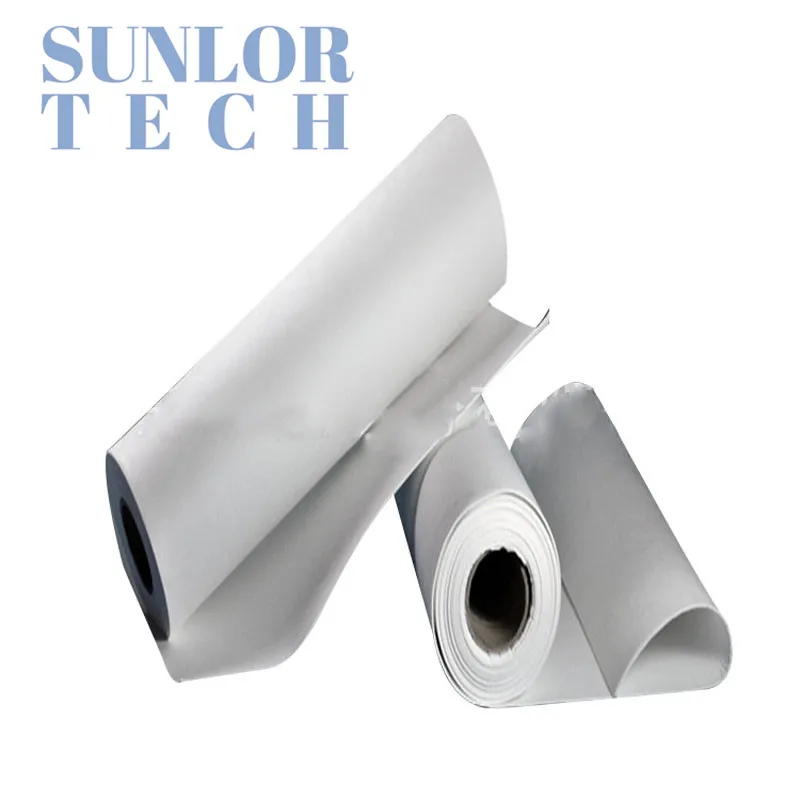

Coiled ceramic fiber Industrial insulation Sealed anti corrosion material Fireproof Materials Ceramic fiber paper

Product description :
The ceramic fiber mold plate is made of ceramic fiber cotton as a raw material, vacuum formed, and specially processed. The product has a uniform structure and good heat resistance, and is suitable for use in engraving molds.
The ceramic fiber fire shield is a high-strength fiber sheet produced by using specific refractory additives. The product has tough texture, high compressive strength, superior high temperature resistance and excellent supporting force; it can be used as an industrial furnace temperature interval. Excellent refractory material for heat. The ceramic fiber board is made of ceramic fiber cotton and is made by vacuum forming. Its strength is higher than that of fiber blanket and vacuum forming felt. It is suitable for applications where the product has rigid strength requirements. In addition, according to the application requirements, vacuum forming ceramic fiberboard products with higher bulk density, the thermal insulation performance, wear resistance and strength of the board are further improved. The ceramic fiber board and the flame retardant formula contain a small amount of organic binder to enhance the cold strength, and the organic matter can be burned at the first burning of about 200 ° C to 300 ° C.

Product category and code:
Standard ceramic fiber mold plate LYGX-234M
Standard ceramic fiber mechanism board LYGX-234
High purity ceramic fiber mechanism board LYGX-334
High alumina ceramic fiber mechanism board LYGX-434
Zirconium-containing ceramic fiber mechanism board LYGX-534
High-purity ceramic fiber fire shield LYGX-364D
High alumina ceramic fiber fire shield LYGX-464D

Product Features:
Low heat capacity, low thermal conductivity
Non-brittle material, good elasticity
Wind erosion resistant, long service life
Excellent thermal stability and thermal shock resistance
Rigid, self-supporting plate
Good anti-flaking performance
Easy to shape or cut

Typical application:
Steel industry: expansion joints, backing insulation, heat insulation sheets and mold insulation
Non-ferrous metal industry: tundish and runner cover for pouring copper or copper-containing alloys
Ceramic industry: light kiln car structure and kiln hot face lining, kiln temperature zone separation and fire blocking
Glass industry: molten pool backing insulation, burner block
Kiln construction: hot refractory (replacement blanket), heavy refractory backing, expansion joint
Light industry: lining of industrial and domestic boiler combustion chambers
Petrochemical industry: hot surface material lining high temperature furnace
Mold for forming deep processing products such as process glass



Product name	Ceramic fiber mold board	Ceramic fiber mechanism board				Ceramic fiber fire shield		Testing standard
Classification temperature (°C)	1260	1260		1400		1260	1400
Product Code	LYGX-234M	LYGX-234	LYGX-334	LYGX-434	LYGX-534	LYGX-364D	LYGX-464D
Heating permanent line change (%)	1000℃×24h≤-4	1000℃×24h≤-3	1100℃×24h≤-3	1200℃×24h≤-3	1350℃×24h≤-3	1100℃×24h≤-3	1200℃×24h≤-3	GB/T 17911
Theoretical thermal conductivity W / (m · k) (average 500 ° C)	≤0.135							YB/T 4130
Moisture content (%)	≤1							GB/T 3007
Organic content (%)	≤5							GB/T 11835
Theoretical volume density(kg/m3)	400	300				320		GB/T 17911
General specifications(mm)	900×600×25/30	900×600×25/50			900~1100×500~700×25~50	800~900×600~700×25~50	800×700×30/50
