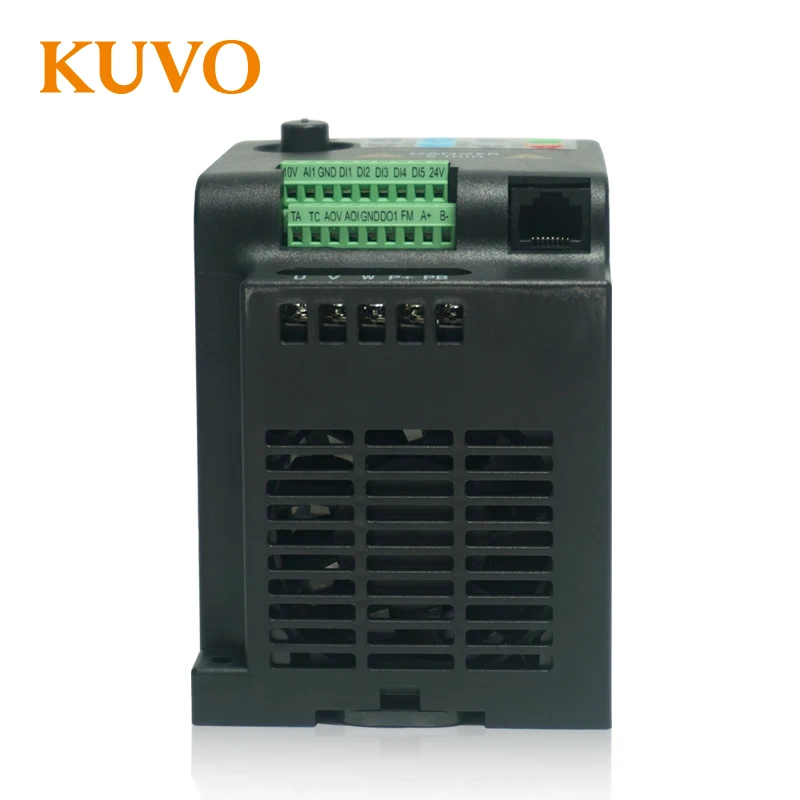

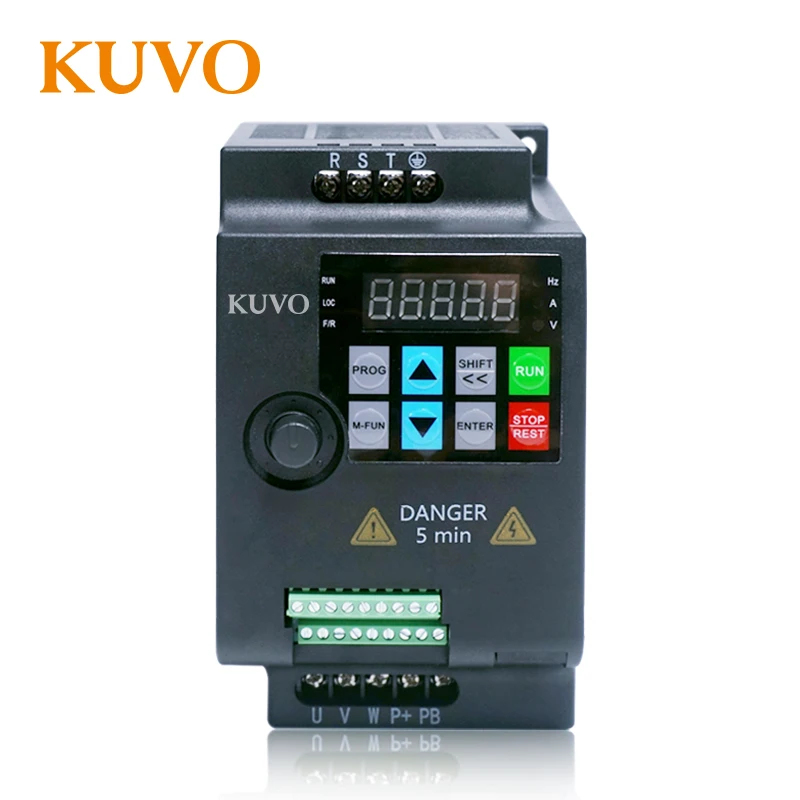

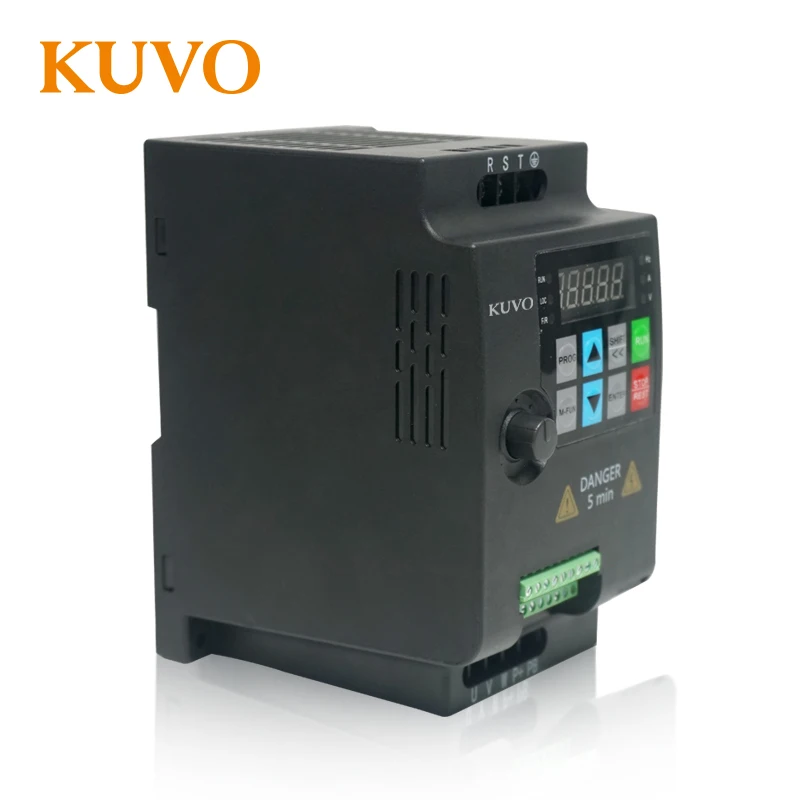

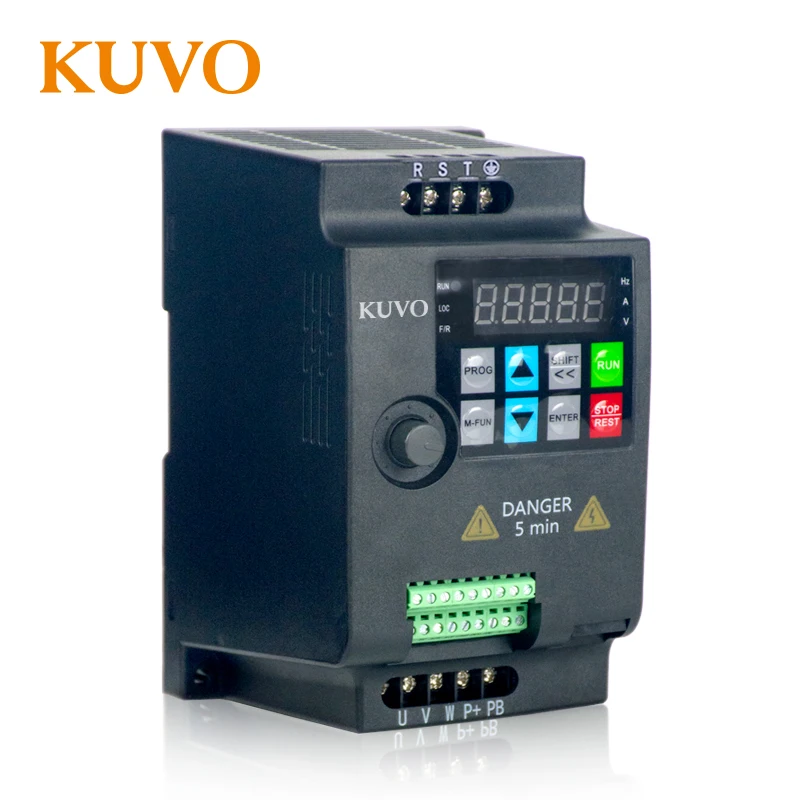

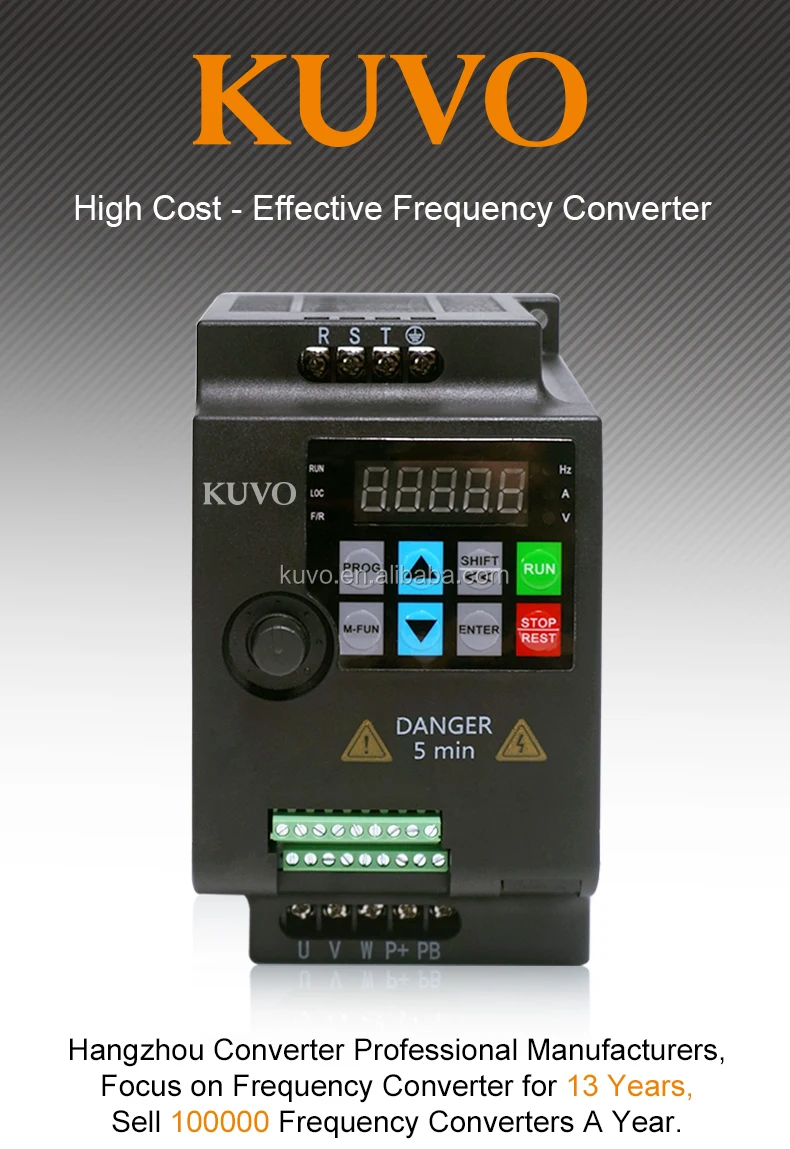

380V Three Phase Input 380V 2.2kw 3HP Mini VFD Variable Frequency Drive Inverter for Motor Speed Control

Product Overview

Description

Technical Features

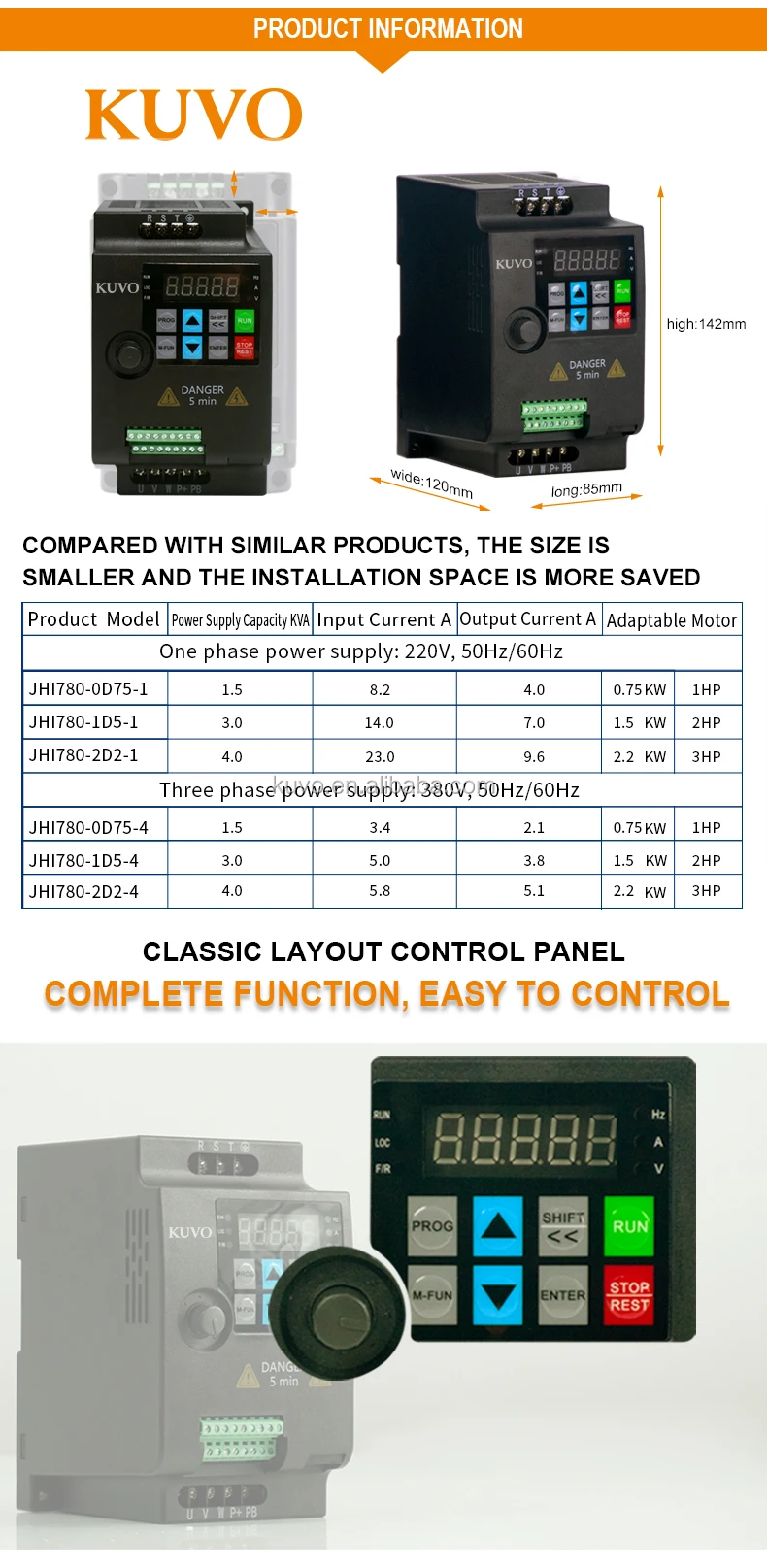

1. Rated Power Range: 0.75KW~2.2KW/380V; 0.75KW~2.2KW/220V


2. Output Frequency Range: 0~1000Hz


3. Control Mode: V/F Control, V/C Control


4. Overload Capability: G type, 60s with 150% of rated current, 5s with 180% of rated current;                                                        For 220% rated current, instantaneous protection.


5. PID control function


6. Multi-stage Speed Function: multi-stages speed could be set via PLC or connection port


7. Supporting multiple frequency setup methods: digital, PID, analog setup, modbus-RTU;


8. Speed Trace Function: smoothly restart the running motor


9. Automatic voltage regulation function(AVR)


10. Automatically keep the output voltage stable when input voltage fluctuating


11. Fault Protection: protect from over current, over voltage, under voltage, over temperature, phase failure, over load etc.
