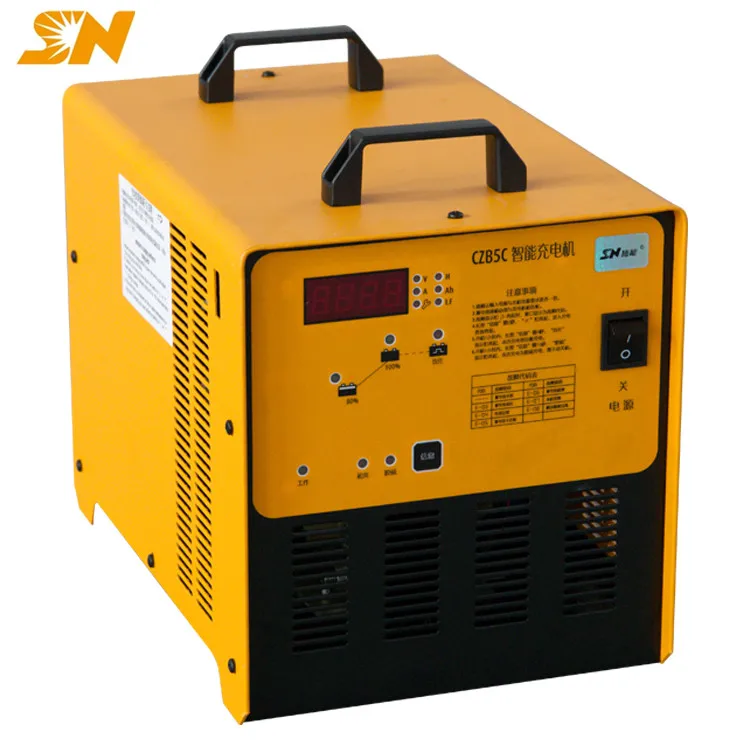

Shineng CZB5C E 72v 25a 200ah lead acid battery charger for forklift pallet stacker ev agv and so on
- Category: >>>
- Supplier: Shanghai Shineng Electrical Equipment Co. Ltd.
Share on (62181847732):
Product Overview
Description
Introduction
♦ Combine leakage transformer, technology of silicon-controlled rectifier and Micro-computer to improve the Wsa+Pulse charging characteristic curve.
♦ Greatly prolong the working life of the battery as pulse charge would be performed before gas emissions and in late stage of recharge.
♦ Dynamic tracking and auto adjust the charging paremeters through PID control technology.
♦ Automatic detection, delaying and soft-start.Temperature compensation when voltage achieve tipping point of gas emission
♦ Protection and alarm functions of open circult, reverse connection, over load and short circuit etc.
♦ Initial charging and desulfuration charging function for new or long no-used battery
♦ Recording date of the past 30 times charging result.
♦ Apply to electric pallet trucks, forklift, lift truck,electric tour bus and so on which used lead-acid battery.
♦Parameters:
| Type(V/A) | Main Power(V) | Input Power (KVA) | Input Current(A) | Output Current(A) | Battery parameters V/AH(7.5H~10H) | Size(mm) | Weight(Kg) |
| CZB5C-E24V/20A | Single Phase | 0.75 | 3.4 | 20 | 24V/115-160AH | 240*350*260 | 21.0 |
| CZB5C-E24V/50A | 1.9 | 8.5 | 50 | 24V/290-400AH | 240*350*260 | 25.5 | |
| CZB5C-E24V/80A | 3.0 | 13.6 | 80 | 24V/464-640AH | 466*360*783 | 40.0 | |
| CZB5C-E24V/30A | 1.1 | 5.1 | 30 | 24V/175-240AH | 240*350*260 | 21 | |
| CZB5C-E36V/30A | 1.7 | 7.7 | 30 | 36V/175-240AH | 240*350*260 | 23.5 | |
| CZB5C-E48V/30A | 2.3 | 10.2 | 30 | 48V/175-240AH | 240*350*260 | 28 | |
| CZB5C-E36V/40A | 2.3 | 10.2 | 40 | 36V/230-320AH | 240*350*260 | 24.5 | |
| CZB5C-E48V/25A | 1.9 | 8.5 | 25 | 48V/145-200AH | 240*350*260 | 24.5 | |
| CZB5C-E48V/45A | 3.4 | 15.3 | 45 | 48V/260-360AH | 466*360*783 | 42 | |
| CZB5C-E48V/65A | 4.9 | 22.2 | 65 | 48V/375-520AH | 466*360*783 | 50 | |
| CZB5C-E48V/80A | 6.0 | 27.3 | 80 | 48V/465-640AH | 466*360*783 | 56 | |
| CZB5C-E72V/30A | 3.4 | 15.3 | 30 | 72V/175-240AH | 280*430*280 | 35.5 | |
| CZB5C-D48V/55A | Three Phase
| 4.1 | 6.3 | 55 | 48V/320-440AH | 466*360*785 | 62 |
| CZB5C-D48V/65A | 4.9 | 7.4 | 65 | 48V/375-520AH | 466*360*785 | 65 | |
| 6.0 | 9.1 | 80 | 48V/465-640AH | 466*360*785 | 68 | ||
| CZB5C-D48V/100A | 7.5 | 11.4 | 100 | 48V580-800AH | 526*360*883 | 86 | |
| CZB5C-D48V/120A | 9.0 | 13.7 | 120 | 48V/700-960AH | 526*360*883 | 95 | |
| CZB5C-D80V/65A | 8.1 | 12.3 | 65 | 80V/375-520AH | 526*360*883 | 87 | |
| CZB5C-D80V/70A | 8.8 | 13.3 | 70 | 80V405-560AH | 526*360*883 | 87 | |
| CZB5C-D80V/80A | 10.0 | 15.2 | 80 | 80V/465-640AH | 526*360*883 | 89 | |
| CZB5C-D80V/100A | 12.5 | 19.0 | 100 | 80V/580-800AH | 526*360*883 | 95 | |
| CZB5C-D80V/120A | 15.0 | 22.8 | 120 | 80V/700~960AH | 526*360*883 | 107 |
Related Products
Company Information
Packaging & Shipping
FAQ
Q1: Are you trading company or factory?
We are a professional battery manufactuer since 1984. More than 30 years history.
Q2: Do you have warranty of the battery charger?
All the products have warranty of one year, and we will always offer technical support.
Q3:Do you have certificate?
We have CE ISO certificate and will apply other certificate if necessay.
Q4: What does your products apply to?
The charger is apply to different kinds of batteries such as lead acid and lithium battery.
Also we are the nominated supplier for most of the forklift brand such as LINDE, HYSTER,NOBLIFT,HELI,HC etc.
Q5: How do you control the quality?
We have professional technical team who will always test the stability of the products and develop new products. Each kinds of new products will be tested for thousands of times before publish.
And Every product will be inspected before delivery.
