Electronic door lock stainless steel 800KG with signal and delay time for access control
- Category: Locks & Keys >>>
- Supplier: Secukey Technology Co. Ltd.
Share on (62181957737):
Product Overview
Description
Introduction

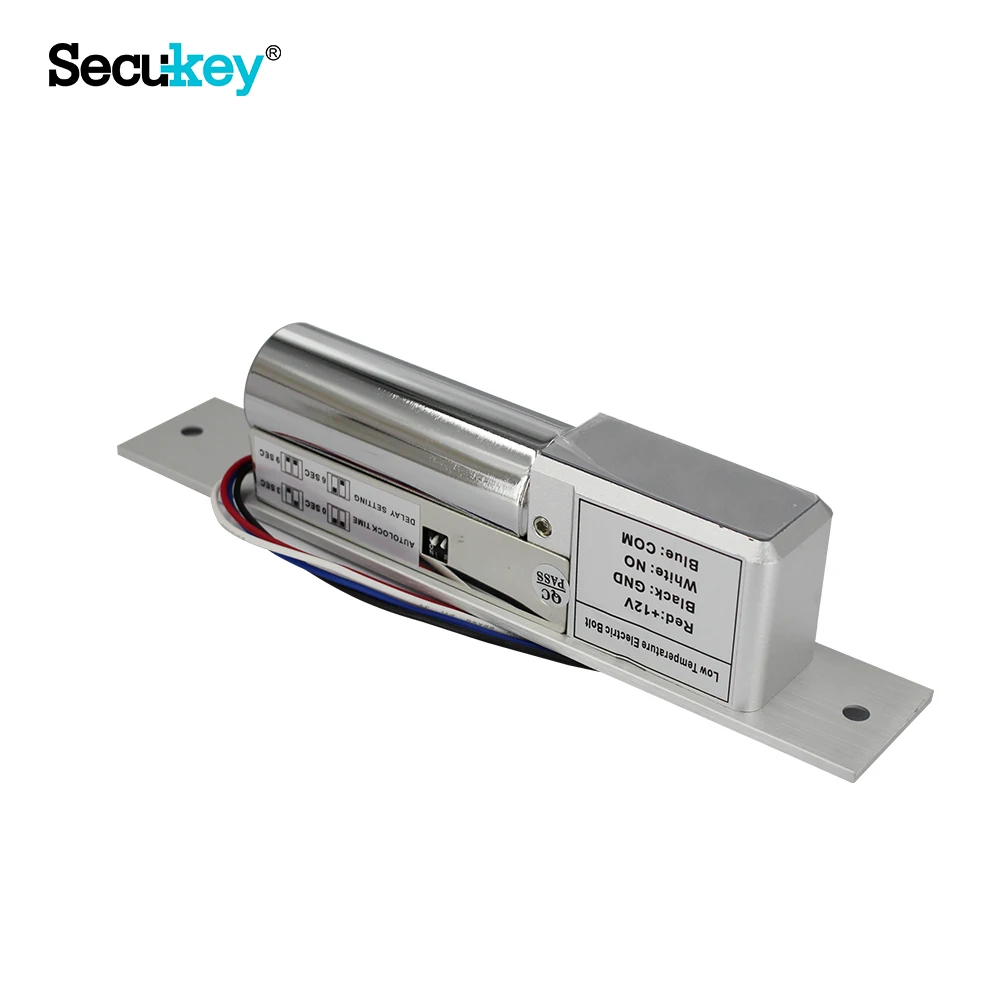

Electronic door lock stainless steel 800KG with signal and delay time for access control
Main Feature
Electronic lock
>Fail safe: Locked when energized
• Holding force: 800kg• Face plate size: 20.5L x 3.5W x 4.1H (cm)
• Strike size: 9.0L x 2.5W x 2.0H (cm)
• Operating voltage: DC12V

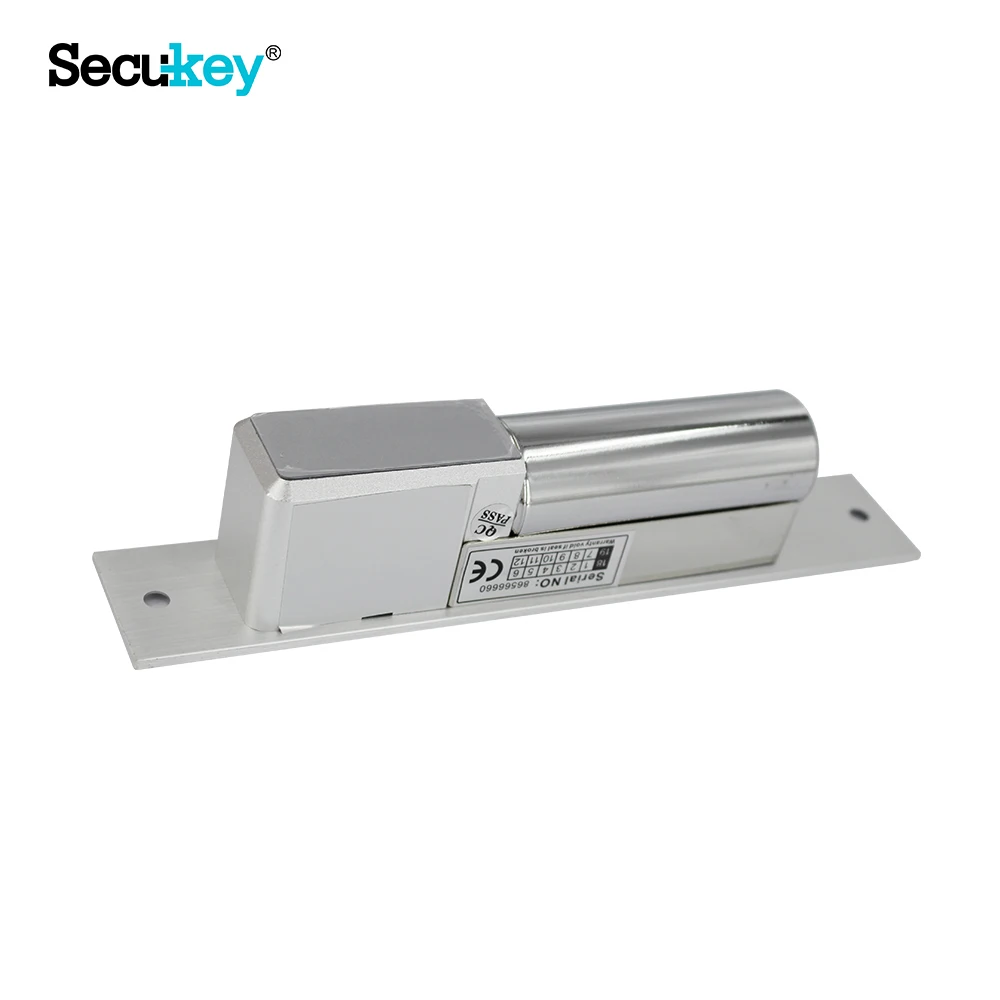

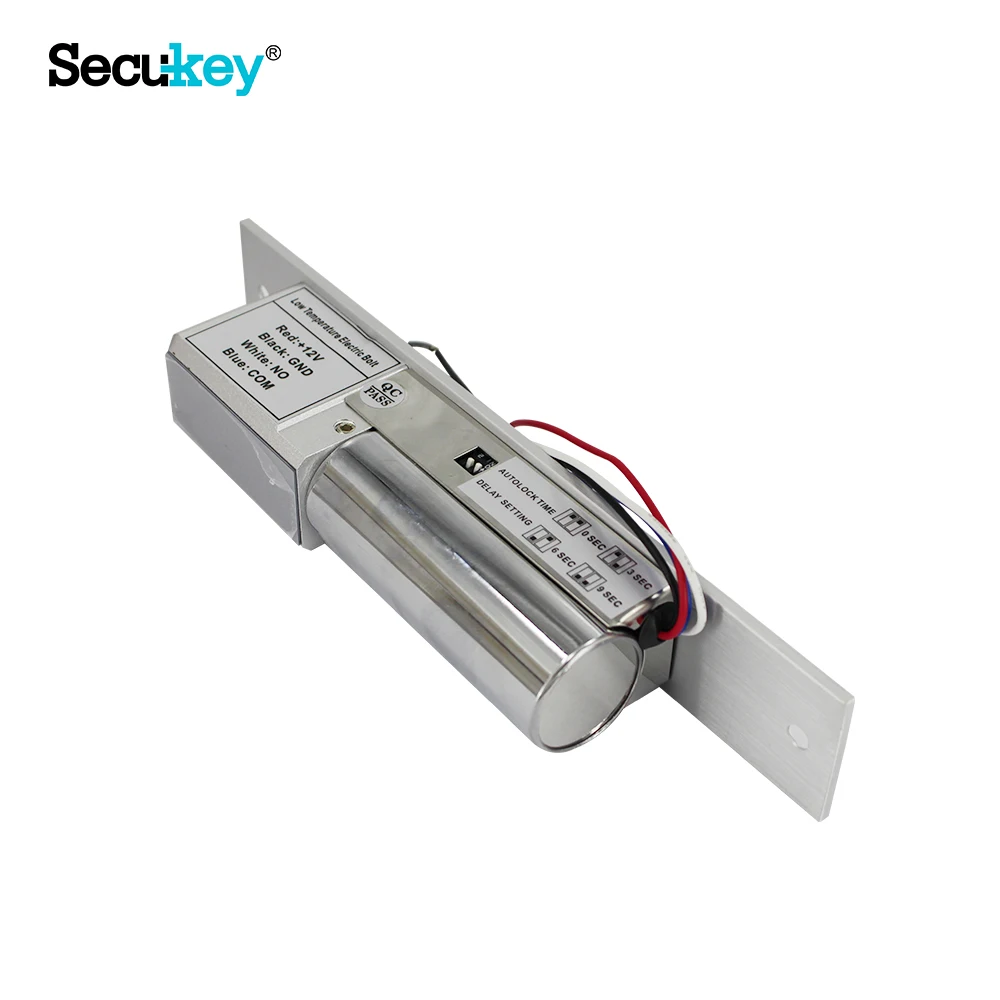

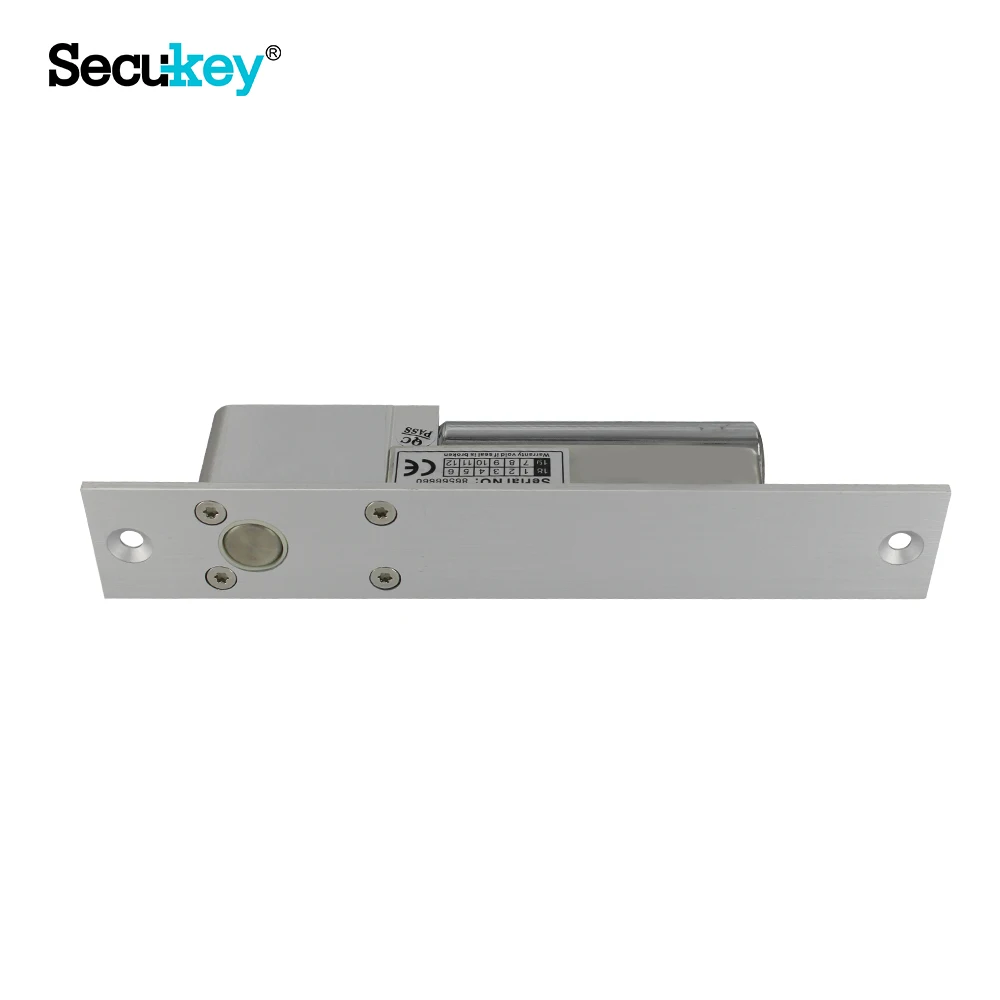

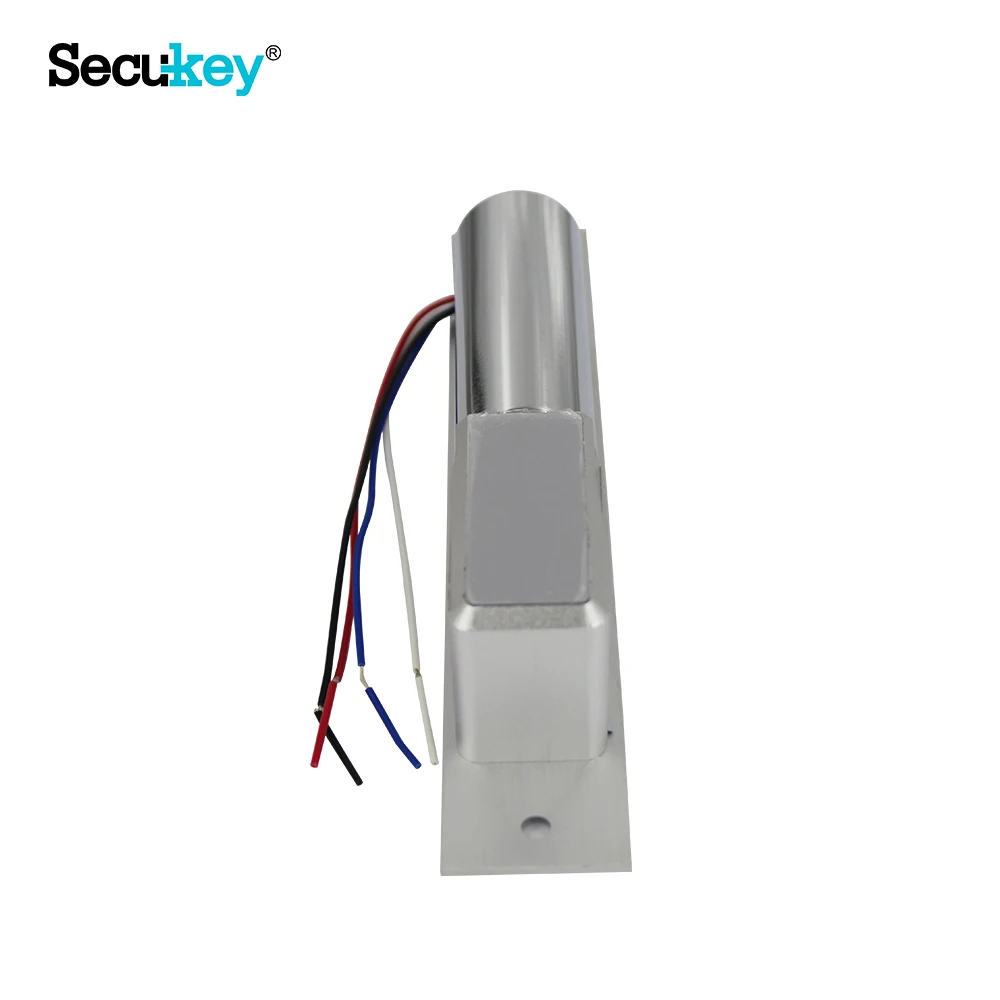

Detailed Images
electronic lock for glass door
Product Parameter | Parameter Description |
Fail Safe | Locked when energized |
Face Plate | 20.5L x 3.5W x 4.1H (cm) |
Strike | 9.0L x 2.5W x 2.0 H (cm) |
Bolt | 1.6cm DIA, stainless steel 1.6cm throw |
Voltage | 12V DC |
Standby Current | 120mA |
Solid Bolt | Polishing housing,800KG holding force |
Start Current | 900mA |
Signal Output | Door status output,NC/COM |
Surface Temp | Low Temperature |
Induction Distance | 8mm |
Operating temp | -10oC - 55 oC ( 14oF - 131 oF) |
Operating Humidity | 0% ~ 90%(non-condensing) |
Special Designed | Tested to 500000 cycles |
Face place material | High aluminum, carrulous line finished |
Weight | 0.72kg |
Suitable for | Wodden door,metal door,glass door |
