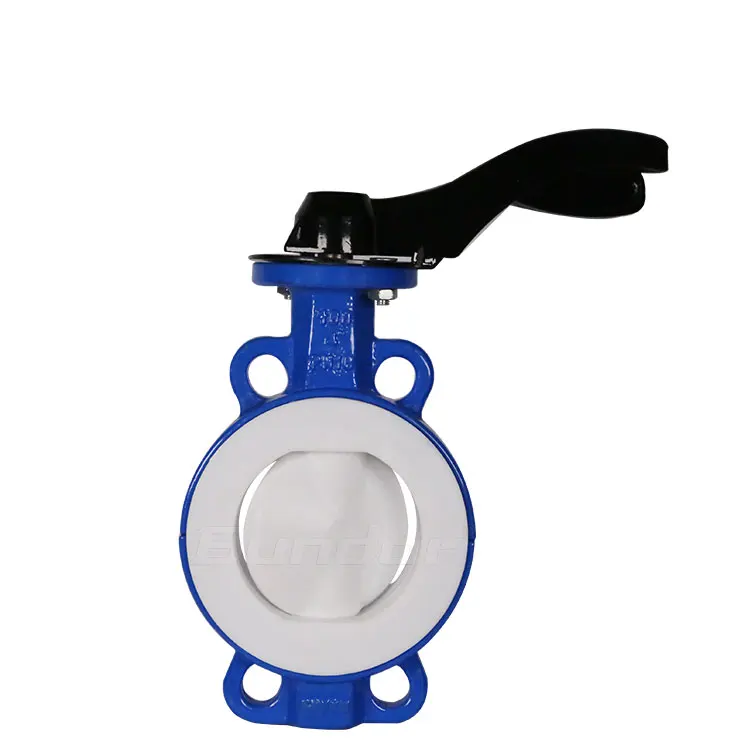

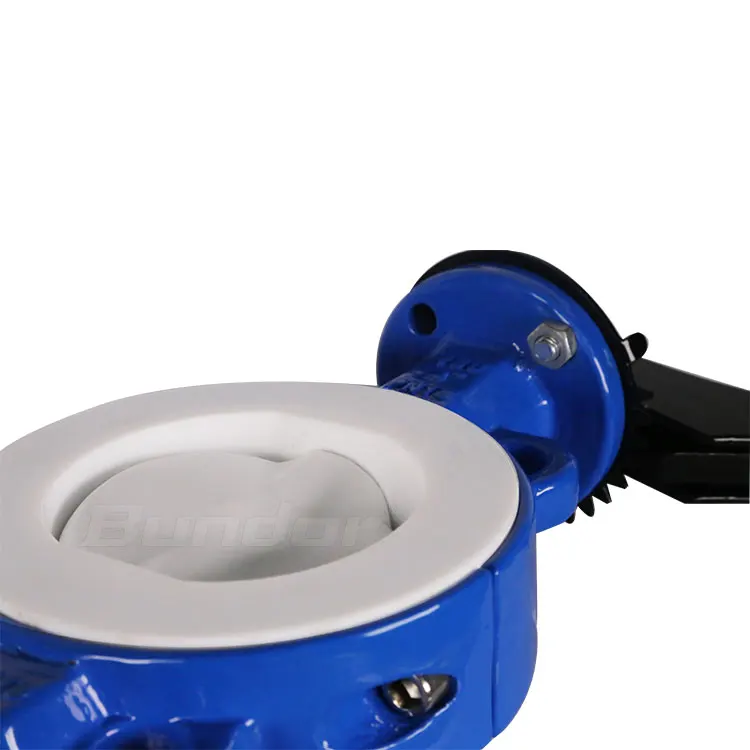

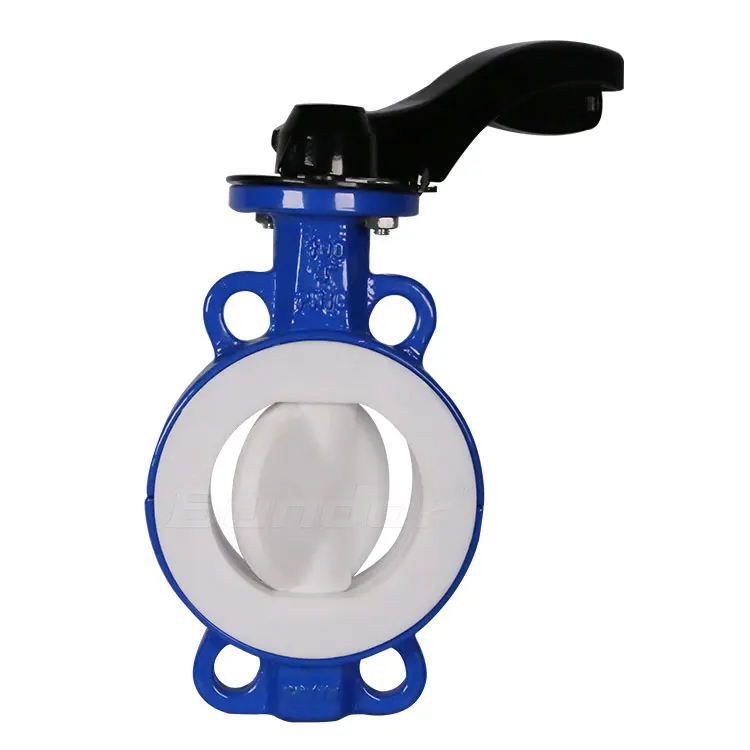

Bundor 2 inch PN10/16 Manual DN50~DN250 2 inch PTFE Lined wafer butterfly valve
- Category: Butterfly Valves >>>
- Supplier: Henan Bundor Flow Control Co. Ltd.
Share on (62182097459):
Product Overview
Description
Product Description

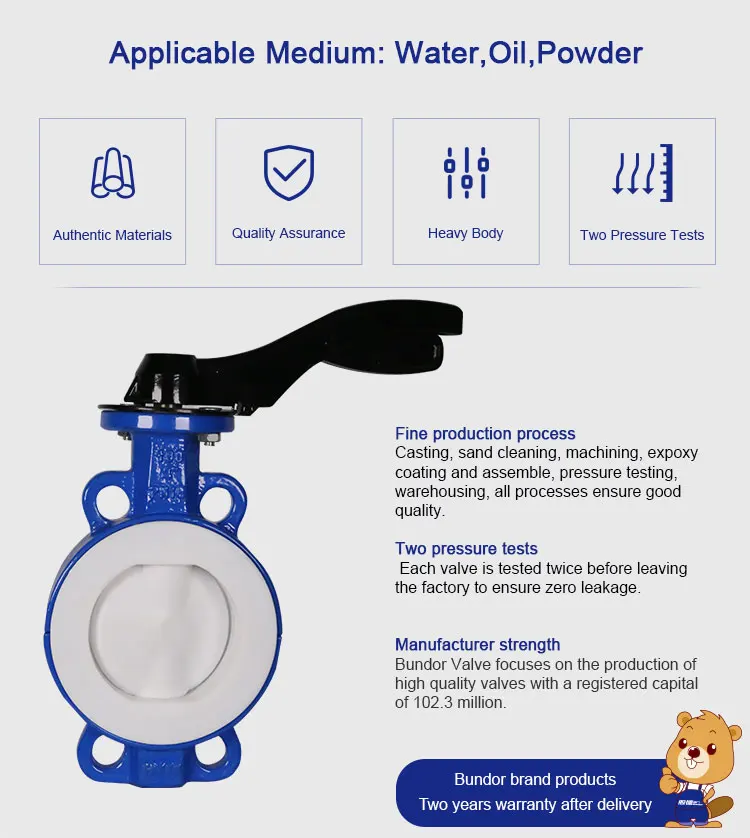

Product Advantage
1.The length of the short structure can save raw materials and installation space, and also effectively support the strength of the pipeline.
2.The valve block is the correct movement of the gate, extrusion fast, to ensure effective sealing valve.
3.Triangle support material, guarantee the required mechanical properties.
4.According to different working conditions demand design V, triangle, or five corners and other ports, in order to meet the needs of various flow regulation.
5.No groove at the bottom to make sure no slag and full bore flow.
6.Bundor valve strict implementation of the API598 experimental standard, for each product to implement 100% positive and negative double pressure test, guarantee delivery to customers is 100% qualified products.

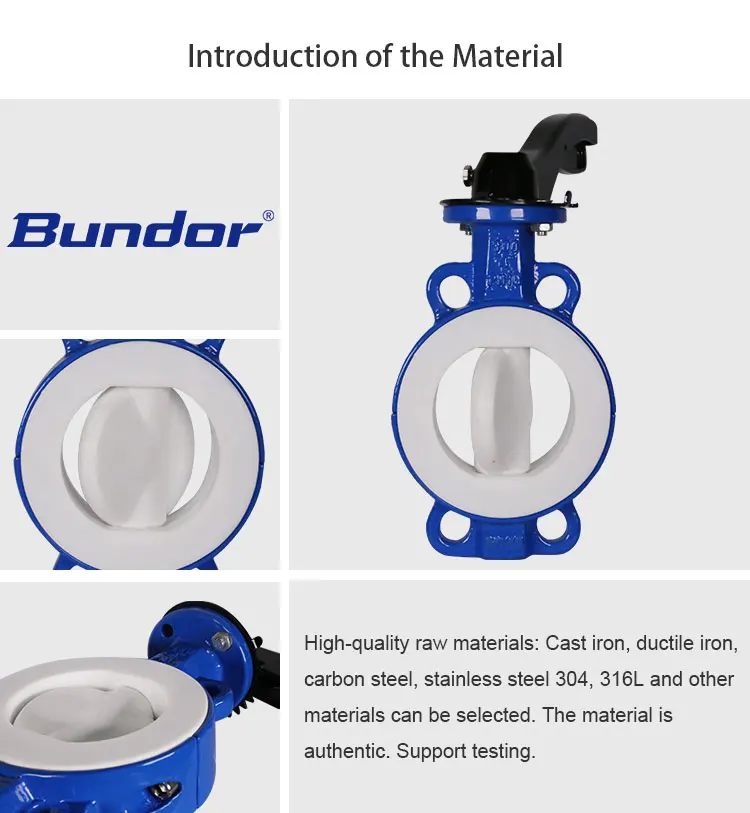

| Name | Body | Seat | Disc | Stem | Handle | ||
| Material | DI | PTFE | WCB | SS410 | Aluminum | ||

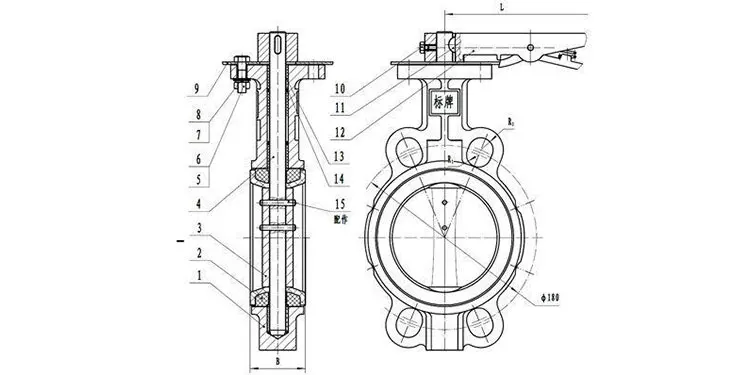

| mm | in | A | B | C | L | ANSI 150B | DIN PN 10 |
| 40 | 1.5" | 70 | 164 | 32 | 33 | 98.5 | 110 |
| 50 | 2" | 80 | 169 | 32 | 43 | 120.6 | 125 |
| 65 | 2 1/2" | 89 | 176 | 32 | 46 | 139.7 | 145 |
| 80 | 3" | 95 | 183 | 32 | 46 | 152.4 | 160 |
| 100 | 4" | 114 | 201 | 32 | 52 | 190.5 | 180 |
| 125 | 5" | 127 | 214 | 32 | 56 | 215.9 | 210 |
| 150 | 6" | 139 | 229 | 32 | 56 | 241.3 | 240 |
| 200 | 8" | 175 | 257 | 45 | 60 | 298.4 | 295 |
| 250 | 10" | 203 | 280 | 45 | 68 | 361.9 | 350 |
| 300 | 12" | 242 | 327 | 45 | 78 | 431.8 | 400 |

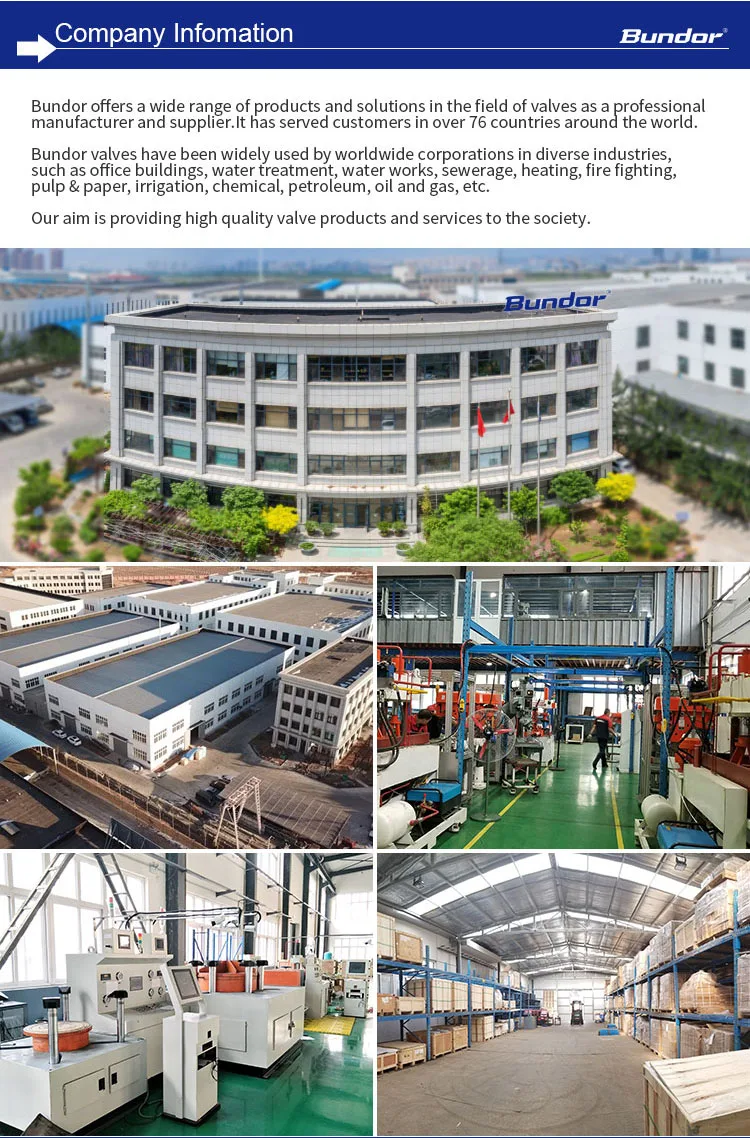

Company Information
FAQ
Q:When the products will be shipped ?
A:Within 7-15 days after receiving the prepayment.
Q:Do you have OEM service ?
A:Yes . A variety of products size , quality and quantity can be cutomized according to your needs.
Q:Could you offer a free sample ?
A:Yes , samples can be proveded for free.
Q:How can I pay for the products ?
A: We accept a variety of payment methods. Such as T/T , L/C,D/P ,Western Union , Paypal ,Trade Assurance.
Q: How do you deal with that if there are some quality problems in products?
A: We will be responsible for all the quality problems.
Q:Are you a facrory or trade company ?
A: We are a factory with 26 years experience in valve research and production .
