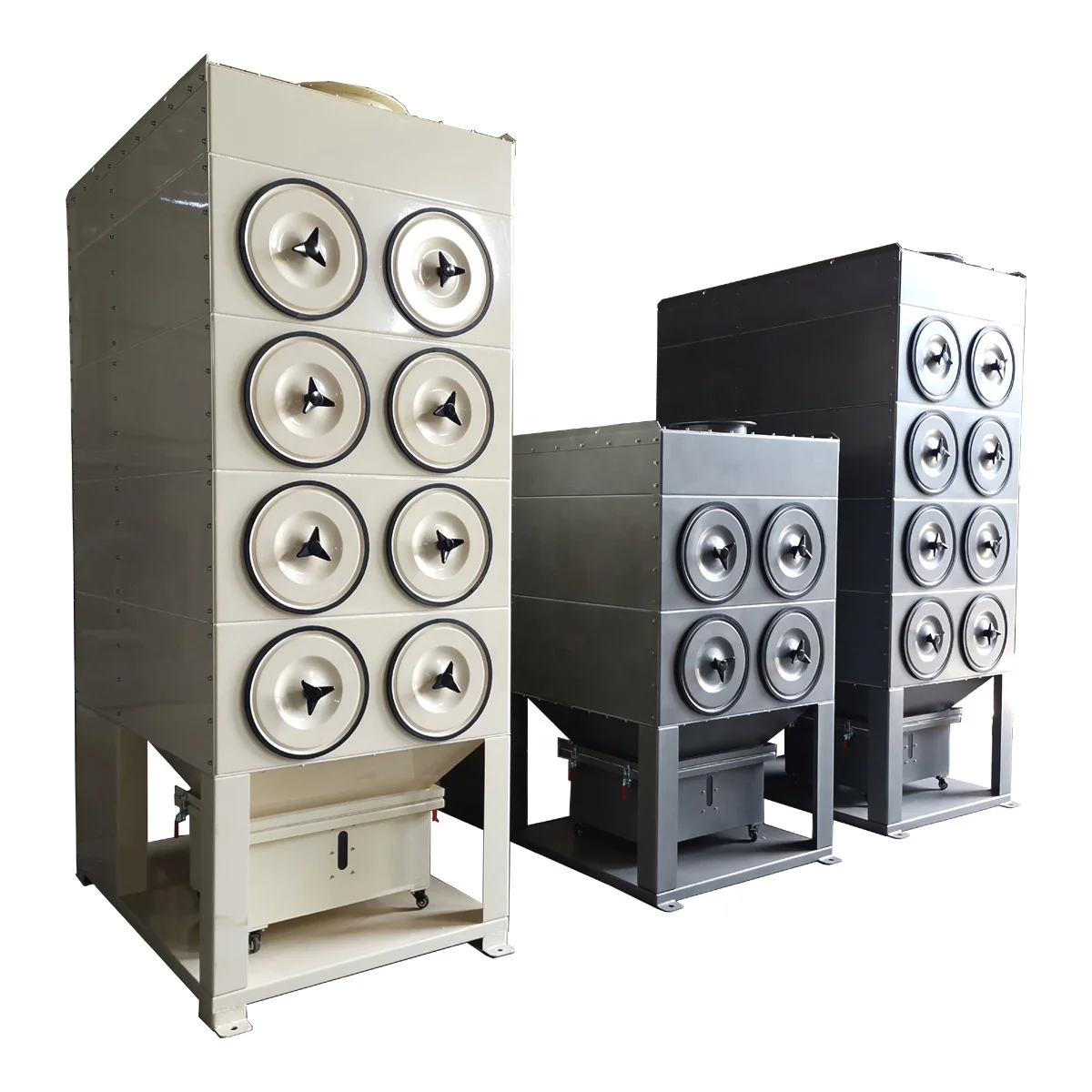

Glorair Workshop Abrasive Blast Dust Collector, High Performance Cartridge Dust Extractor Equipment

Product Overview

Description

Glorair Workshop Abrasive Blast Dust Collector, High Performance Cartridge Dust Extractor Equipment







Small cartridge dust collectors are designed for small volume dust and fume extractions. Compared to large cartridge collectors, small cartridge collector features small size and easy installation. Most of the components have already been installed before delivery. What you have to do is to raise them up and connect the units with ducts and wires. This saves your purchase cost and installation time significantly. Where there is no compressed air available, these units can be delivered with built-in air compressors.







• Modular design and bolt assembling make prompt manufacturing and delivery.

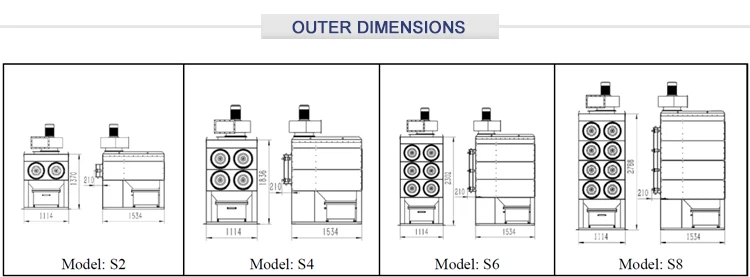

• Compact structure to save floor space; Standard space requirement: 1200mm * 1800mm.


• Full automatic pulse jet clean system, top mounted fans, control cabinet are standard equipped with the dust collector.


• Special design deflector plates greatly reduce the dusts falling from top cartridges to down cartridges.


• Minimum installation required on site. All the components have been installed before delivery. The unit can run immediately after wired and ducted.


• Optional fan acoustic chamber available to control the noise below 74dB.


• Optional built-in air compressor is available so that no external compressed air is required.


• Choose various types of filter media for various types of dust collections.


• Specially venturi and supersonic injection nozzles achieve the premium pulse cleaning on filters.


• The cartridge filters can be replaced from outside of dust collector. Easy and clean.











Model	Cartridges	Filter Area 1*	Filter Area 2*	Airflow	Fan
S2	2 pcs	30 m2	64 m2	1800~2400cmh	3~4.0Kw
S4	4 pcs	60 m2	128 m2	3600~4800cmh	5.5~7.5Kw
S6	6 pcs	90 m2	192 m2	5400~7200cmh	11Kw
S8	8 pcs	120 m2	256 m2	7200~9600cmh	11~15Kw

* 1) Spun bond polyester filter 2) Cellulose filter.









Find more Info on our website: www.glorair.com

















Question: How to choose a dust collector?

Answer: Pls contact us and tell us your filtration dust type, working temperature and airflow. We will select the suitable model for your application.

Question: What is the delivery time for dust collector?

Answer: It depends on QTY and type of dust collector. The typical delivery time for a cartridge dust collector is 3 weeks and 4 weeks for a bag dust collector.

Question: How to install your dust collector?

Answer: Most of the components have been installed and tested before delivery. The site installation is very simple. We will also supply installation and operation manual for your dust collectors.
