Jacketed glass reactor Fully Customizable 10L 20L 50L 100LChemical Extraction nutsche Machine vacuum filter glass reactor

 Product introduction

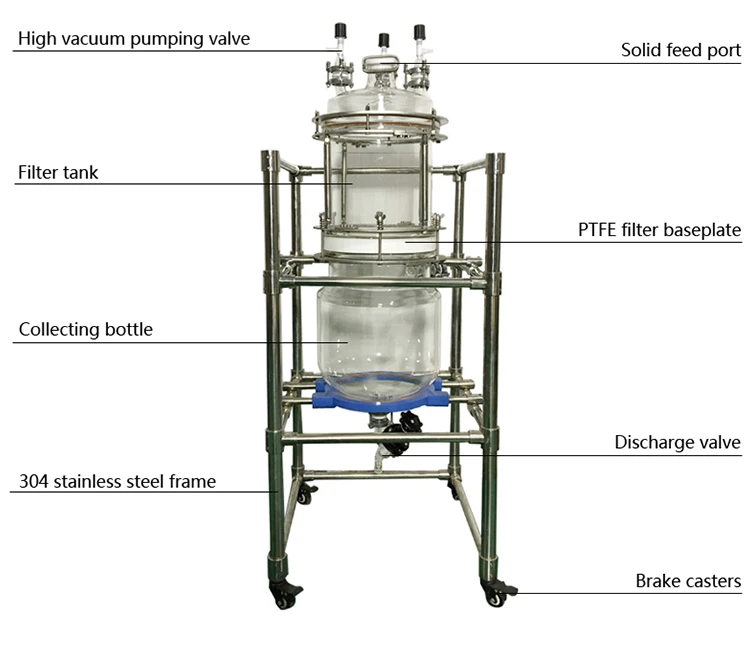

  Vacuum filtration reactor can be used for filtration, filtration process, replaceable filter reactor more than the conventional one, the kettle can choose single layer or jacket, the vacuum filter is used to filter, borosilicate glass kettle, high transparency, can be observed easily, can also be equipped with mixing system. Using the PT100 temperature probe, the error will be small and the temperature measurement accuracy will be high. After the experiment is completed, the material needs to be filtered out for easy operation.

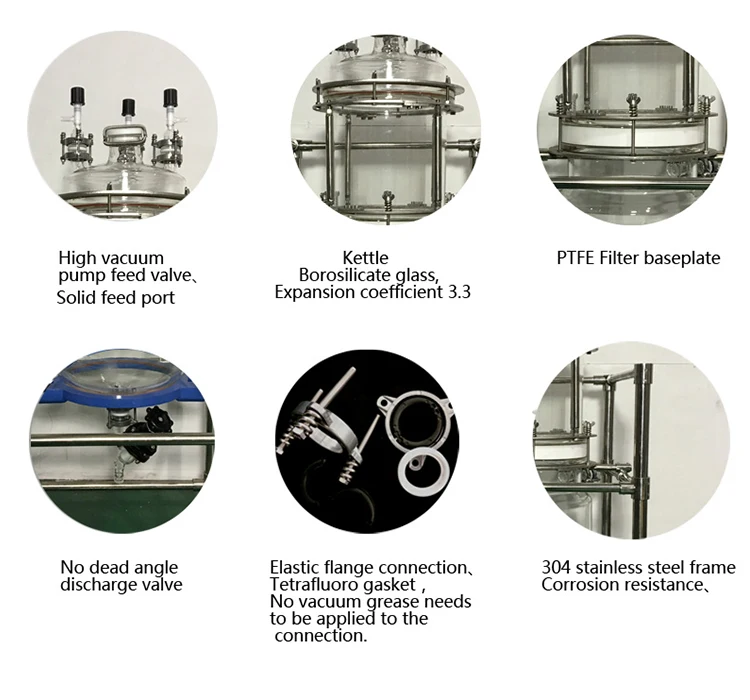

  The glass three - pass valve can be used for discharge and gas protection at the same time. Polytetrafluoroethylene is used in the filter part and the modified Teflon filter plate in the chassis with conventional filtration aperture of 40-60 microns, which can be matched with other filter holes.

  All glass products in the glass reactor are made of high borosilicate glass and expanded coefficient 3.3. Its smooth and uniform surface ensures no material bond, easy to clean, better perspective and easy to observe the process; it is made of SiO2, B2O3, NaO, Al2O3; it has anti chemical corrosion resistance, high temperature resistance to a variety of acid, salt solution, organic intermediates, disable hydrofluoric acid, high concentration phosphoric acid, and alkaline solution. The temperature should not be higher than 50 degrees centigrade; the temperature range of the glass parts is from -80℃to +200℃; the heat resistance is less than 120 ℃, and the operating pressure of the glass parts (the pressure range is different for different temperatures and DN diameters), from -0.1Mpa to 0.4Mpa.

  The filter reactor is suitable for the chemical reaction and physical process under the synthesis, catalysis or other solid liquid of the laboratory / factory, so that one or more steps can be carried out in the same kettle (such as filtration after the completion of the reaction), thus reducing the drift of material measurement and reducing the transfer times of the reaction substrate. It is used in such fields as pharmaceuticals, peptide synthesis, tobacco research and so on.

Detail advantage

         Qiyu Industrial (Shanghai) Co., Ltd. is located in the Jiading District Industrial Park of Shanghai city. We have considerable experience in R&D, and have obtained the national patent. We mainly produce glass reactor, rotary evaporator, short-path molecular distillation, temperature control system, vacuum equipment and other types of equipment.
      The company has strong technical force, complete production equipment, continuous absorption of advanced technology at home and abroad, and active development of new products.
      We will continue to pursue the dedication of "honesty and innovation", and provide customers with perfect pre-sale, sale and after-sales service. Internationalization and standardization will transform innovation into productivity and let customers to use synchronized international products.

1,Are you a manufactury or a trading company?

-We are a manufactury of a rotary, glass reactor and heating and cooling equipment and now we begin to import and export by ourselves.

2,How long is your date of delivery?

 --If the goods are in stock,it is within 7 days. However, it will be 15 days. Also it is depending on the quantity.

3,Do you accept OED/ODM?

 --Yes, of course.

4,How to solve the equipment trouble during the using?

 --Please send us email of the problem, pictures or a small video, we will find the problem and help you to solve it.

5,What is your MOQ?

 --One set.

6,Do you provide samples? Is it free?

 --Yes, but considering the high value of our products, so the sample is not free.
