high speed four shafts bopp tape slitting machine factory

Product Overview

Description

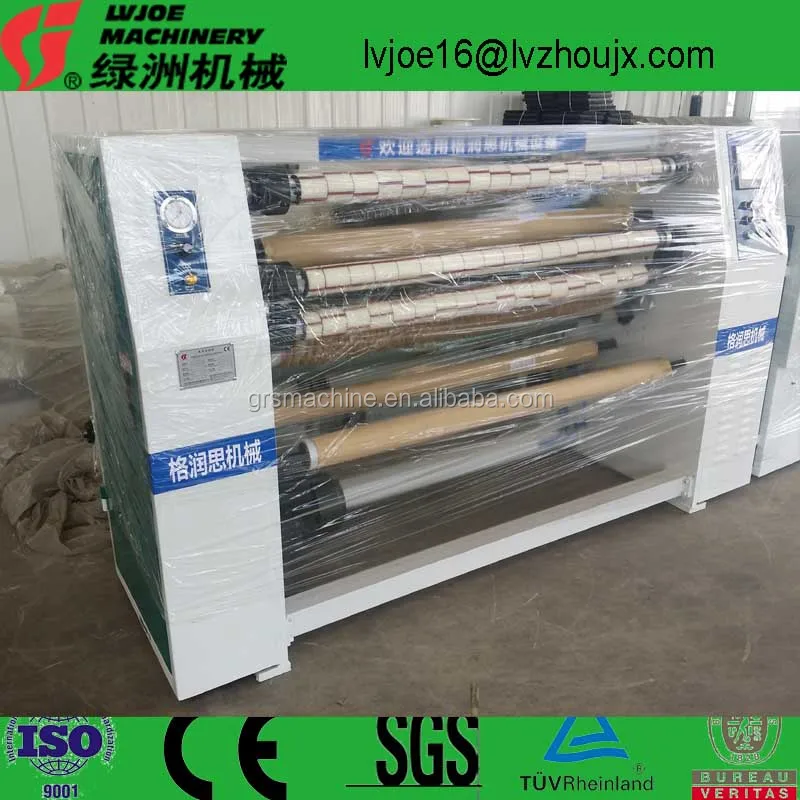

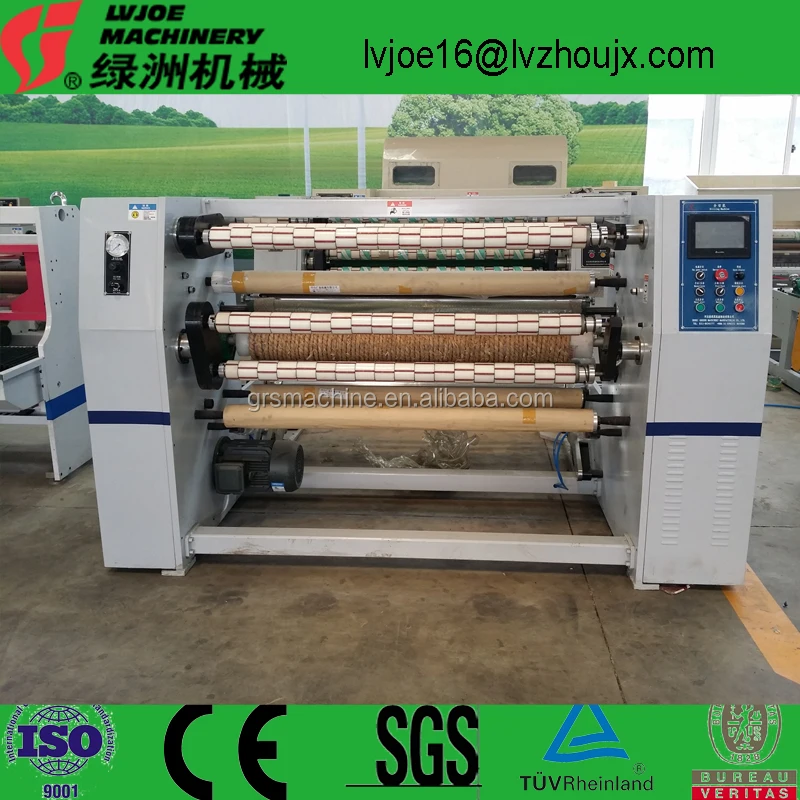

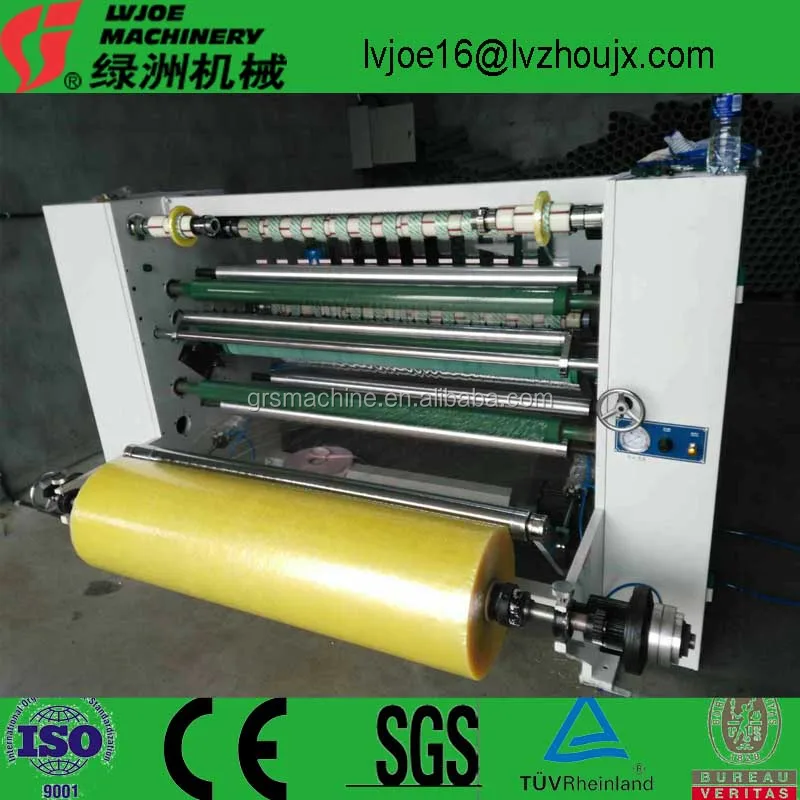

high speed four shafts bopp tape slitting machine factory



Usage:

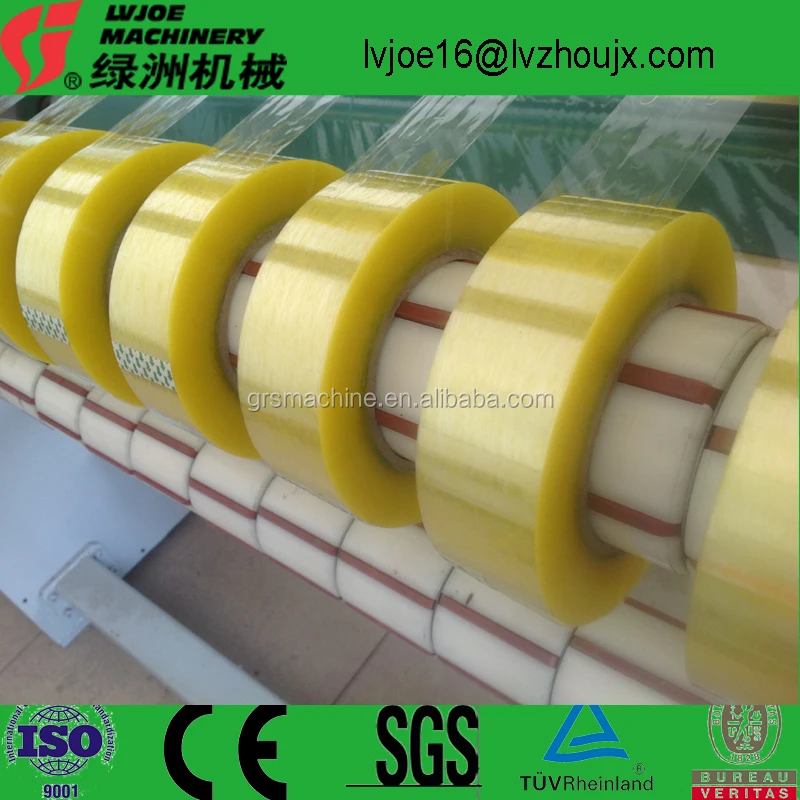

Used for slitting BOPP, adhesive tape, as well as other incoherent products.





Features:

   Using four shafts for rewinding without stopping the machine. Equipped with 3 sections length counter, can automatically slow down and stop the machine from high speed. Penumactic control for unwinding tension , double controlled rewinding tension .Adjustable tension. Equipped with arc stretching roller that can stretch material effectively.





Reference:

Efficient width (mm)	1300
max unwinding diameter (mm)	600
max rewinding diameter (mm)	4shafts 76.2-150  2shafts 76.2-300
mini cutting width (mm)	12
cutting inside diameter of paper tube (mm)	76
speed of machine (M/min)	0-180
size (L,W,H)mm	1960×1500×1340
machine motor(HP)	5





Main features:

1). Individual automatic rewinding section

2). Rewinding shaft automatic positioning

3). Coil winding edge collection

4). Large diameter drive shaft roller

5). Synchronize belt drive optional

6). Individual unwind section

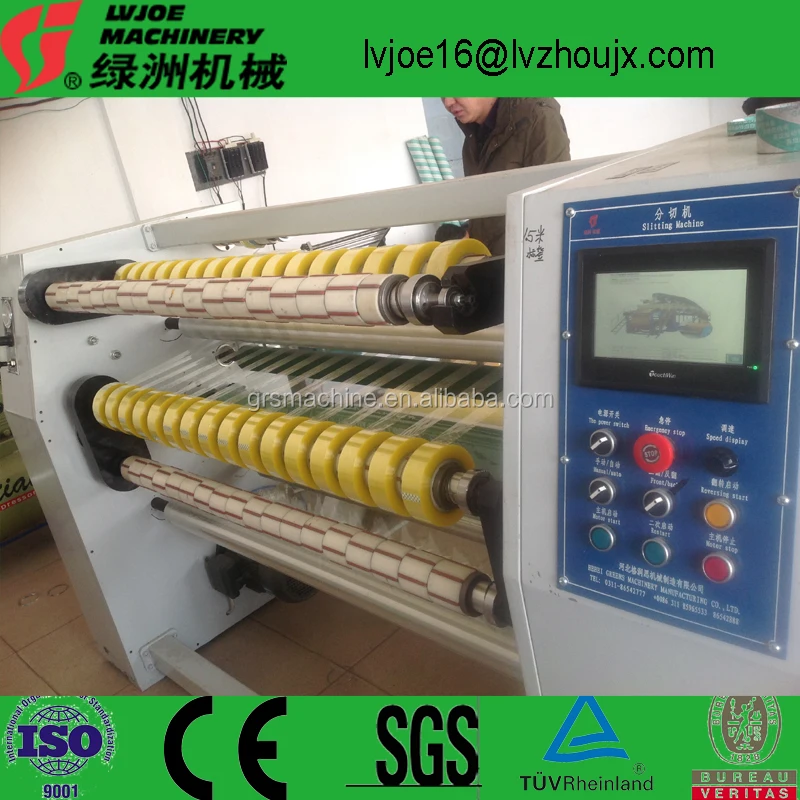

7). PLC+touch screen

8). Rewinding with pressing roller device optional

9). Automatic labeling function optional

10). Automatic loading material optional

11). Automatic cutting function optional

12). Thicken machine body structure

13). Automatic stopped at designed legth

14). Automatic exchange roller at designed length

15). High strength chain link drive

16). Rewinding axis adopts high strength aviation aluminum alloy material

17). Knurl roller by teflon anti-sticking processing











Auxiliary equipments:

1. paper core loading machine

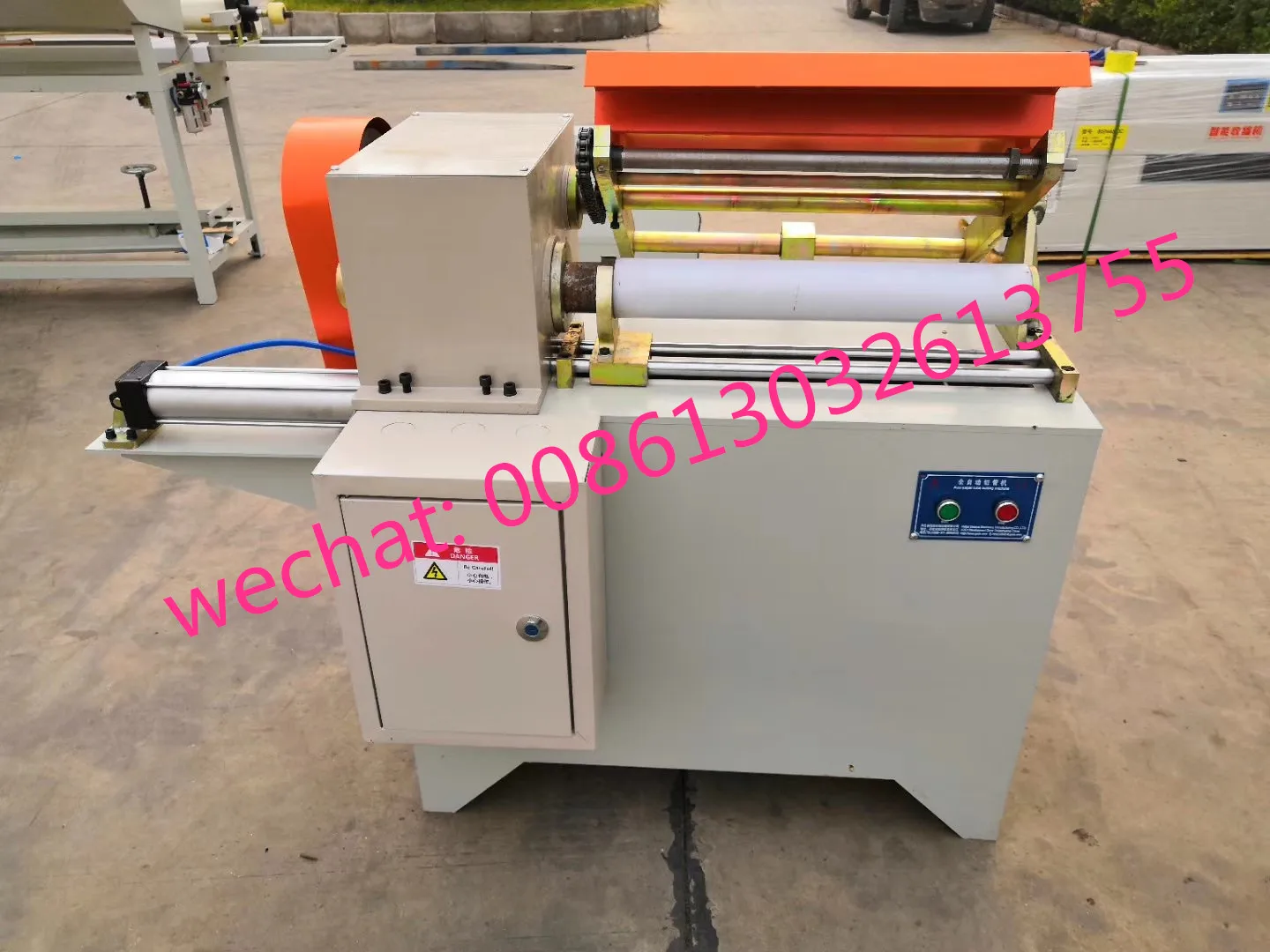

2. paper core cutting machine

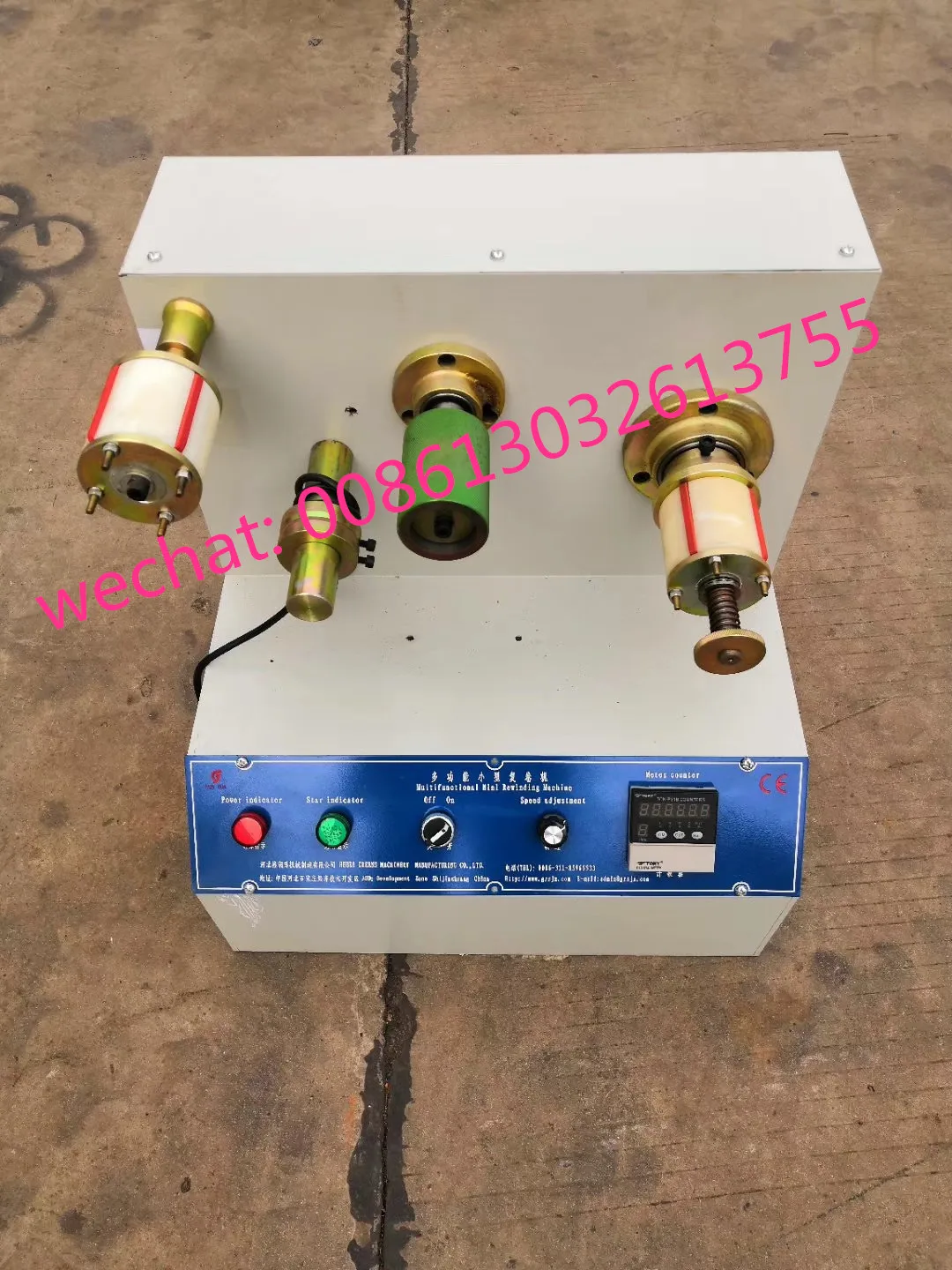

3. mini rewinding machine

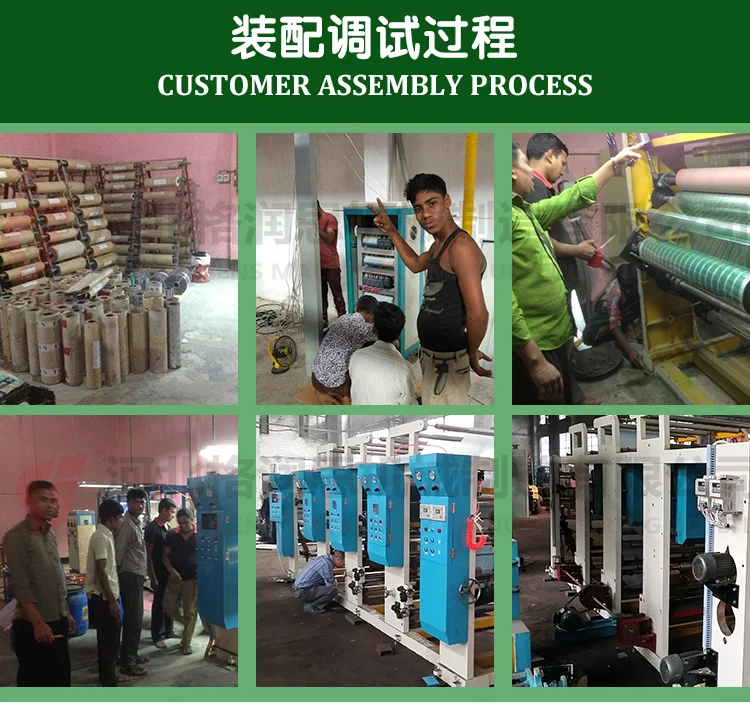

Our customers:

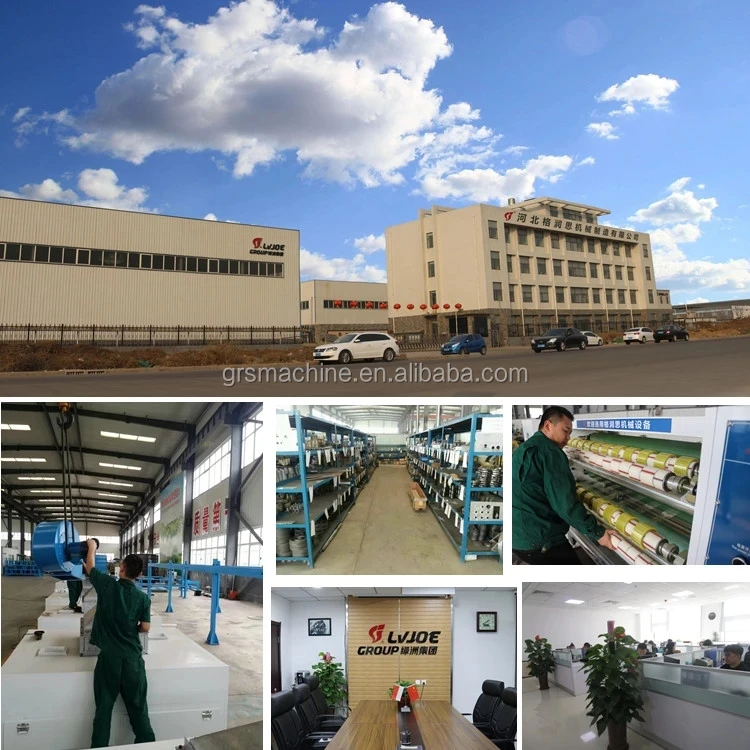

Our factory:

Hebei Greens Machinery Manufacturing Co.,Ltd(Hebei Lvjoe Machinery Group Co.,Ltd) was established in 1998, it’s a diversified development enterprises with researching,designing,manufacturing,project equipment integration. We are a strong company nationally of comprehensive strength in the adhesive tape machinery manufacturing. GREENS had won a lot of national awards, such as high-tech enterprise certificate, many self-patent certificates, the European Union issued CE quality system certification, and ISO9001 quality system certification. We are praised as a municipal civilization group inHebeiProvince; the contract and promise keeping group.



Our company got equipment manufacturing base, adhesive tape making base and machinery importing and exporting company. Our machineries are sold far to Asia, Europe,Africaand other place internationally. We got more than 300 workers, from which, 6 are professor level senior engineers, 40 are intermediate and senior technicians. We mainly undertake varies of adhesive tape making machines, slitting machines, and other whole set of production lines. Depending on our own strength and design, research experience, we can put the new technology from abroad and domestic into use promptly. We got advantages of integrated design, manufacturing and operation till output style to undertake the projects of great difficulty in technology. That’s also why we can ensure the project design quality, raw material saving, cost reducing and to improve the entirety profit of the engineering project.



Our company survives by quality and credit, develops by realistic attitude and innovation. We established a whole set of strict working system and quality management system.We won the praise and recognition from the customers through all the employees’ highly professional dedication and good service attitude under the intense competitive environment. Our company would like to provide good quality products and service to the customers from domestic and abroad by our good reputation and superb technology.



Since it is a good project – we aim to be more professional and achieve win-win!

Welcome to visit our factory for more details!
