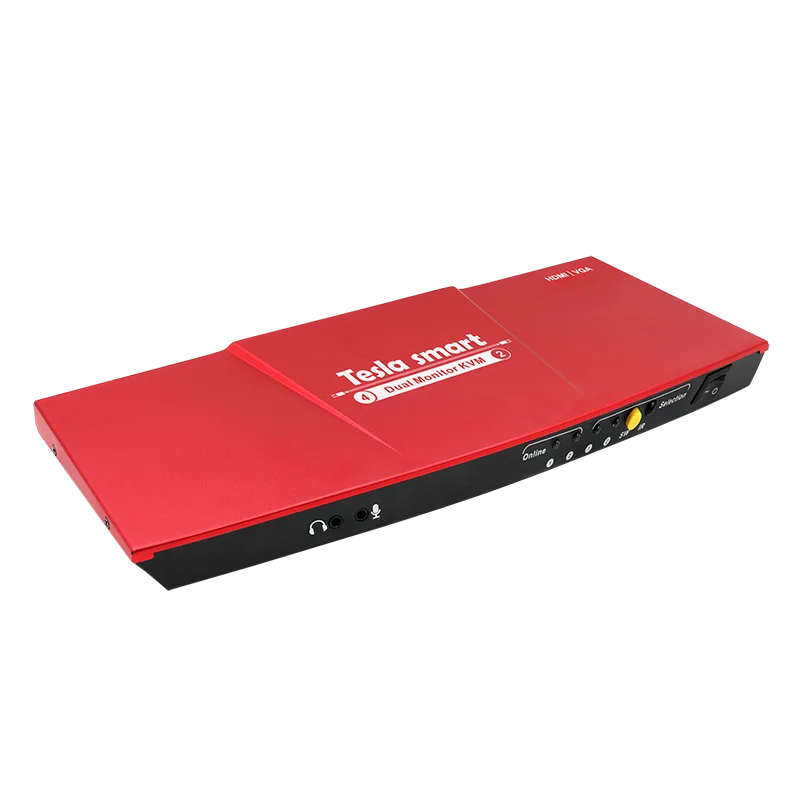

USB 2.0 hub port front panel buttons, EDID emulators in each input port 4x2 Dual Monitor KVM
Product Description
USB 2.0 hub port front panel buttons, EDID emulators in each input port 4x2 Dual Monitor KVM
This 4x2 Dual Monitor KVM provides you with great flexibility in integrating cross-platform computer equipment easily. You can simultaneously output the HDMI and VGA of one PC to two HDMI monitors, or you can select HDMI signal of two PCs to output to both displays at the same time. You can control the Dual Monitor KVM with front-panel buttons, IR remote control and keyboard hotkeys.
The 4x2 Dual Monitor KVM support only a set of keyboard & mouse and 2 monitors to control 2 PCs. Supports switching between keyboard and mouse and external devices and audio channels using hotkey commands without switching screen order. Supports USB 2.0, you can even attach USB 2.0 hub , USB drive, printer, barcode scanner or other USB devices to the Dual Monitor KVM. With EDID emulators in each input port , keep PCs always having correct display information, prevent display settings changed while switching input ports.
Feature
lUsing only 1 set of keyboard, mouse and 2 monitors to control 2 computers lSupport Unix /Windows /Debian /Ubuntu /Fedora /Mac OS X /Raspbian /Ubuntu for Raspberry Pi and other Linux based systems lSupport hot plugging, connect or disconnect devices to the KVM switch at any time without turning off devices lSupport front panel buttons, IR signals, keyboard hot keys to control Dual Monitor KVM lAvailable to use keyboard and mouse without any delay after switching computers lSupport resolution up to 3840*2160@30Hz lWith extra standard USB 2.0 hub port, it is possible to connect bar code scanner, USB hard drive or other USB devices to KVM lWith EDID emulators in each input port, keep PCs always having correct display information lSupport the use of DVI sources and DVI displays with DVI-to-HDMI cables
Specification
HKV0402A10
4x2 Dual Monitor KVM
Functionality:
Auto Scan
No
Port selection
Front panel buttons
Yes
Keyboard hotkeys
Yes
IR remote control
Yes
Technical:
Max. Resolution
3840x2160@30Hz
Auto to get EDID
Yes
Data rate
10.2 Gbps
OSD
No
Supported OS
Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based systems
Console ports
Keyboard emulation
1 * USB Type A
Mouse emulation
1 * USB Type A
USB 2.0 Hub ports
1 * USB Type A
Video /Audio
1 * HDMI Type A
System ports
USB Data
2 * USB Type B
L/R audio output
1*AUX
Microphone input
1*AUX
Video / Audio
2 * HDMI Type A,2*VGA Type A
ESD protection
Human body model - ±8kV (Air-gap discharge)
Mechanical:
Chasing material
Aluminum Alloy
Product Dimensions
300 (L) x 117.4 (W) x 30.3 (H) mm
Item Weight
600g

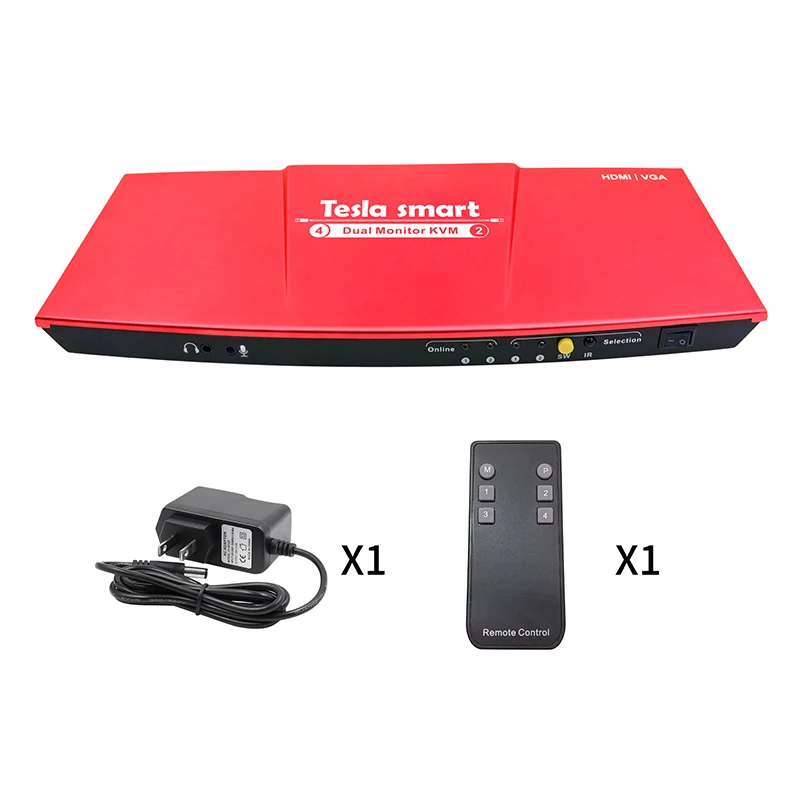

Packaging & Shipping
1 * 4x2 Dual KVM Monitor
1 * DC 5V Power Adapter
1 * IR Remote Control
1 * Quick-Start Guide
