256X128 graphic lcd JHD256128-G03BSWD-G
US $5.72-$6.43
Горячая Распродажа желтый зеленый синий 240128 240128a 240x128 t6963 графический ЖК дисплей morochrome
- Category: Graphic Display >>>
- Supplier: Changsha Sunman Electronics Co. Ltd.
Share on (62182521918):
Product Overview
Description

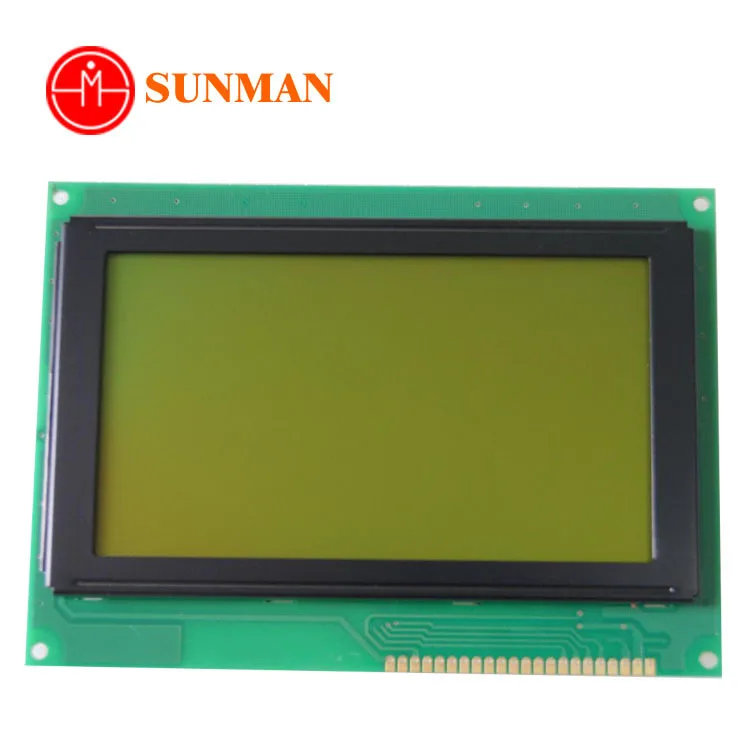

Hot selling morochrome yellow green blue 240128 240128a 240x128 t6963 graphic lcd
Product Description
Product Description
Applicaion | Industrial display |
| Display mode | Yellow green(blue for SMG12864A6) |
| Interface | Parallel |
| Controller | T6963 equal |
| OEM/ODM | Accecpted |
| System design | Lcd module related system software and hardware design accepted |
Warranty | 12 moths free, payed warranty lifttime |
Packaging | One module in a bag, bags in small carton foam protecting, small carton in big carton |
| carton size | 41.5x36x50cm |
| Sample lead time | 3-7 working days |
| Customize lead time | 15-30 working days |
| Production Lead time | 7 days for available designs,Customized: 35~40 days |
| Cetification | ISO,SGS |
Mechanical Demesion
Pin Assignment
| Pin NO. | Pin Name | Pin Description |
| 1 | FG | Frame ground |
| 2 | VSS | Negative power supply |
| 3 | VDD | Positive power supply |
| 4 | V0 | Lcd driving voltage input |
| 5 | WR | Write signal |
| 6 | RD | Read signal |
| 7-14 | CE | Chip enable |
| 15 | C/D | Command/data register selection |
| 16 | NC | Nil |
| 17 | /RST | Reset signal |
| 18 | D0-D7 | Data bus |
| 19 | FS | Display front dot matrix array selection |
| 20 | VEE | Lcd driving voltage supply |
| 21 | BLA | Backlight positive power supply |
| 22 | BLK | Backlight negative power supply |

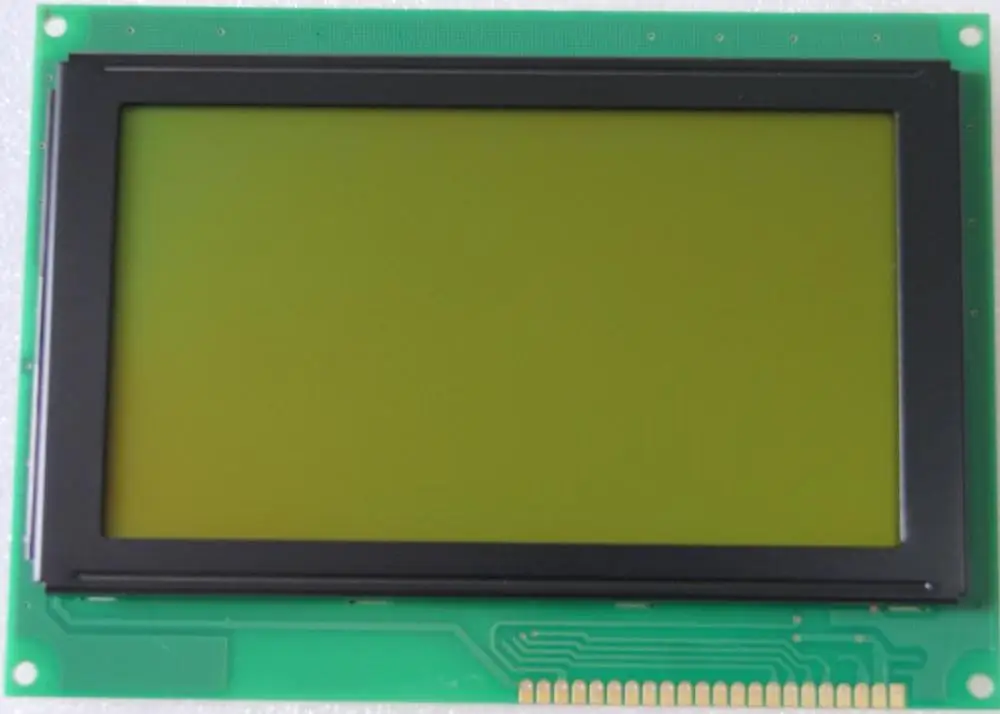

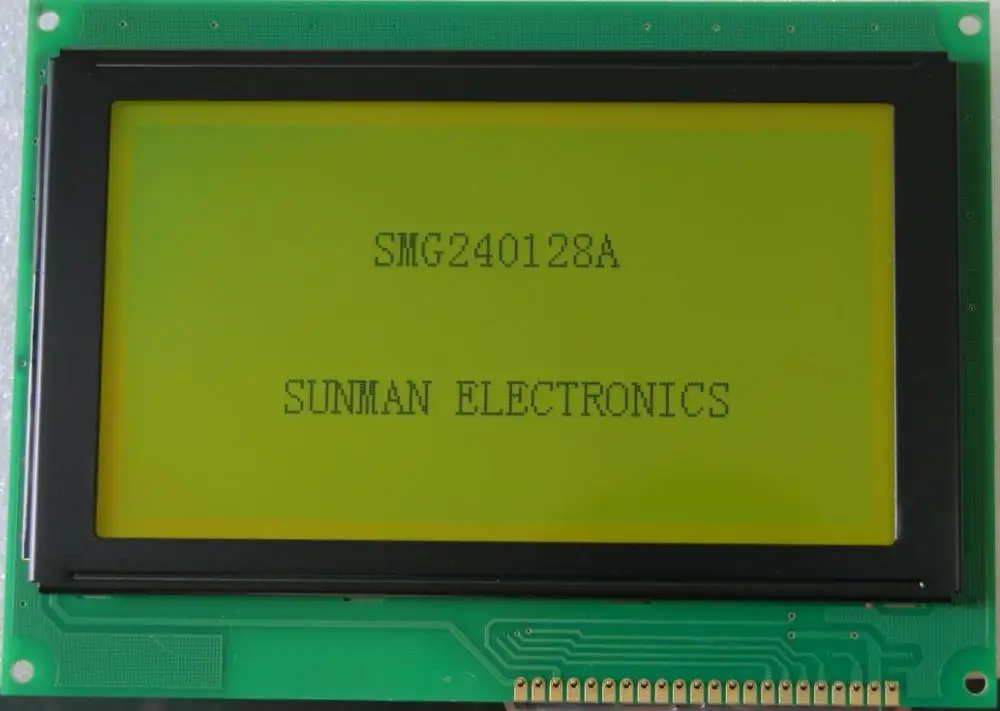

Product show

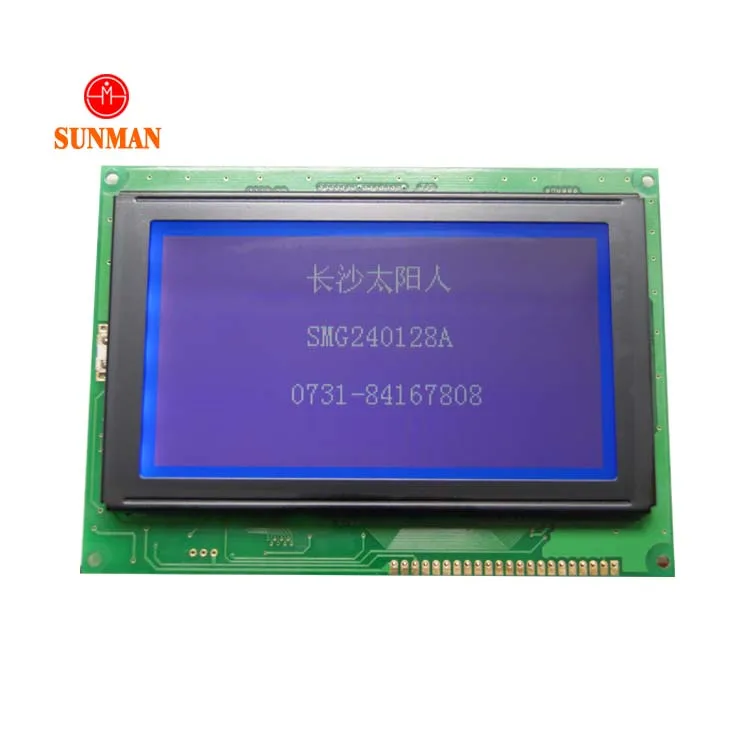

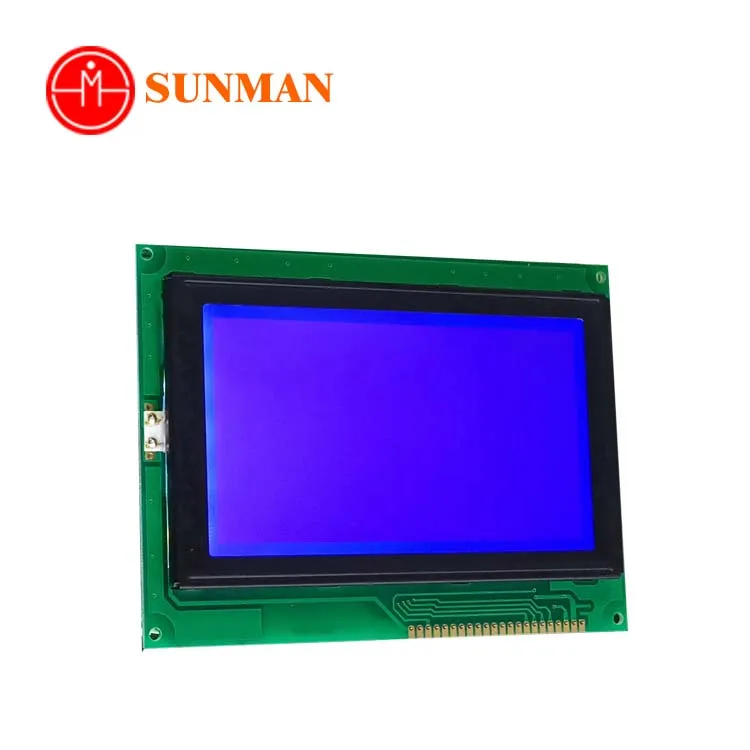

Blue 240128 display screen ,please refer to SMG240128A6!
Product Application
Our advantage
INSPECTION PROCESS
CUSTOMIZATION
CUSTOMIZATION
NOTE: All customized products are proteced,and not been sold to others without permission !!!
| Standard Set | |
| Display | segement,graphic,character monochrome lcd module&TFT accectpted |
| Display mode | TN,STN,FSTN,HTN,transflective,reflective,transmissive,yellow green,blue,gray optional |
| Display type | COB,COG,TAB |
| Lcd thikness(cm) | 0.11,0.14 |
| backlight thickness(cm) | 2.8,3.0,3.3 |
| Interface | Parallel(8bit,4bit,16 bit,80mode,68mode),serial(i2c,spi,uart,usb) |
| Controller | Optional |
| IC | Die or packaged optional |
| Hardware or software | All accepted |
| Information given | All idear,sample,photo,drawing,use manual and so on are OK |
Packaging&Shipping
| Packaging | Plastic bag +foam+cartom |
| Carton Size | 41.5cm*36.0cm*50cm or customized,100-300PCS/ carton |
| Gross weight | 15.0 -20KGS |
| MOQ | 1 PCS for morochrome yellow green blue 240128 240128a 240x128 t6963 graphic lcd |
| Specitional packaging | negotiated |
Factory Show
FACTORY SHOW
CERTIFICATION
CERTIFICATION
FAQ
- QWhat is the MOQ ?
- A NO MOQ
- QCan I get samples?
- A Yes,just give us sample orders,and free samples for custom
- QHow to customize an lcd module?
- A Give us messages to design lcd modules and comfirm the drawings
- QCan mould cost been returened ?
- AYes, if quantity satisfied.
- QCan I get a lower price if I order large quantities?
- AYes, cheaper prices with more bigger size orders.
- QWhen you ship my order?
- ANormally 30-45days after receiving your payment, but it can be negotiated based on order qty and production schedule.
- QHow about the quality guarantee period?
- AOne year!
- QHow can you guarantee the production quality ?
- AOur production quality follow ISO9000 standard system, stable design team,22 years experience of QC team and strictly quality control system guarantee the production quality. accept third part inspection,we have mechanical checking,display checking,high&low temperature storage&operating test during high humidity condition,EMC test(optional) for every design .
