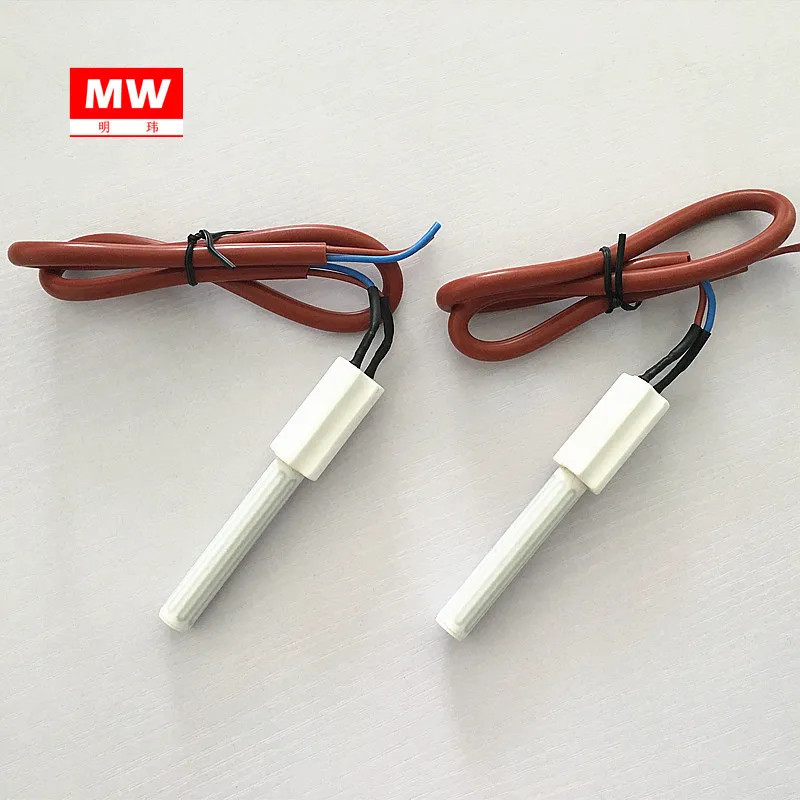

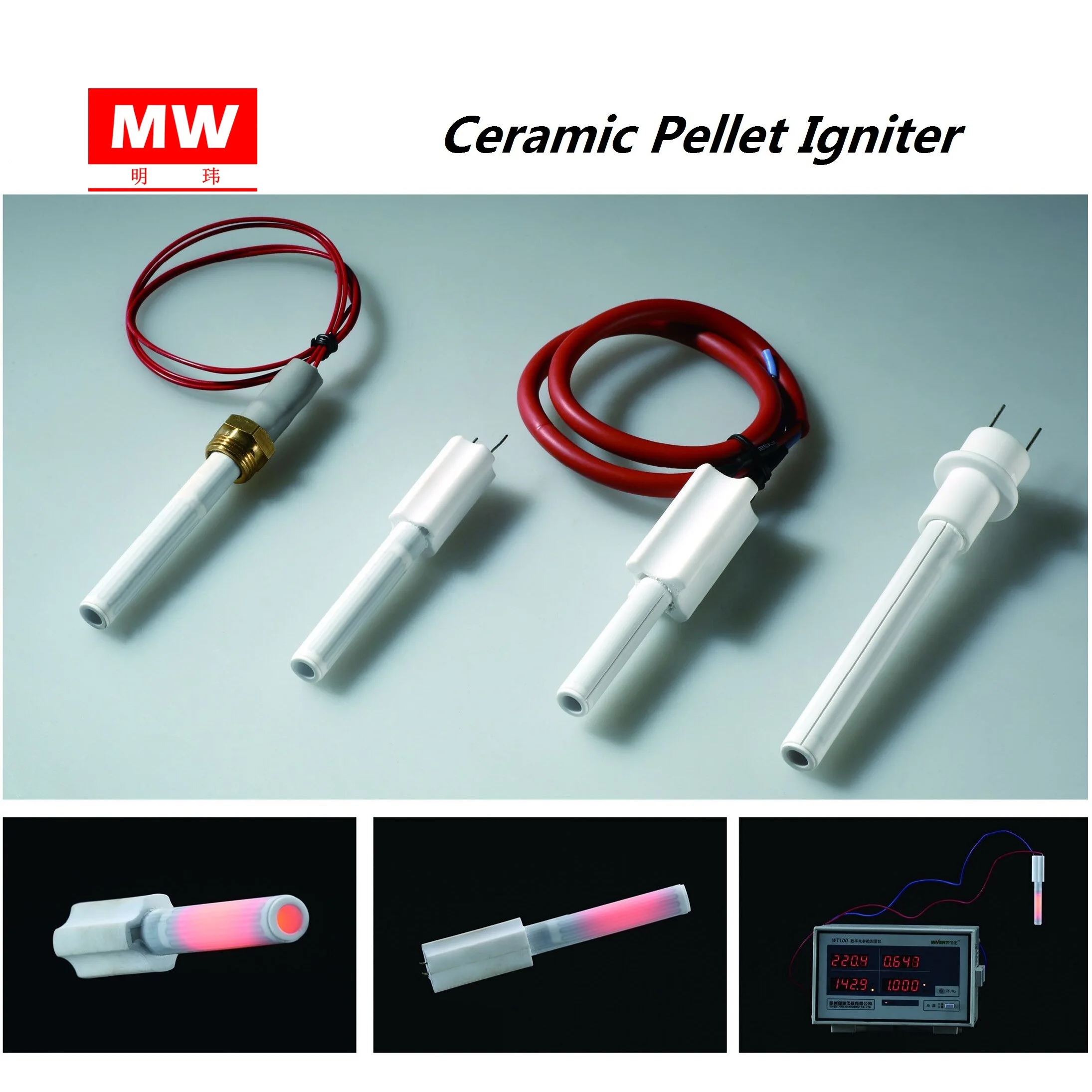

230V Spark ceramic electric igniter for gas
- Category: >>>
- Supplier: Zhuhai MW Technology Co. Ltd.
Share on (62182584344):
Product Overview
Description
Product Description
230V Spark ceramic electric igniter for gas | 5,000 Hours 20,000 Hours 50,000 Hours (Based on use condition) | Voltage | DC 3.7V / 5V DC 12V / 24VAC 110V / 220V AC 230V / 240V / 360V | |||
Model No. | G093105065 | Material | Alumina ceramic | |||
Shape | Tube | Warranty | 1 Year | |||
Size | L93*OD10.5*ID6.5mm | Holder size | L35*D17.5mm | |||
Energy power | Electric | Function | Heating/ warming | |||
Voltage | 100V/110V/120V/220V | Resistance | 85~125 Ohm | |||
Certification | ISO9001, RoHS | Customization | Support | |||
Introduction
230V Spark ceramic electric igniter for gas is produced by implementing unique ceramic lamination processes. MCH prints resistors on alumina sheet, and it's laminated and sintered for one piece.Our ceramic heaters can operate in atmospheric and vacuum environment. MCH technology offers significant advantages over metal basic sheath heaters,while the latter has limitations in thermal performance and material compatibility.Compared with PTC, MCH is more energy saving, safer and higher efficient. Currently, MCH is widely used as innovative heater in machinery, medical, semiconductor, electronic & electrical industries,etc.
Characters
1) High watt density, good thermal efficiency;
2) Laying of multiple heating elements per unit is available;
3) Superior Thermal Properties, rapid heat increase and efficient heat exchange;
4) High levels of insulation allow direct contact with water, kerosene and metal;
5) Superior dielectric strength and electrical insulation;
6) Longer life due to oxidation-proof design on resistivity material;
7) High Reliability: Superior chemical resistance, high-temperature durability and excellent mechanical properties;
8) Custom designed temperature distribution available.
2) Laying of multiple heating elements per unit is available;
3) Superior Thermal Properties, rapid heat increase and efficient heat exchange;
4) High levels of insulation allow direct contact with water, kerosene and metal;
5) Superior dielectric strength and electrical insulation;
6) Longer life due to oxidation-proof design on resistivity material;
7) High Reliability: Superior chemical resistance, high-temperature durability and excellent mechanical properties;
8) Custom designed temperature distribution available.

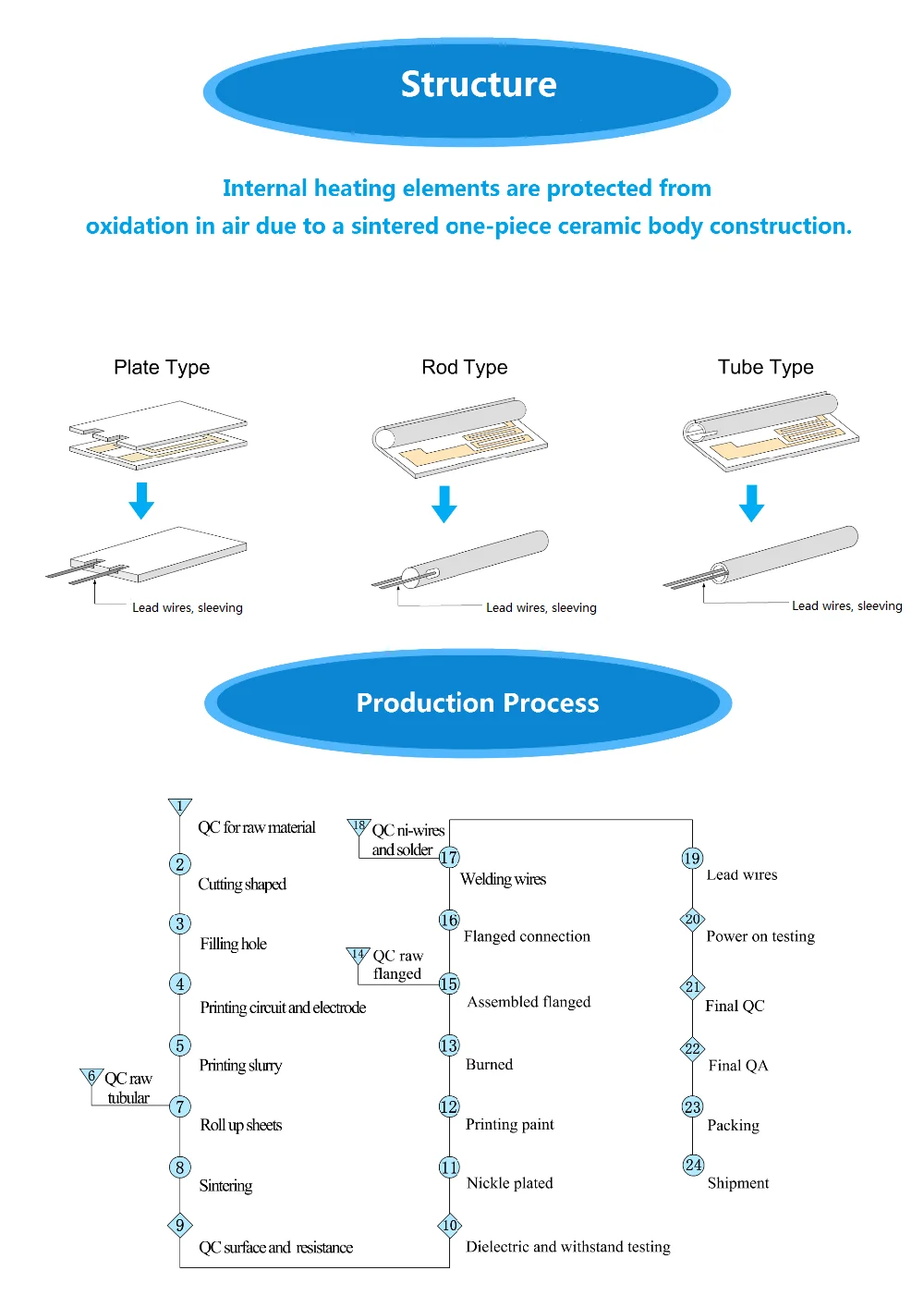

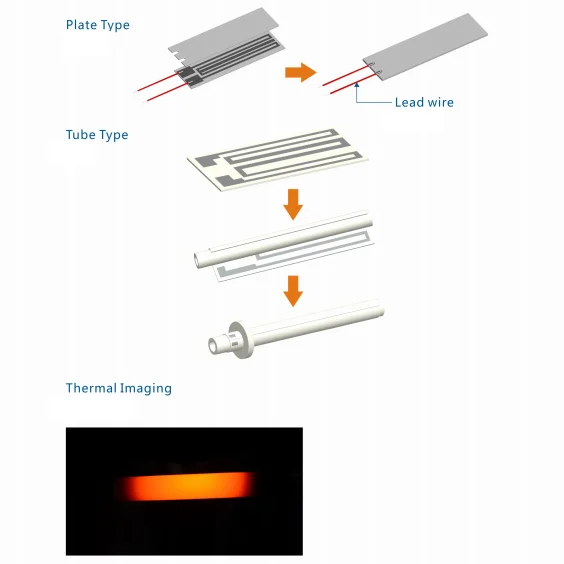

Production Tech
230V Spark ceramic electric igniter for gas
Being built into the base ceramic of alumina and laminated and sintering into one piece, is protected and insulated from the outside air.
Other Product
AlN heating element (Aluminum nitride heating element)
Porous ceramic heating element
H4.15*L7.8*W4.0mm
L6.3*D2.0mm
H6*OD3.6*ID1.5mm
H4.4*L9.4*W4.4mm
Zirconia ceramic heating element
L19*D2.15mm
L19.1mm*W4.9mm*T0.45mm
Alumina ceramic heating element
D13*T0.8mm
L60*W10*T1.3mm
OD16*ID10*T1.3mm
L46*D5.8mm
H15*OD20*ID18mm
D14*T1.3mm
L40*W40*T2.0mm
L25*D6.0mm
L10*W10*T1.3*D3.8mm
MW-Tech Company

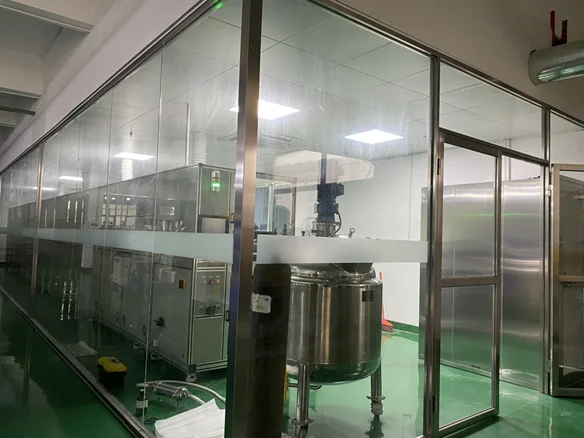

Zhuhai MW Technology Co., Ltd. was founded in 2017. As an innovative developer and manufacturer of MCH ceramic heating elements and printed circuits using IC technology, MW owns its R&D department, clean room, advanced printing equipment, furnace and patent-protected inventions.
MW adheres to technological innovation and has been focusing on the development and manufacturing of electronic ceramics and related ceramic components. The current production of MCH electric ceramic heating elements with plate-shaped, special-shaped, rod-shaped and other shapes are widely used as the important heating components in large and small household appliances such as air conditioners, fan heaters, and hair straighteners, etc.

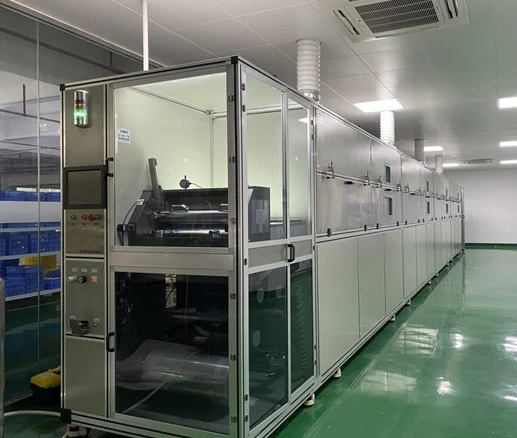

At present, we have 5 kiln production lines and the monthly production capacity is about 500,000pcs. Through the sincere cooperation of our team, the benefits have increased significantly in the past two years, and the product quality has been well received by the majority of customers.
Looking to the future, we’ll continue to adhere to the management philosophy of "people-oriented, innovative development" , the service purpose of "customer first, reputation first" , and the development goal of "achievements of enterprises, talent training, service society" . We’ll take the market as the guide, take the science and technology development as the theme, take the excellence to be the first as the opportunity, and commit to the development and introduction of domestic advanced manufacturing technology to serve the domestic and foreign markets, to ensure the product quality, technical level, service level in the domestic industry to maintain a leading position.
Packing & Delivery

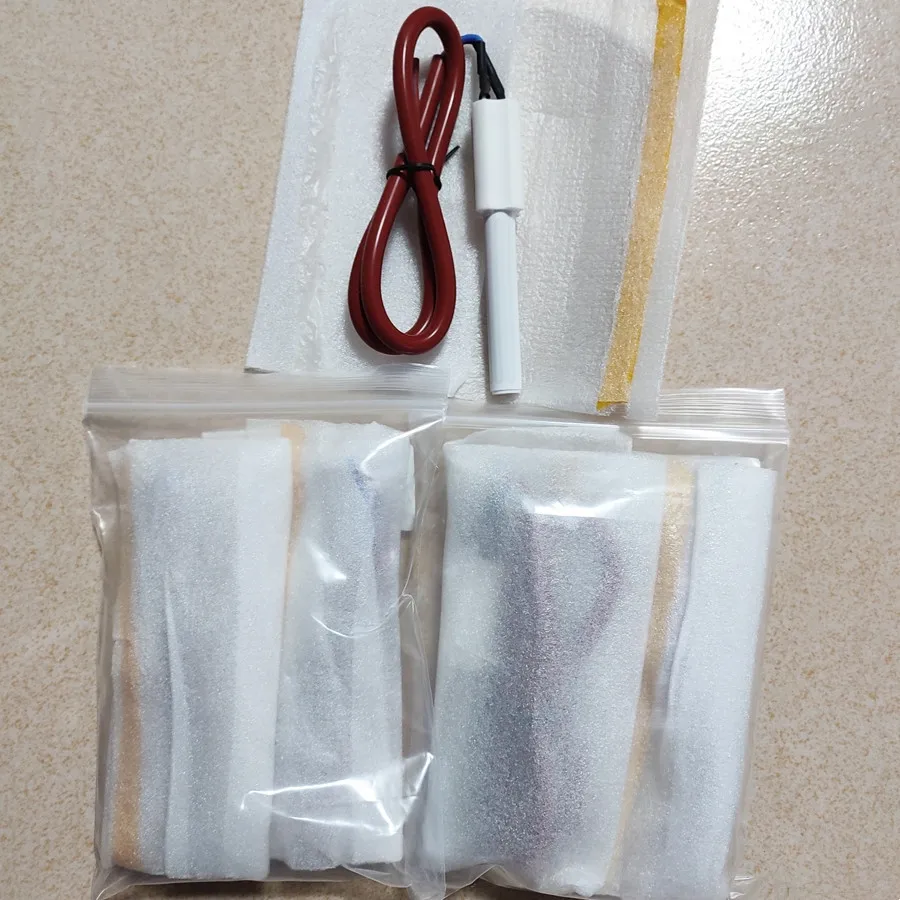

230V Spark ceramic electric igniter for gas will be packed well before shipment to prevent damage.
We usually ship our MCH ceramic heating components by DHL. But we could change the shipment according to your need.
Using Tips
1. Should pay attention to the surface of ceramic heater to avoid stained with oil, dirty such as the waterproof when installation, which to avoid ceramic heater damage because of its poor heat dissipation.
2. The working environment of ceramic heater is prohibited excessive heat and cold, which to prevent cold and hot shock damage.
3. The working voltage of ceramic heater should be controlled within the range of the rated voltage in order to prevent the ceramic heater from load and affect the service life.
4. Ceramic heater when heating in the water or liquid. It should be forbidden to add water after dry suddenly, all the heating pats in the container must be completely submerged in the water, the water level should over the heat element, otherwise it’ll cause heating element fracture and damage.
5. Ceramic heater should be perpendicular to the cavity when installation, otherwise the surface temp will not uniformity and make the bubbles which will make the part heat and make the heater broke
6. When ceramic heater is working, power on after watering to prevent dry heat.
2. The working environment of ceramic heater is prohibited excessive heat and cold, which to prevent cold and hot shock damage.
3. The working voltage of ceramic heater should be controlled within the range of the rated voltage in order to prevent the ceramic heater from load and affect the service life.
4. Ceramic heater when heating in the water or liquid. It should be forbidden to add water after dry suddenly, all the heating pats in the container must be completely submerged in the water, the water level should over the heat element, otherwise it’ll cause heating element fracture and damage.
5. Ceramic heater should be perpendicular to the cavity when installation, otherwise the surface temp will not uniformity and make the bubbles which will make the part heat and make the heater broke
6. When ceramic heater is working, power on after watering to prevent dry heat.
FAQ
1. Can the product be customized？
Yes.Both OEM and ODM are available.
2. Do you support sample order?
Most of current items stock are available. Customized support.
3. What's your after sales?
We will track the product logistics until you get the product. When you receive the goods, please test the product and give us feedback.And we will provide solutions based on your feedback.
Please contact for more details.
Yes.Both OEM and ODM are available.
2. Do you support sample order?
Most of current items stock are available. Customized support.
3. What's your after sales?
We will track the product logistics until you get the product. When you receive the goods, please test the product and give us feedback.And we will provide solutions based on your feedback.
Please contact for more details.
