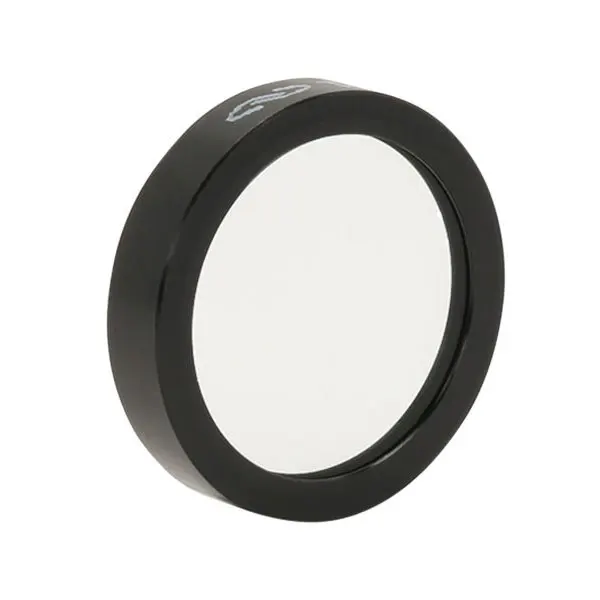

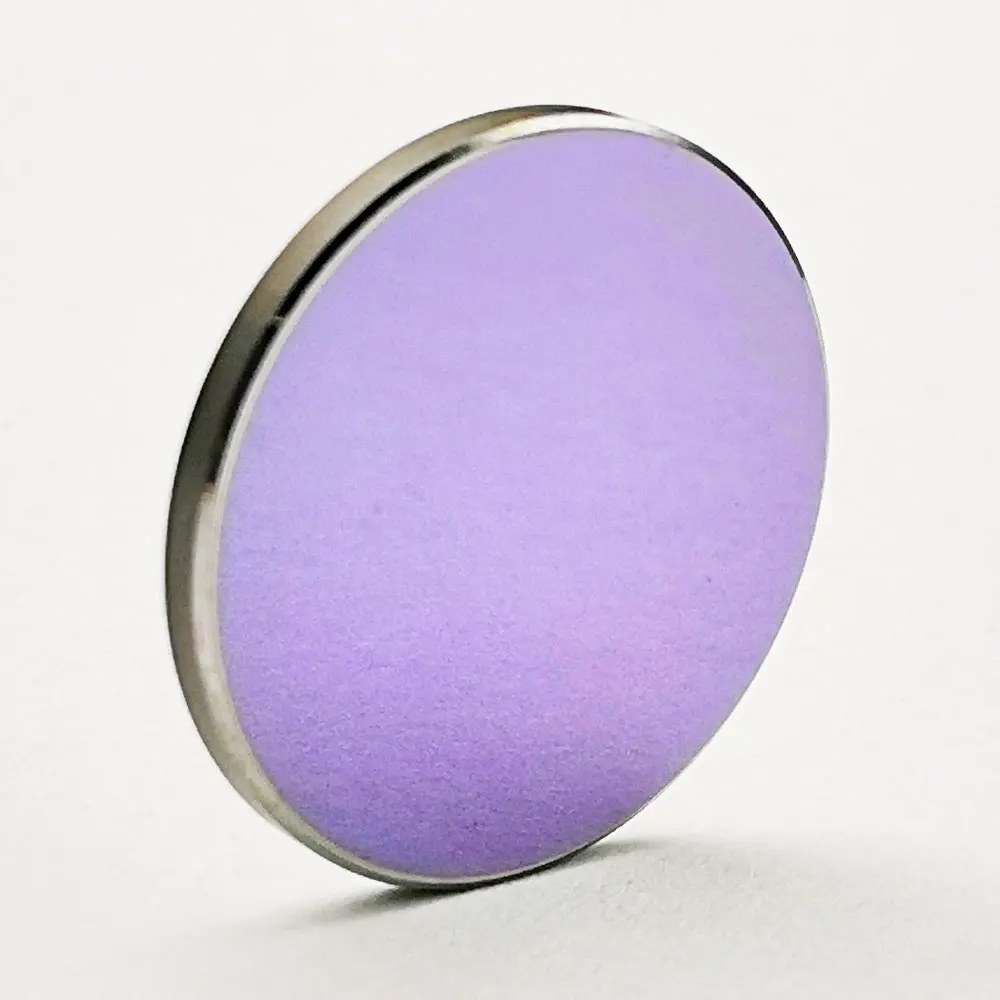

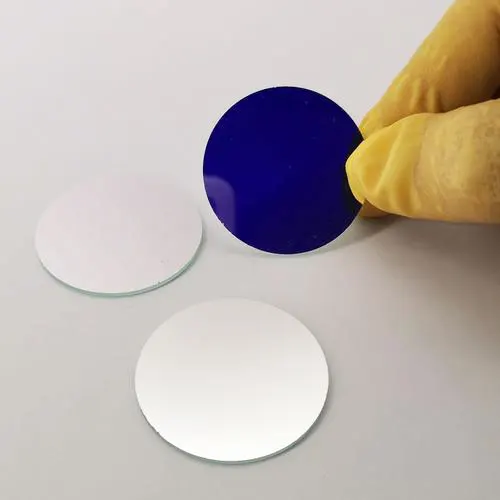

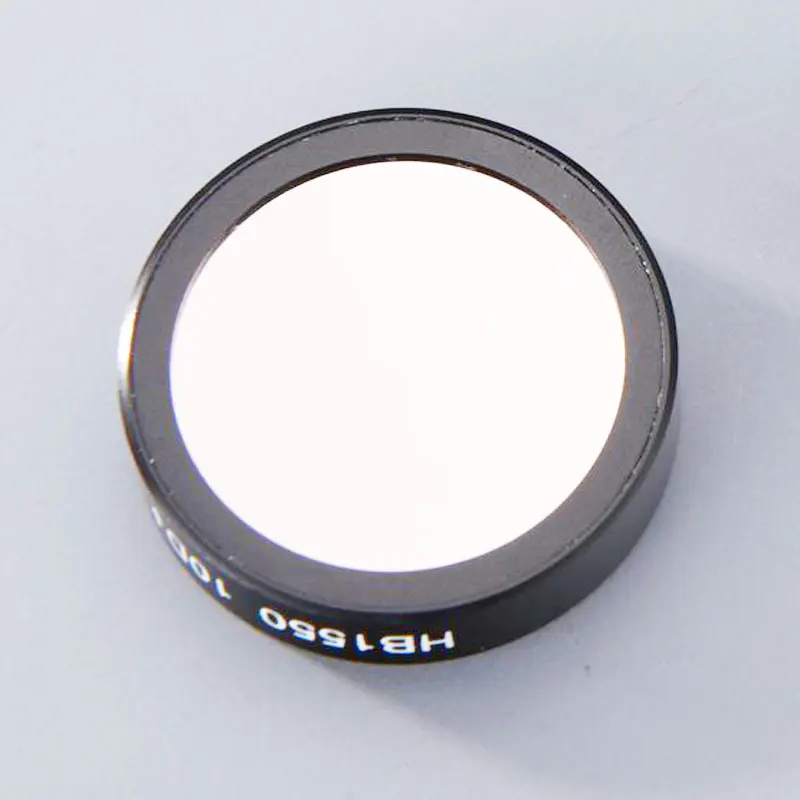

Customized IR Optical Filter 780nm Narrow Bandpass Filter
- Category: Optical Filters >>>
- Supplier: Wuhan Especial Optic Inc.
Share on (62182740155):
Product Overview
Description
Product Description
Narrowband filter comes from the bandpass filter in the subdivision, its definition and band-pass filter is the same. This kind of filter in a particular band to let light signal through and departed from outside the band on both sides of the light signal is blocked. The narrowband filter passband is relatively narrow, usually at the center wavelength value of less than 5%.
The bandpass filters specially manufactured by Wuhan Especial Optic.,INC adopt the technology of all-dielectric hard film coating and the principle of medium interference. On the basis of highlighting the characteristics of narrowband filters, the optical properties are independent of the thickness of the substrate. The narrowband filters manufactured by Wuhan Especial Optic.,INC are more convenient for the built-in instrument imaging system. The optical properties can be improved and effectively used. Special optical material substrates are used to solve the problems of fogginess and instability of optical properties of absorbent synthetic glass in traditional sense. The products are manufactured according to customer's requirements.
Product Name | NBP-780nm narrowband filter |
Material | Optical grade glass (K9, BK7, B270, D263T, JGS1, color glass, float glass, etc.) |
Surface smoothness | Class III National Standard, US Military Standard 60-40 40-20 |

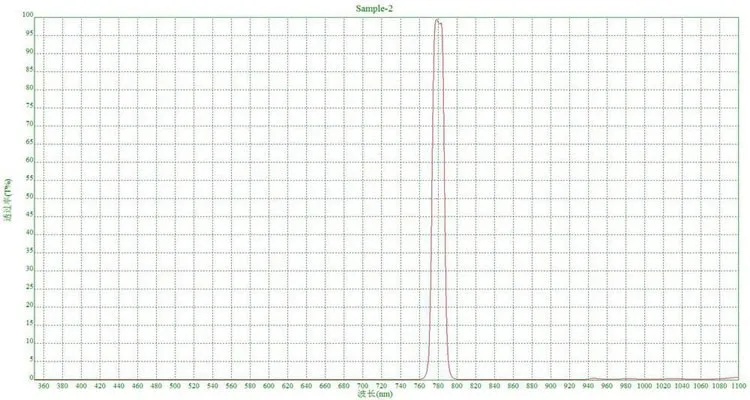

Central wavelength | 780±5nm |
Incidence Angle | 0 degree |
Half Peak Bandwidth | 24nm |
Product size | 3mm-80mm (customizable) |
Cut-off rate | T < 0.1% |
Cut-off depth | > OD3-OD6 UV-NIR |
Transmittance | T = 90% |
Our Company
Wuhan Especial Optic established in 2012, compliance with ISO 2009.
WHEO is very good at developing and processing kinds of infrared optical components at ultra high precision, ultra thin, very large, ultra small and customization. Like 0.5mm thickness CaF2 window, 300mm diameter Germanium and ZnSe window. Our featured products include: Optical Protective Window (AR BBAR coating), High Reflection Mirrors (Metalic and Dielectric coating), Optical Lens (Aspheric Lens, Achromatic Lens, Cylindrical lens, Ball Lens, Powell Lens, Collimator Lens), Optical Filters (UV pass, IR pass, narrow bandpass, notch filter), Optical Prism, Galvo Mirror, Polarization rotators.
WHEO is very good at developing and processing kinds of infrared optical components at ultra high precision, ultra thin, very large, ultra small and customization. Like 0.5mm thickness CaF2 window, 300mm diameter Germanium and ZnSe window. Our featured products include: Optical Protective Window (AR BBAR coating), High Reflection Mirrors (Metalic and Dielectric coating), Optical Lens (Aspheric Lens, Achromatic Lens, Cylindrical lens, Ball Lens, Powell Lens, Collimator Lens), Optical Filters (UV pass, IR pass, narrow bandpass, notch filter), Optical Prism, Galvo Mirror, Polarization rotators.
We can custom all these optical components strictly as per your requirements. For instance, surface quality, flatness, tolerance and so on.
In addition, we have various kinds of products in stock. If you need samples, please write to us at sales@wheo.cn for free sample.
Our Service
a: Dimesion size : 5-300mm , thickness up to customer requirements
b: Many material could be choosed, like BK7, Fused Silica, Sapphire, MgF2, CaF2, Ge, Si, Znse, ZnS and so on.
c: AR HR DLC coating or as your request
For more please visit our website: www.wheo.cn
Optical design
We can design optical components according to your requirements.
Production
Our current production capacity includes but not limited to cutting, grinding, polishing,coatin and testing.
After-sales service
If you have questions about our products you can contact us directly.
Our products
BK7 windows
caf2 window
AR coating Ge window
ZnSe window
AR coating SI window
AR coating ZnS window
Sapphire window
Fused Slica window
optical lens
Cylindrical Lens
Powell Lens
optical convex mirror
Al coated mirror
Gold coated mirror
Optical Filter
Optical Prism
Galvo Mirror
Packing & Delivery
Packing Details: Protective film or Capacitor paper,Pearl cotton,Cardboard box.
Delivery Details: 7 days for stock.
3-4 weeks for custom-made products for sample.
in common, 4 weeks for mass production
FAQ
Q: What's the way of shipping?
A: 1.We accept DHL, Fedex, TNT, UPS, SF and etc.
2.If you have your own express number, it's great.
Q: How to pay?
A: (1) T/T, and Credit Card.
(2) Bank Fee: T/T-USD20.00+, Please consult the local bank.
Q: What's the deliver time?
A: (1) For inventory: the delivery time is 5 workdays.
(2) For customized products: the delivery time is 10 to 30 workdays. According to the quantity and precision.
Q: How to ensure the safety of payment?
A: Wuhan Especial Optic.,INC is the gold supplier and supports Alibaba Trade Assurance. Payment<=500USD, 100% in advance. Payment>500USD, 30% T/T in advance ,balance before shippment.
Q: Can I customize the products based on my need?
A: Yes, we can customize the material, specifications and optical coating for your optical components based on your needs.
