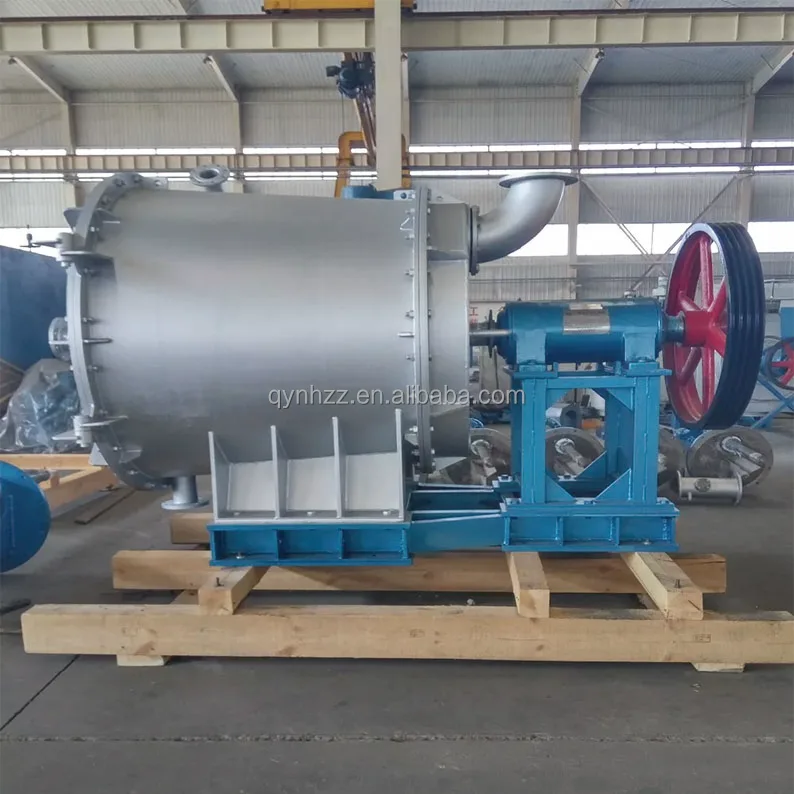

Cotton pulp making equipment for toilet paper/kraft paper/a4 paper making machine single fiber separator
- Category: >>>
- Supplier: Qinyang Nianhai Papermaking Mesh Industrial Co. Ltd.
Share on (62182764261):
Product Overview
Description

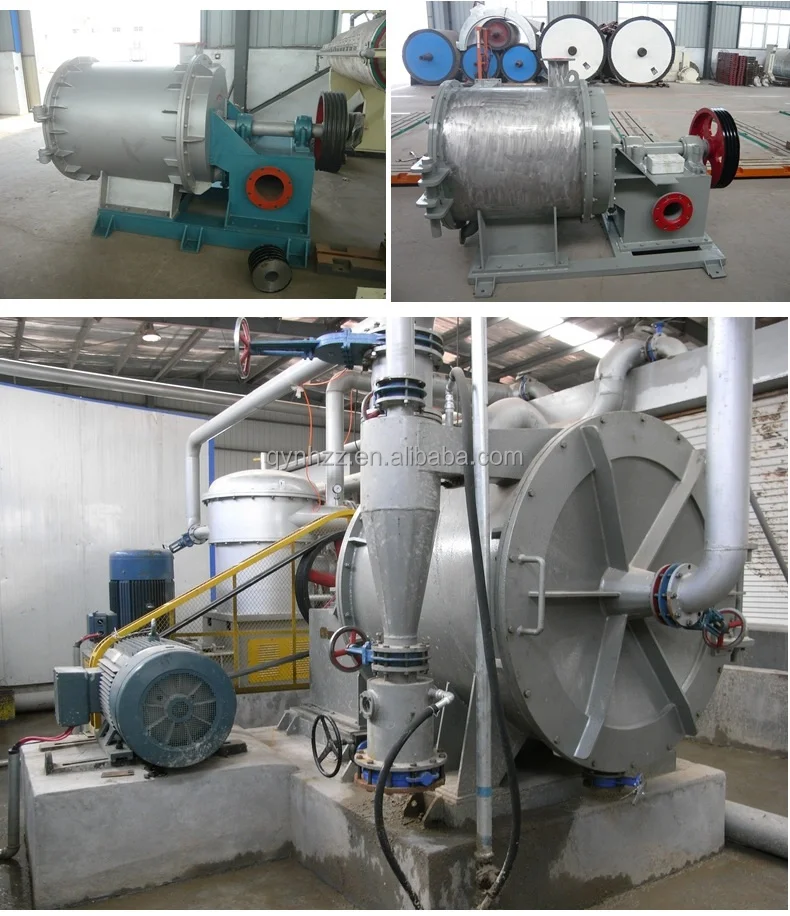

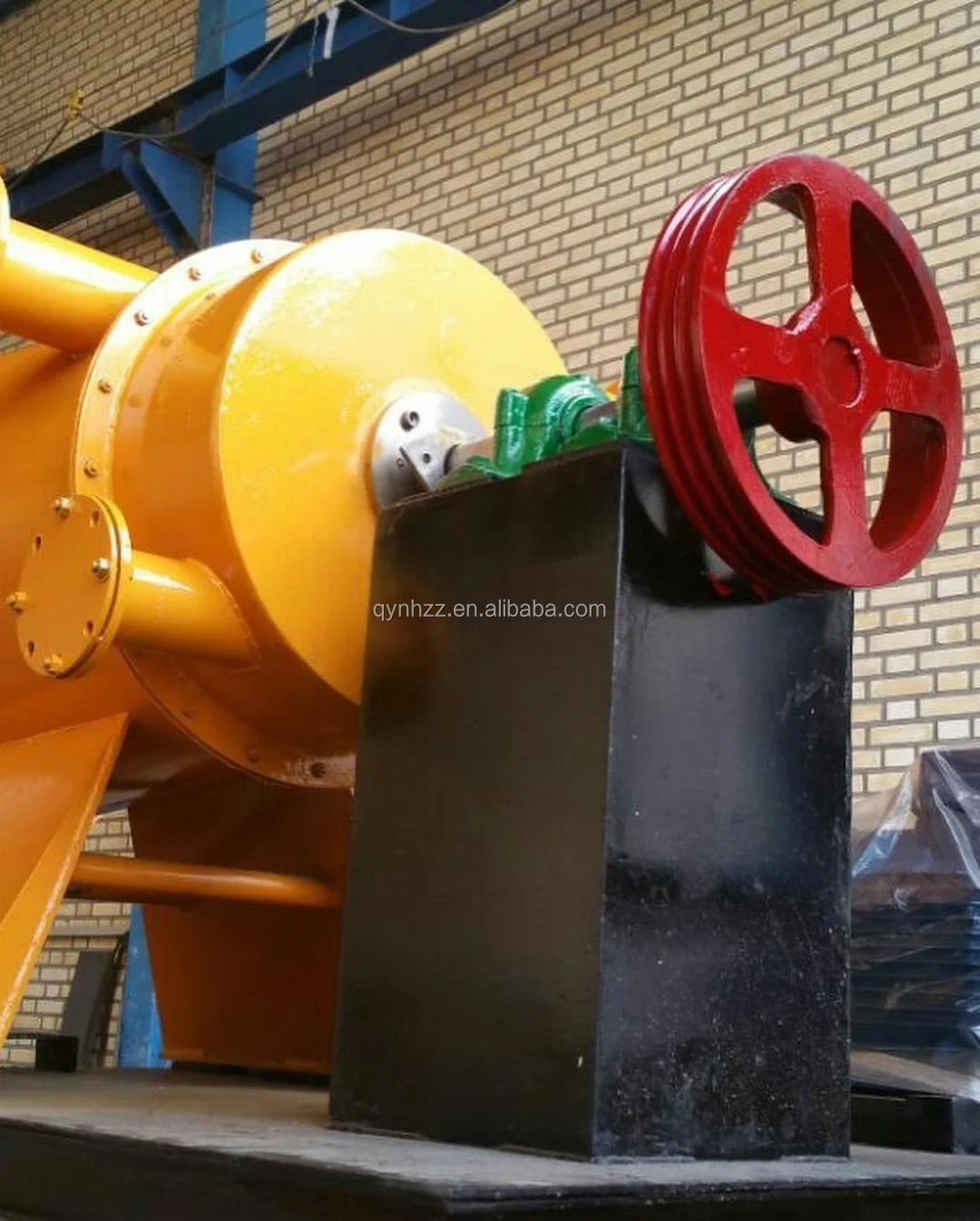

Single Fiber Separator
Product Description

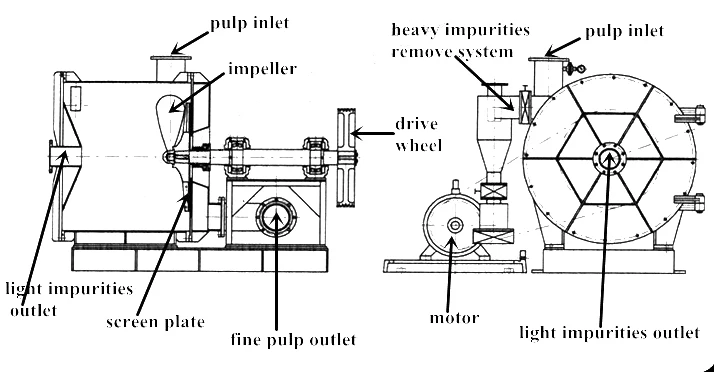

This product is a multi-function pulping equipment, including pulping, removing impurity, screening,and is the required equipment of middle, high-grade. It mainly has two parts: beating and pressure filtering with compact structure, the exception of impurity effects, and one for many advantages.
1. Stable running, stable performance. 2. Large processing capacity. 3. Low noise, long service life | ||
Product Parameter
Model | NH-FS0 | NH-FS1 | NH-FS2 | ||
Capacity(t/d) | 10-20 | 20-40 | 40-70 | ||
Consistency(%) | 3.5 | ||||
Pressure(Mpa) | 0.15-0.25 | ||||
Speed(r/min) | 1378 | 837 | 816 | ||
Diameter(mm) | 320 | 520 | 550 | ||

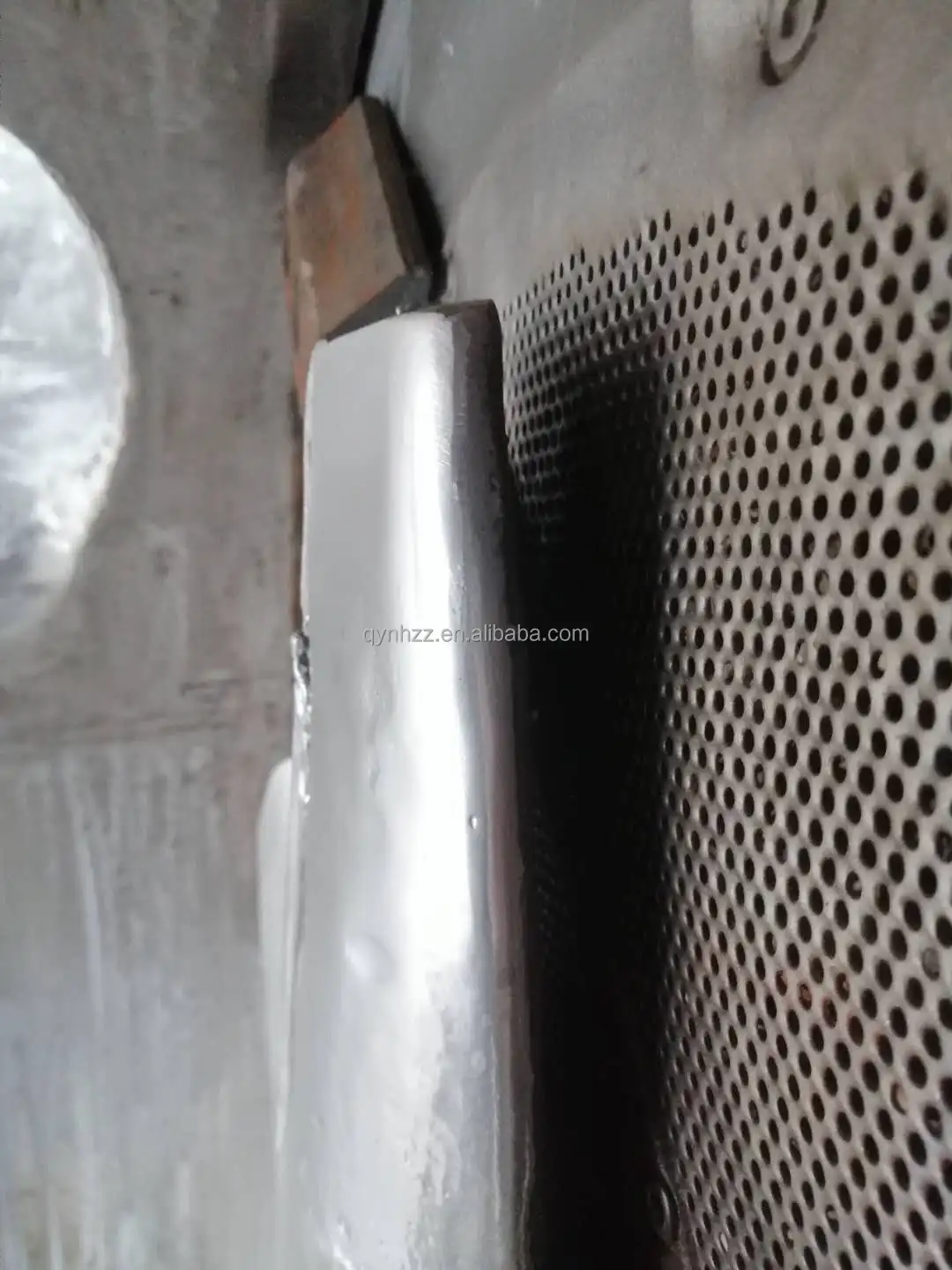

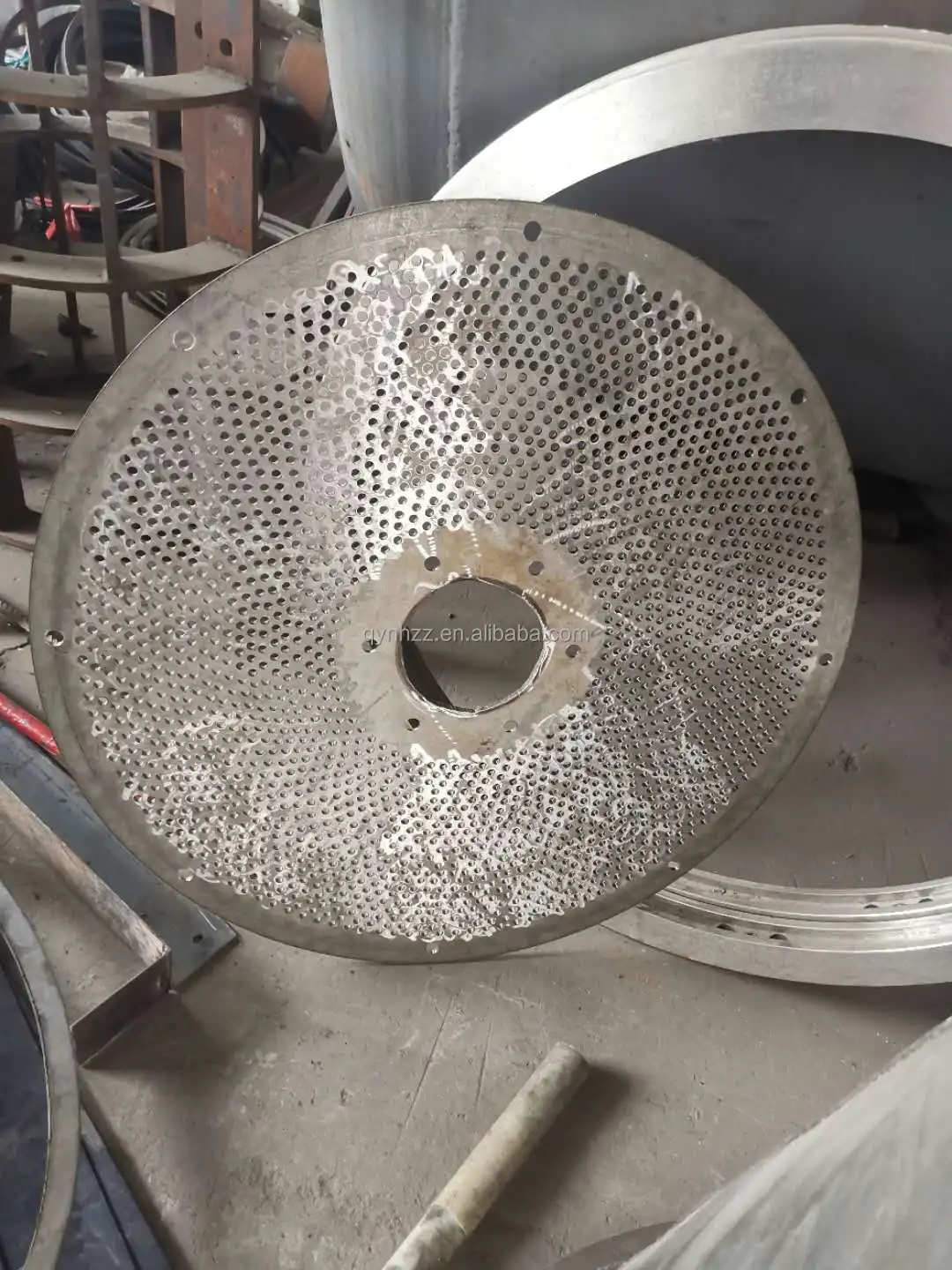

Sieve plate | D 3 D 4 D 6 D 7 difference 0.5 ladder hole series | ||||

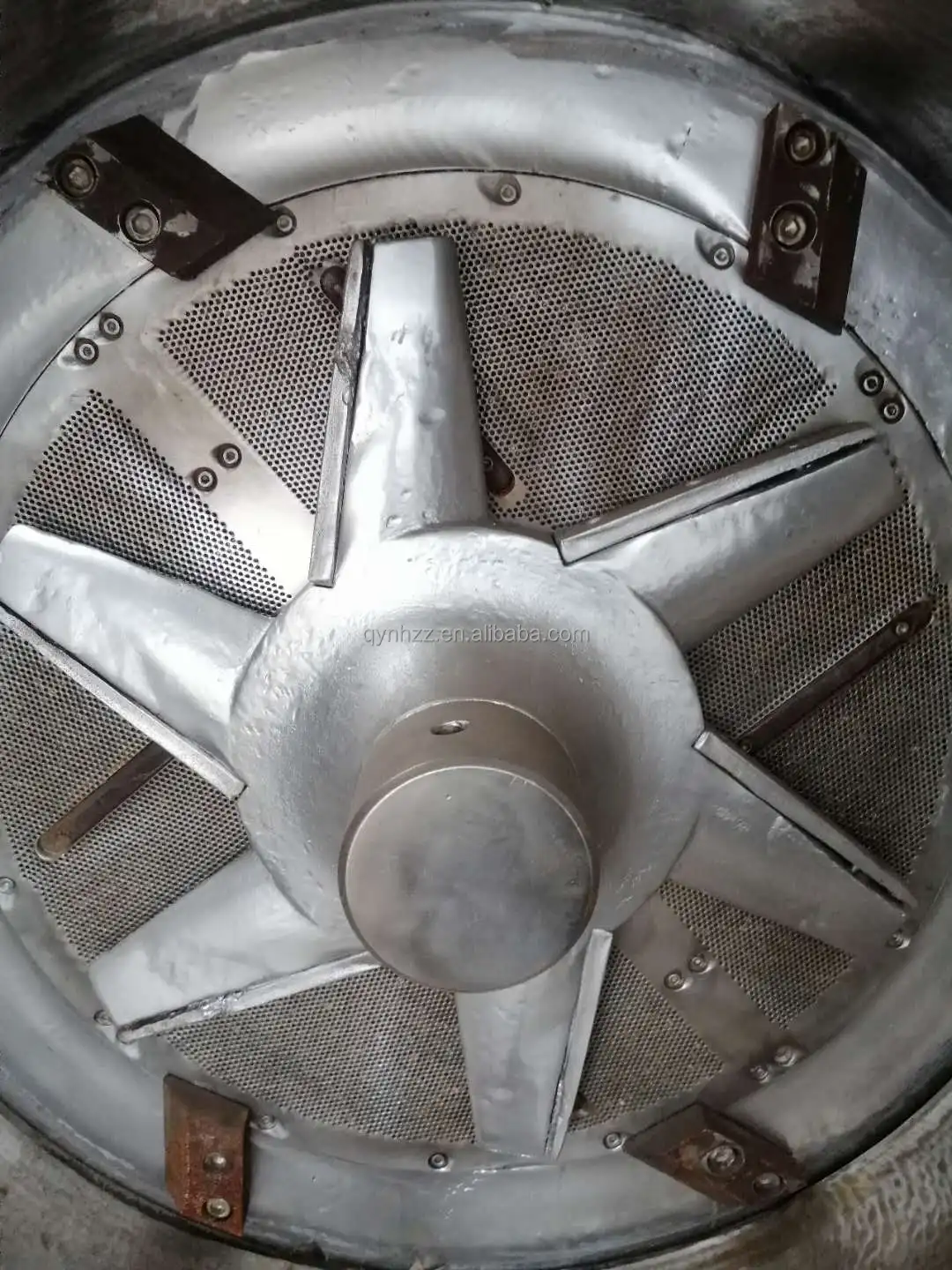

Sieve drum | Hole size: D1.6 D1.8- D4 D 5 in 0.2 difference ladder series; Seam type of 0.3- 0.7in 0.05 difference seam width series | ||||
Inlet diameter(Dg) | 100 | 125 | 125 | ||
Good slurry tube(Dg) | 100 | 125 | 125 | ||
Tail tube(Dg) | 550 | 65 | 65 | ||
Light/heavy discharge pipe diameter(Dg) | 60/60 | 80/125 | 80/125 | ||
Power | 4/30KW | 4/55KW | 4/90KW | ||

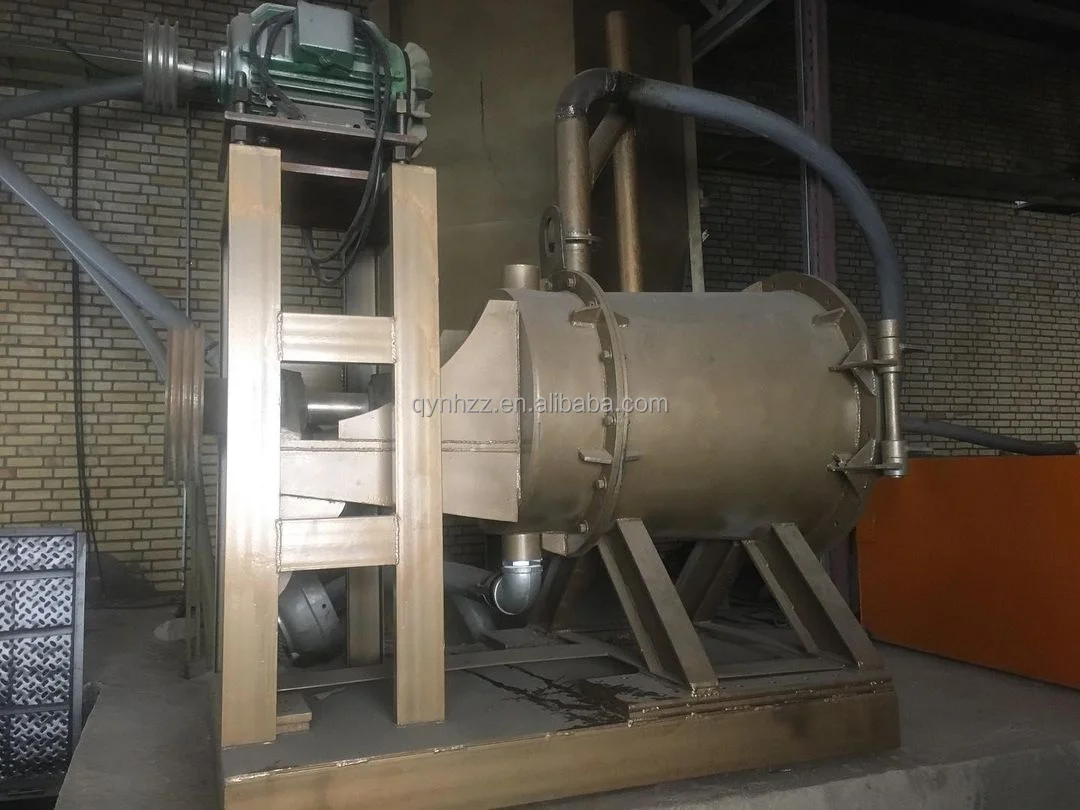

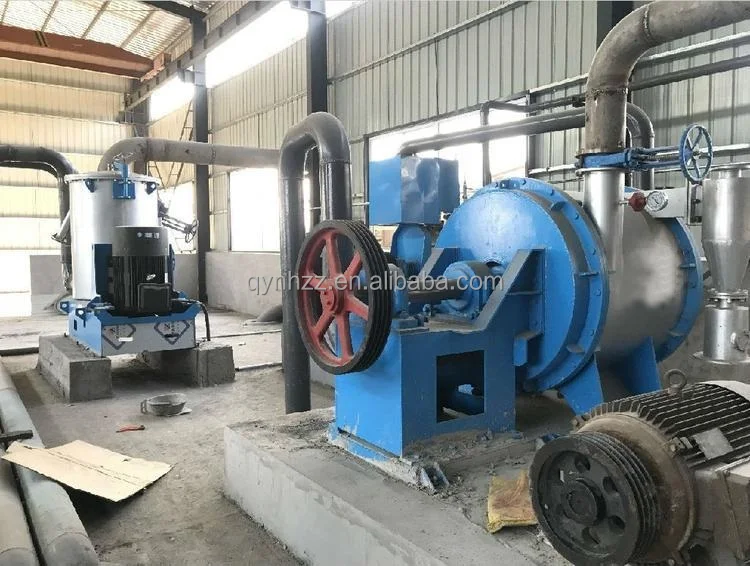

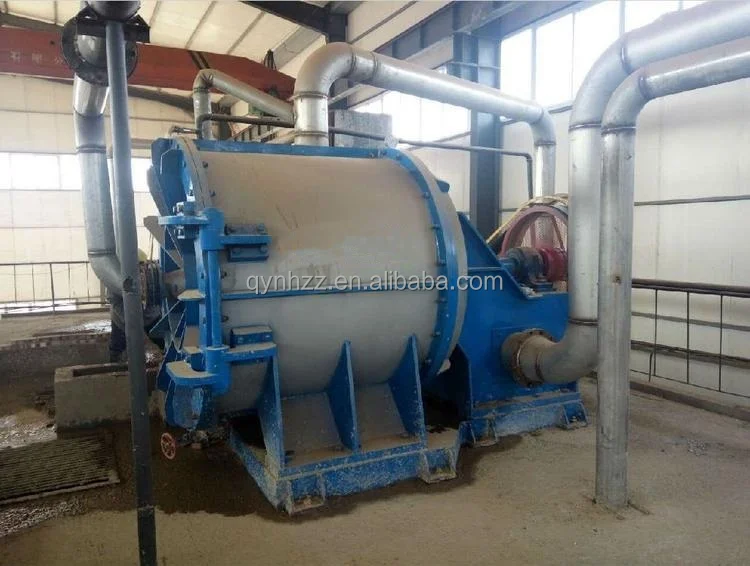

Product Detail
Application
Single fiber separator is used for secondary pulping and separating equipment behind the pulper. At the same time defibering, effectively separator and discharge the light and heavy impurities, have defibering, separating and screening in one composite unit.
Packing & Delivery
Related Product
Company Introduction
NH Paper Machinery Industrial Group is a leading professional paper machine manufacturer in China, which specializes in making machine, paper making machine and all kinds of paper machine components manufacturing. Based on the development of local market ,we are growing to professional paper mill solution provider. NH Paper Machinery Industrial Group fully implement the guideline in business-"survival depends on quality and service ,market rely on price and brand."
Our main products are a full set of new and second hand paper making equipment with a maximum net with of 6000mm and a working speed of 700m/min.It mainly includes a packaging paper production line with an annual output of 200,000-200,000 tons, a cultural paper production line with an annual output of 1-10 million tons, a tissue paper production line with an annual output of 20,000 tons and various special paper production lines.
Look forward to hearing from you sooner and establishing a long friendly business relationship with you . We promise we will do our best to help you .Besides ,welcome you to visit our factory at anytime.

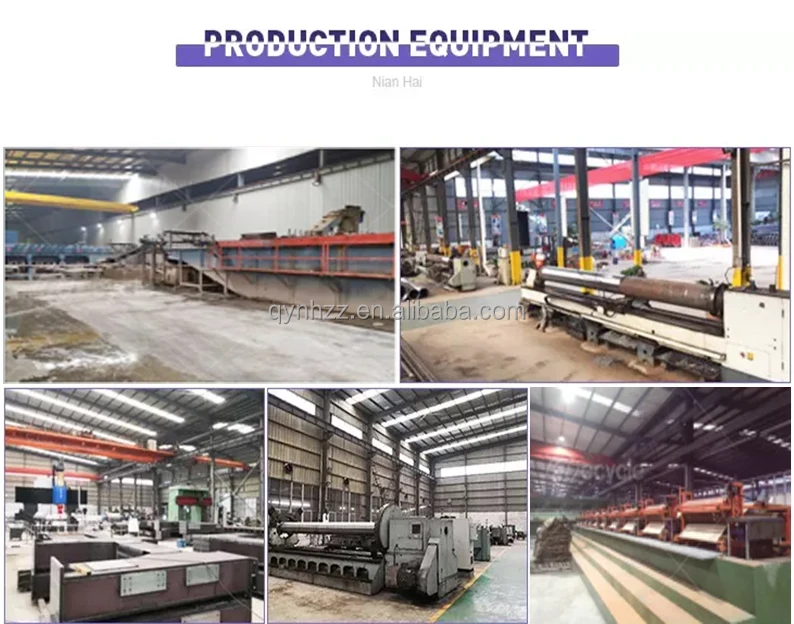

According to the process, divided into different workshop .With strict quality control system to ensure the finished product quality .
We have stable cooperation relationship with our clients.
