Heavy duty Q235B double deep racking with CE , ISO Certificate

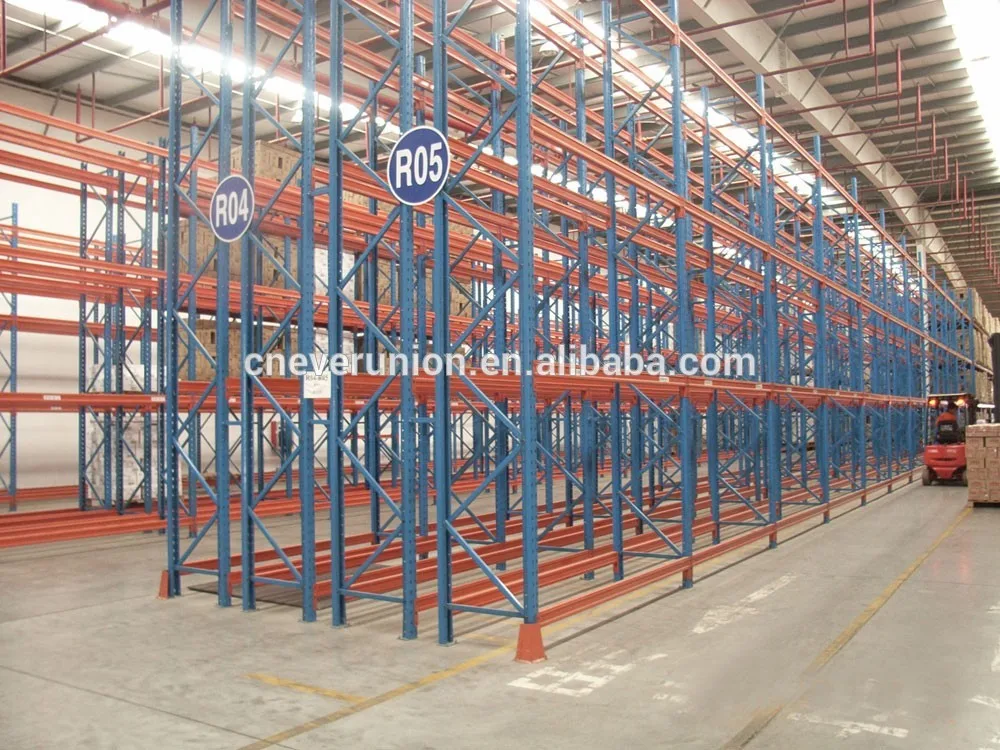

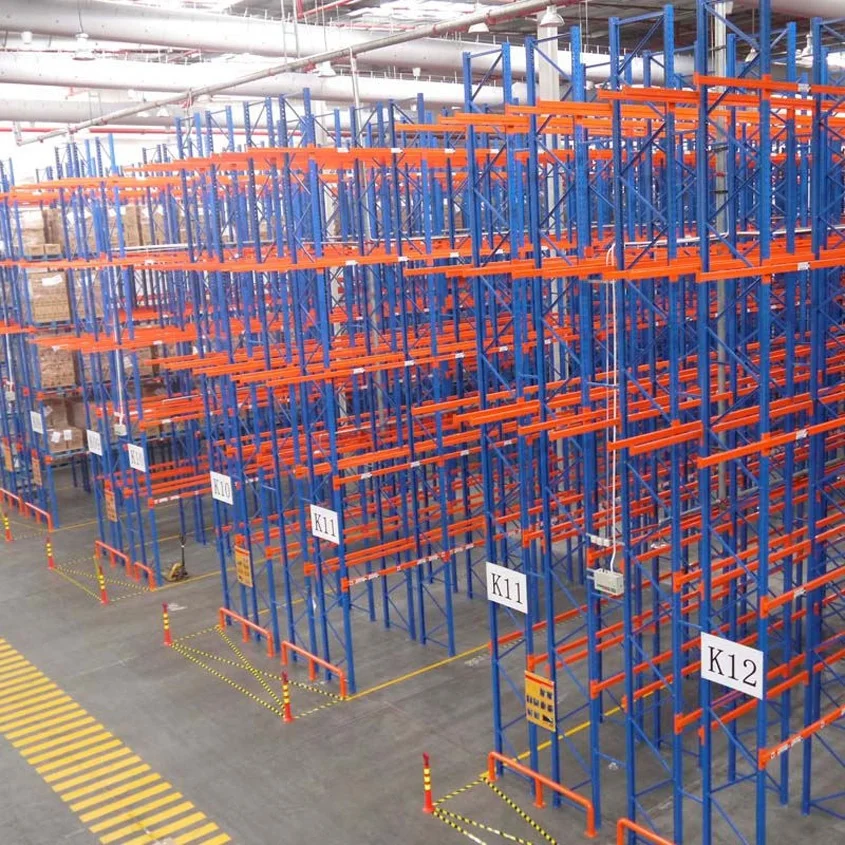

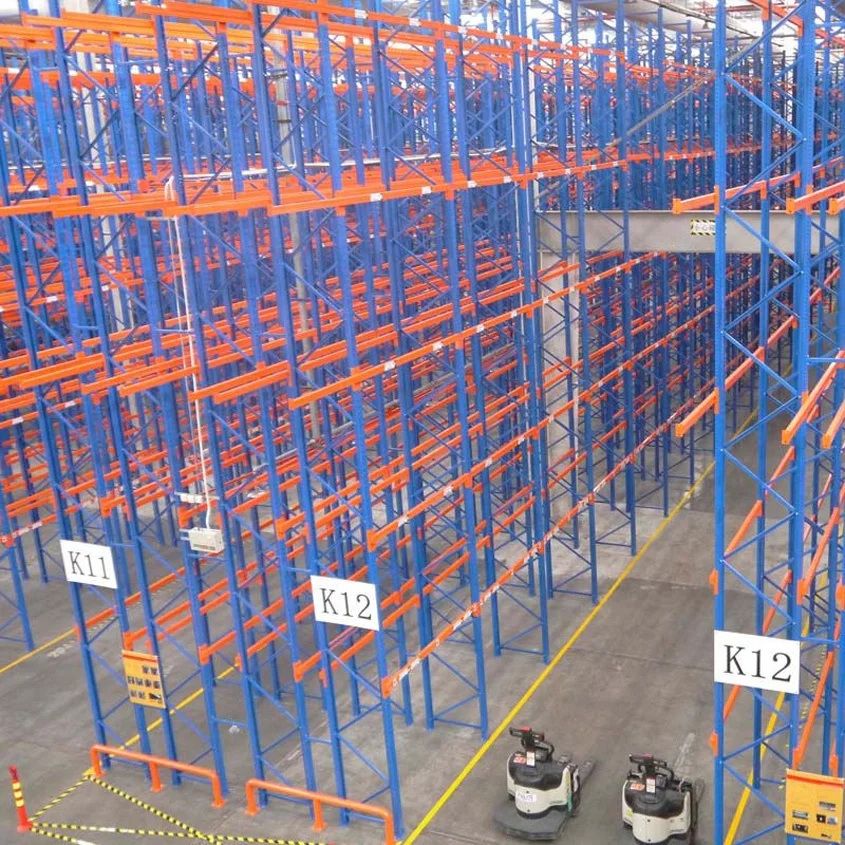

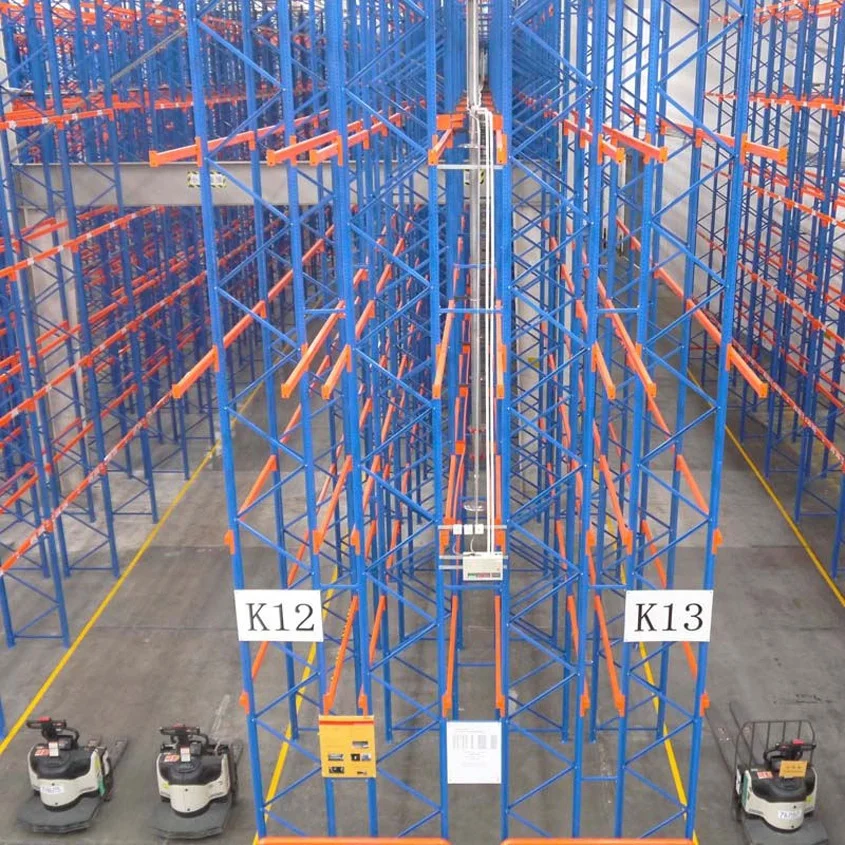

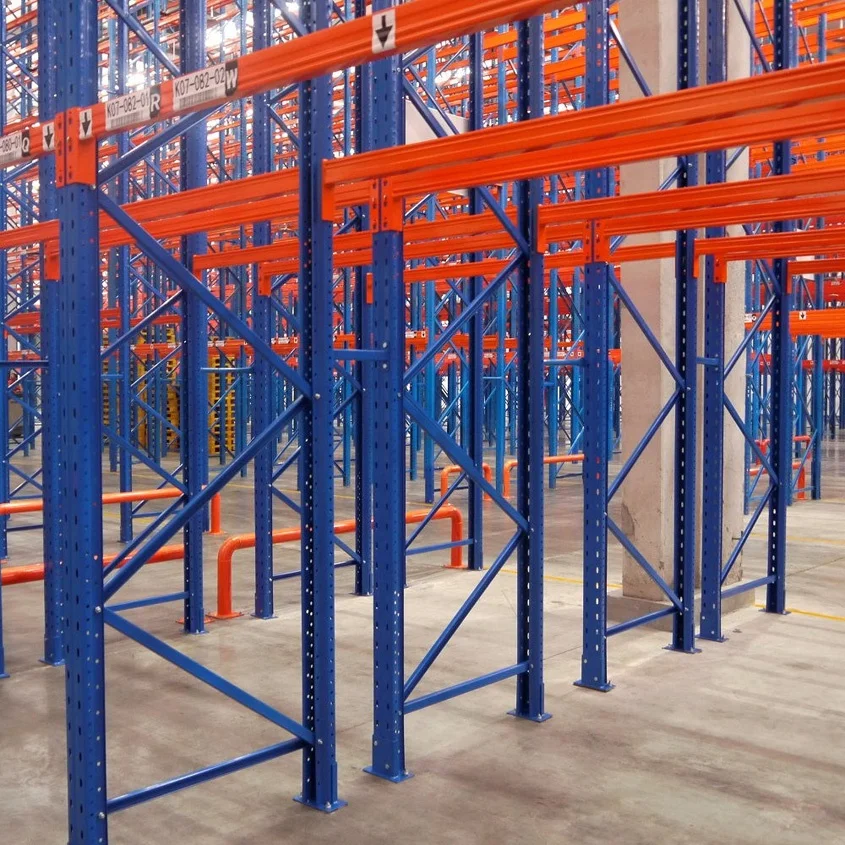

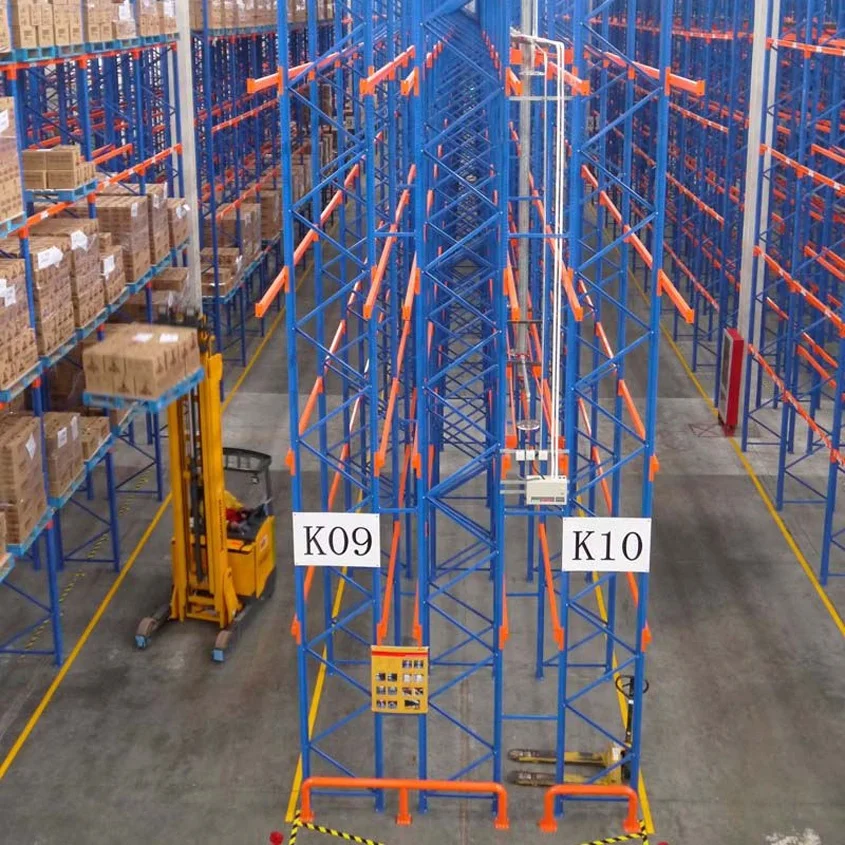

Double Deep heavy duty rack for warehouse is similar to selective racking; but pallets are now stored two rows deep instead of one. This type of racking therefore requires specialised pallet handling equipment using either a specialised forklift or a standard unit a with double deep handling attachment.

The most common forklift used for double-deep handing is a reach truck. One key disadvantage with reach trucks is that they require a counter balance for loading and unloading the pallet onto trucks, which can double capital investment requirements for your pallet handling equipment.

Another Option is articulated forklifts which are able to work in double deep narrow aisles while still doing the job of a counter balance.

Advantages:

• Lowers capital investment compared to scissor & pantograph masts.


• Reduces required aisle width when compared to manual fork extensions


• Increases handling of pallets and reduces stock damage compared to manual fork extensions.


• Clear visibility, no extra obstructions because of all extra moving parts of the scissor reach system.

Disadvantages:

• Reduces forklift lifting capacity

Beam :80*50/100*50/120*50/140*50/160*50mm, 1.5mm Thickness.

80/100/120mm beam with 3 hooks connector, while 140/160mm beam with 4 hooks connector.

Upright section:

90*70/ 100*80/ 100*95/ 120*95mm, various thickness, including 1.8/2.0/2.3/2.5/2.75/3.0/3.2mm, will be choosed based on your loading requirement.

Product name: Blue color powder coating surface pallet racking system

Please inform us the listed information for a quick quotation of pallet rack:

1) drawings of your warehouse or rack system if possible

2) Your pallet size: Height (with goods)*Depth*Length? Which side is for forklift entry?

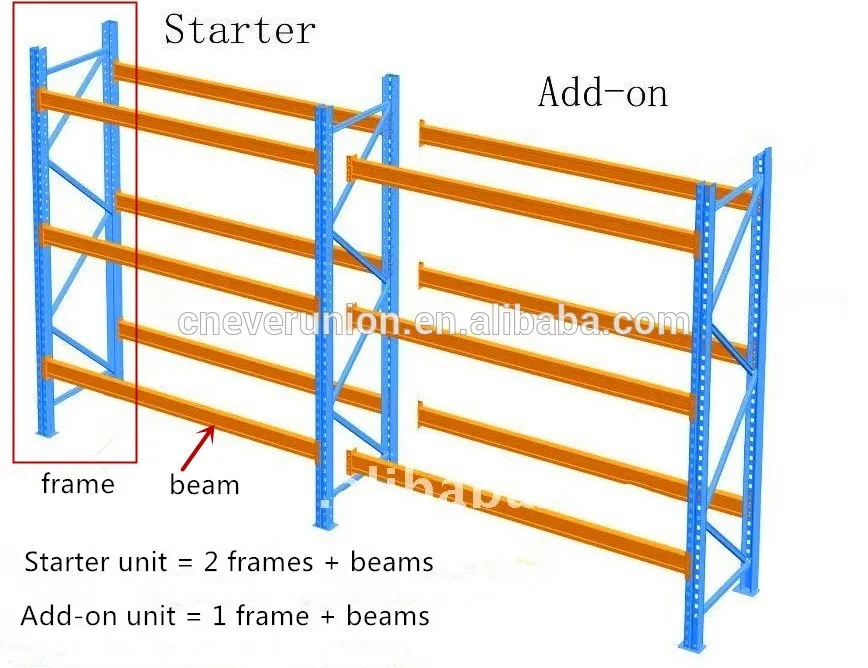

3) How many start bays and add on bays you want.

4) Clear warehouse height or Max forklift lifting height

5) Loading capacity of each level

6) Aisle width needed for forklift operation, as common 3000mm

We can provide free and professional warehouse rack Auto CAD drawing design based on your these above info, to solve your warehouse storage solutions.

Or pls let us know your rack size(H*D*W), nons of level, loading each level, qty of starter rack + Add-on rack.

We will quote to you within 12 hours, even immediately quote to you, tks!

Products will use our experienced export packing: (1)packed by wooden bars,crates,metals stripes,films for bulk goods,and cartons for accessories. (2)paper cartons for accessories.

Shanghai port, the closest port to us, is recommended strongly as loading port. Nanjing port is also available, but not recommended because of much higher cost of in-land trucking transportation from our factory.

Q1: Are you a manufacturer or trading company ?

A: We are a professional racking manufacturer in Kunshan , Jiangsu , we have sales office in shanghai .From shanghai to our factory , it will take about 1 hours by car .

Q2: what is your warranty time ?

A: The high standards in the design and manufacturing ensure us to support the products with a 10 years warranty time for your normal use, it is the longest manufacturer's warranty !

Q3:What is delivery times?

A: We have 2 GEMA powder coating lines and 4 automatic welding machines,which can ensure us very short delivery time—less than 18 days .

Q4:What is your payment term ?

A: 1) As general, 30% T/T down payment and 70% against BL copy.

 2) 100% LC at sight

Q5:Are samples available?

A: Yes, we can send some sections of samples for your reference by express.

Q6: what’s the loading port?

A: Shanghai port is the closest port to us .

Q7: what’s the material and finishing of your racks?

A: As general , our material is Steel Q 235 , Finishing: Powder coating .

Q8: How can I get your quick quotation on my pallet racking project?

A: As different clients and projects have different needs of racking dimensions and specification, as general, for quick quotation, we need to know the following information

1) Required Pallet Racking Dimension: Height*Depth*Length?

2) Number of Levels?

3) Loading Capacity of each level?

4) Racking Quantity?

Q9: How many racks could be fit into a 20' container or a 40' container

A: We coud tell you if you provide us below information:

1) rack dimension

2) rack quantities

3) rack loading weight

Our Advantage

1) Our quick reply

 For a quick quotation, just send email to us. We promise to reply with a price within 12 hours

 2) Our short delivery time

For selective pallet racking orders, we will promise to produce within 15 days. As a manufactory we can essure the delivery time according to the formal contract.

3) Our special exporting packages.

We have plastic clips on the beams to protect the beams from surface damage in the transportation, We have got the whole uprights wrapped with transparent plastic film.

4) More than 14 years experience on rack manufacturing and export
