nrf52840 Chip square shape ibeacon programmable ble beacon
- Category: >>>
- Supplier: Shenzhen AnkhMaway Electronic Technology Co. Ltd.
Share on (62183076239):
Product Overview
Description
iBeacon Feature

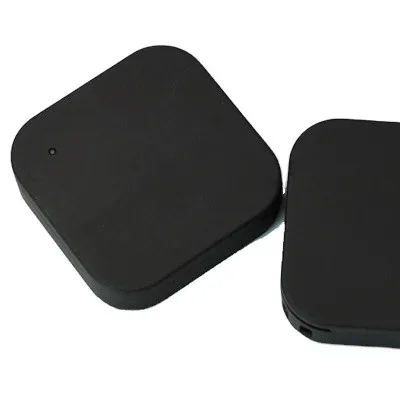

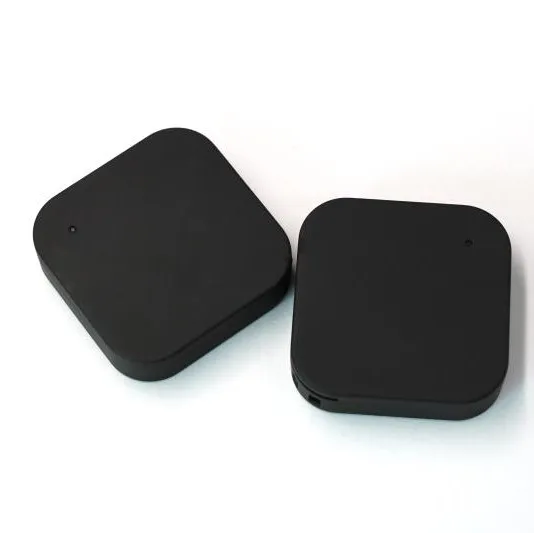

nrf52840 Chip square shape ibeacon programmable ble beacon
Support iBeacon and Eddystone
Built-in Beacon firmware, compatible with BLE.
Built-in a coin battery CR2450
All the parameters can be configured (UUID, Major, Minor, Measured Power, TX Power, etc.)
We will provide you with a tool APP and API document to configure beacon data, and IOS/Android SDK and Android Source Code to develop your APP.
Encrypted parameter, a password is needed when access to configure.
Support the background management of battery.
iBeacon Parameters
Item | Test Data | Remarks |
Chip | NRF52840 | Nordic |
Battery model | CR2450 | Null |
Operation Voltage | 2.0-3.6V | DC |
Operation Frequency | 2400-2483.5MHz | Programmable |
Frequency Error | +/- 20KHz | Null |
Modulation | Q-QPSK | Null |
Standby current | 12uA | Null |
Output Power | 4 dBm - -40dBm | Programmable |
Receiving Sensitivity | -93dBm | High gain mode |
Transmission distance | 75m | BER<0.1%, Open space |
Antenna | 50ohm | Onboard |
State | Operation Current (uA) |
Sleeping Mode | 3.6 |
Connectable Mode | 142 |
Non-Connectable Mode | 22.5 |
Certifications
About Us
Our Service
Case customization
For the bulk quantity, we provide the case customization and even the eletronic design for your customized housing only.
Logo printing customization
We can print your own logo on the case in any color .
Firmware customization
We provide the firmware customization according to your requirements.
For the bulk quantity, we provide the case customization and even the eletronic design for your customized housing only.
Logo printing customization
We can print your own logo on the case in any color .
Firmware customization
We provide the firmware customization according to your requirements.
