Product Overview

Description

Product details

introduce

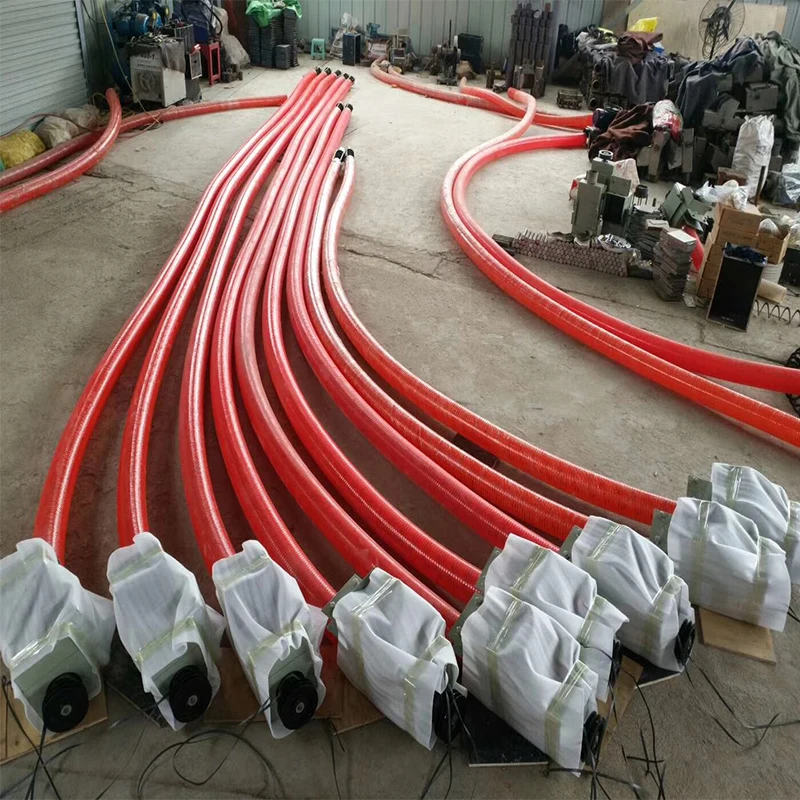

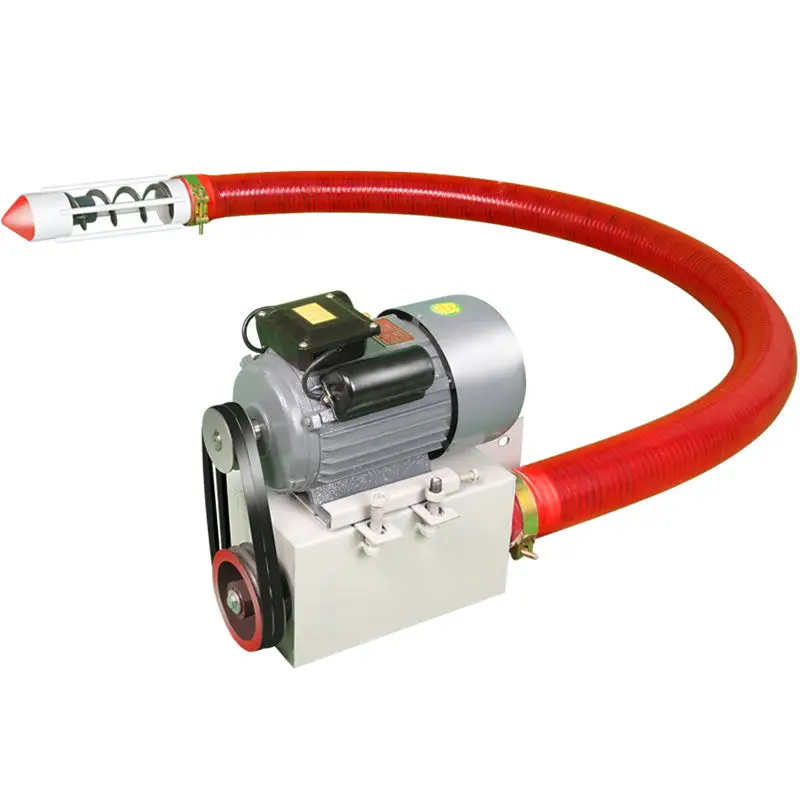

Flexible hose spiral lifting grain conveyor is a new design machine developed by our company in accordance with the national conditions. This product is specially designed for the transportation, loading and storage of bulk powder such as grain, fertilizer, chemical raw materials, stone, sand and so on. It has the advantages of small size, light weight, convenient movement, high efficiency, low damage rate, wide use, safety and reliability. It is suitable for farms, warehouses, farms, feed factories, food factories, chemical factories, mining and so on.

Model
Length (m)
Diameter (mm)
Quantitative (t/h)
Motor (kw)
Conveying height (m)
TCXLJ-100
6
100
4-6
1.5-4.5
3-4
TCXLJ-100
8
100
4-6
TCXLJ-100
10
100
4-6
TCXLJ-100
12
100
4-6
TCXLJ-120
6
120
6-10
TCXLJ-120
8
120
6-10
TCXLJ-120
10
120
6-10
TCXLJ-120
12
120
6-10
TCXLJ-160
6
160
10-20
TCXLJ-160
8
160
10-20
TCXLJ-160
10
160
10-20
TCXLJ-160
12
160
10-20
Shape and size

LS type screw conveyor

Introduction of screw conveyor
The characteristics and application scope of LS screw conveyor:
LS screw conveyor (hereinafter referred to as screw conveyor) has novel structure and advanced technical indicators. Head and tail bearings move to the outside of the housing. The intermediate suspension bearings adopt two kinds of rolling and moving interchangeable structures, both of which have dust-proof sealing devices. The discharging end is equipped with a cleaning device with low noise, strong adaptability, convenient operation and maintenance, and flexible layout of import and export.


Use and installation

Scope of application:

Screw machines are widely used in various industrial fields, such as building materials, power, chemical industry, metallurgy, aluminium and magnesium, coal, machinery, light industry, food and food industries; for horizontal or less than 20 degrees of inclination, conveying powder, particles and small fast materials, such as cement, coal powder, grain, fertilizer, ash, sand, etc., material temperature is below 200 degrees C.
It is not recommended that screw conveyors transport materials that are easily deteriorated, sticky and caky, because these materials will adhere to the screw during transportation and will not move forward or form material accumulation on the sling to rotate the bearing. The screw machine can't work properly.
LS screw machine screw diameter from 100 mm to 800 mm, there are nine rules, length from 4 meters to 70 meters, every 0.5 meters of a gear, selection should meet the standard nominal length, special needs can be selected in the selection section submitted separately.
According to the rotary drive mode, there are two types:
C1 mode - single end drive when screw length is less than 35m.
C2 method - double-end drive when screw machine is larger than 35m.
According to the type of intermediate bearing of screw machine:
M1 - for rolling suspension bearings, using 80,000 type sealed bearings. The shaft cover has a dust-proof sealing structure. Usually used in areas where it is difficult to refuel, not greasy or greasy, with good sealing effect, long service life of suspension bearings, and temperature of output material less than 80 degree C (may not be specified when ordering)
M2 - Sliding suspension bearing with dust-proof sealing device. It is usually used to transport materials of high temperature (> 80 degree C) or liquid materials.
