3 led module for street light 150w modular led streetlight lamp for public lighting
- Category: >>>
- Supplier: Zhejiang Boshang Optoelectronic Co. Ltd.
Share on (62183158108):
Product Overview
Description
Product Description
Optical Lens
Imported optical lens with high lighting
transmittance, anti-UV materials, secondary
light dissipation technology.

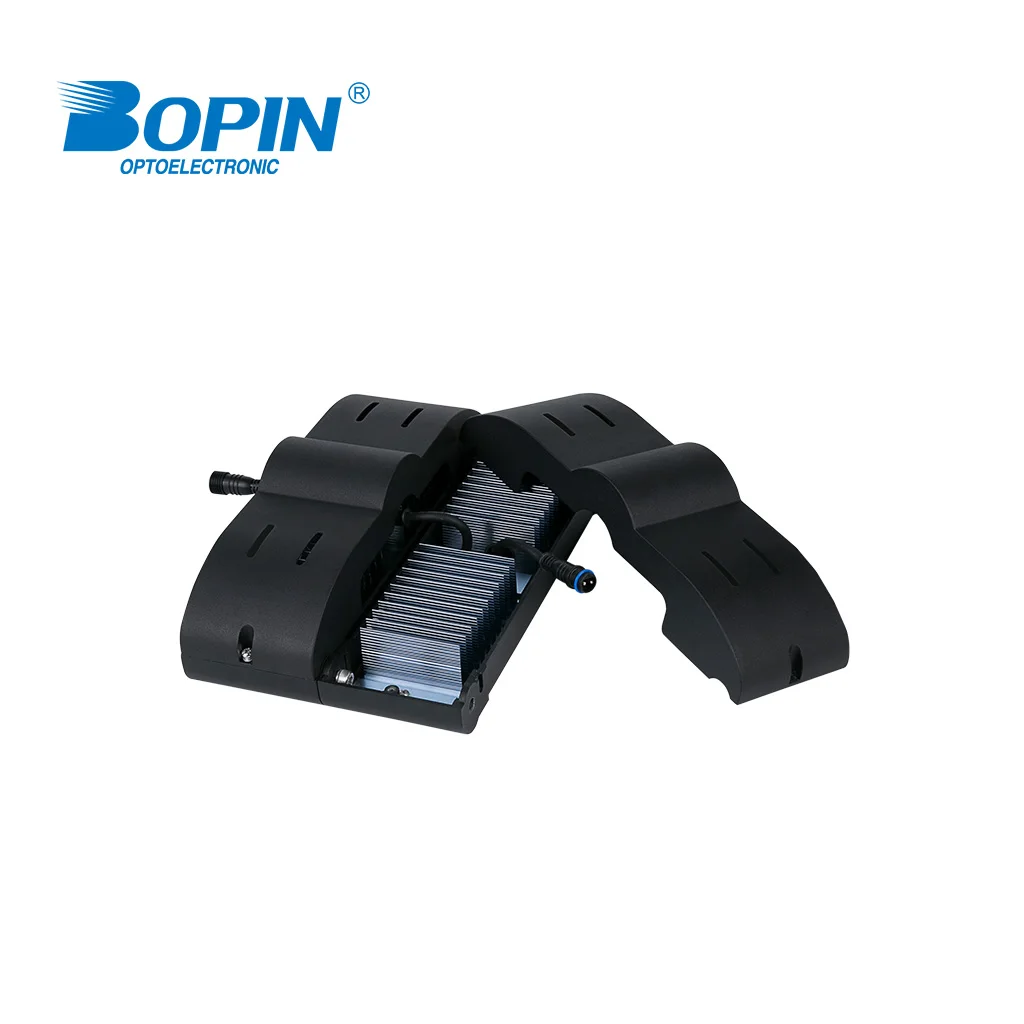

Heat Dissipation
Lamps heat dissipation radiators use tensile
aluminum with high thermal conductivity, with
rational heat distribution, thermal equilibrium.

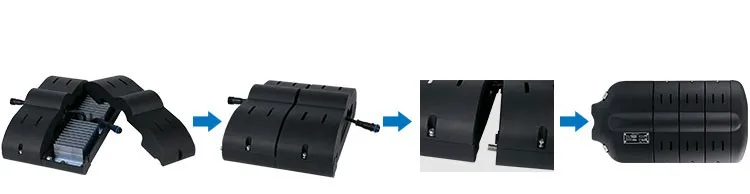

Buckle Design
Lamps covers use buckle design, make the replacement and maintenance more quickly
and easily, as well as have simple and
beautiful appearances.
Branded LED Driver
Can achieve intelligent lighting control and
6KV/10KV surge protection. Provide excellent performance and lifespan.
Die-Casting
Aluminum Housing
A: Rear Cover, To prevent leafs and bird dung.
B: Holes in Housing, better air convection and
better heat dissipation.

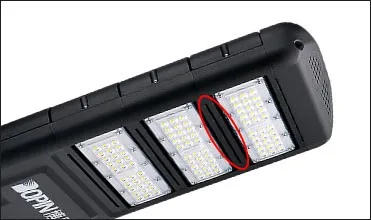

C: Gaps between modules, solve the problem of
dust and water deposition.
Modular Design
Lamps adopt modular design, both dust cover and modules are modular which can be easily for regular stock up, so
that the demand for different customized specifications can be achieved.
Technical Parameters
Model No. | BSL18Z-F3D BSL18Z-F1D | BSL32Z-F3D BSL36Z-F3D | BSL48Z-F3D BSL54Z-F3D | BSL64Z-F3D BSL72Z-F3D | BSL80Z-F3D BSL90Z-F3D | ||||
Wattage | 60W/70W | 100W/120W | 150W/180W | 200W/240W | 250W/300W | ||||
Input voltage | AC100-270V 50/60HZ | ||||||||
LED driver | Meanwell Driver/Inventronics driver /BOPIN driver | ||||||||
LED chips | Lumileds | Lumileds | Lumileds | Lumileds | Lumileds | ||||
Rating | IK10,IP65 | IK10,IP65 | IK10,IP65 | IK10,IP65 | IK10,IP65 | ||||
Light efficacy | 100lm/w-150lm/w | ||||||||
CCT | 3000K/4000K/5000K/5700K/6500K | ||||||||
CRI | 75±5 | 75±5 | 75±5 | 75±5 | 75±5 | ||||
Power factor | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | ||||
Lamp materil | Die-casting Aluminum+PC | ||||||||

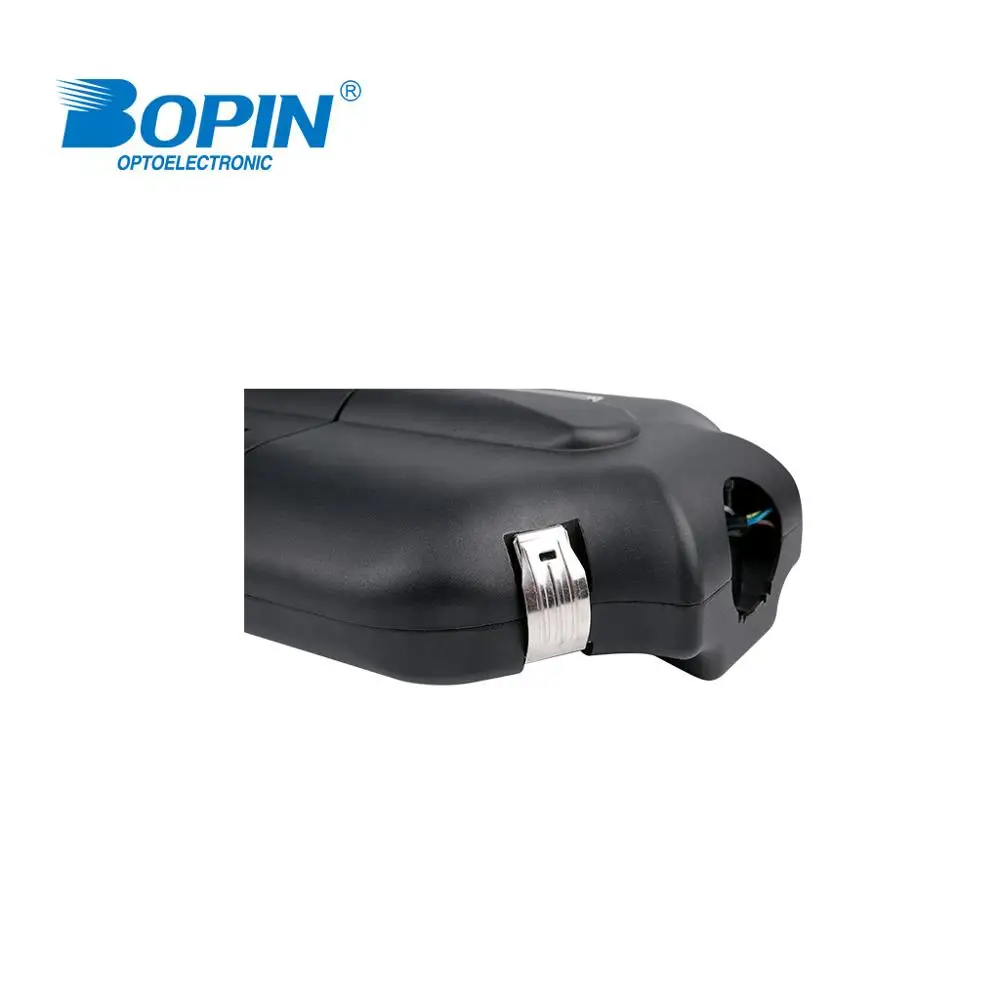

Pole mounting diameter | Suitable for 40mm to 60mm pole | ||||||||
Warranty | 5 years | 5 years | 5 years | 5 years | 5 years | ||||
Distribution Curve

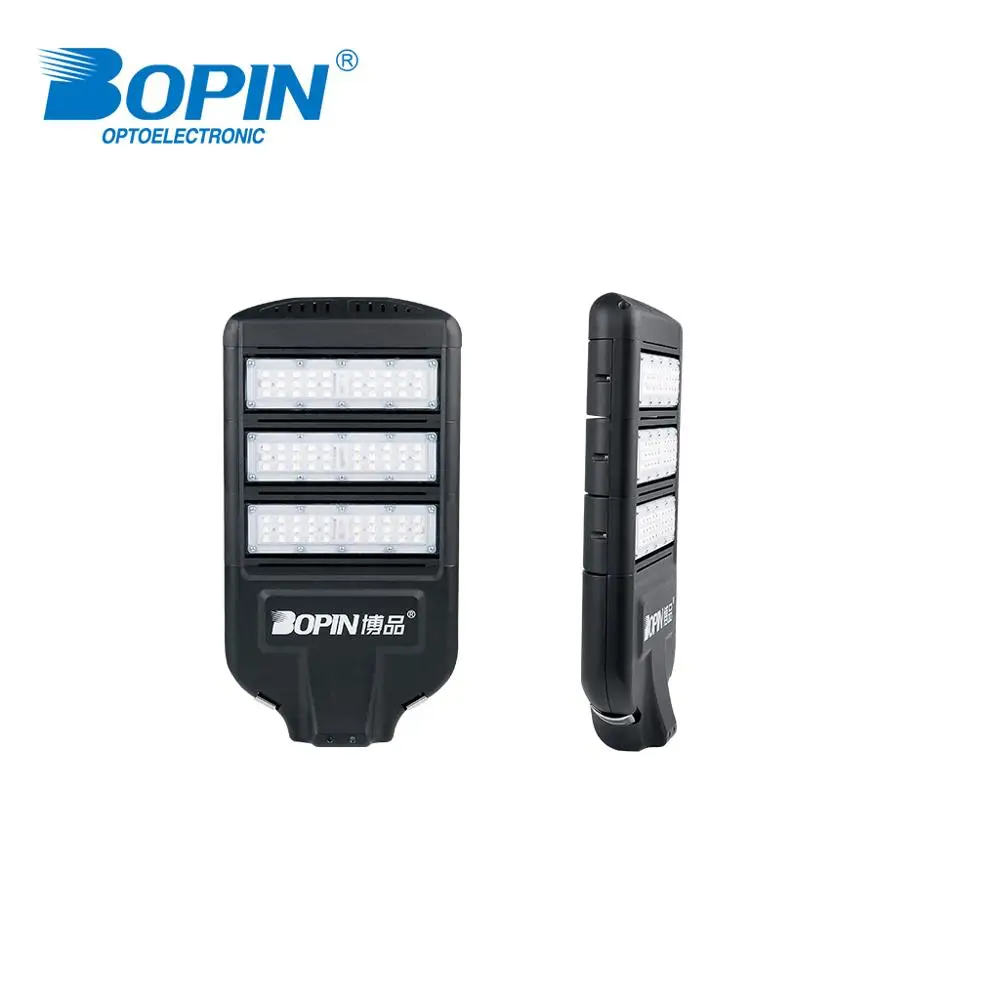

Product Size
Model NO. | Product size(mm) | Net weight(kg) | Packing size(mm) | Gross weight(kg) |
BSL18Z-F3D BSL18Z-F1D | 404*314*123 | 3.5 | 440*360*170 | 5 |
BSL32Z-F3D BSL36Z-F3D | 500*314*123 | 5.7 | 540*314*123 | 7 |
BSL48Z-F3D BSL54Z-F3D | 596*314*123 | 7 | 640*314*123 | 8 |
BSL64Z-F3D BSL72Z-F3D | 692*314*123 | 8.3 | 730*314*123 | 9.5 |
BSL80Z-F3D BSL90Z-F3D | 788*314*123 | 9.6 | 820*314*123 | 11 |
Distribution Mode
Applications
General lighting for all area and site lighting for parking lot, playground ,highway,village road,seaside road and etc. Available to replace traditional MH or HPS luminaires up to 400W.
Our Company

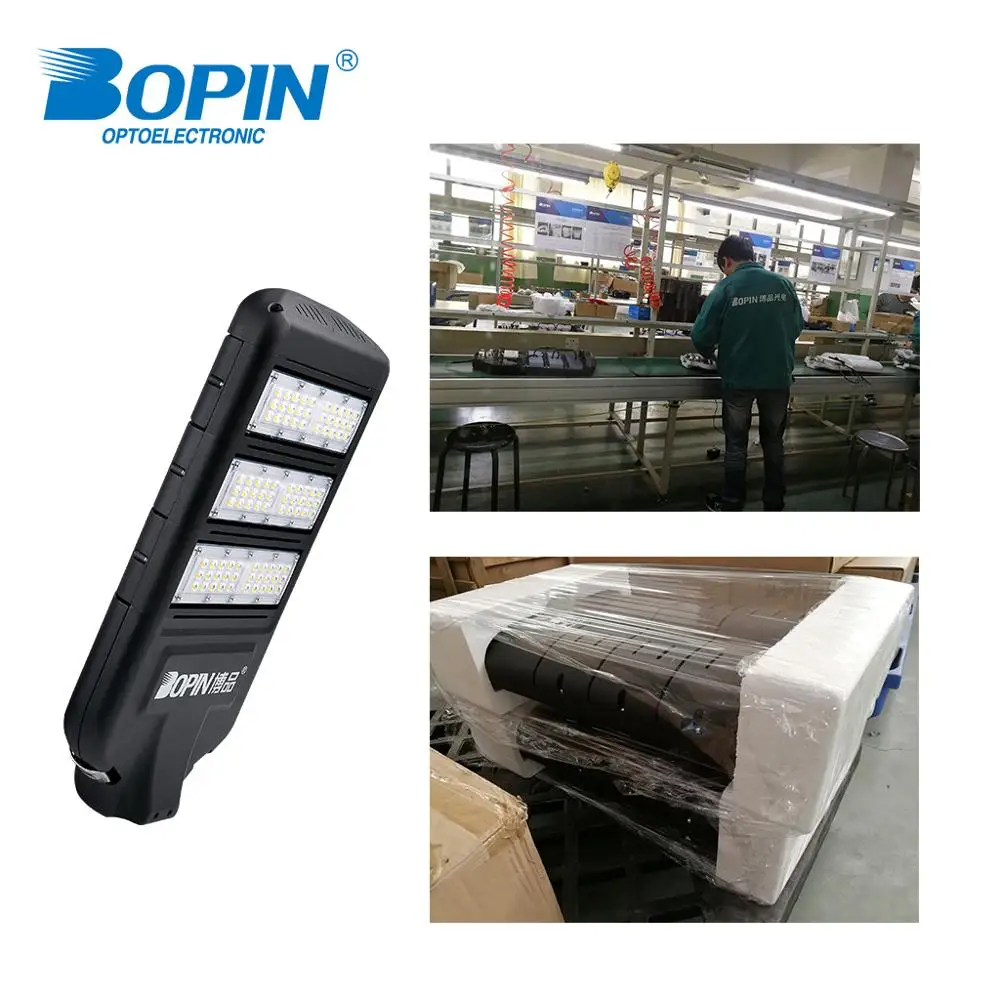

Customer Photos
FAQ
Q: What's the MOQ for my order? What's the lead time for my order?
A: MOQ: 1 sample for checking& testing, we accept the small trial order.
5 working days for sample,15 working days for mass production.
Q: What else power of lamp do you have? I need 1 type of 60W power.
A: Yes, for No.F14L model, we have 60W, 80W, 100W, 120W, 150W, 180W for options.
Q: What's the warranty time of your products?
A: 5 years (from goods received), It depends on the different product. during the warranty time, we are responsible for the quality issues.We will help to find the problem and solve it.Or send you new products.
Q: Would you please send me sample to Chinese warehouse?
A: Yes, please kindly let me know the warehouse address& zipcode.
Q: Could you add my LOGO to your lamp?
A: Yes, surely, please kindly send us LOGO file by JPG/PDF.
Q: What driver you can use in the LED street light?
A:Meanwell driver,inventronics driver,BOPIN driver,SOSEN driver and so on.Customized is accept.
We also can supply Dimming control,DALI control,10kv surge protection driver.
Q: Do your street light can use in smart city control system?
A: Yes.
