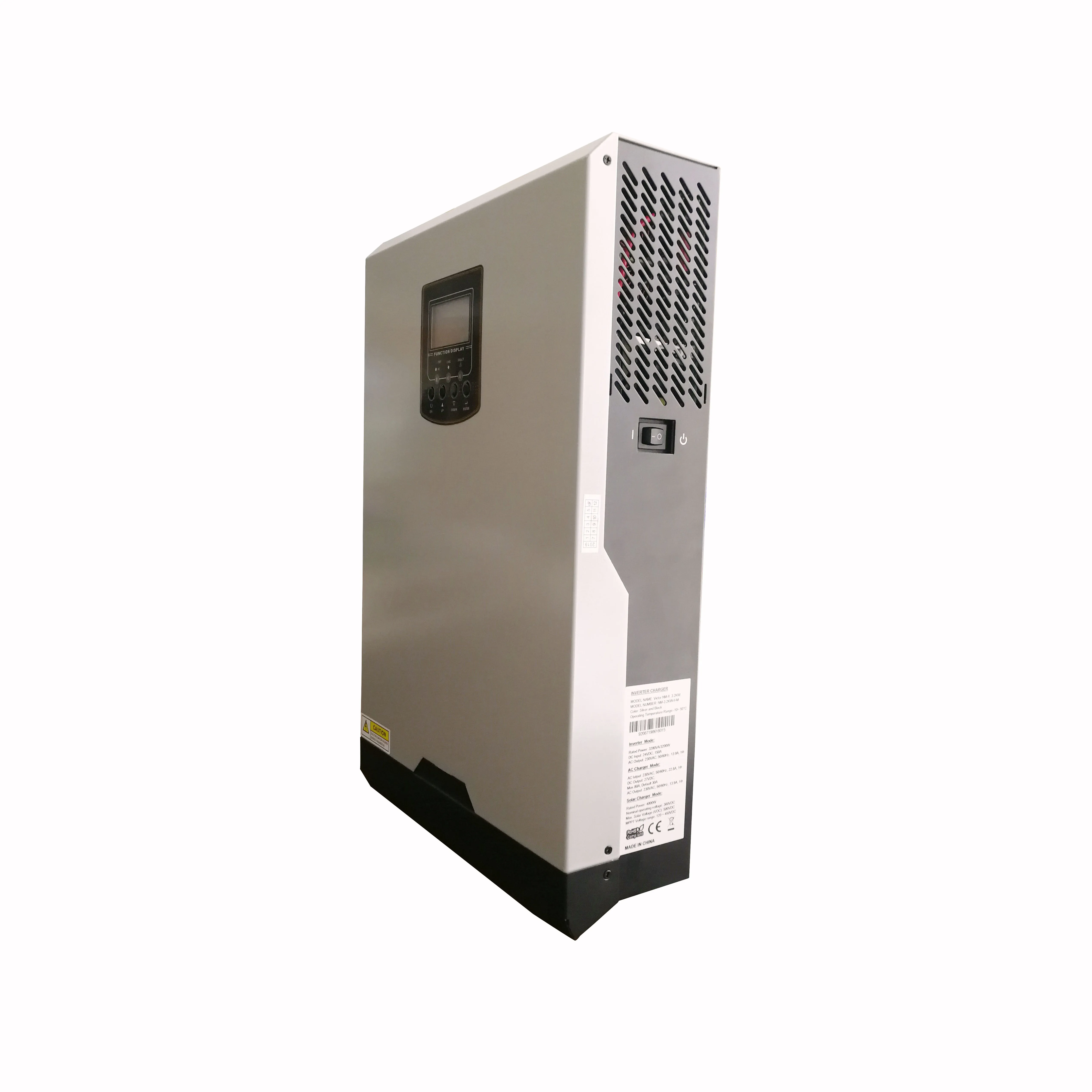

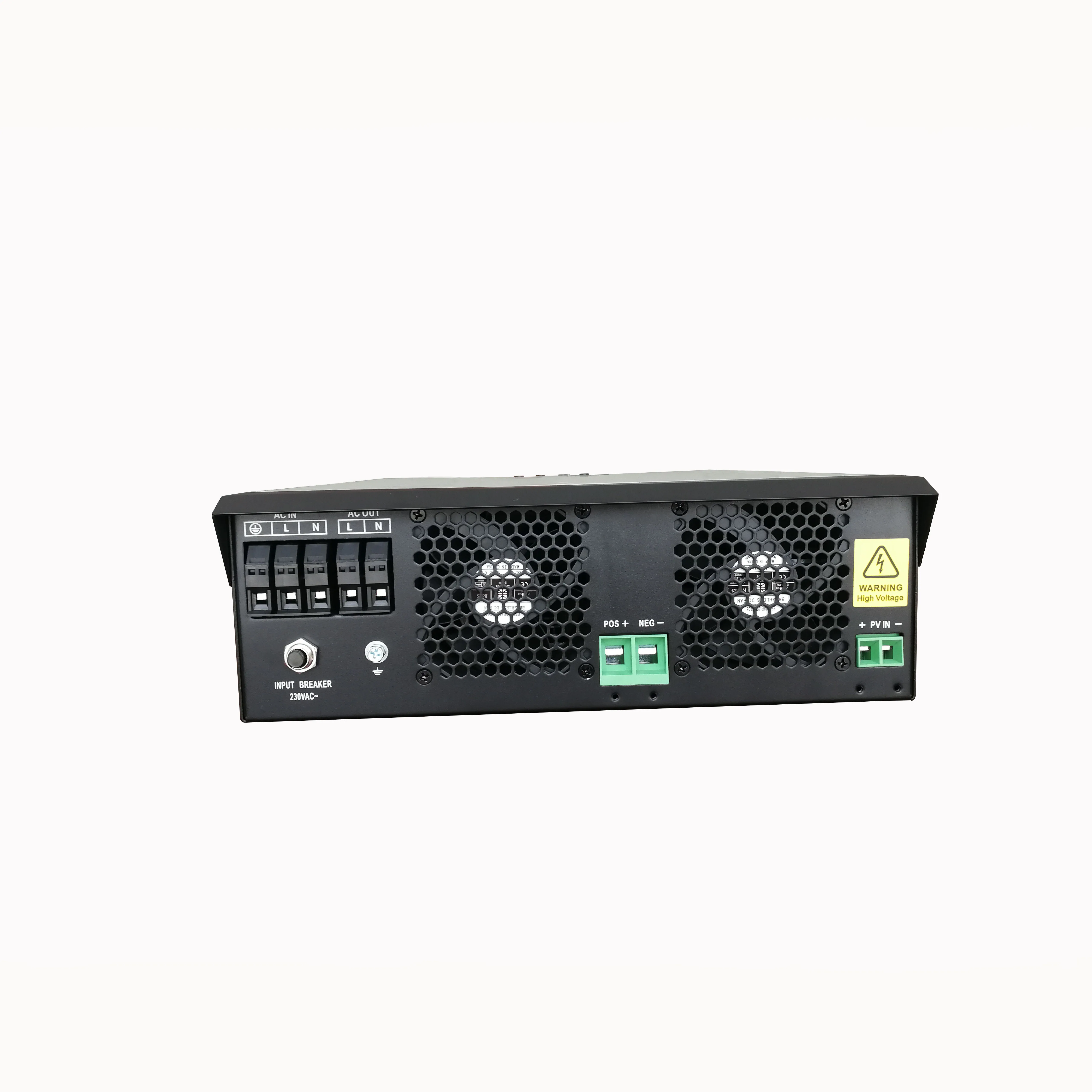

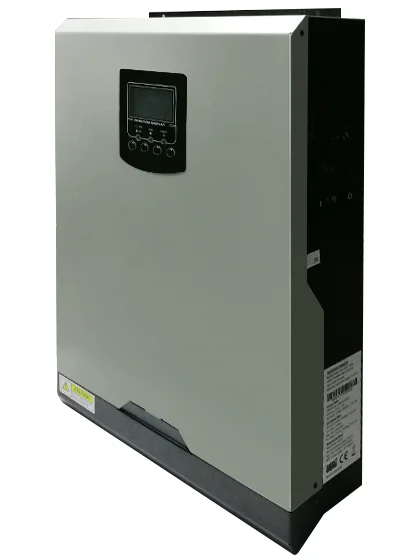

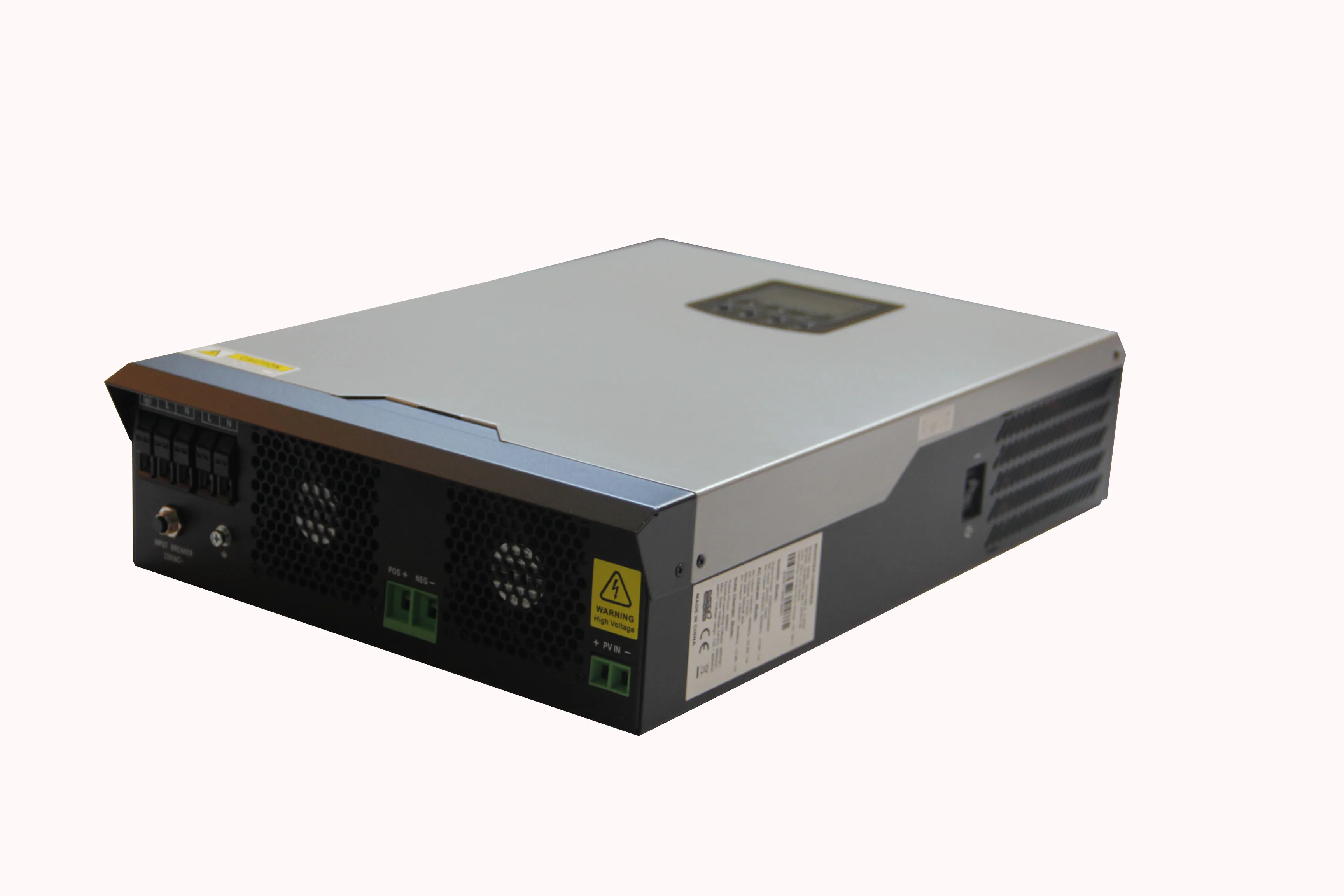

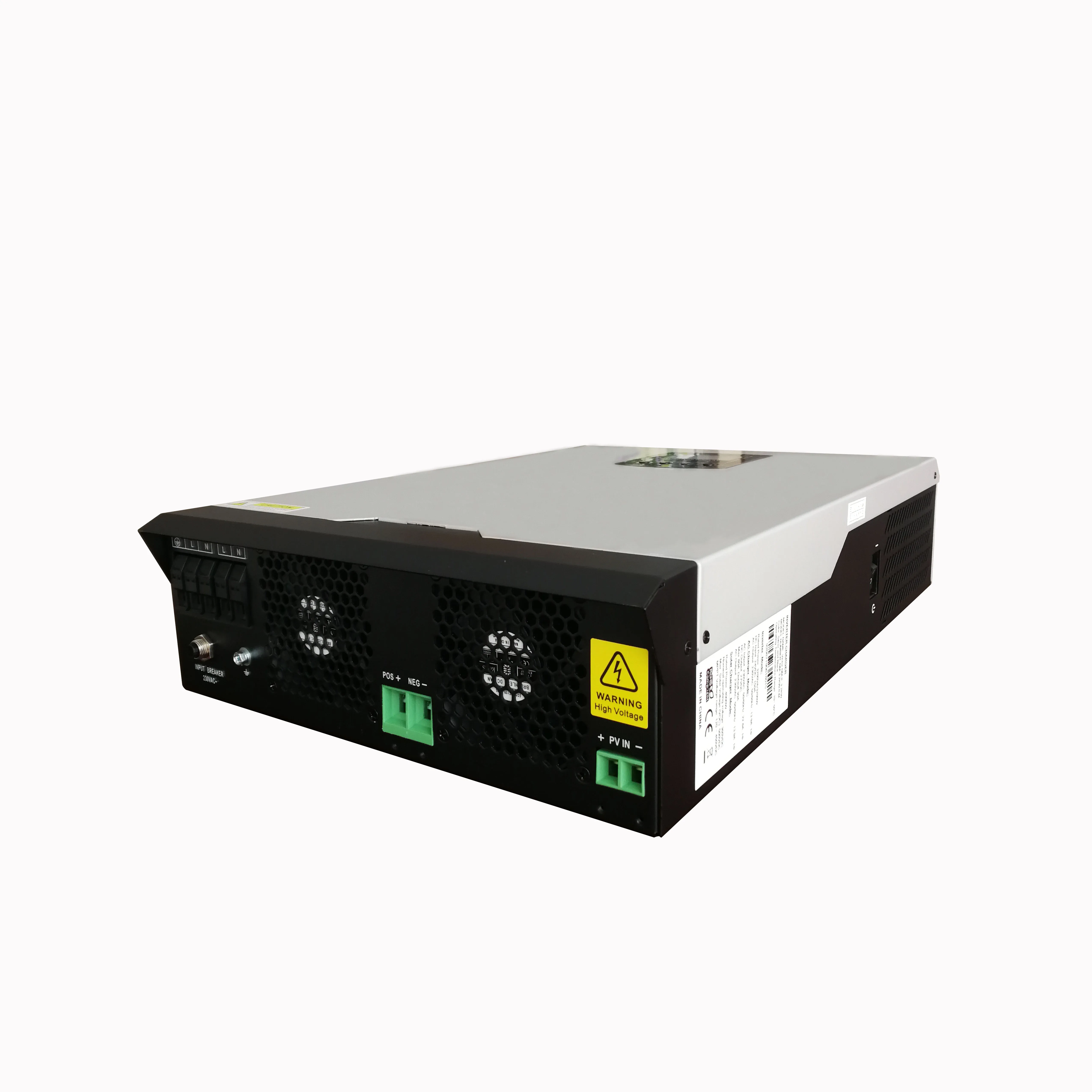

Victor NM II 5000 48 all in one Solar Inverter With Built In MPPT Solar Charge Controller
- Category: >>>
- Supplier: Shenzhen Next Power Technology Co. Ltd.
Share on (62183311952):
Product Overview
Description
Product Description
Product Advantages
1, High efficiency pure sine wave inverter(PF=1)
2, Wide PV input range(120Vdc-500Vdc) 80A MPPT SCC; intelligent 3 stage 60A/80A AC charger
3, Surges to 2X continuous power for 5 seconds for motor loads
4, Intelligent functionality enables utility and solar input prioritization
5, Wide utility input range (90VAC---280VAC) for unreliable grid even
6,In the most challenging environment
7,Field serviceable with replacement boards and spare parts
8, Monitor,troubleshoot,or communication with USB,RS232,WIFI,GPRS
9, System configures quickly into compact, wall-mounted system
10, Working without batteries in sun day

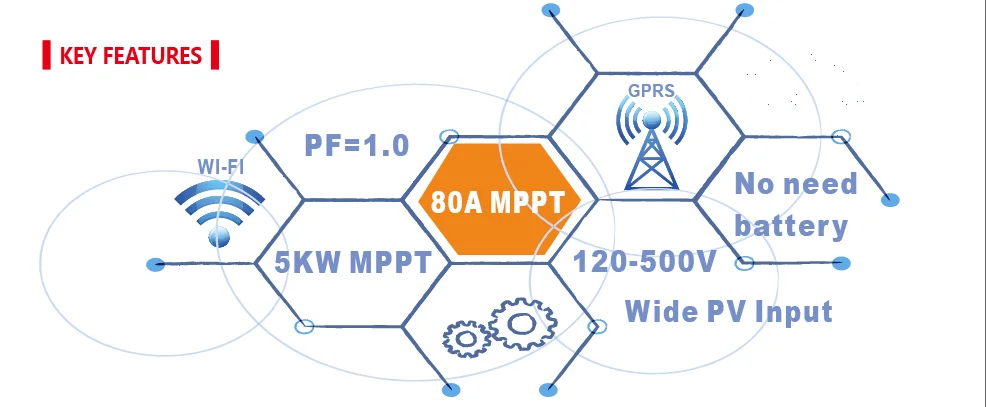

NM II Key Features
Specifications
Model | Victor NM II-3200-24 | Victor NM II-5000-48 |
RATED POWER | 3200VA/3200W | 5000VA/5000W |
INPUT | ||
| AC INPUT | ||
Voltage | 230 VAC | |
Selectable Voltage Range | 170-280 VAC (For Personal Computers) | |
90-280 VAC (For Home Appliances) | ||
Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
| AC OUTPUT | ||
AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% | |
Surge Power | 6400VA | 10000VA |
Efficiency (Peak) PV to INV. | 97% | |
Efficiency (Peak) Battery to INV. | 94% | |
Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) | |
Waveform | Pure sine wave | |
| BATTERY & AC CHARGER | ||
Battery Voltage | 24 VDC | 48 VDC |
Floating Charge Voltage | 27 VDC | 54 VDC |
Overcharge Protection | 33 VDC | 63 VDC |
Maximum Charging Current | 80 A | 60 A |
| SOLAR CHARGER | ||
Maximum PV Array Power | 4000W | 5000W |
MPPT Range @ Operating Voltage | 120 ~ 450 VDC | |
Maximum PV Array Open Circuit Voltage | 500 VDC | |
Maximum Charging Current | 80A | |
Maximum Efficiency | 98% | |
| PHYSICAL | ||
Dimension, D x W x H (mm) | 100 x 300 x 440 | |
Net Weight (kgs) | 9 | 10 |
Communication interface | USB/RS232/GPRS/WIFI | |
| OPERATING ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
Operating Temperature | 0°C - 55°C | |
Storage Temperature | –15°C - 60°C | |
