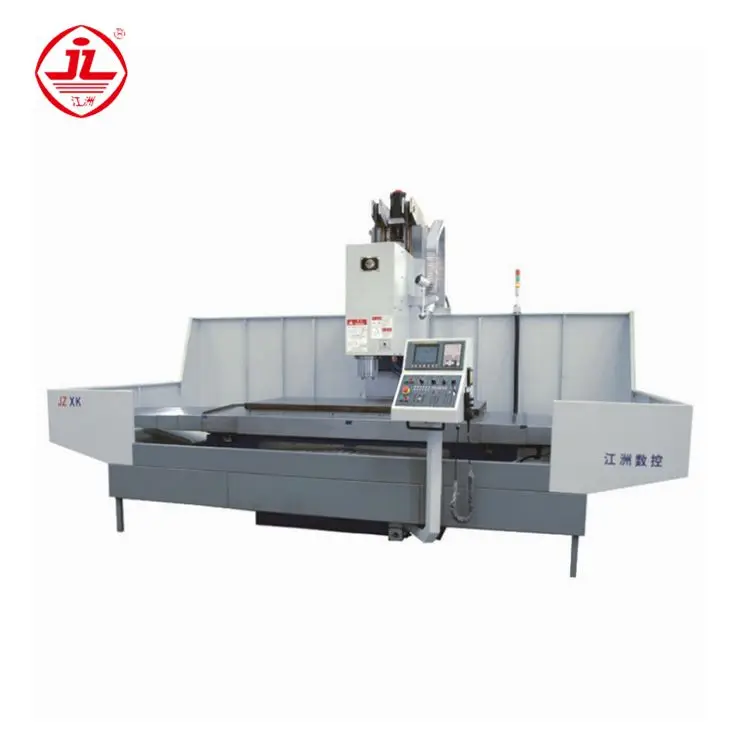

XK719 China taiwan high speed cnc bed type milling machine
- Category: CNC Milling Machines >>>
- Supplier: TAIZHOU JIANGZHOU NUMBER-CONTROLLED MACHINE TOOL MANUFACTURE CO. LTD.
Share on (62183342966):
Product Overview
Description
XK719 China taiwan cheap high speed cnc bed type milling machine
Product Description
| Item | XK714 | XK715 | XK716 | XK717 | XK718 | XK719 |
| Worktable Size(mm) | 400×840 | 500×1050 | 600×1300 | 710×1400 | 800×1700 | 900×2000 |
| Worktable T-grooves(mm) | 3~18 | 3~18 | 5~18 | 5~18 | 5~22 | 5~22 |
| Travel(X,Y,Z)(mm) | 650×400×500 | 800×500×550 | 1000×600×600 | 1300×700×650 | 1500×800×700 | 1800×900×800 |
| Distance between Spindle & Worktable(mm) | 125-625 | 150-700 | 180-780 | 150-800 | 170-870 | 160-960 |
| Distance between Spindle Center & Z-axis Guidewheel Surface(mm) | 495 | 550 | 600 | 785 | 800 | 950 |
| Taper of Spindle | BT40 | BT40 | BT40 | BT50 | BT50 | BT50 |
| Max.RPM of Spindle(rpm) | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 |
| Motor Power of Spindle(kw) | 5.5/7.5 | 5.5/7.5 | 9/11 | 15 | 15 | 15 |
Feeding Rate(mm/min) | 1-5000 | 1-5000 | 1-5000 | 1-5000 | 1-5000 | 1-5000 |
| Positioning Accuracy(mm) | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 |
| Repeated Positioning Accuracy(mm) | ±0.005 | ±0.005 | ±0.005 | ±0.005 | ±0.005 | ±0.005 |
| Machine Weight(kg) | 3200 | 4500 | 7000 | 11200 | 13500 | 14000 |
Overall Dimension (mm) | 2450×2200 ×2660 | 2700×2200 ×2660 | 3400×2250× 2800 | 4000×2300× 2900 | 4420×2350× 3200 | 4450×2400× 3200 |
| Worktable Loading Capacity(kg) | 500 | 600 | 800 | 1000 | 1500 | 1600 |
| Homepage | Get back to homepage! | Price | Get the latest price here! | |||
Introduction
The CNC milling machine has the following advantages:
- Good rigidity, high precision, low noise, reasonable price and easy to operate and maintain.
- It can automatically mill planes, grooves, inclined planes and various complex curved surfaces and drilling, reaming, etc.
- The machine tool has a large range of applications, wide applicability and superior performance.
- It is especially suitable for mold processing.
Main Features
- High reliability and excellent stability
- German Siemens or Japanese Fanuc or Mitsubishi NC system
- three-axis linkage or four-axis linkage
- Imported bearing
- Imported coupling
- High-quality resin sand cast parts

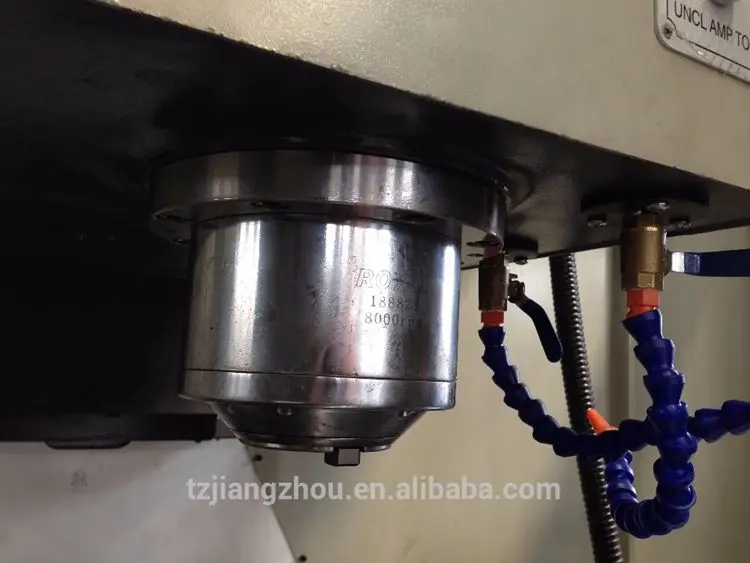

- Taiwan made spindle, unclamping cylinder, precision ball screw and locking nut
- Part programming
- Error compensation
- Drilling and milling processing functions
Production Details
 |  |
 |  |
Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem, we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you as usual.
1.Technical support online service provided .
2.Technical files service provided.
3.Machine operation video provided
4.On-site training service provided.
5.Spare parts replacement and repair service provided.
6.All of the questions will be replied within 24 hours
Main Products
Company Information
1. 20 years experience in research, development and manufacture of cnc machine tool.
2. Covering an area of about 1500 square meters, Jiangzhou is equipped with professional engineers, skilled workers and scientific management system.
3. Reliable sale and after-sale service.
Certifications
Packing and Delivery
Packing Details : To be packed in wooden cases,suitable for export
Delivery Details : 15-20 days after receipt of deposit
FAQ
Q: What information will you need to make the proposal?
A: The worktable size and worktable travel, your special requirements.
Q: Are you a manufacturer or trade company?
A: We are the professional manufacturer of cnc machine tool, commited to this field for above 20 years.
Q: Do you provide training and maintenance?
A: Yes. In order to make your production more efficient, after signing contract, you can send someone to my company for professional operation training.
