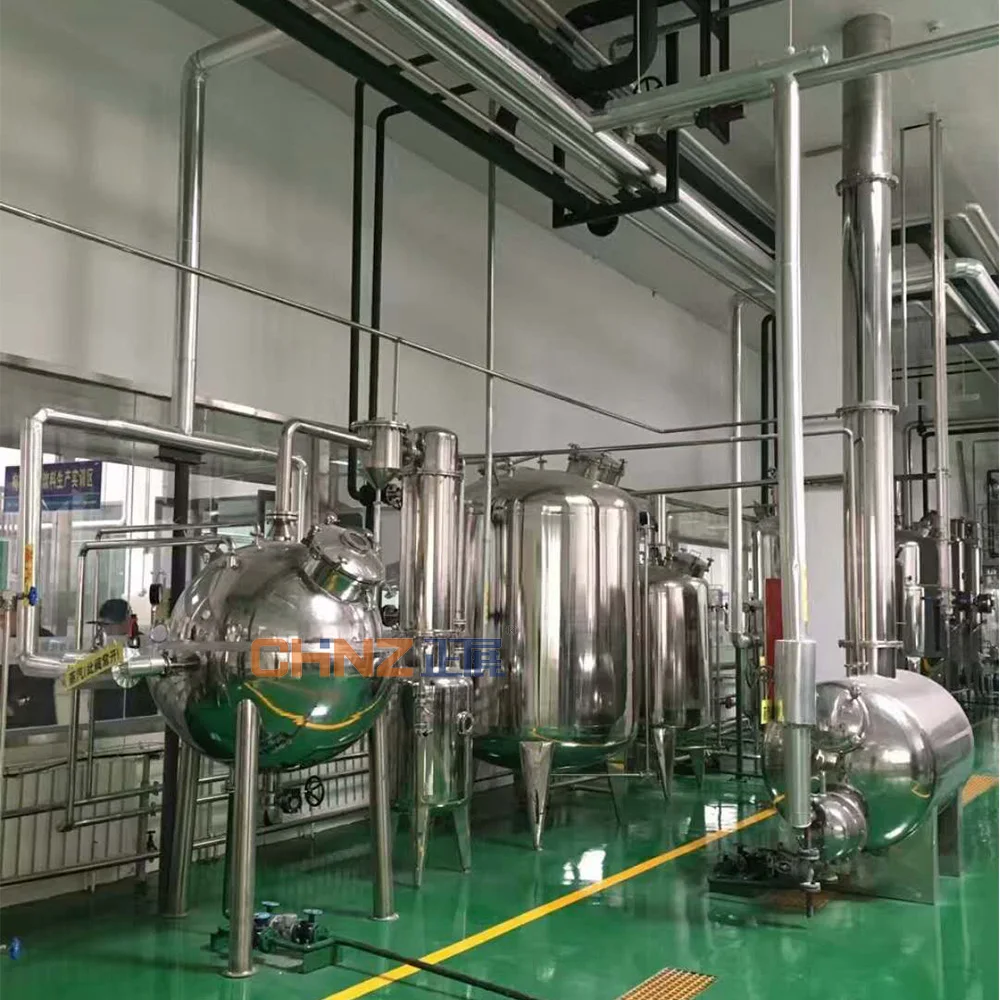

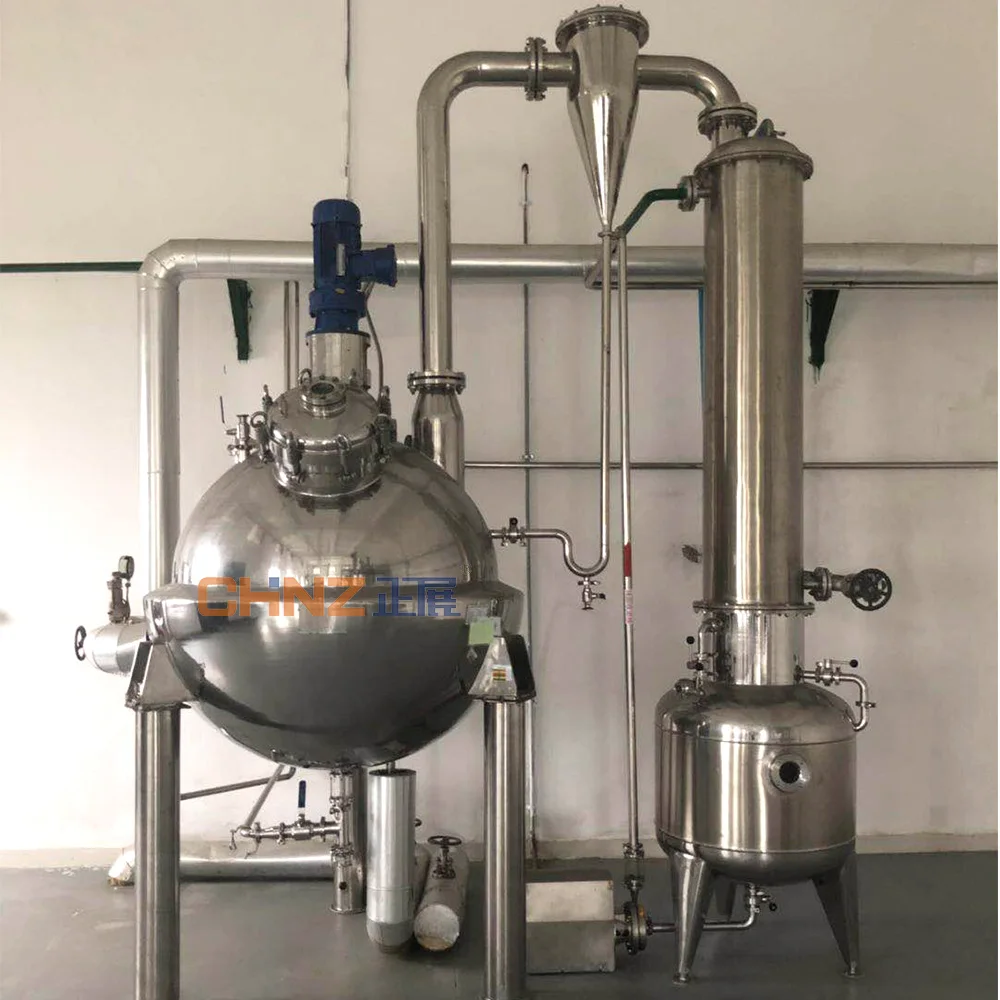

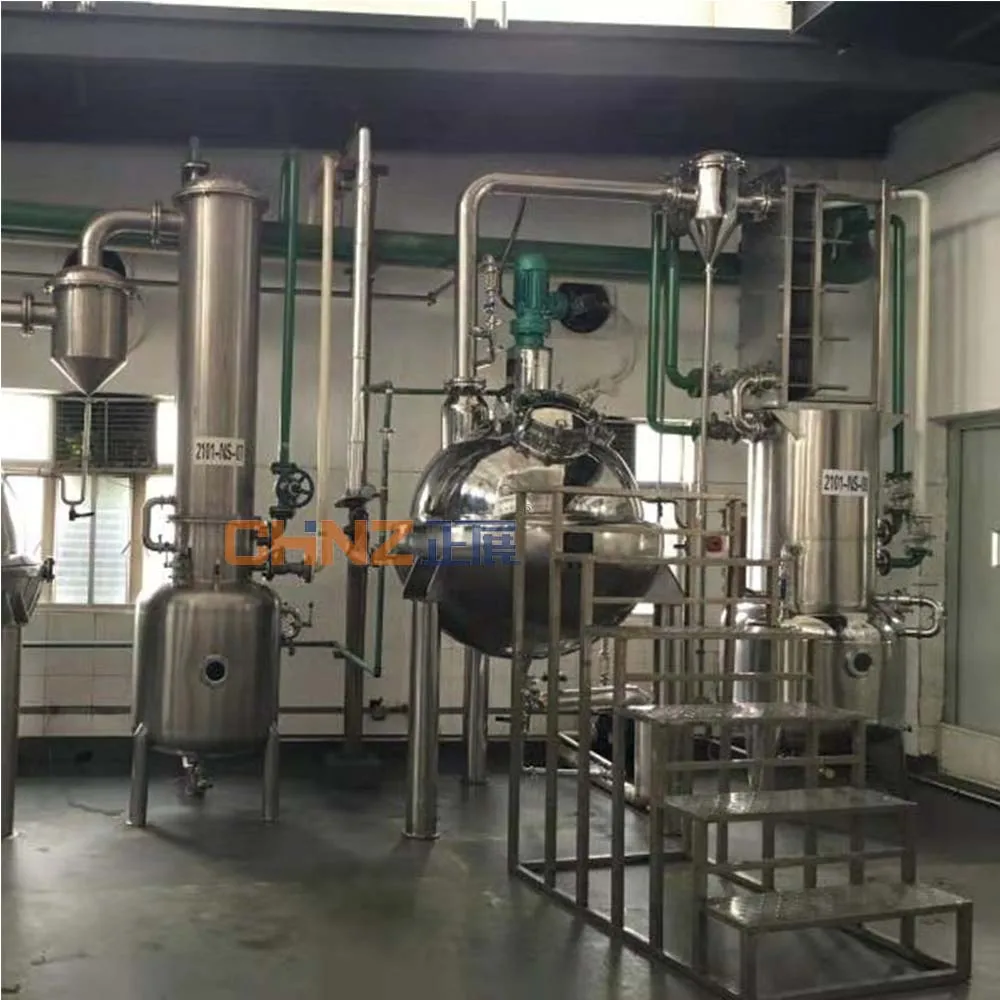

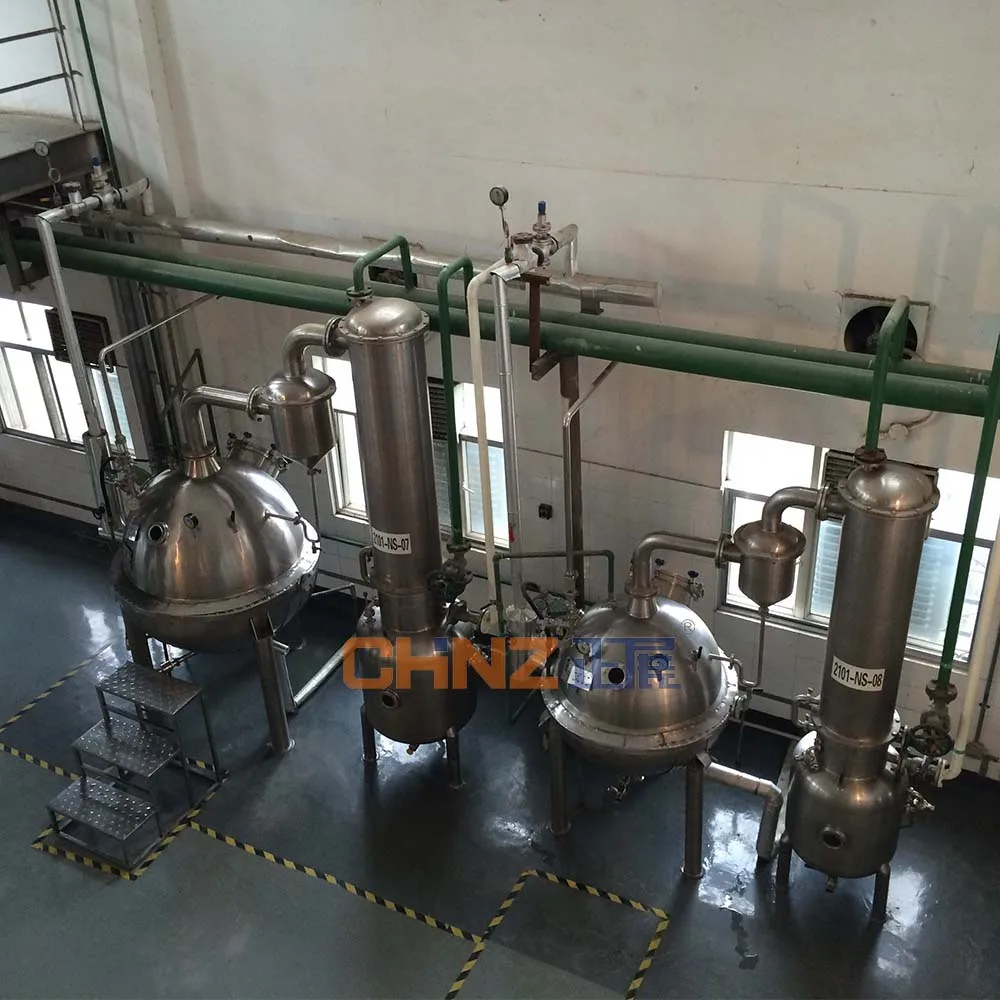

QN series ball type vacuum concentrator Spherical concentrator
- Category: >>>
- Supplier: Wenzhou Chinz Machinery Co. Ltd.
Share on (62183686162):
Product Overview
Description
Products Description
Application
QN series roundness vacuum concentrator ( concentration tank) serves to Chinese herbal medicine, western medicine, food, glucose, juice, candy, chemical engineering etc. The vacuum of the liquid concentrated, crystallize, recyle, distil, alcohol recovery etc. It is very suitable for the high viscosity and very thickness material.

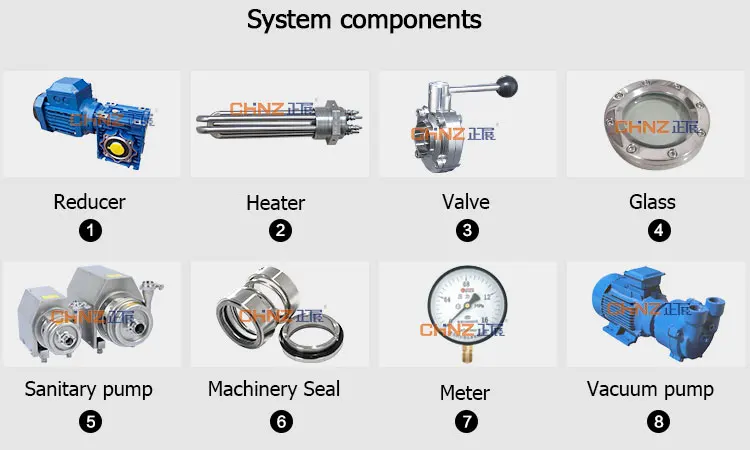

Component
1. This equipments primarily contain concentration tank, condensator and gas-liquid separator. The concentration under reduced pressure brings short time of concentration and prevent the destruction of effective content in the thermal sensitive material.
2. The part in contact with the material is made of stainless steel brings qualified anti-corrosion performance
2. The part in contact with the material is made of stainless steel brings qualified anti-corrosion performance
Advantage
1) The device has the functions of heating and heat preservation. It is manufactured, pressure-tested and checked in accordance with the .
2) The standard specification from 100L to 7000L and order-design or order-manufacture are all available.
3) The joint is of quick-acting type in compliance with ISO standard. The inner part is made of SUS316L or SUS304. The tanks body are respectively fluid level gauge (the mode is non-contact supersonic, static-pressure transmission or glass tube), breathing apparatus, sterilization steam opening,the thermometer (digital-indicated type or dial type), CIP universal tank-cleaning device, view mirror at lamp hole, some fluid inlets & outlets and herringbone hole.
2) The standard specification from 100L to 7000L and order-design or order-manufacture are all available.
3) The joint is of quick-acting type in compliance with ISO standard. The inner part is made of SUS316L or SUS304. The tanks body are respectively fluid level gauge (the mode is non-contact supersonic, static-pressure transmission or glass tube), breathing apparatus, sterilization steam opening,the thermometer (digital-indicated type or dial type), CIP universal tank-cleaning device, view mirror at lamp hole, some fluid inlets & outlets and herringbone hole.
Product Paramenters
Model and specification | QN-300 | QN-500 | QN-700 | QN-1000 | |||||
Evaporation capacity(kg/h) | 60 | 100 | 145 | 198 | |||||
Volume(L) | 300 | 500 | 700 | 1000 | |||||
Jacket pressure(Mpa) | 0.09 ~ 0.25 | ||||||||
Vacuum degree(Mpa) | -0.06 ~ -0.08 | ||||||||
Heating area(㎡） | 1.3 | 1.6 | 2 | 2.8 | |||||
Condensation area(㎡） | 6 | 8 | 10 | 12 | |||||
Overall size(mm） | Length | 1900 | 2030 | 2100 | 2335 | ||||
Width | 1100 | 1200 | 1300 | 1520 | |||||
Height | 2300 | 2500 | 2600 | 2765 | |||||

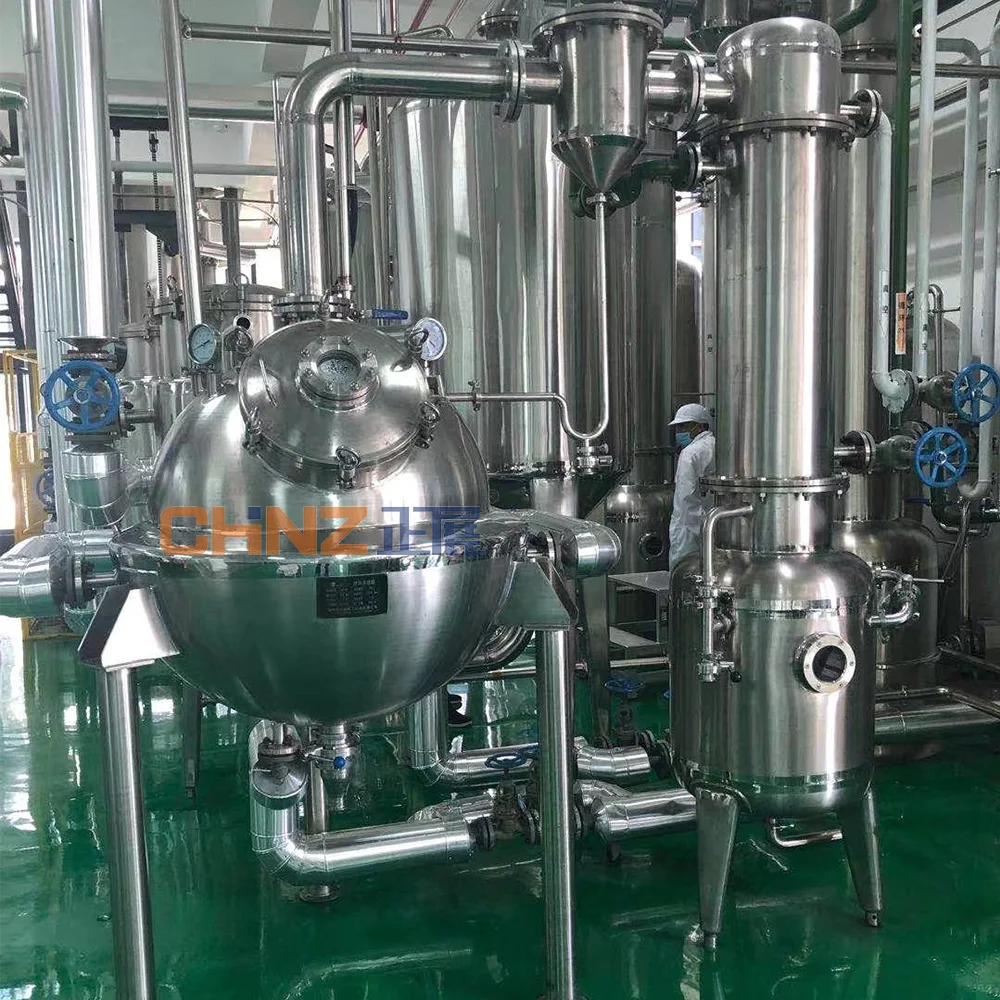

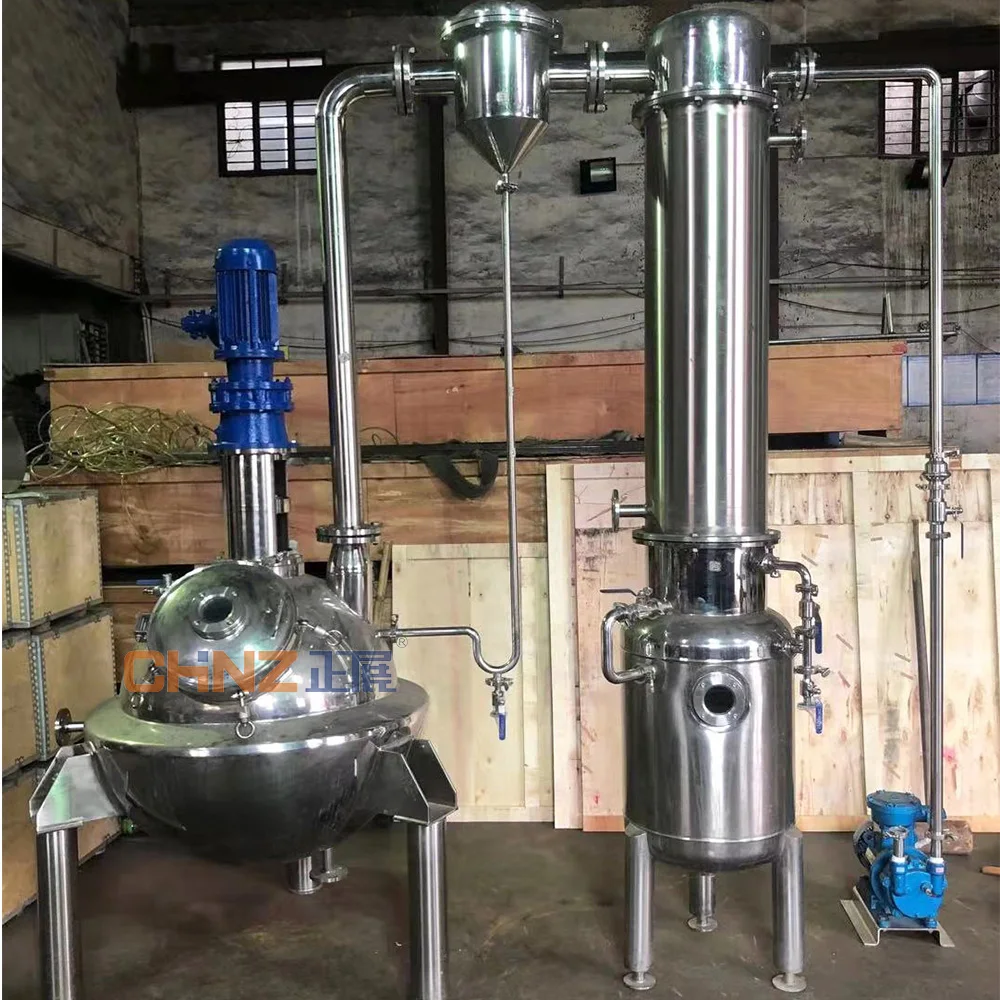

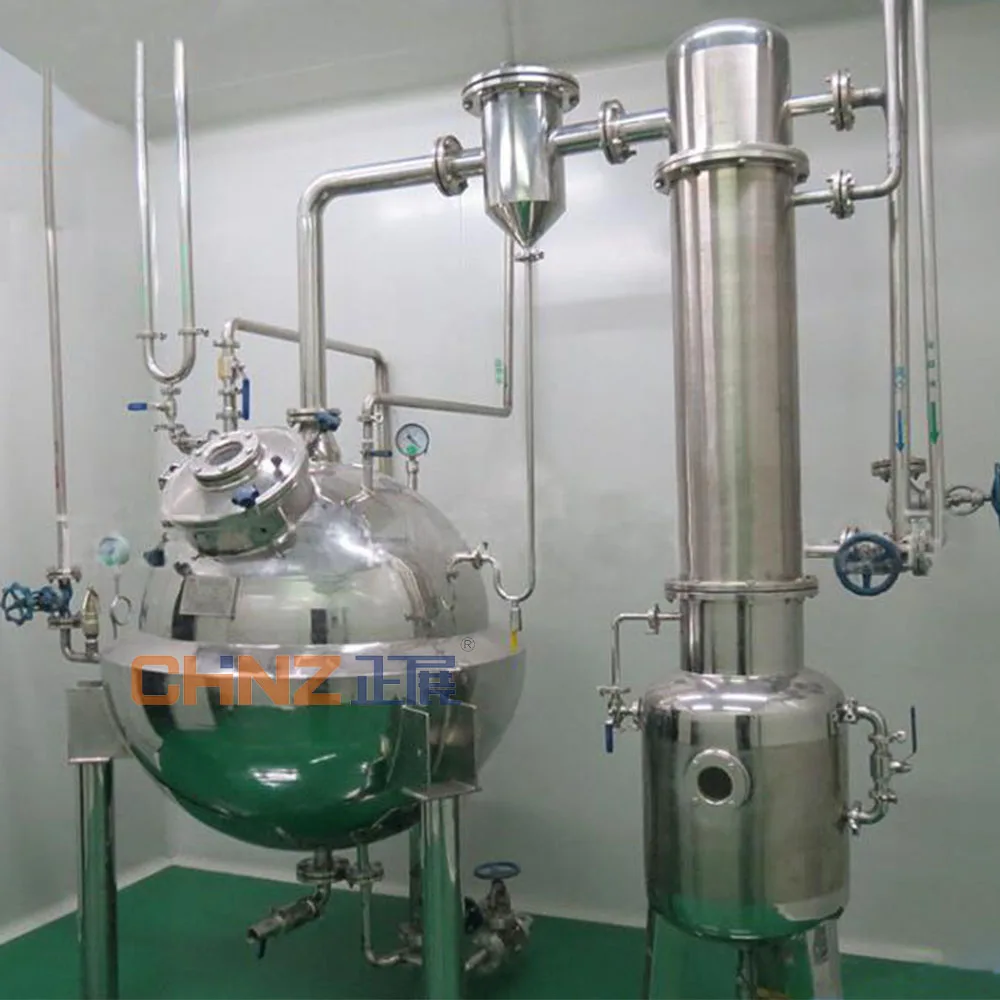

Details Images
Certifications
Company Profile
Wenzhou CHINZ Machinery Co., Ltd is a high-technology enterprise integrating biochemical pharmaceutical equipment, milk food andbeverage industry, chemical industry and other hygiene level fluid equipment design, manufacturing, service.
CHINZ enterprise has been wholeheartedly dedicating to the mechanical engineering and high precise hygienic fluid equipment research and development for a long time. Through technical accumulation and external cooperation for many years, the company has successfully developed various specifications of methanol and ethanol recovery unit, low temperature enrichment device.multiple effect evaporator concentrator, and multi-functional extraction tank .
CHINZ enterprise is always persisting in the business philosophy of survival with quality, development with technological
innovation, in the control point related the quality. our company implements the whole process monitoring, keeps improving in each procedure and every link strictly controls the quality, makes the product conforming with GMP standards, ensures the CHINZ product quality.
CHINZ enterprise has been wholeheartedly dedicating to the mechanical engineering and high precise hygienic fluid equipment research and development for a long time. Through technical accumulation and external cooperation for many years, the company has successfully developed various specifications of methanol and ethanol recovery unit, low temperature enrichment device.multiple effect evaporator concentrator, and multi-functional extraction tank .
CHINZ enterprise is always persisting in the business philosophy of survival with quality, development with technological
innovation, in the control point related the quality. our company implements the whole process monitoring, keeps improving in each procedure and every link strictly controls the quality, makes the product conforming with GMP standards, ensures the CHINZ product quality.

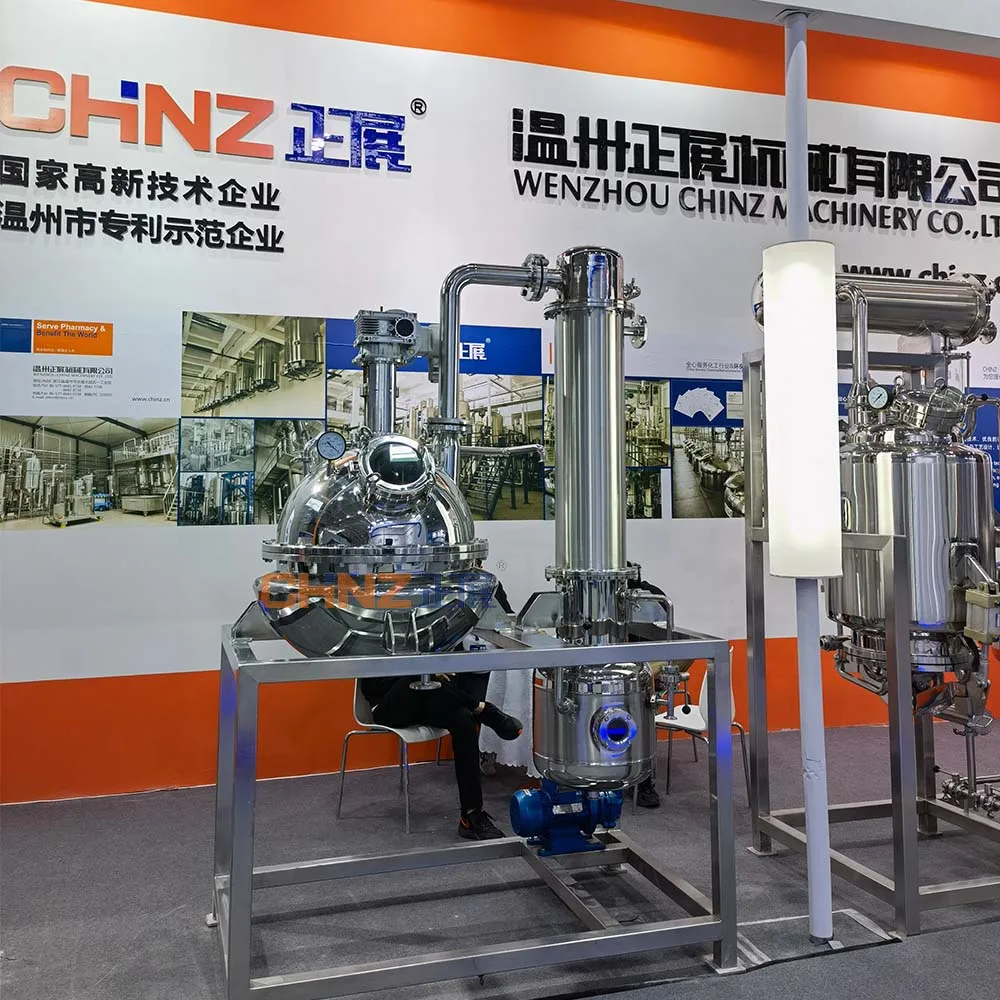

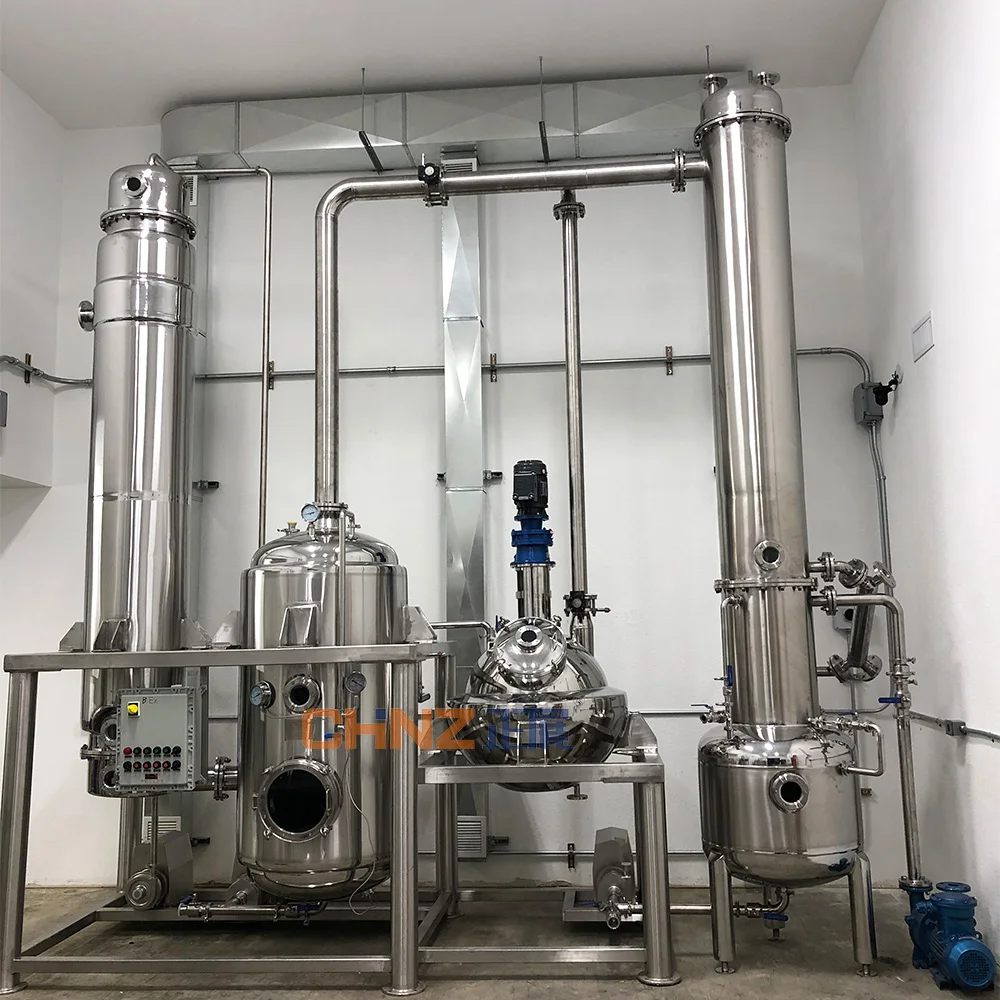

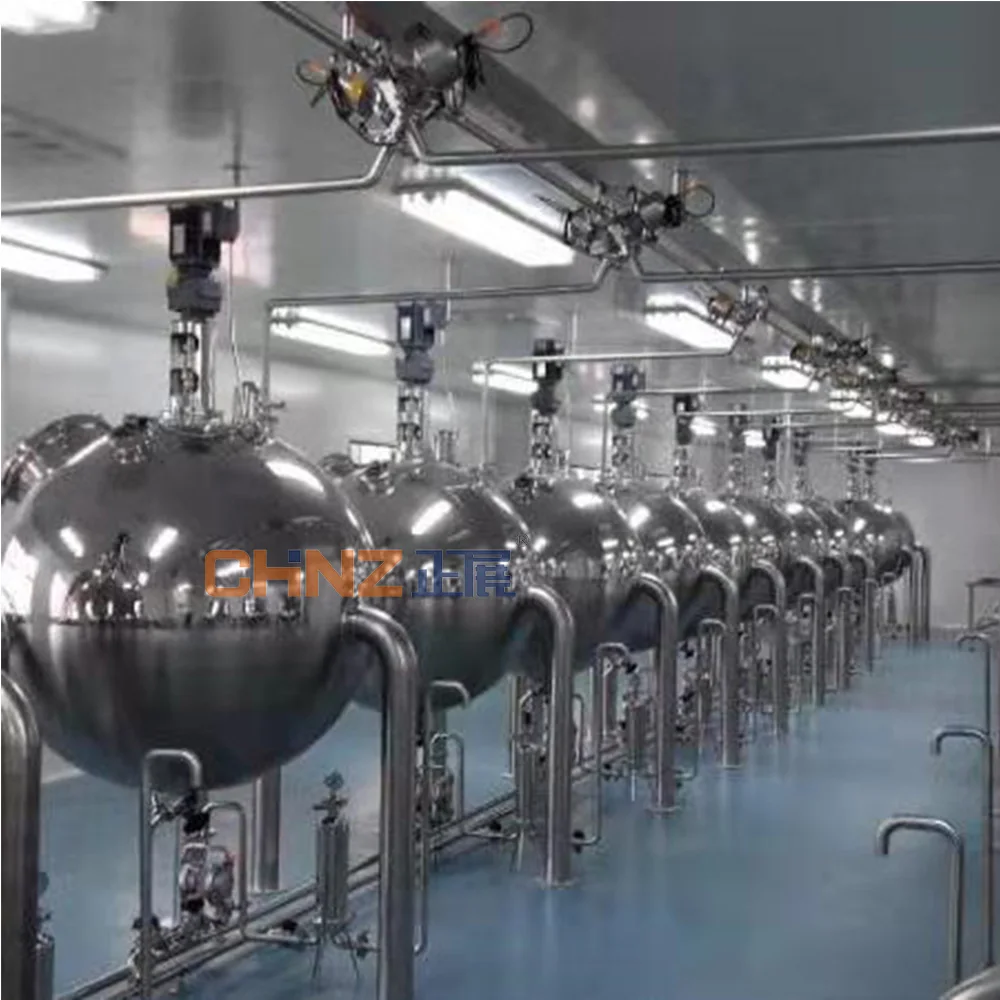

Customer Photos
Product packaging
FAQ
1. What about your factory?
Our factory is located in Wenzhou and have more than 15 years experience on machinery making .
2. How will you control the quality and delivery?
All our machines will be tested before packaging. Teaching video and packing pictures will be sent to you for checking,we promise that our wooden packaging is strong enough and safety for long delivery .
3. How to finish installing?
We can guide you through the video or photos first . If the customer need to installing on site that our engineer can be sent to your country. but customer should pay the air tickets. besides, customer should arrange the accommodation for them during the trip.
4. What do we do if we encounter problem about the machine ?
Showing us the picture or video of the problem. If the problem can be solved by your workers, we will send you solution by video or pictures. If the problem out of your control, our engineer will be sent to your factory (customer will pay the fee during the trip.
5. How about warranty and spare parts?
We provide 1years warranty for the machine,and most of the parts can be found in local market or you also can buy the parts from us .
Our factory is located in Wenzhou and have more than 15 years experience on machinery making .
2. How will you control the quality and delivery?
All our machines will be tested before packaging. Teaching video and packing pictures will be sent to you for checking,we promise that our wooden packaging is strong enough and safety for long delivery .
3. How to finish installing?
We can guide you through the video or photos first . If the customer need to installing on site that our engineer can be sent to your country. but customer should pay the air tickets. besides, customer should arrange the accommodation for them during the trip.
4. What do we do if we encounter problem about the machine ?
Showing us the picture or video of the problem. If the problem can be solved by your workers, we will send you solution by video or pictures. If the problem out of your control, our engineer will be sent to your factory (customer will pay the fee during the trip.
5. How about warranty and spare parts?
We provide 1years warranty for the machine,and most of the parts can be found in local market or you also can buy the parts from us .
