Roller glass coating machine
US $30000
JFW2500 Good price automatic horizontal flat glass washing machine, LOW E glass cleaning machine with CE
- Category: Glass Production Machinery >>>
- Supplier: Foshan Global Jinfeng Machinery Co. Ltd.
Share on (62183815535):
Product Overview
Description
Product Description

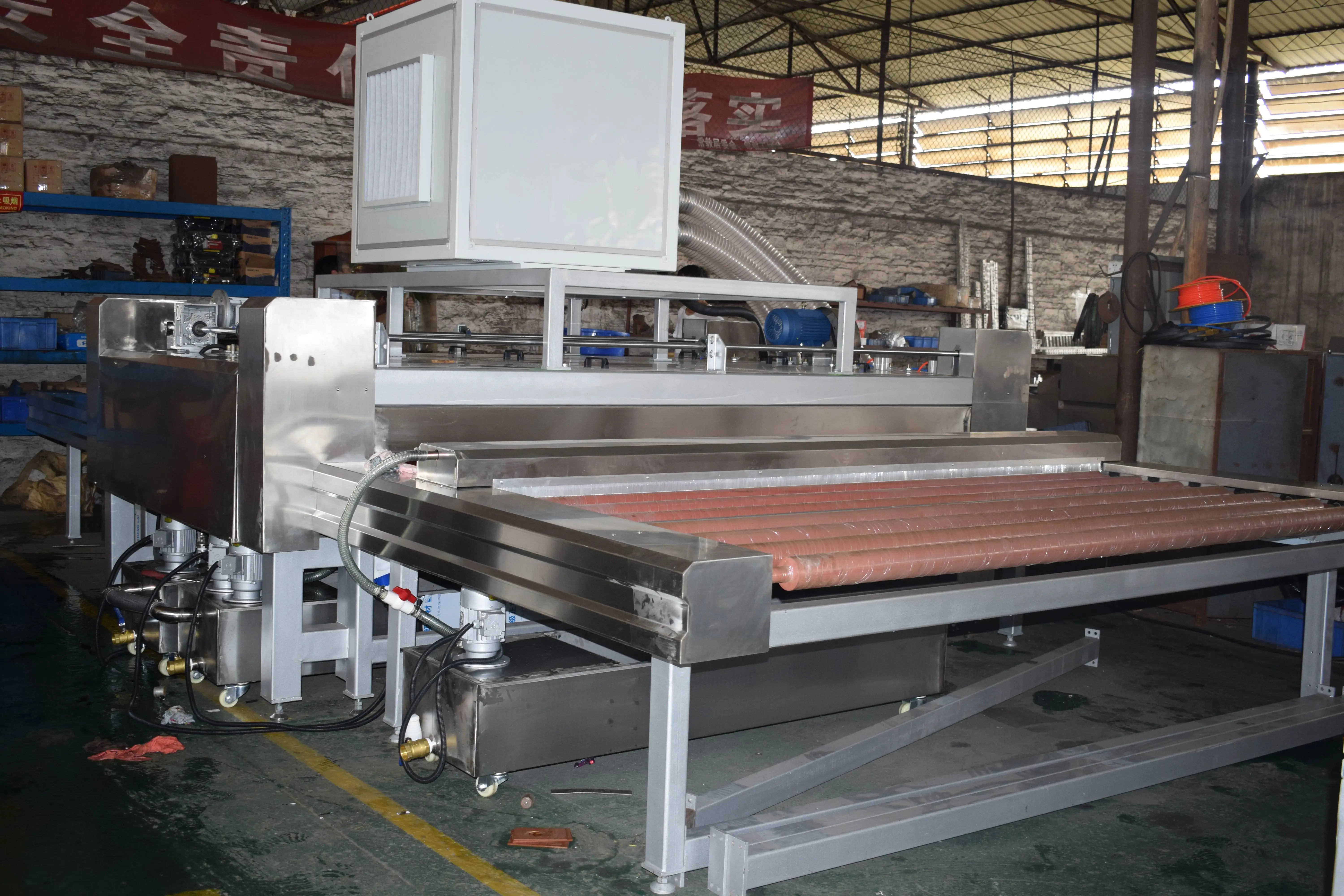

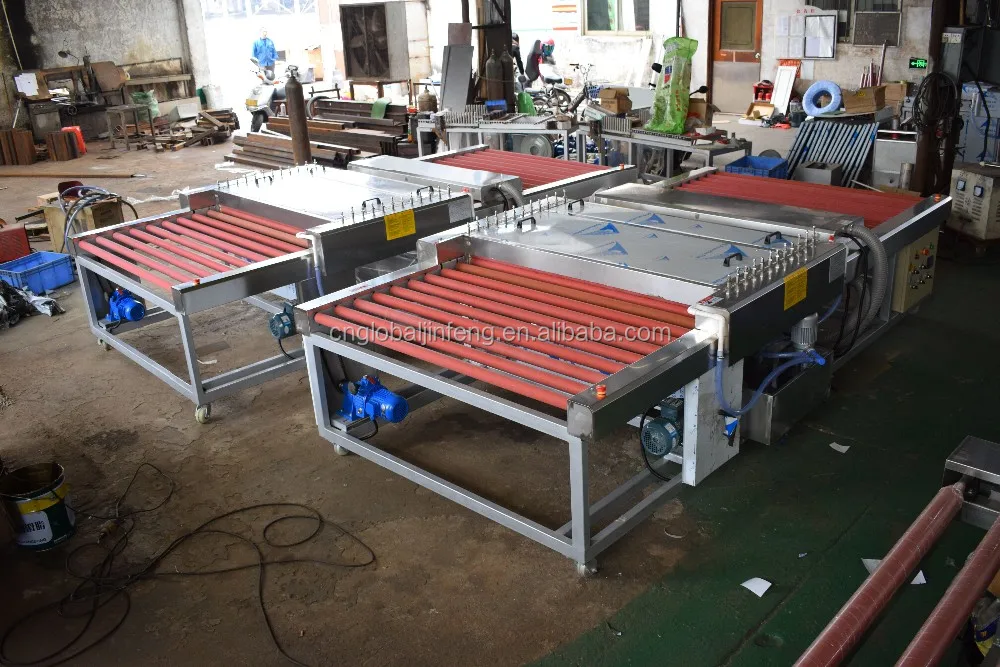

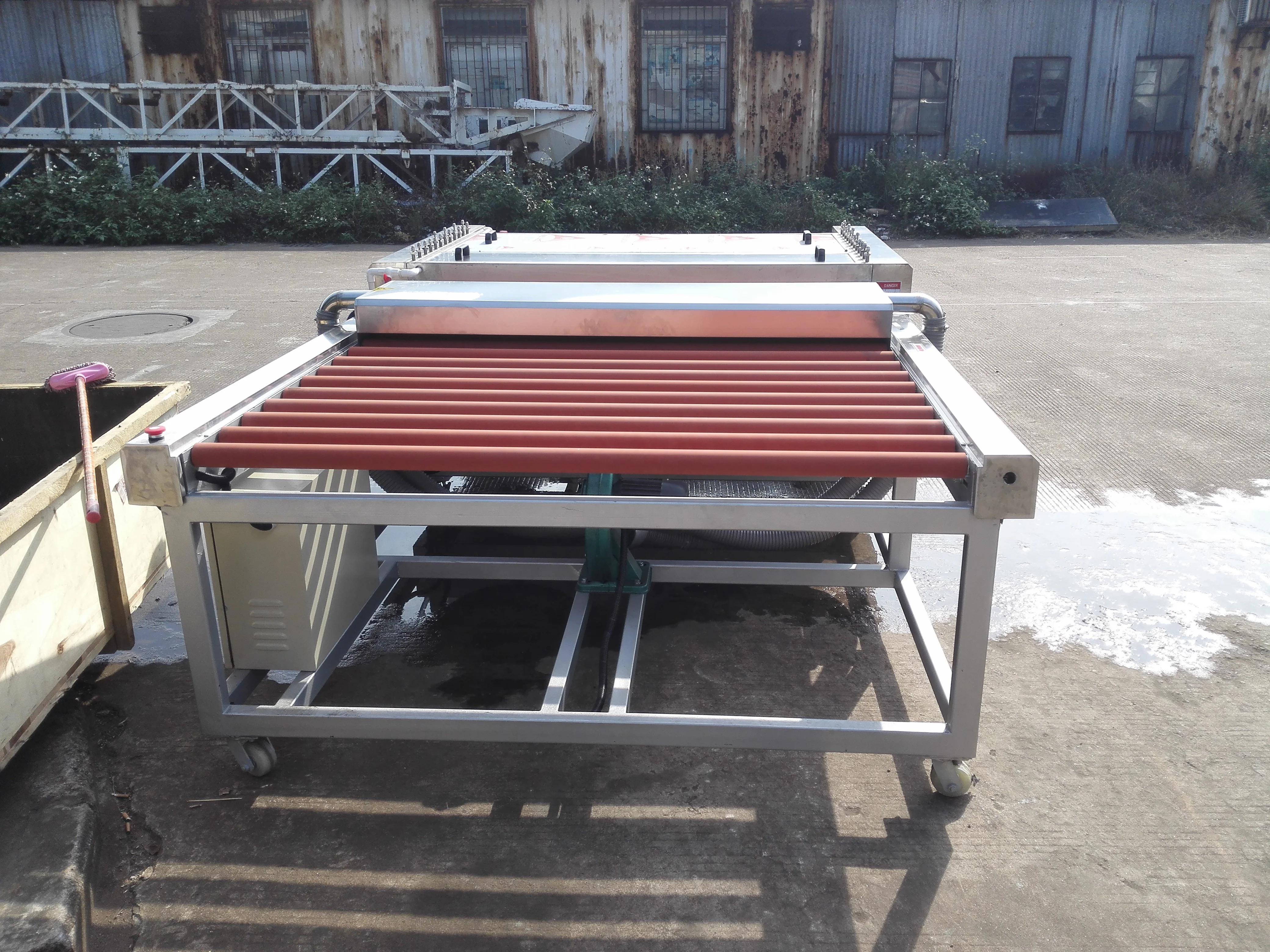

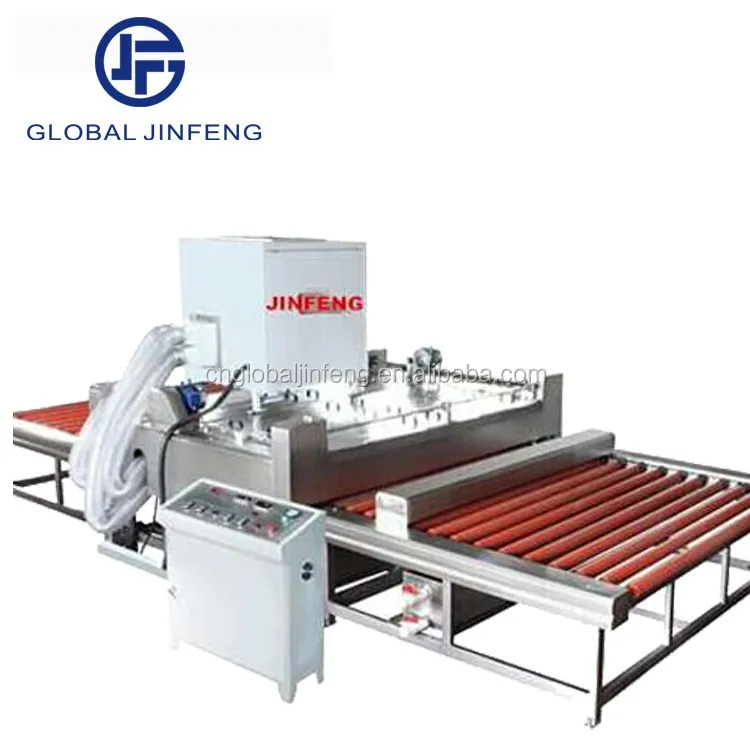

JFW2500 Good price automatic horizontal flat glass washing machine, LOW-E glass cleaning machine with CE
1.Installing stainless steel sump tank and high-pressure water spray in the feeding end which could make roller clean by itself and improve cleaning impact.
2.Using gear wheel to transmit ,variable frequency speed control ,digital display,easyoperation and beneficial for conecting production line .
3.Overall lift in cleaning and drying section,max lifting height is 400 meters,easy for cleaning internal roller and maintenance.
4.Adopting three pairs of brushes to clean,the former two are raised by cylinder,the third could clean a variety of LOW-E glass.
5.Using two pairs of professionally designed air knives with strong wind force and better impact.
Function | Flat glass washing and drying |
Type | Horizontal |
Advantage | With lifting part for both float and LOW-E glass washing |
Max glass width | 2500mm |
Glass thickness | 3-25mm |
Voltage | 380V/220V/415V and so on |
Details Images

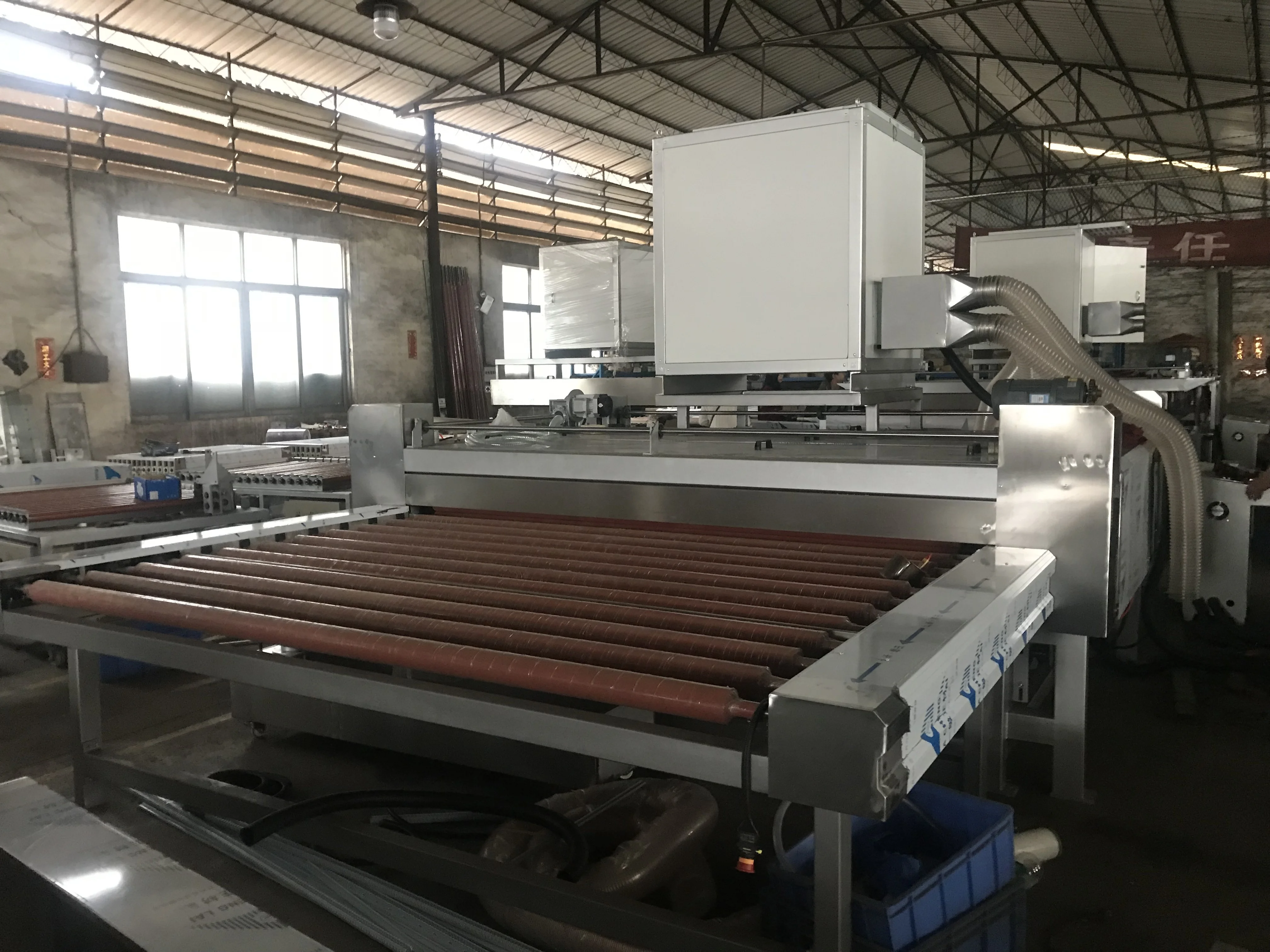

2500 series glass washer is specially designed for supporting various tempering furnaces and laminated glass production lines. Washable LOW- is mainly composed of four major organizations: transportation, cleaning, strong wind, and inspection. It has strong decontamination ability, cleanliness, and good air-drying effect.

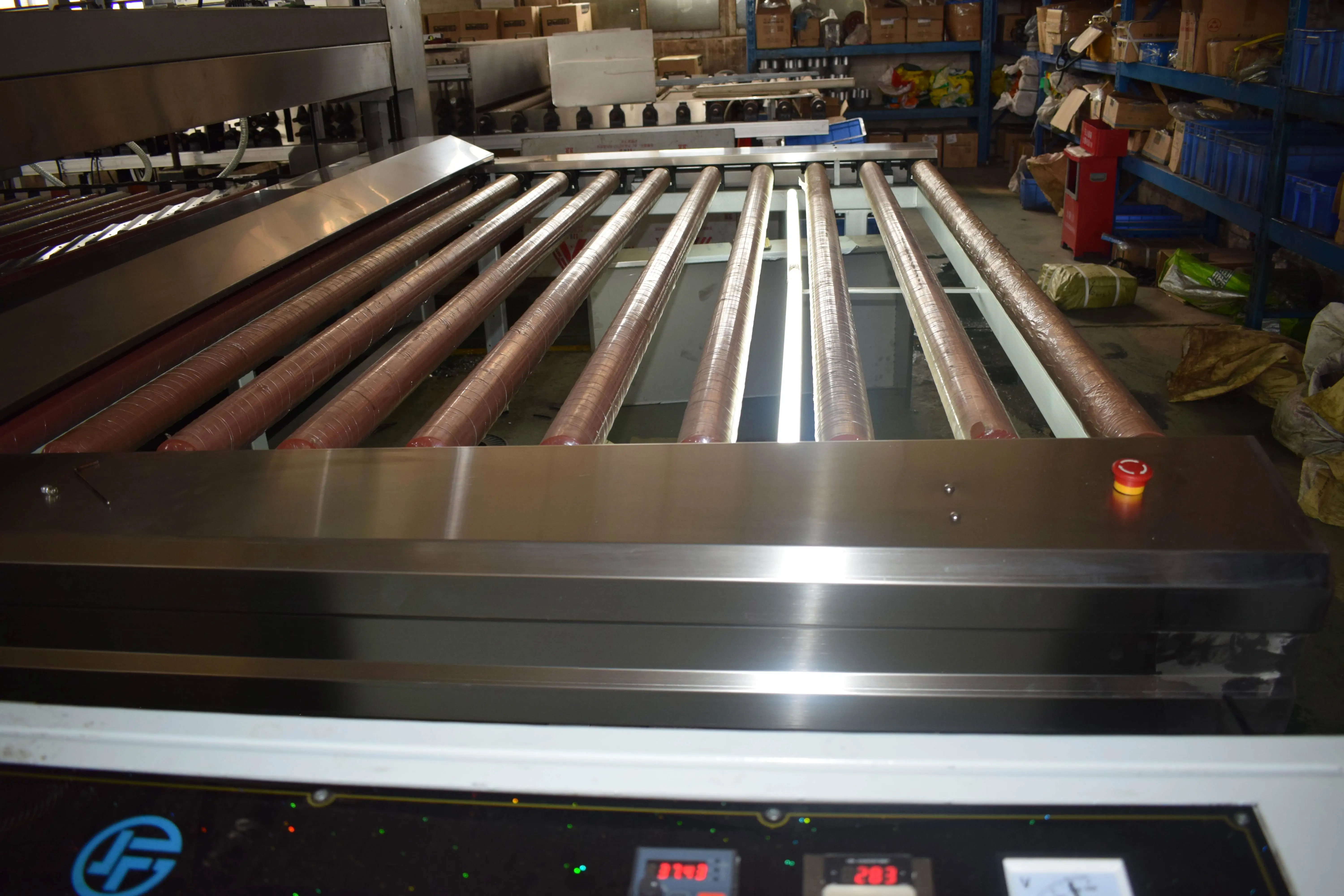

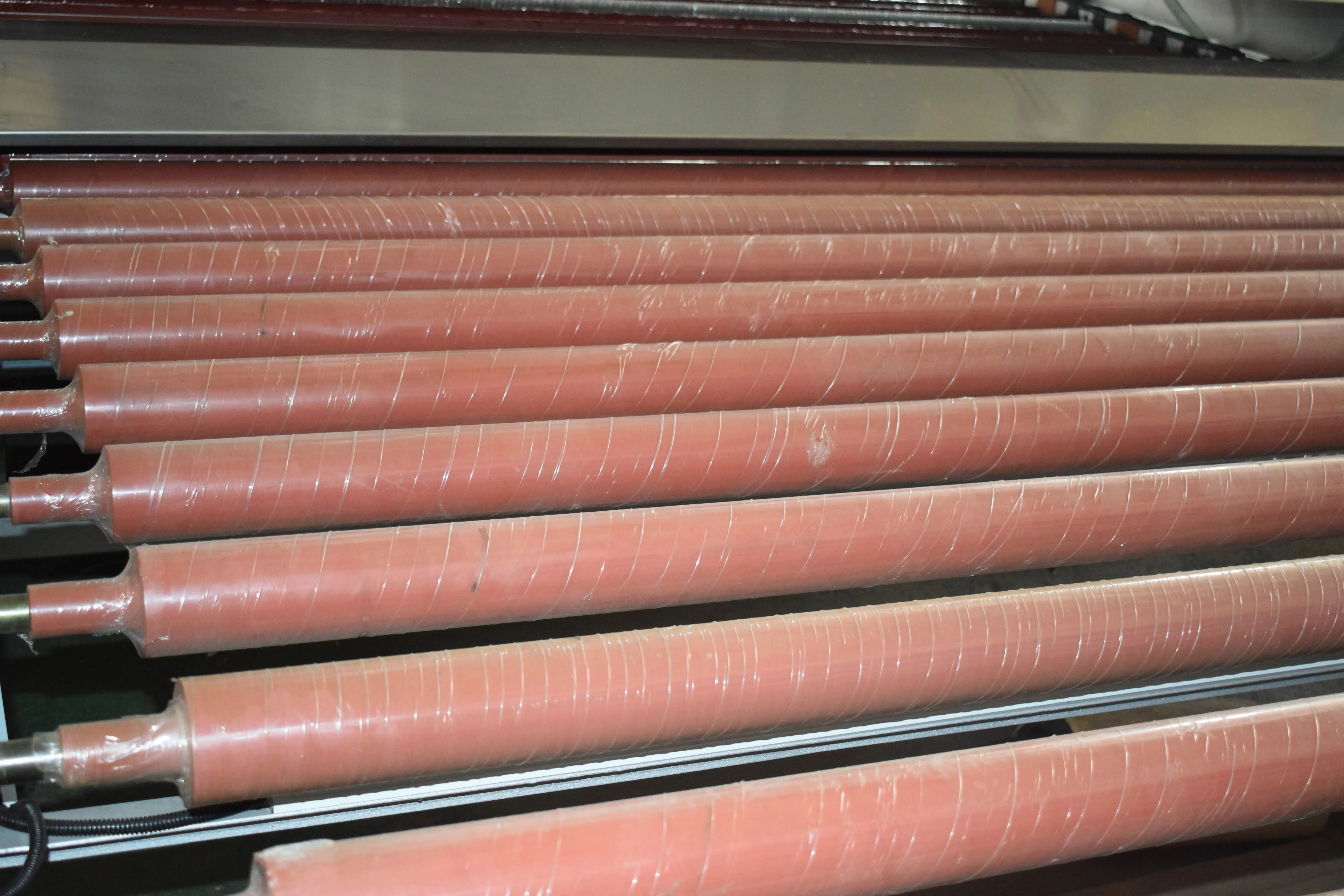

Transmission support stick
The transmission system is a combination of high-carbon steel bevel gears and long transmission rods. Each transmission stick is equipped with a set of bevel gear transmission, which makes the machine's transmission stable and can display the real-time processing speed on the control panel.

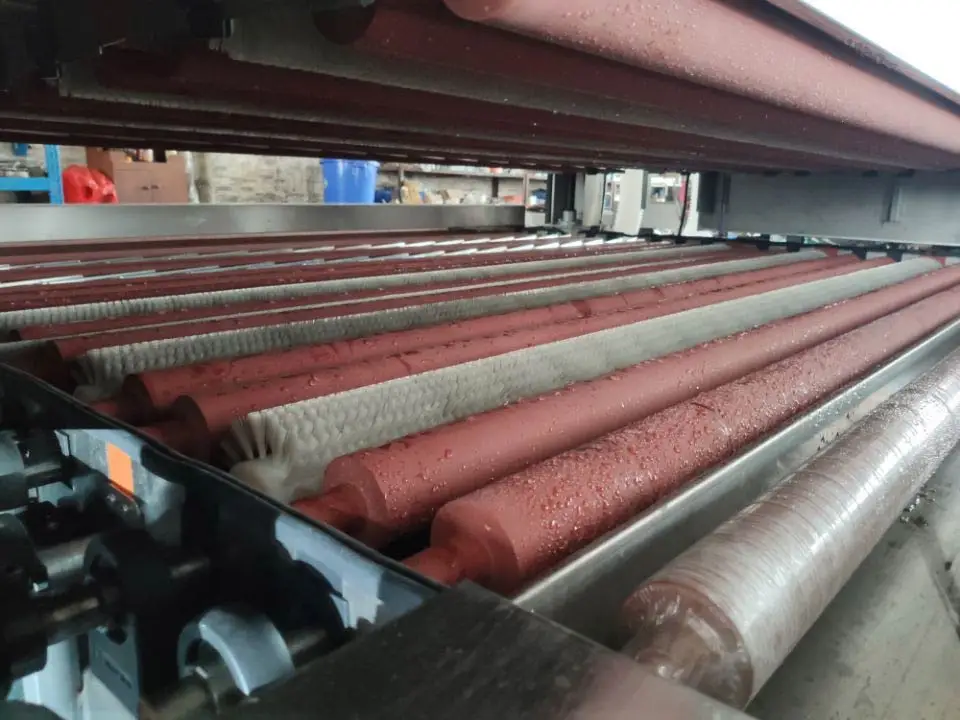

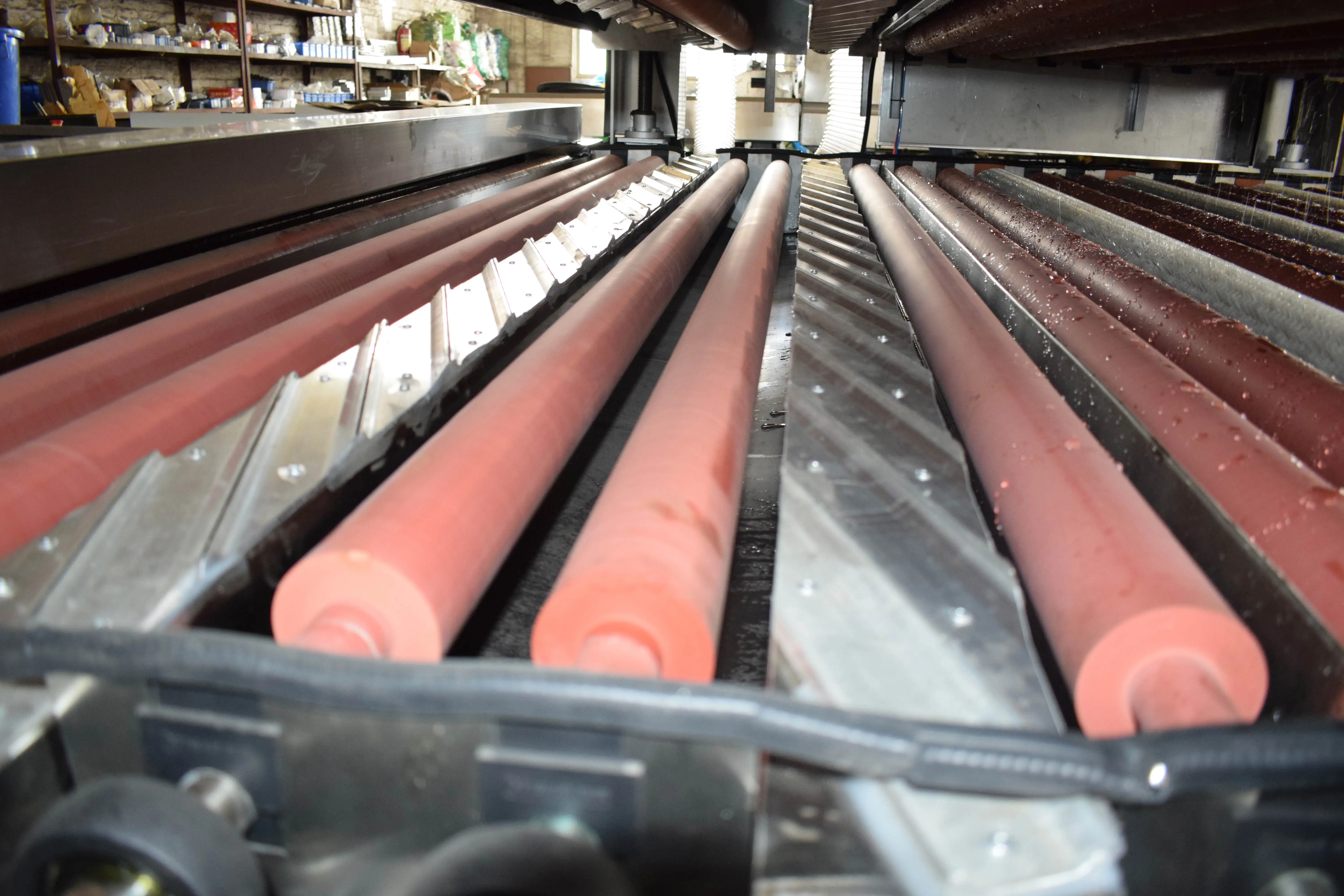

Brush
According to customer requirements, a soft brush cleaning device can be purchased. The soft brush cleaning device is equipped with a cylinder on the first and second groups. The brush on the third group is a soft brush. When cleaning the scratched glass, two sets of brushes can be raised and cleaned with the final soft brush.

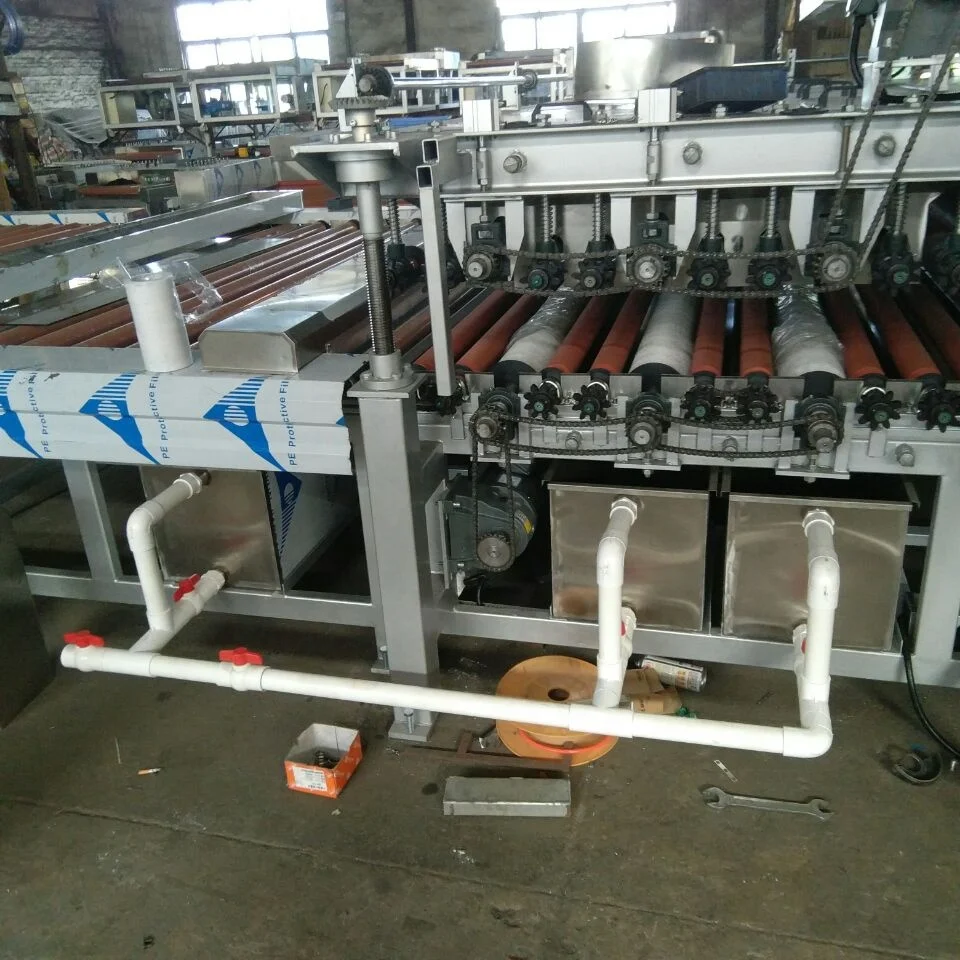

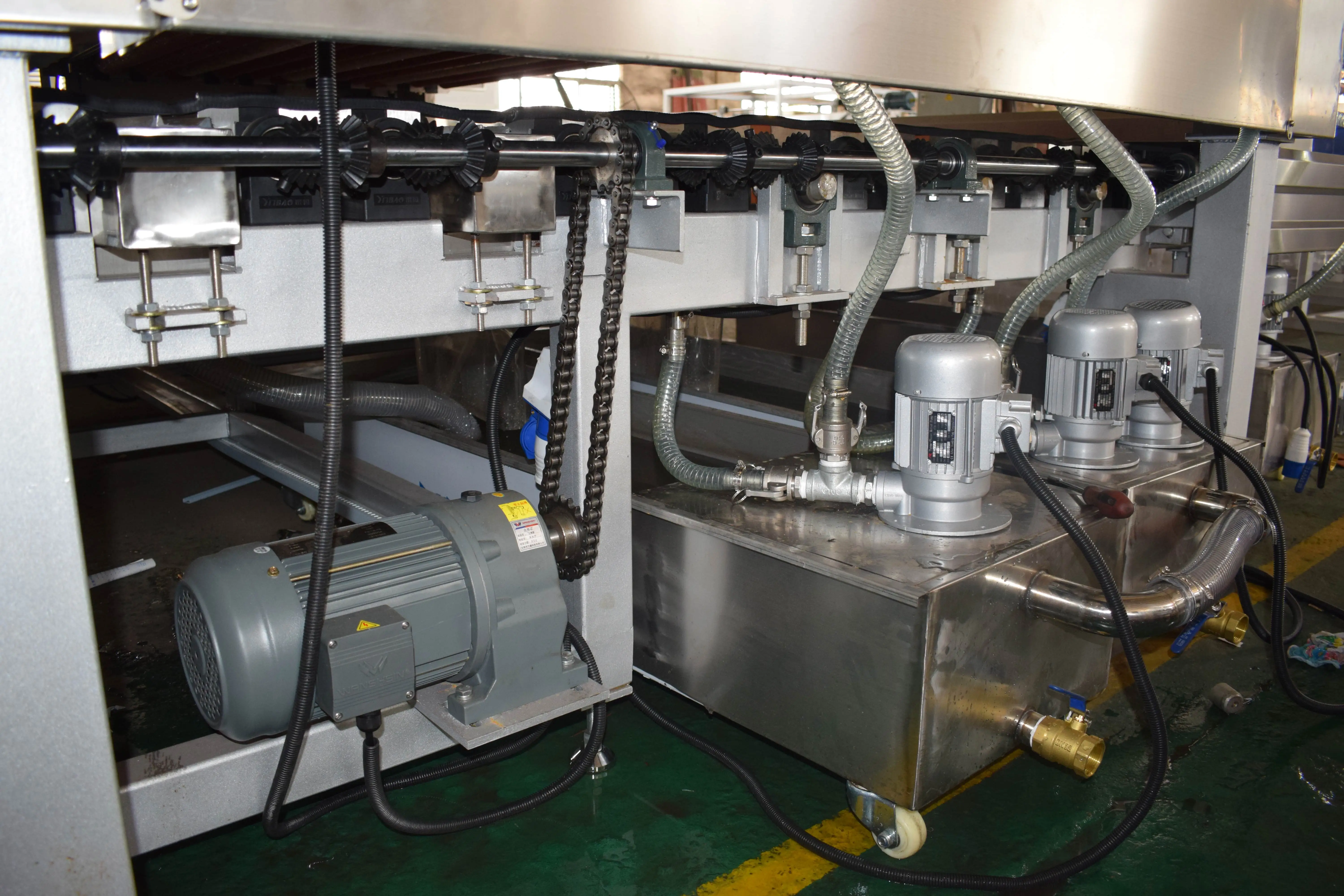

Water tank and pump
The water supply is provided by 3 independent water pumps and stainless steel water tanks. Three groups of galvanized water supply pipes, multiple high-pressure nozzles and brushes are used to form three small cleaning rooms to clean the glass to varying degrees. The first tank is equipped with a tank heating system.

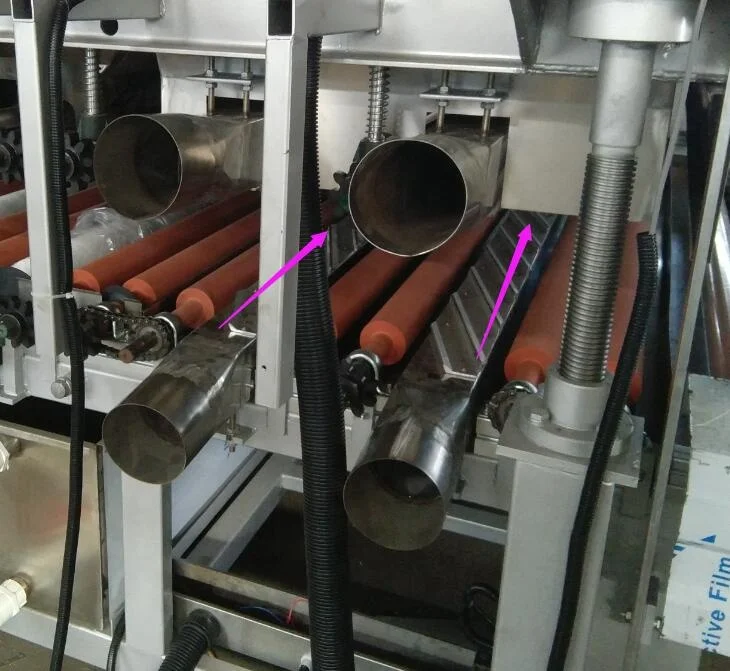

Air knife
In the air-drying section, two sets of stainless steel special aluminum alloy air knives are installed, which has the characteristics of low noise and strong air volume. 2 sets of aluminum alloy air knives. Soundproof cotton is affixed throughout the air-drying section, which can further reduce wind noise effectively.

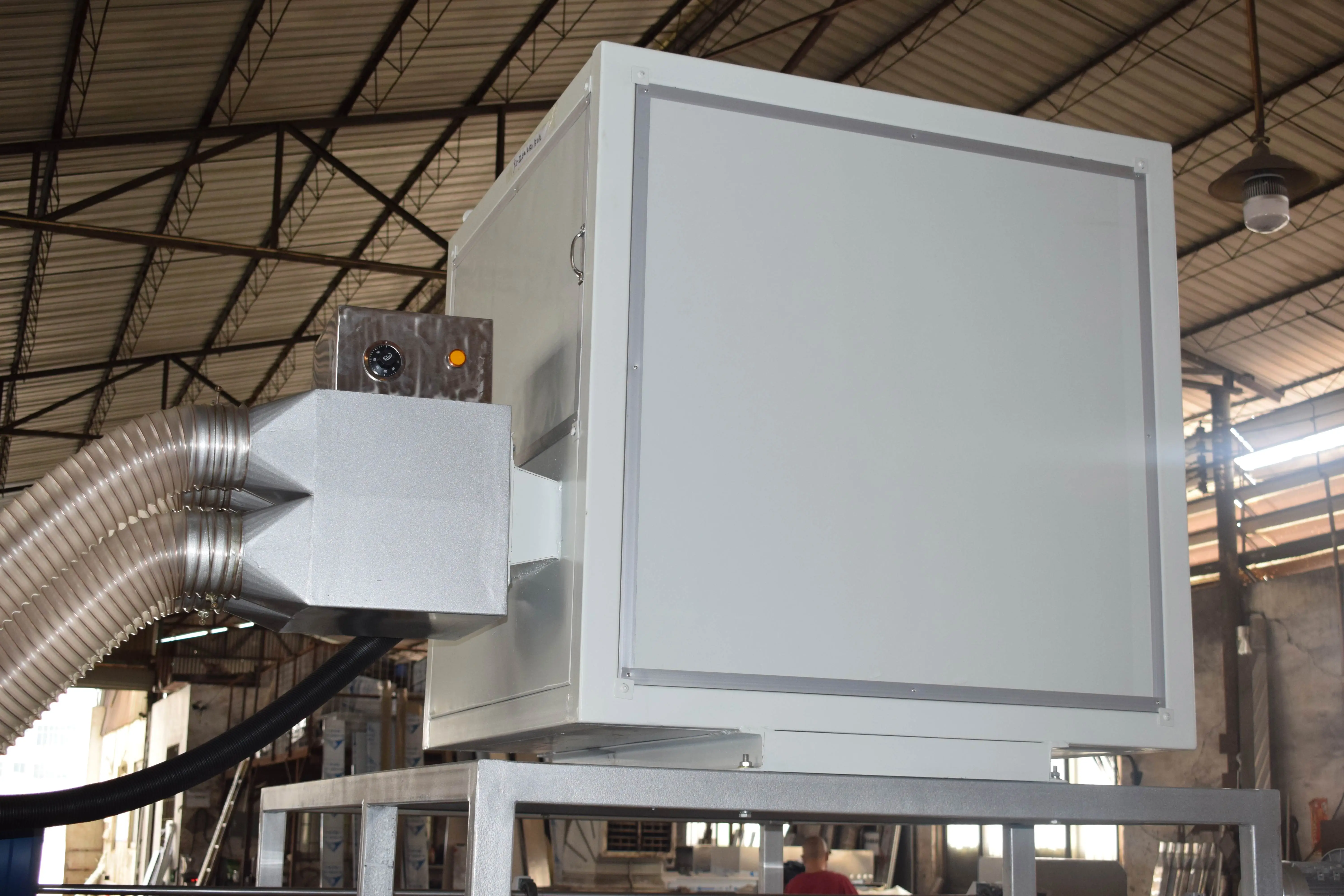

High-pressure fan
The air cabinet is equipped with a high-pressure fan. The air cabinet is equipped with a muffler and an air filter kit to ensure that it can provide a large amount of air, reduce noise and provide good drying results.
Light inspection
There is light inspection in the discharge section to check the quality of glass cleaning.
Detailed Images
Packing & Delivery
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
Technical Assistant:Charlie Yang
Mobile/Whatsapp/WeChat:0086 18138398872
Skype:globaljinfeng
Face book:Charlie Yang
Any questions of our machines,please contact me freely.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
