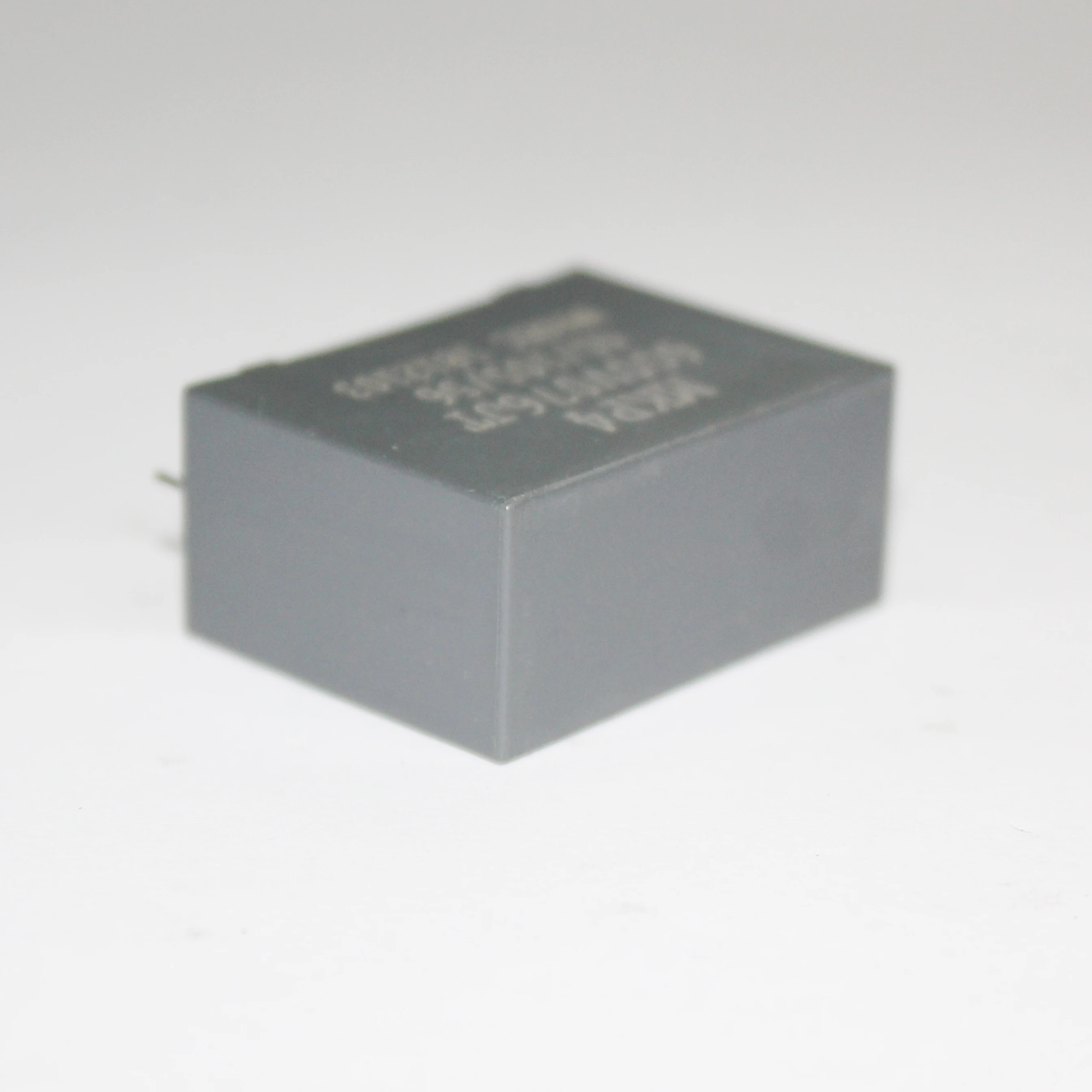

20uf 900vdc MKP4 long life,low ESL,metallized polypropylene film capacitor for DC filter water pump capacitor

Product Overview

Description

20uf 900vdc MKP4 long life,low ESL,metallized polypropylene film capacitor for DC filter water pump capacitor



Application:

Products suitable for high performance DC filter applications,such as:industrial and high-end power supply,solar inverter,etc.



Characteristics:

The dielectric use of self-healing metalized safety film

Low ESR and low Ls

High stability of capacitance under severe ambient condition,such as high temperature and high humidity

Excellent active and passive flame resistant circuit

RoHS Compliant

The optional safety film stucture(according to customer needs)



Tech Specification:

Standard	IEC61071
Rated capacity	8~90uF
Rated voltage	450Vdc,525Vdc,700Vdc,800Vdc, 900Vdc,1000Vdc1100Vdc
Capacity tolerance	±10%
Dissipation Factor(1KHz)	8uF≤CN≤20uF 20uF<CN≤50uF 40uF<CN≤60uF 60uF<CN≤90uF
T-T voltage test	1.5Un,10s,25℃
T-C voltage test	3000Vac,60s,25℃
Working temperature	-40℃~+105℃
Insulation resistance	C*R≥30000s 100Vdc,60s,25℃
THB test (Damp heat with loading)	Tempetature:85℃±2℃;Humidity:85%RH±2%RH Voltage:500Vdc;Duration:1000hours Capacitance change:10% Dissipation factor change:≤0.5%(1KHz) Insulation resistance:≥50% of the rated value
