XHX HOTselling 6025 60mm 5v 12v 24v mini solar air centrifugal blower fan ventilation exhaust fan

Product Overview

Description

XHX HOTselling 6025 60mm 5v 12v 24v mini solar air centrifugal  blower fan ventilation exhaust fan

HOTselling 6025 60mm 5v 12v 24v mini solar air centrifugal  blower fan



Type:	DC Axial fan
Size:	60X60X25mm
Material:	PBT (UL94V-O) plastics
Voltage:	5V 12V 24V
Speed:	3500-5500RPM
Air Volume:	7.46-12.43CFM
Power:	1.56W
Bearings:	Sleeve/ball Bearing
Power Interface:	2Pin,3Pin,4Pin Optional
Performance:Support for:	PWM,FG,LG,Moisture-proof,Waterproof ,Fireproof   Optional
Weight:	30g
Noise:	35dBA
Color:	White, Black
Motor:	Brushless DC, auto restart Impedance & polarity protected
Operation temperature:	-20° C~80° C
Insulation Resistance;	10 At 500VDC between lead and frame
Dielectric Strength:	1 min at 500VAC/50-60Hz, current min 5mA Operation Humidity: 20%~85%
Working voltage:	Rated voltage± 15%
Life Expectancy:	50, 000 hours at 20℃-Ball, 30, 000 hours at 20℃-Sleeve

1. Ball bearing and IC are imported from Japan,GermanyMotor Protection

2. Environmentally friendly and high temperature resistant

3. Motor lock flow protection and reverse connection protection

4. Water proof for IP68

5. PWM speed regulation

6. FG signal output

7. RD alarm function

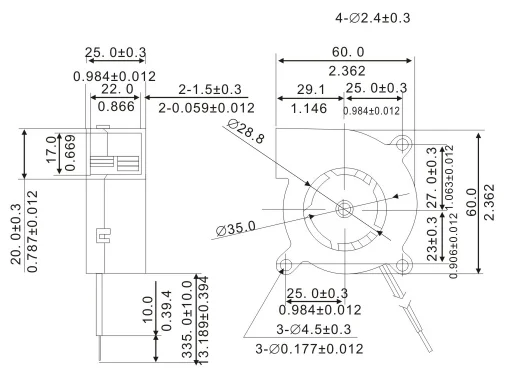

 UNIT:mm=inch

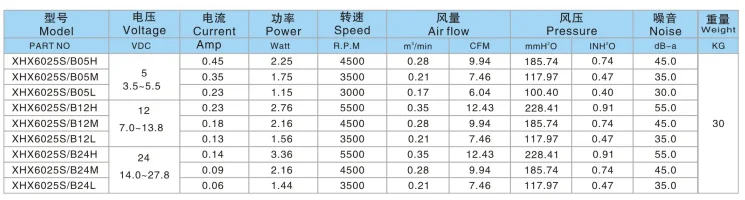

If the parameters you need are not in the table,

please contact us,can customized according to your requirements







Widely used
3D printers,Stage lighting,VR equipment,Intelligent Manicure machine, Projector,High-speed camera,Head mounted display,Automotive industry, Cabinet industry, Power industry,UAV application, Electric forklift,LED lighting industry, Hand held air detector,Charging machine,Nebulizer.Electromagnetic oven,Humidifier,Smart toilet,Intelligent household lampblack machine,Air purifier,Car GPS,Car LED lamp,Aromatherapy machine.CPU cooler,etc.



XHX HOTselling 6025 60mm 5v 12v 24v mini solar air centrifugal  blower fan ventilation exhaust fan



With years of production experience along, with excellent quality, advanced service and competitive prices has won numerous customer’s trust and support,No matter how much you order, We will do our best to serve you.











Q1. How can we know the product quality?
A1: We suggest you to order a sample. Also, you can send us email for detail photos for checking if you cannot get enough information in the product page.

Q2. Is it the final price in the price list?
A2:No, there still have some negotiated room. It is depends on the order you placed, the more you placed, the lower price you will get.

Q3.Can you offer OEM/ODM service?
A3:YES. The OEM/ODM is welcomed, we can printing any logo on the sample as your require.

Q4. How can I send inquiry?
A4:When you find something you are interested, you can click “chat now”, or you can leave your information to us.

Q5.What is your payment?
A5:We usually accept payment based on L / C, T / T, Western Union and PayPal



Q6:If I place an order, how long will it take to delivery it?
A:It usually takes about only 2-3 days on receipt of payment, depends on the quantity ordered and the stock status.



Q7: What can I do if I can not find the suitable fan model in the fan list?
A7:Please contact us for customized fans.If you want other high performance or other requirements, please contact me for more details, thanks.



Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
A:2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.If you want to get more information about our company,please contact us immediately.
