YH10W 24 Outdoor used 24kV 10kA riser pole type surge arrester

Share on (62184069650):


Price:

Quantity:


Product Overview

Description


YH10W-24 Outdoor used 24kV 10kA riser-pole type surge arrester


Technical Specifications:

Type



MOA Rated voltageMCOVCurrent Impulse Residual Voltage

2ms Rectangular current impulse

withstand

4/10μs High current impulse withstand



Creepage distance



1/4μs Lightning

 current impulse

8/20μs Lightning

current impulse

30/60μs Switching

current impulse

KV(rms) KV(rms) KV(crest)KV(crest)KV(crest) AKA(crest)mm
YH5W-242419.5827262150

65

500

YH10W-242419.5827262250

100

500

Nominal Discharge Current:5kA (10kA)

Creepage Distance:660mm

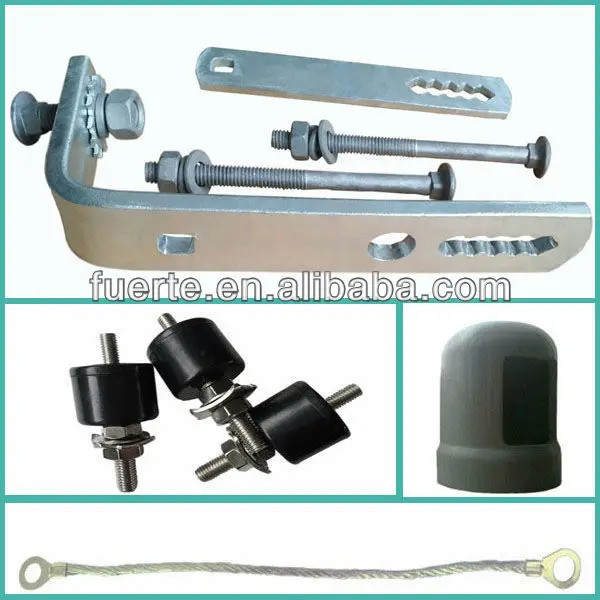

for arrester
