Enocomic screen printing equipment package Applications: 4 Color 1 Station Rotary Screen Press can install four screen plates, it can rotate independently after installation, which is available for four color overprint and design proof of screen printing business. This machine is the extension of overprint flat screen press, and can be applied to various substrates need overprinting, especially T-shirt. This machine has special T-shirt pallet, which is more convenient and accurate for location when printing. Even,the machine can be applied for screen printing on clothing, woven, metal, paper, copybook, plastic, wood, glass, ceramic tile, leather and various plane products, especially suitable for small businesses and individual printing shop. Main features: 1. Rational construction, simple, more practical. 2. Adopt combination design, save place, more convenient for transportation. 3. The machine has all-metal construction,advanced electrostatic spraying and electroplating,durable,ea sy to clear and no rust. 4. All equipments are perfectly packaged, all metal parts are separate packaged, which guarantees products safety during transportation, especially suitable for exportation. 5. We supply installation video, instructions and full set of tools for installation and daily maintenance.
Functions: 1. Screen printing platens can be rotary independently, easy operation, higher efficiency. 2. Super support device make the machine stable and balance. 3. The device of adjusting double spring tension make the machine available for screen frames of different weight. 4. Screen plate clamp can be moved up and down, which can be for all kinds of substrates within 3cm high.

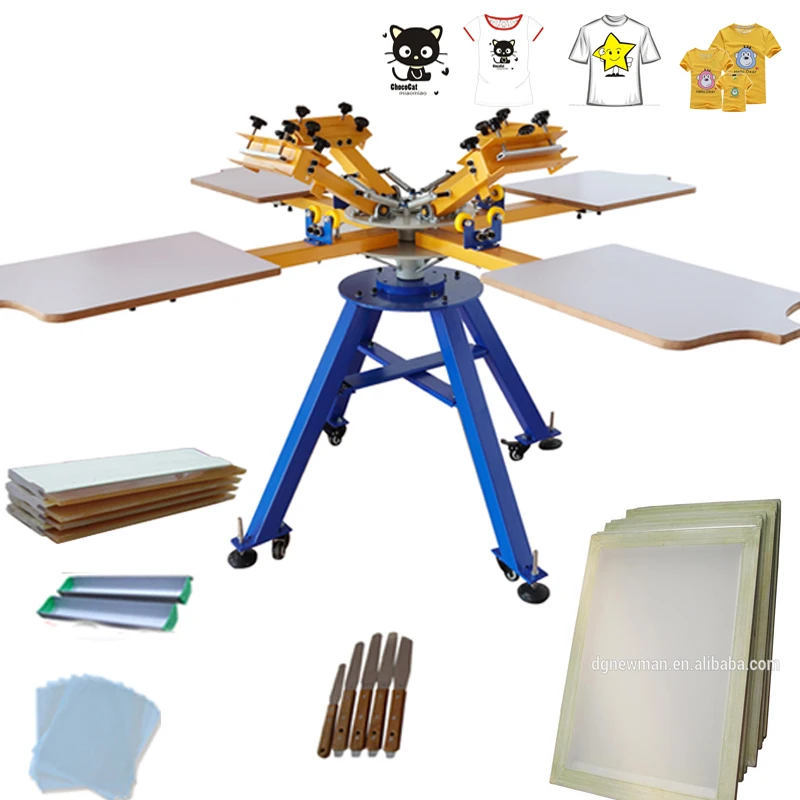

Model : NS404-ESU 4 color 4 station screen printing machine with new strong base (Yellow&blue color) it could adjust your screen mesh frame on an accurate position with our Easy Adjusting System, it could move up-down, back-forth,left-right and horizontal angles Pallet size : 450 x 610mm Max printing size:400*500mm Detachable T-shirt boards. The machine have 4 casters on the feet to help if any movement required Shirtboard and screen mesh can be rotated independently
• ND1865Tunnel Dryer Machine
• Machine Legth : 180CM
• Heating area: 100 x 65cm
Gross weight 200kg 220V 4800W
Package Measurement 188cm*108cm*73cm 1.482CBM
• Model : ND605 110V/220V Flash dryer with temperature controller • Power : 220 V 50 Hz, 2000W • Temperature controller • Full 18" x 18" (450 x 450mm) heating area • Adjustable height floor stand ( from 750mm to 1200mm) • Gross Weight : 25KGS • Packing : 1 strong carton box, 830 x 280 x590mm
• Mode : Drying Cabinet
• Power : 110V/220V, 2000W
• Max screen plate drying quantity : 4pcs
• Max frame size : 64*53*4.5cm
•Model : MD5060LED New Vacuum Exposure Unit
•Power: 110V,220V/50Hz
• Light source:LED light
• Lamp
power*amount:3W*100PCS(300W) • Digital display of exposure time setting
