China manufacturers wholesale professional 10L RTK uav for plant protection
- Category: >>>
- Supplier: Zhengzhou Yuantian Digital Technology Co. Ltd.
Share on (62184449240):
Product Overview
Description
Product Description
Flight control type | SUPERX2 GPS/RTK PRO | Operating efficiency | 4.0ha/h |
Homework at night | support | Automatic filling machine | ALR3 |
Autonomous obstacle avoidance | Tianmu XCope | Handheld remote | ARC1 |
Radar copy to ground | 30m | Smart handheld ground station | A2 |
Imitation ground accuracy | ≤0.1m | Dimensions | 1831x1831x472mm |
GNSS RTK | Minimum shipping size | 1190x1181x426mm | |
Maximum drug loading | 10KG | Smart battery | B12620/B12710 |
Effective spray width | 3.3m | Battery cycle life | 300 |
The largest single flying area. | 1.32ha | Nanny charger | CM4750 |
Spray head matching | Centrifugal spray | Energy storage charger | CEB2600 |
One second start stop | support | Charger | CT600 |
AI Prescription map | support |
|
|
P20 2018 RTK Sales kit
Serial number | Product name | FOB/$ | Quantity | Total market price /$ |
P20 2018 RTK ED | ||||
1 | Carrier aircraft | 9693 | 1 | 9693 |
2 | A2RC remote control | 670 | 1 | 670 |
3 | 10L Medicine chest | 55 | 2 | 110 |
4 | P20 Intelligent battery | 650 | 2 | 1300 |
5 | Nanny charger | 710 | 1 | 710 |
6 | Mobile base station | 1616(Package discount, not sold separately) | 1 | 1616 |
Total: | 14099 | |||
P20 PACKAGE TABLE
Serial number | Product name | FOB/$ | Quantity | Total market price /$ |
P20 2018 RTK ED | ||||
1 | P20 Intelligent battery | 650 | 4 | 2600 |
2 | Energy gathering charger | 116 | 1 | 116 |
3 | Energy storage charger | 710 | 1 | 710 |
Total: | 3426 | |||
Basic parameterS
· Brand :FGA Agriculture
· Model:P20
· Classification:Plant protection drone
· Medicine box volume: 10 liters
· Power type: electric
Product description
Product name:FGA Agriculture P20 Plant Protection UAV
Manufacturer:Zhengzhou yuantian Digital Technology.,CO.Ltd
The whole machine L*W*H:1150*1150*400(mm)
Maximum takeoff weight :20KG
Detailed data of P20 drone
Spray atomization standard:70 - 200 mm(Adjustable)
Dosage per square centimeter:40 - 250 granularity
Nozzle diameter:60 mm
Spray flow:150 - 500 ml / min(Adjustable)
Spray width:1.5 - 5 M(Depending on the height of the job)
Drug loading volume:8 L – 10L
Working height:1 - 3 M
Working speed:1 - 6 M / S
Spray efficiency:Single takeoff and landing 1.3ha
Spraying time:Single takeoff and landing 25 min

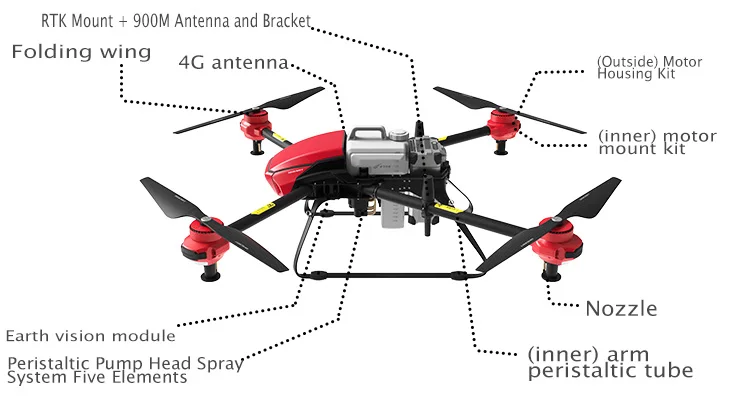

P20 UAV mainly constitutes module parameters
Smart battery parameters
Electricity: 16000 mAh
Flight time: (25 minutes of continuous drug loading)
Dimensions: L 343mm x W 207mm x T 85mm
Weight: 4.5kg
Life: 150 cycles
Ground station parameters
Screen size: 7-inch high-brightness HD display
Processor: 4-core Z1 processor
Battery life: 8 hours
Image link: 2.4G data/image link
Image channel: 5.8G "zero" delayed image channel
Weather station parameters
Height: 3m
The sensor device is as follows:
Rain sensor, wind direction sensor, wind speed sensor, temperature sensor, air ressure sensor, humidity sensor.
