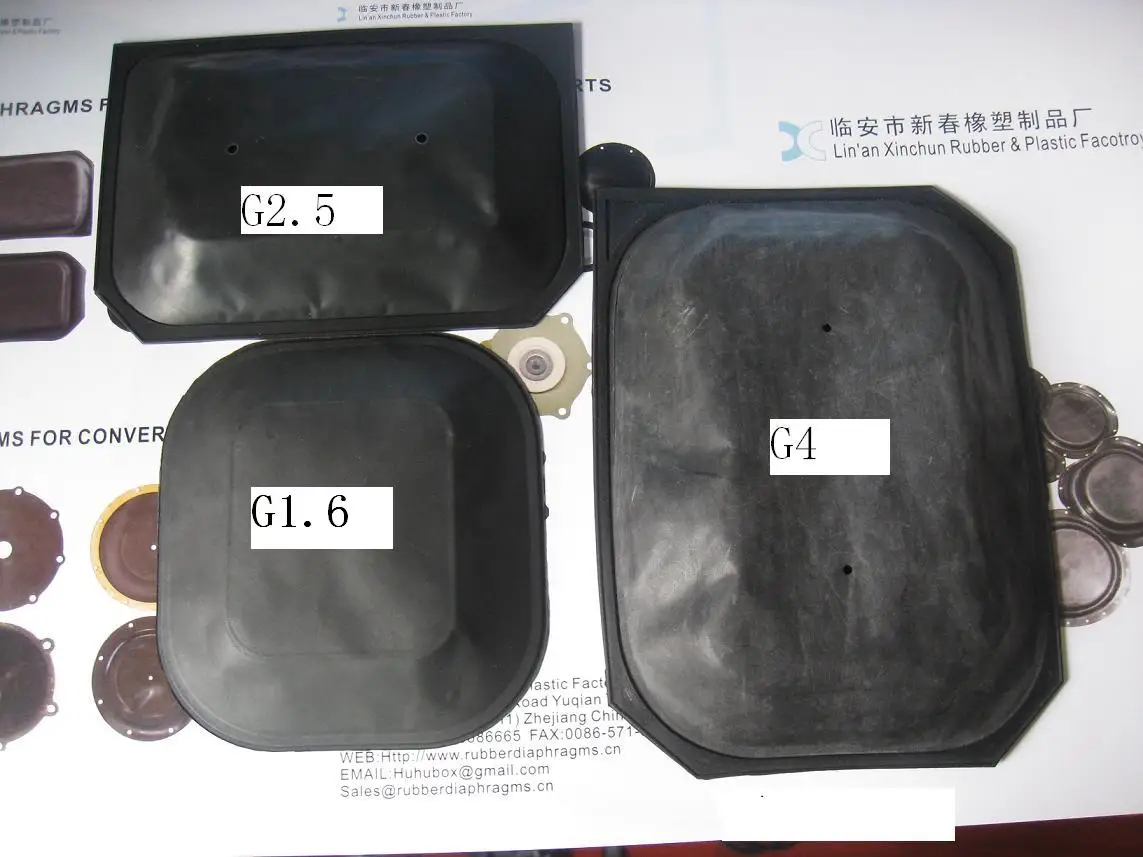

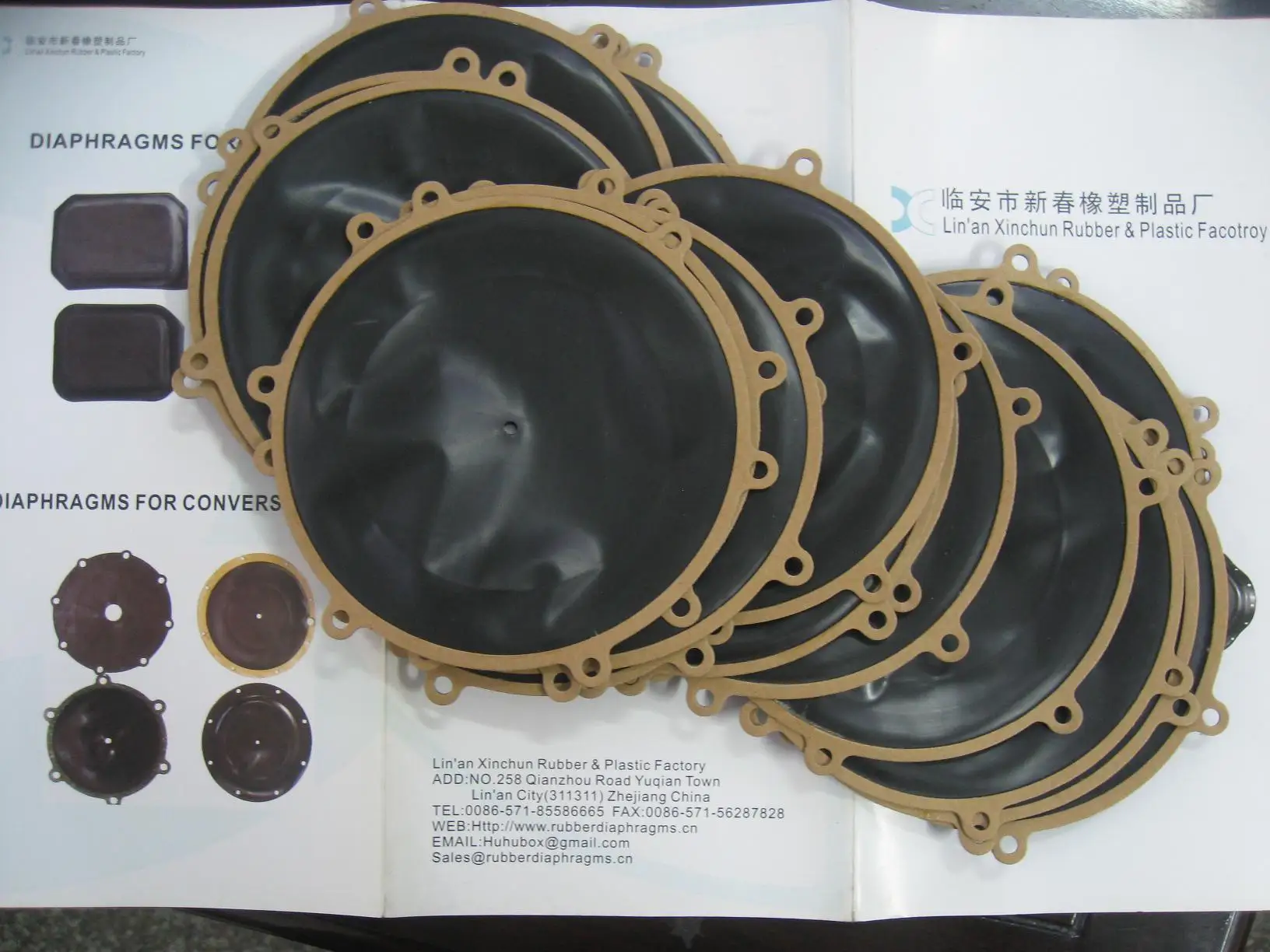

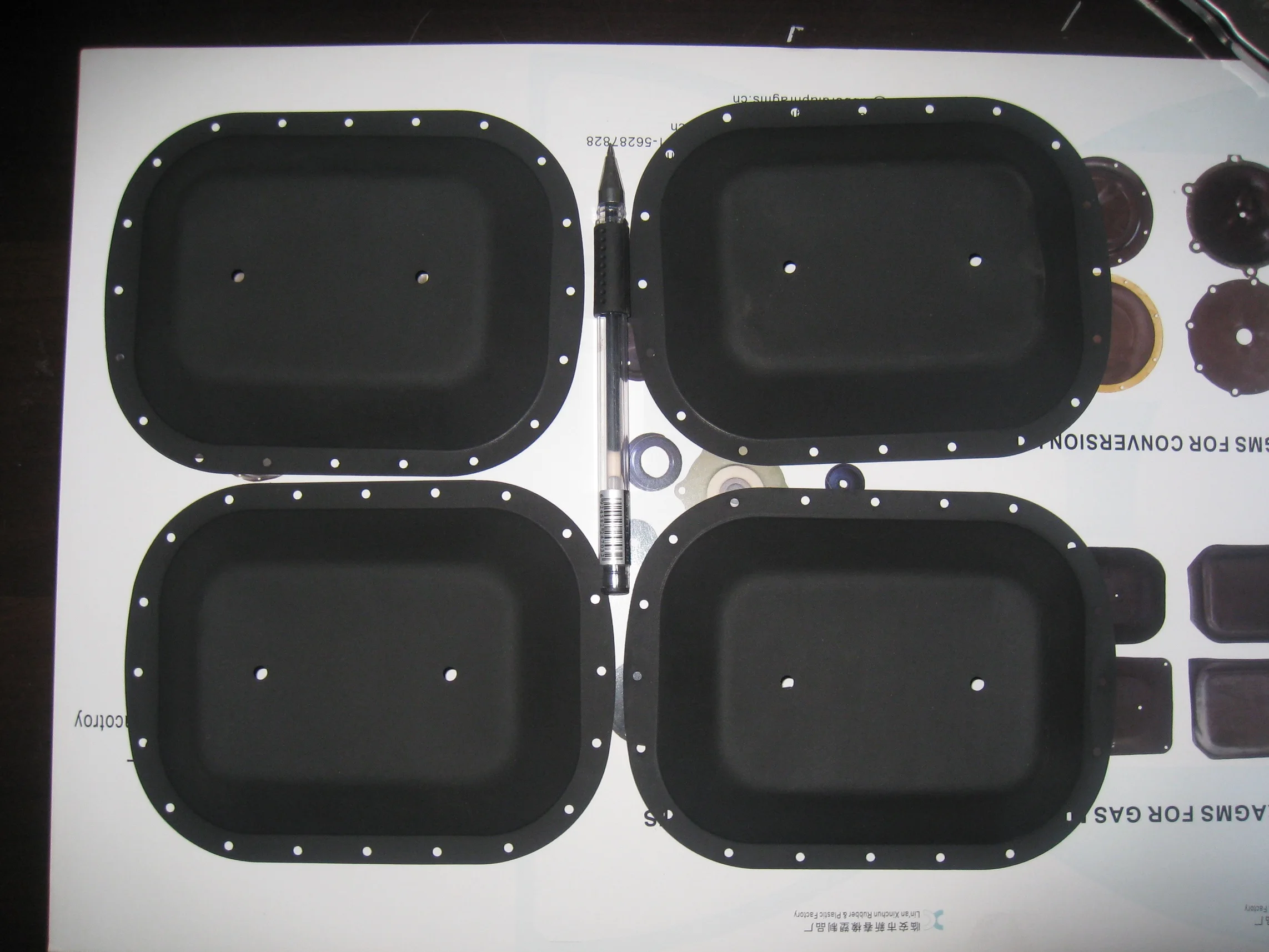

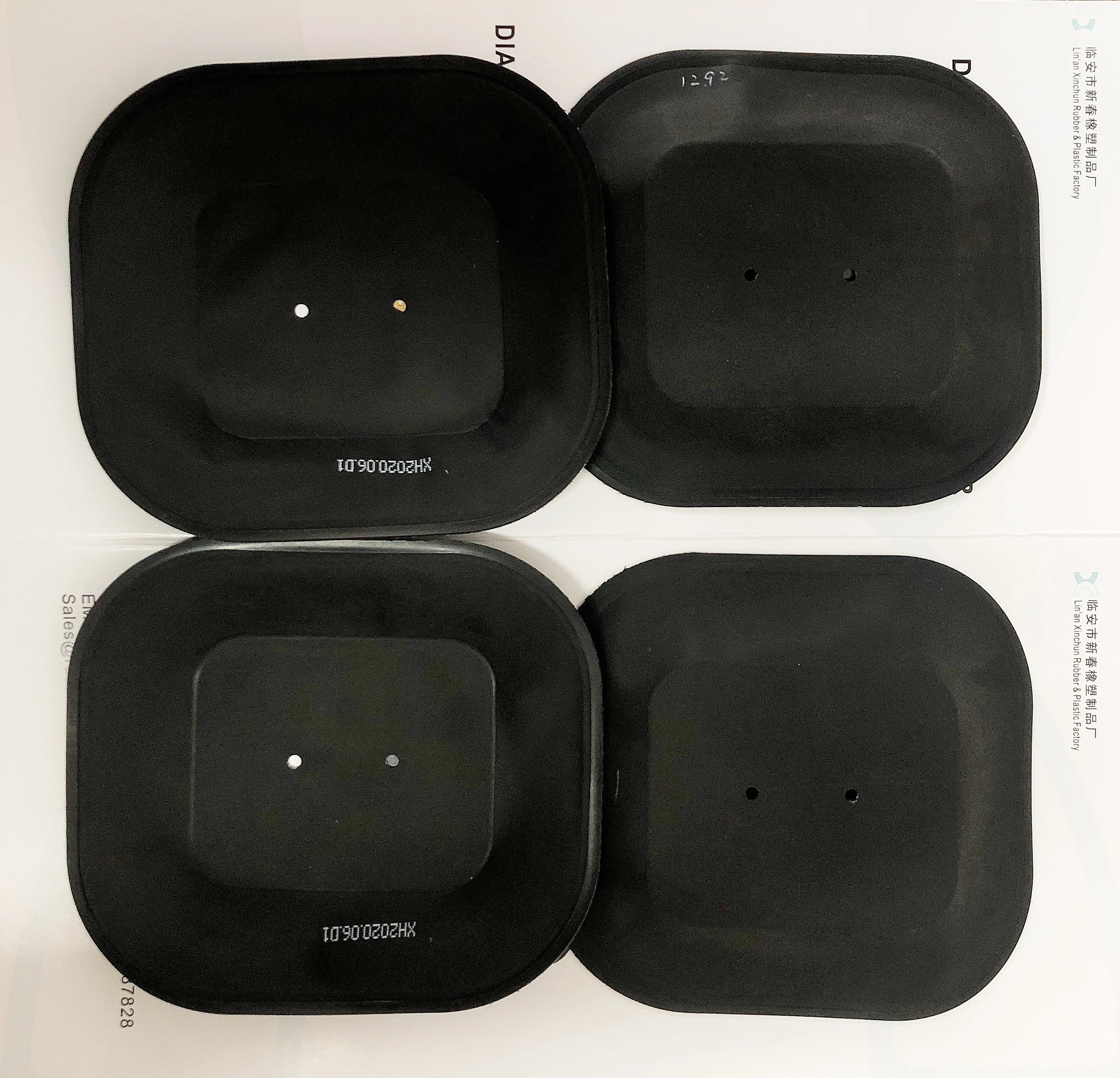

Rubber diaphragm gas meter diaphragm G4 G2.5

Product Overview

Description

Diaphragm gas meters are the most common type of gas meter, regularly seen in residential and small industrial properties.

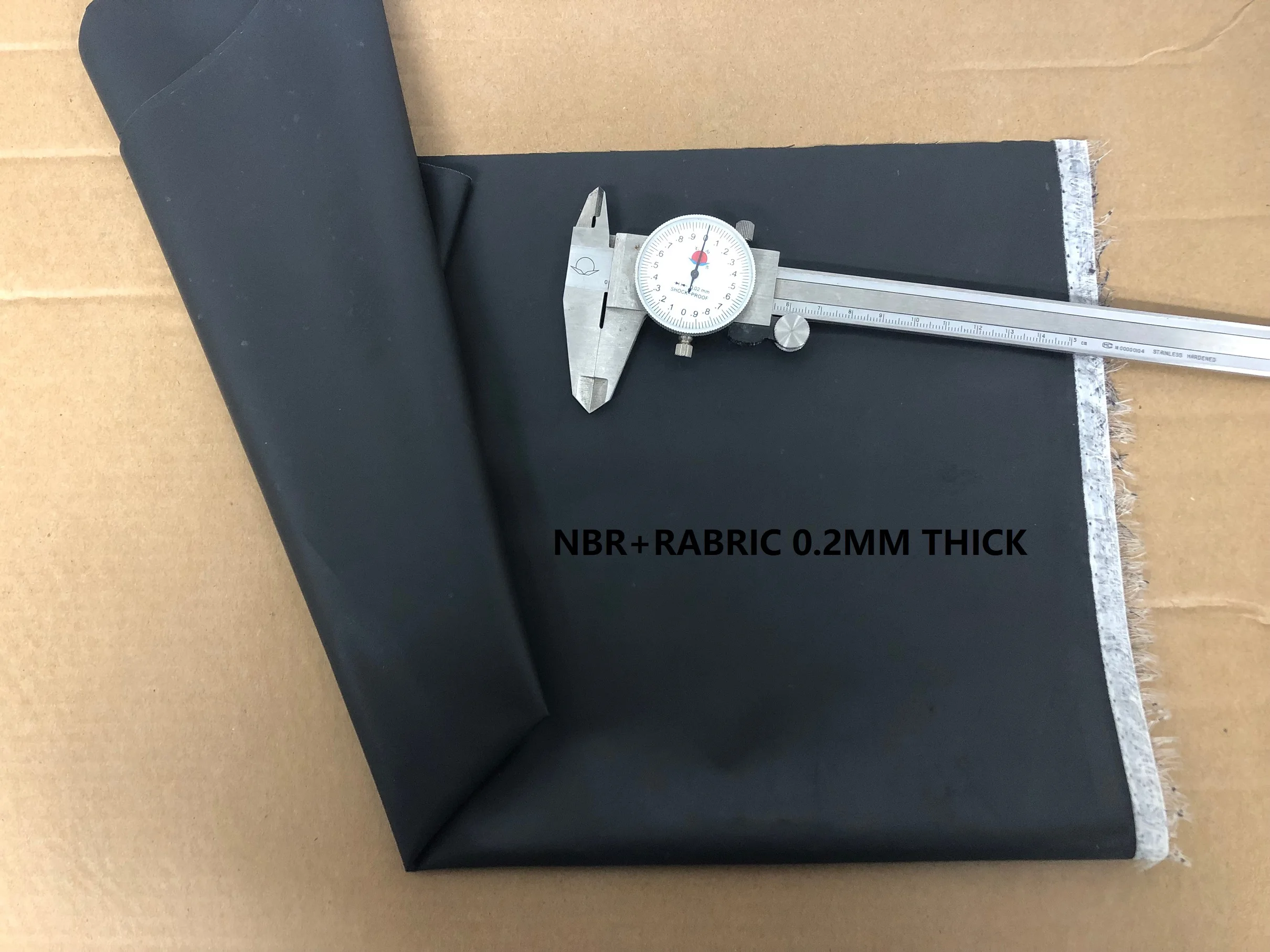

Fabric reinforcement is usually required when pressure differentials exceeded 5 psi across the diaphragm. Some applications might require elastomeric coatings on both sides of the fabric. Fabric and elastomer are two of the main materials used in molding or fabricating the diaphragm seals. All kind of high-performance rubber materials is working always under the standard of ASTM d-2000 specifications. The fabric actually is the key components for diaphragm seals which used under pressure and movement and the supply from our local textile industries.

We pride ourselves on our mixing and molding technology, ensuring your rubber products are of uniform quality and free from contamination. Our rubber compounds are formulated to ensure we can meet the exact requirements of your application.

Whether you require natural rubber, Nitrile, Silicone or specific formulae, please do not hesitate to contact us for a no obligation discussion and quotation.

Diaphragm
Function	Seal for Automotive, Machine, Valve, Electrical Appliances, etc.
Material	NR, NBR, HNBR, EPDM, Silicone, ACM, AEM, FKM, FVMQ, etc.   diaphragm for regulator
Color	Black (recommended), but other color available
Hardness	20~90 Shore A  diaphragm for regulator
Certificates	RoHS, PAHS, REACH, FDA, KTW, NSF, WRAS, CCS, EN681-1, National Sanitary Certificate
Size	DN max = 2000mm, all other smaller sizes will per customer demands   diaphragm for regulator
Properties (Optional and Multiple)	Oil Resistance, Chemical Resistance, Steam Resistance, Aging Resistance, Heat Resistance, Cold Resistance, Fire Resistance, Environment Protective, Strong Resilience, Abrasion Resistance, etc.
